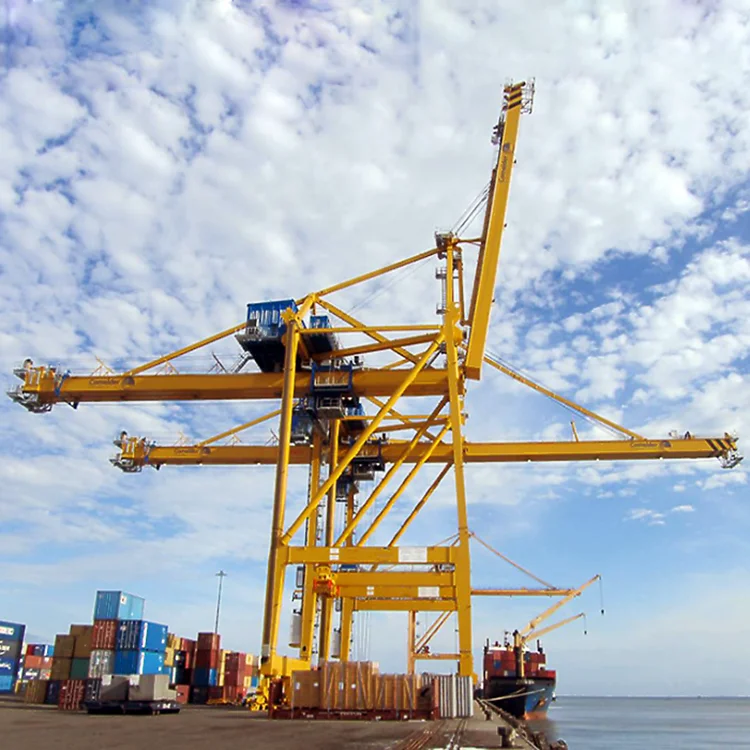

STS/QC Ship To Shore Gantry Crane Container Terminal Port
Product Description
Quayside container cranes (abbreviation STS, QC), mainly composed of steel, lifting structure,tilt mechanism, crane traveling mechanism, trolley traveling mechanism, machine room, lift container spreader, electrical equipment and other necessary safety and auxiliary equipment.Depending on the type of trolley, the model is divided into traction, semi-traction, self-propelled, with the adoption of PLC control systems and CMMS automatic-fault monitoring and diagnostic functions, there is sufficient communication and lighting. The steel is divided into single, double box structure, the girder structure and H-type gantry structure.
Advantages:
1.Reasonable structure.
2.Favorable performance.
3.Smooth starting and stopping.
4.Safe and reliable traveling.
5.Low noise, commodious cabin and good view.
6.Convenient maintenance,excellent exchangeability for parts and computers.
7.All round protection,easy operation.
8.Saves electricity specifications.
9.Precise control and positioning.
10.Wireless Radio Remote control.
11.PLC automatic control system.
12.Flameproof, Cabin Operated.
Want to know more, contact me!
Referenced standards:
1.GB/T15361-91 quayside container crane technical conditions.
2.GB/T15360-91 quayside container cranes test methods.
3.GB6067-85 crane safety rules.
4.GB3811-2008 crane design standards.
5.ISO standards.
6.FEM standards.
7.JIS standards and so on.

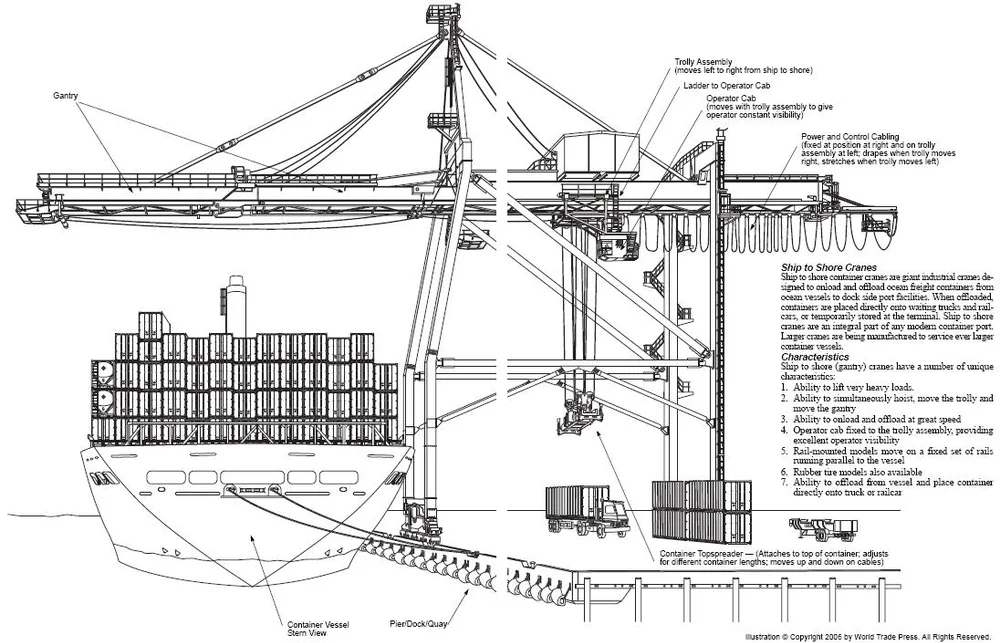

Quayside container crane(STS&QC) generally includes the following units:
1.Steel frame
2.Luffing mechanism
3.Inclination mechanism
4.Crane travel mechanism
5.Trolley traverse mechanism
6.Machinery house
7.Elevator
8.Container spreader
9.Electrical equipments
10.Other accessory equipments for safety.

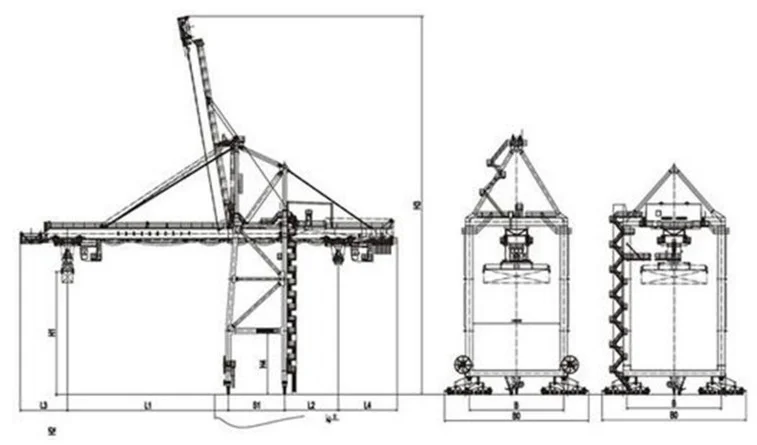

Technical parameters of Quayside container crane
Want to know more, contact me!
Capacity of spreader | T | 30.5 | 35 | 40.5 | 50 | ||
Capacity of Hook | T | 38 | 45 | 50 | 60 | ||
Working duty | A7 | A7 | A8 | A8 | |||
Span | S | 10.5 | 10.5 | 22 | 22 | ||
Base distance | B | 16.5 | 17.63 | 16 | 16 | ||
Lifting height
Above Rail/below Rail | H1 | 22 | 22 | 28 | 38 | ||
H2 | 16 | 10 | 14 | 14 | |||
Speed | Hoisting | With full load | 46 | 30 | 50 | 70 | |
Only with spreader | m/min | 120 | 60 | 120 | 150 | ||
Trolley travelling | 150 | 120 | 120 | 220 | |||
Traveling | 45 | 25 | 45 | 45 | |||
Boom hoisting time, one way | min | 7 | 6 | 5 | 5 | ||
Main dimensions | L1 | 38000 | 30000 | 38000 | 55000 | ||
L2 | 10000 | 10000 | 11000 | 18000 | |||
L3 | 4000 | 8850 | 6000 | 6300 | |||
L4 | 4000 | 11000 | 15000 | 20000 | |||
H3 | 14000 | 11000 | 12600 | 16500 | |||
H4 | 75670 | 68100 | 8000 | 9500 | |||
B0 | 25600 | 17630 | 25600 | 26500 | |||
Total power | KW | 650 | 500 | 920 | 1700 | ||
Max. working load of wheel | KN | 300 | 260 | 400 | 450 | ||
Crane rail | P50 | P50 | QU80 | QU100 | |||
Power supply | 380V,50HZ,3 Phase AC | ||||||
