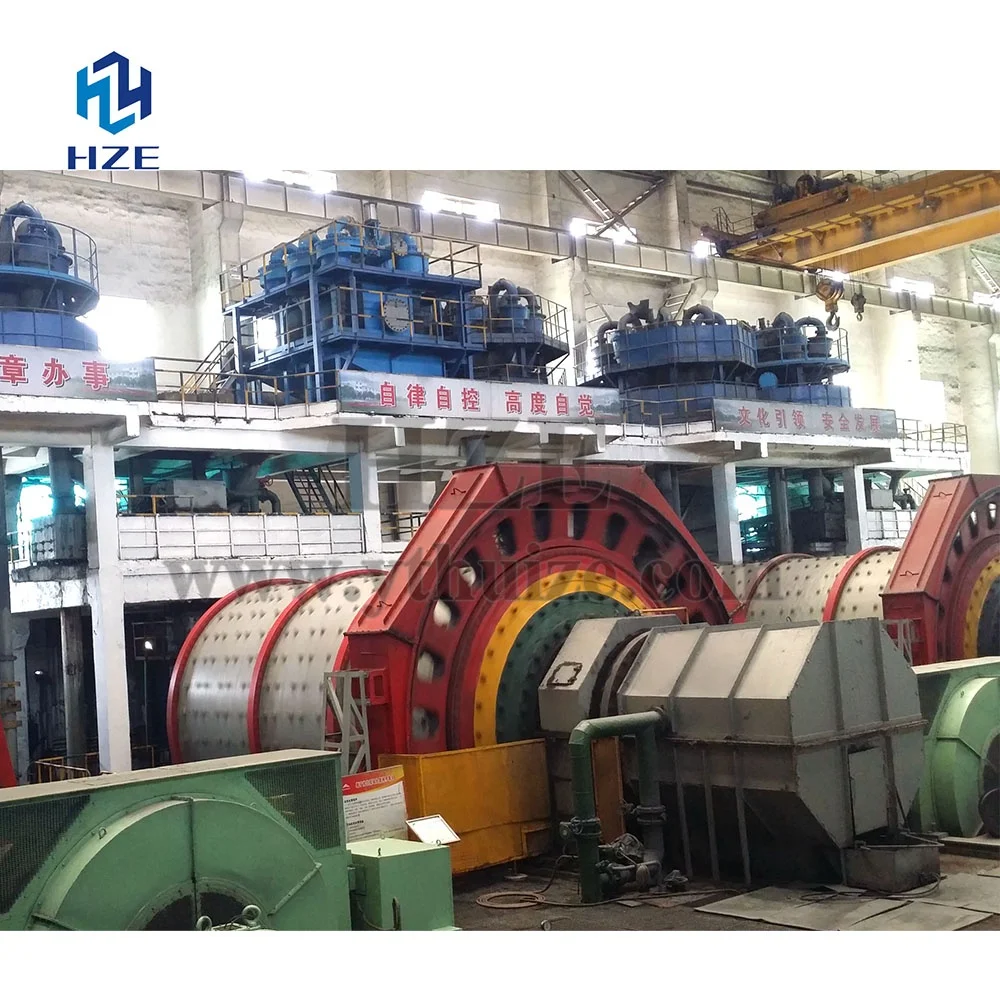

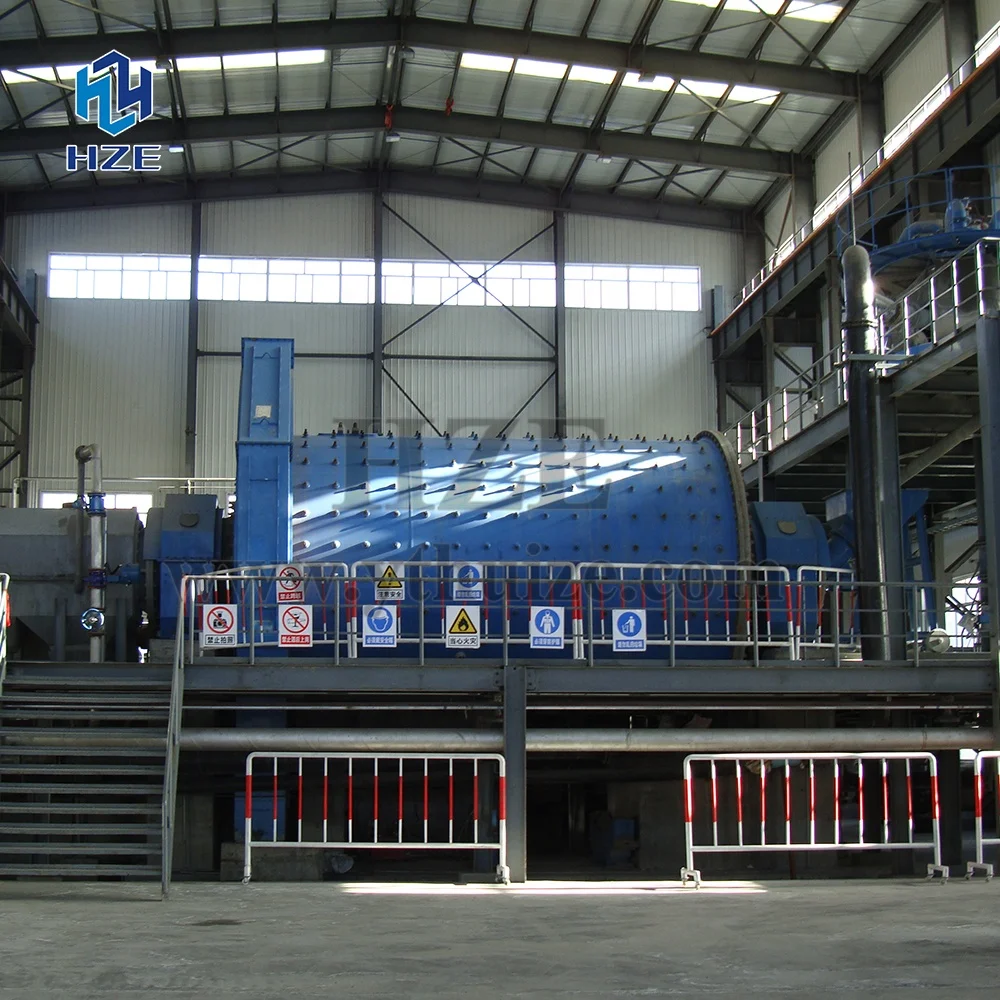

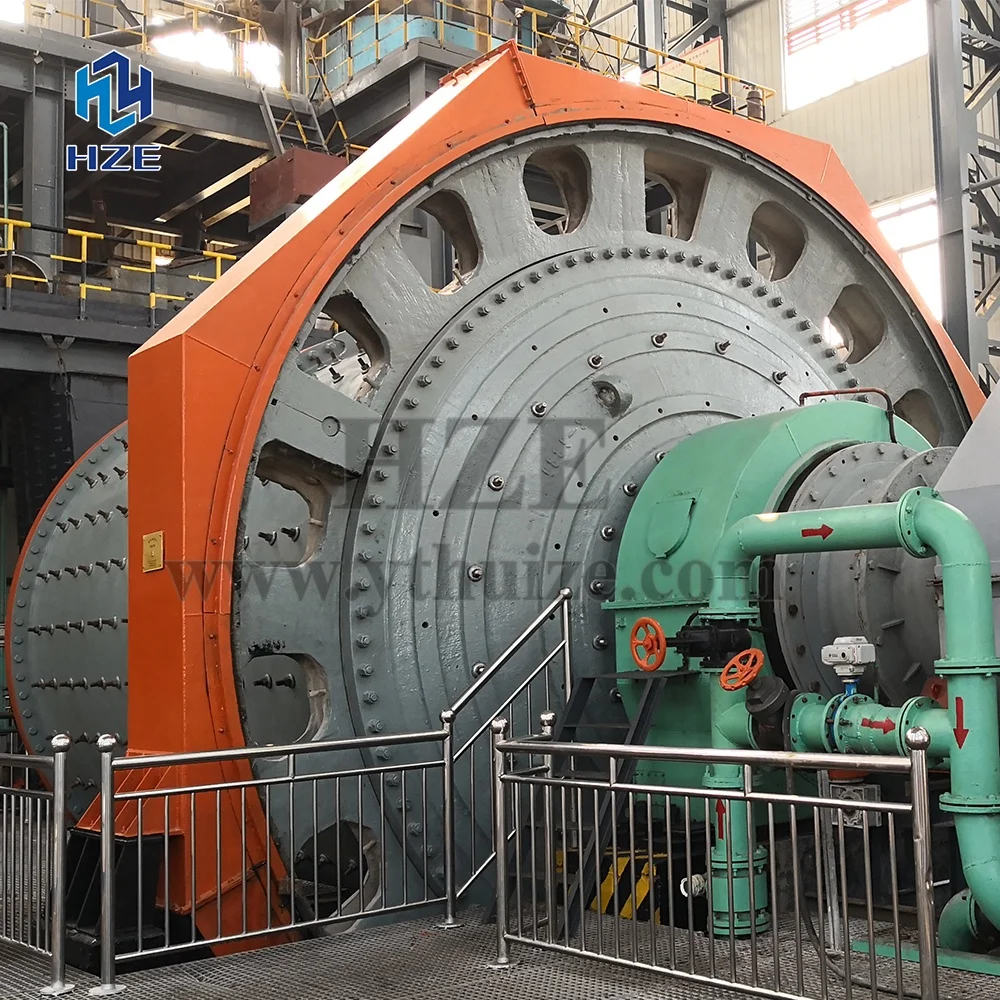

The transmission device drives cylinder to rotate. Materials and water are fed from the feeding end of cylinder and materials are grinded by impact and grinding of steel balls and ores into fine particles. The continuous grinding compels the slurry to move from feeding end to discharging end. The grinded particles with proper size and water mix to slurry which flows out of the discharge end of the ball mill.
Features
Large double row self-aligning rolling bearings or hybrid bearings are used to reduce the friction force which is easy for starting and the energy is saved by 20-30%.
Grooved ring high manganese steel liners are used to increase the contact surface of ball and ore, strength the grinding, lift the ores, and reduce the energy consumption.
The steel frame can be used for the ball mills with diameter 2.7 meter or less in order to design and manufacture the modular plant, reduce the amount of civil construction and install the machine easily.
Slurry discharge type can be selected as overflow or grate according to the mineral materials situations.
Large discharging outlet is designed for more capacity.
Depending on the customer's site conditions and demands, the electric motor is selected high-voltage or low-voltage type, and the liners materials can be high manganese steel or wear-resistant rubber. The brand of the motor or reducer can be chosen by the customer freely.
It is recommended that the ball mills equipped the hybrid bearings should have the hydraulic jacks to lift the cylinder easily for installation and service.
The ball mill runs smoothly and reliably.
The big diameter ball mills have the inching driving device for easy starting and convenient maintenance.
The air forced grease spaying atomizer ensures the perfect lubrication of the pinion and girth gear.
Application Scope
The overflow ball mill can be used for primary grinding or re-grinding for the expected particle size.
Ball mill is one of the most commonly used mining equipment, which is widely used in mineral processing, construction materials, silicate and chemical industries. In the production of small scale, medium scale or large scale mineral processing plants, it is generally used as the grinding machine for metal ores of gold, silver, copper, lead, zinc, nickel, manganese, iron, molybdenum, chromium, tin and others, as well as limestone, barite, quartz, graphite, feldspar, fluorspar, etc.

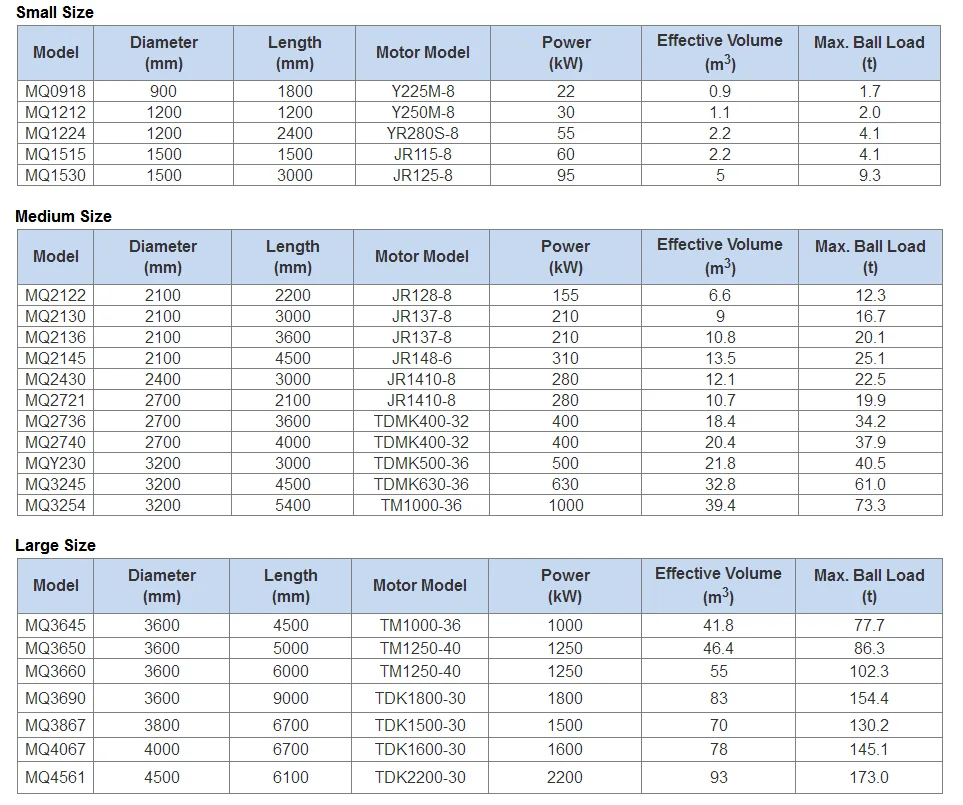

Technical Parameters

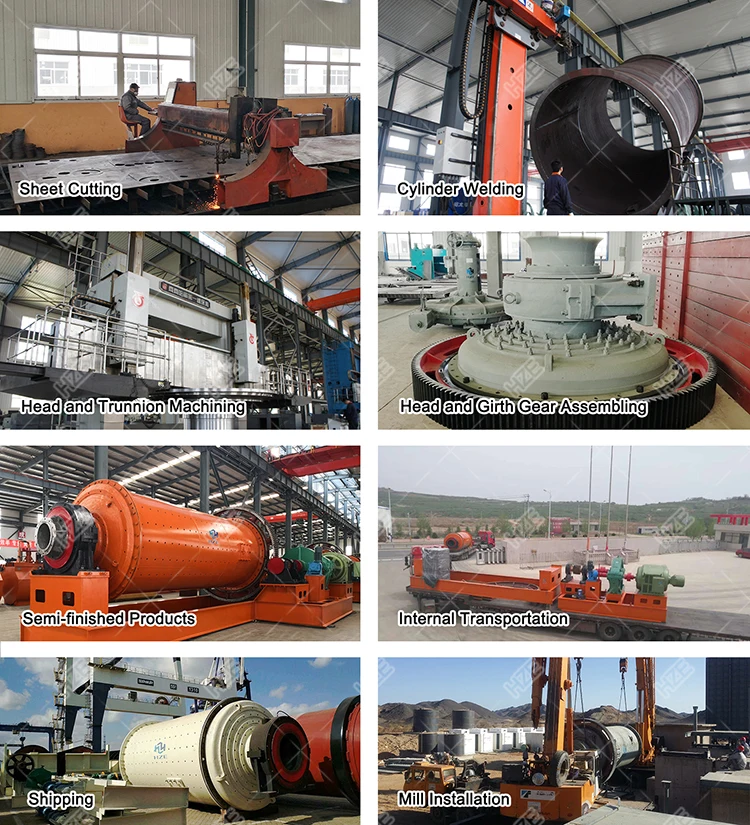

Ball Mill Manufacturer, Transportation and Installation

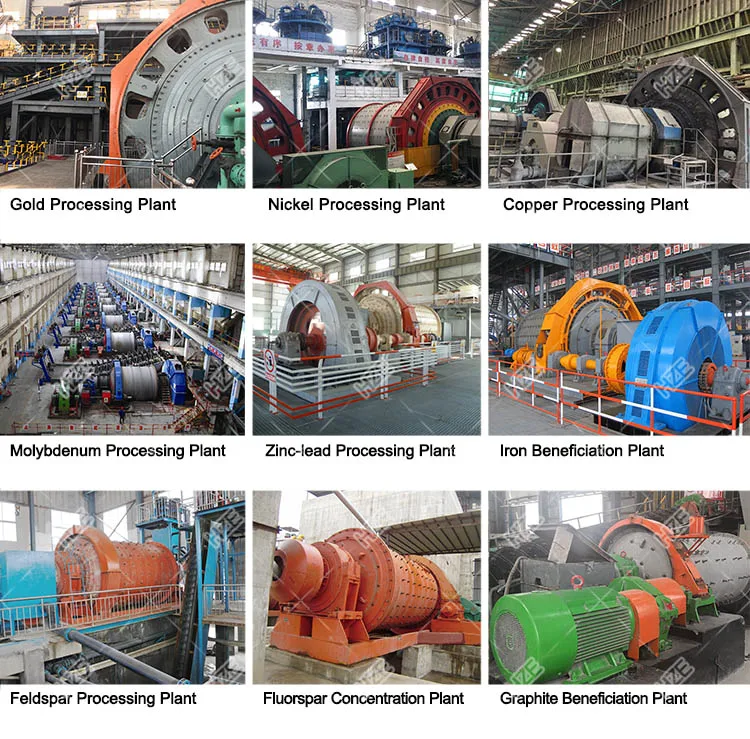

Application Cases
Related Products
FAQ
1. What is the main business scope of your company? HZE is a company with R&D center, design institute, manufacturing factories, installation and commissioning teams. Our customers are in the mining and mineral processing fields. Our major businesses include mineral processing EPC (engineering, procurement and construction), project consultation, engineering design, mineral processing equipment manufacturing, on-site installation, commissioning, staff training, customer project operation management, spare parts supply and technical support. Customers are free to choose any one or any combination of our services.
2. What are the outstanding advantages of your company? The one-stop service of mineral processing engineering project and equipment is our core competitiveness. The most important feature that HZE distinguishes itself from other engineering companies, design companies or consulting companies is that we are also an equipment manufacturer with a production plant of 50,000 square meters, and we have complete manufacturing rout and the related equipment. HZE distinguishes itself from other equipment manufacturers by owning its own R&D center and engineering design institute. HZE distinguishes itself from many mining machinery enterprises by possessing an expert team with members including not only senior engineers of the company, but also top Chinese technical experts, university professors and researchers.

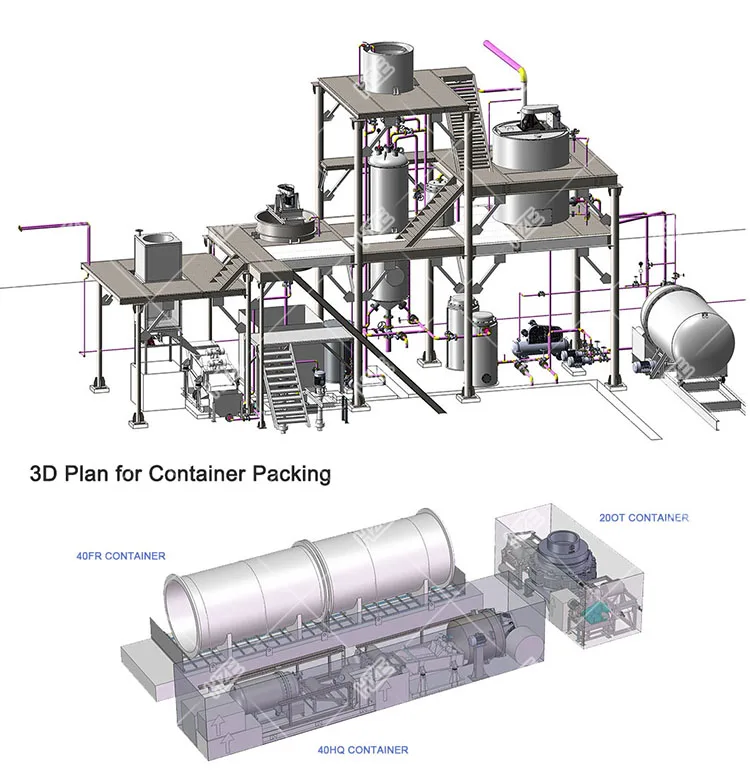

3. What are the characteristics of your company's 3D design? HZE not only uses 3D software to design equipment, but also uses 3D software to design process flow, pipeline, steel structure, auxiliary facilities, etc. of the whole mineral processing project. We even use 3D design for equipment packaging, container packing and equipment instructions manual. This greatly improves the quality of equipment and engineering, shortens the construction period, facilitates technical discussion and evaluation, facilitates project management, improves construction safety and reduces project cost.
4. What are the service features of your company?
Customers who whether buy our equipment, or entrust us with EPC, or require us to provide a certain service, cooperate closely with us to carry out specific operations and supervise our implementation throughout the process.
HZE will try to understand the basic situation and needs of customers as detailed as possible before the sale, formulate a preliminary plan according to the specific situation of customers, and get unanimous opinions after communications and discussions with customers to determine the plan.
We set up customer files for every customer who signed the contract with us and upload them to the Cloud where customers can also get an account and password. Customers can have all the documents, videos and pictures, technology, services, execution, operation, management and control, maintenance and so on related to the business.
Whether it is in the process of general contracting, equipment manufacturing or providing some kind of service, we welcome customers to know about our implementation on the spot or through the network, and put forward requirements and opinions.
We assist users who have used our products to formulate operation specifications and make suggestions on maintenance plans and spare parts inventories. In addition to routine on-site installation, commissioning and training, during the production period after we handing over equipment to customers for use, we often understand the equipment using situations through the network and provide guidance and training to customer management and operators.
For the clients who have just start the mining business, we provide the opportunity of training and practice in China's mines for the clients' employees, until they are skilled in operation and maintenance.
