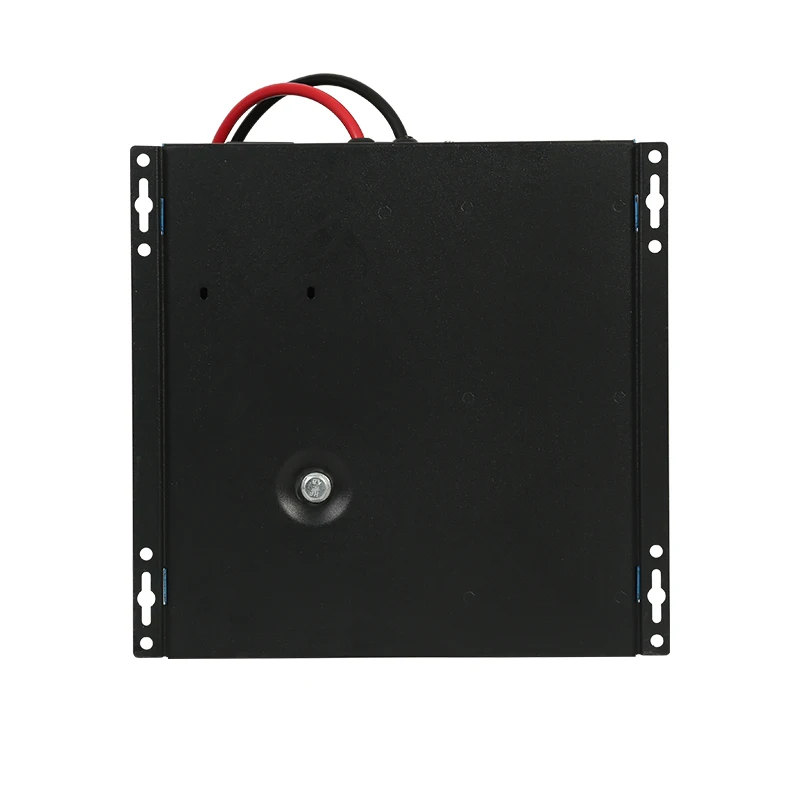

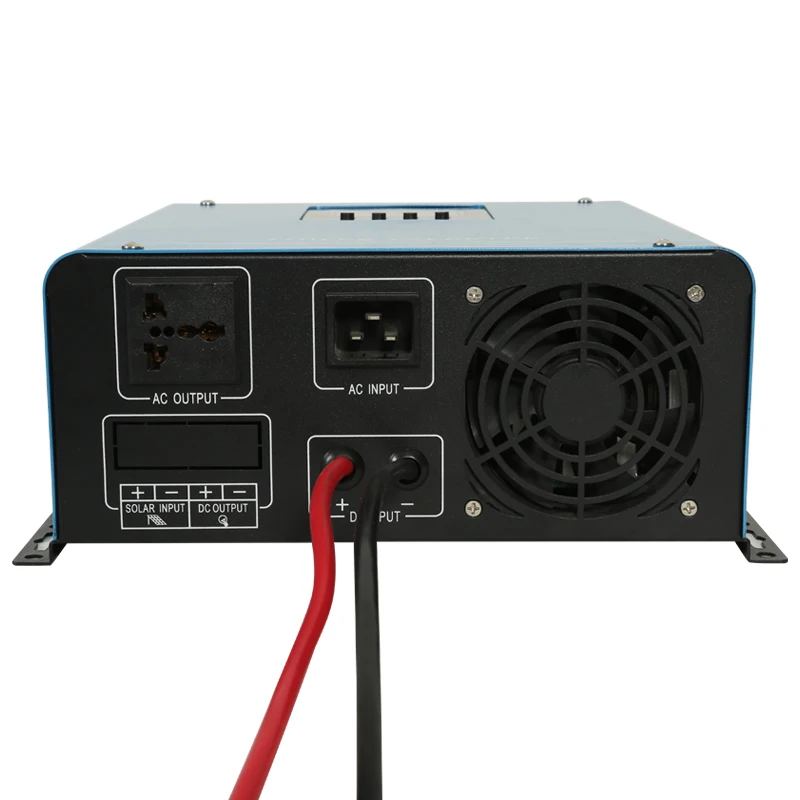

Inverter 1500w 12v 24v dc to 230v 220v Pure Sine Wave Solar Power Inverter
- Category: Solar Energy Products >>>
- Supplier: Foshan Bokai Power System Equipment Co. Ltd.
Share on (62368320675):
Product Overview
Description
MODEL WI series | 500W | 700W | 1000W | 1500W | |||||
Rated power | 500W | 700W | 1000W | 1500W | |||||
Battery voltage | 12/24VDC | ||||||||
Net weight | 6KG | 8KG | 9KG | 11KG | |||||
Grost weight | 7KG | 9KG | 10KG | 12KG | |||||
Dimension(L*W*H) | 290*300*122(mm) | ||||||||
inverter | AC luput voltage range(VAC) | 100/110/120/127/220/230/240V(+20%,-20%) | |||||||
Iuput frequency(Hz) | 45-65Hz | ||||||||
Output voltage range(VAC) | Inverter mode 100/110/120/127/220/230/240V(+2%,-2%) | ||||||||
Utility output voltage range | constant voltage output 100/110/120/127/220/230/240VAC±10% | ||||||||
Output frequency (Hz) | 50/60±1% | ||||||||
Utility output frequency | 50Hz/ 60Hz automatic tracking | ||||||||
Output wavefrom | Pure sine wave | ||||||||
Efficiency | ≥85% | ||||||||
THD | ≤3% | ||||||||
Transfer time(ms) | ≤4ms | ||||||||
Overload protection | rated power >110%; >130%, 10S power off; >150%, 0.6s power off | ||||||||
Temperature protection | ≥85℃ alarm,≥90℃ Shutdown the machine | ||||||||
Battery protection | Automatic detection and discharge protection, overcharge protection,intelligent management | ||||||||
Cooling method | Automatic detection of wind cooling ≤42℃ fan rotating heat dissipation, ≥50°C fan high rotating heat dissipation | ||||||||

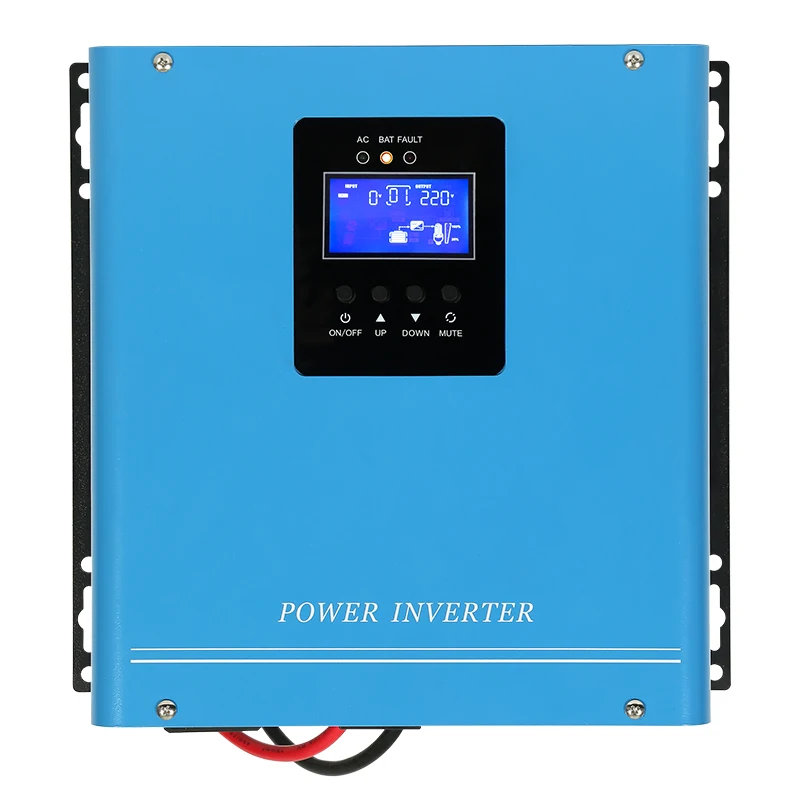

Display | LCD (inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage,etc.) | ||||||||
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?

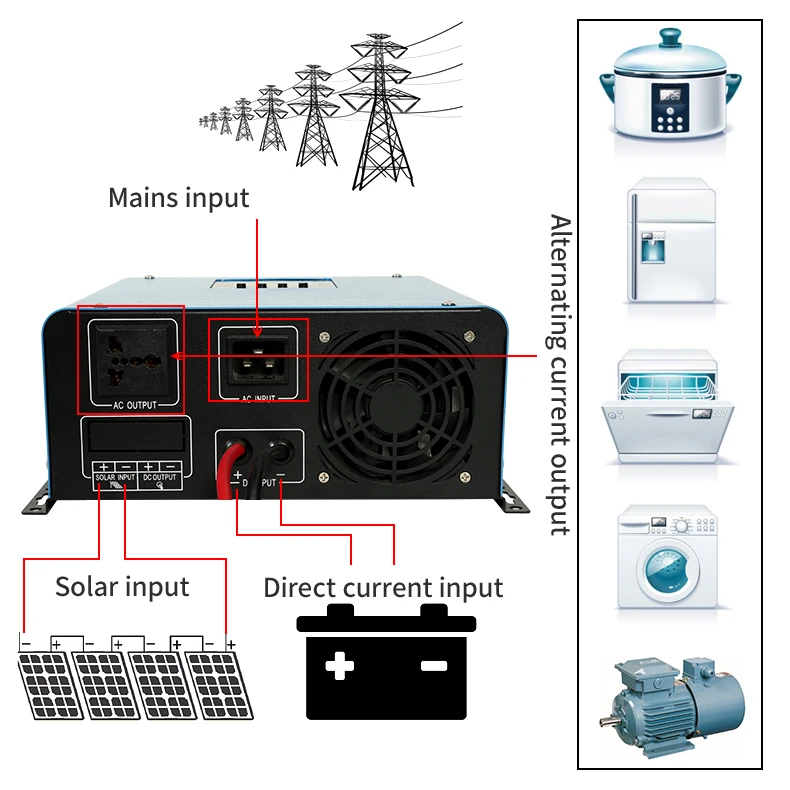

A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 working days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 working days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
