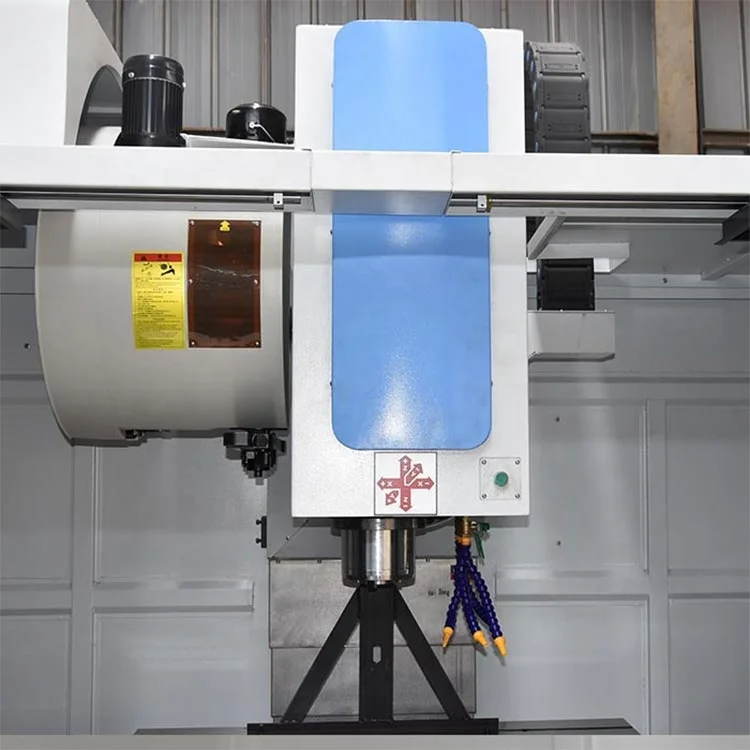

VMC850 5 осевой фрезерный станок с ЧПУ обрабатывающий фрезерный центр с ЧПУ
- Category: Machine Centre >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (62372309377):
Product Overview
Description

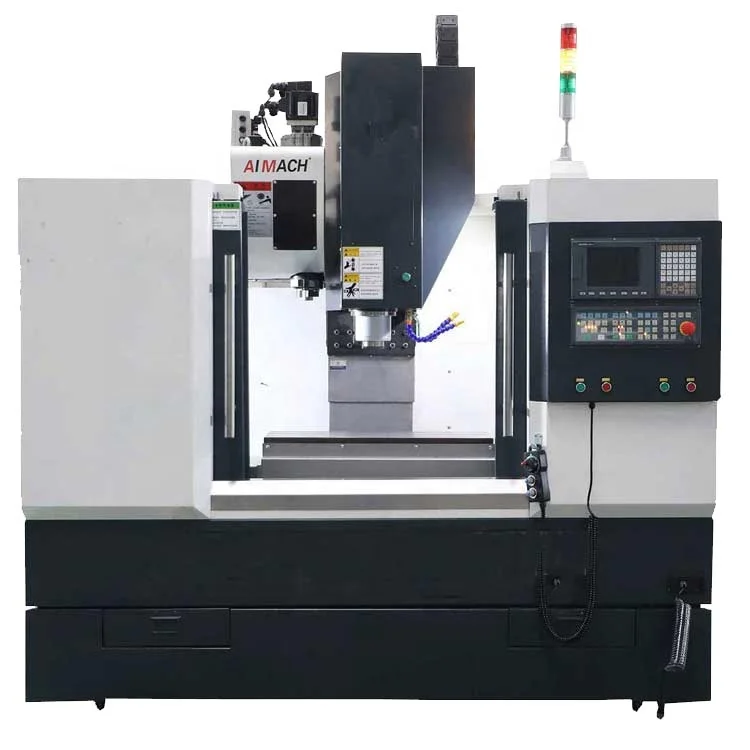

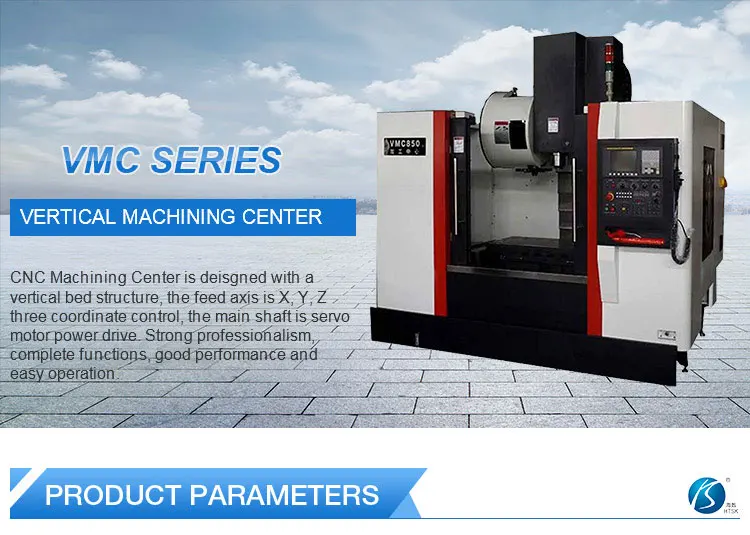

VMC850 5-Axis CNC Machining Milling Center
Model/Specifications | VMC550 | VMC600 | VMC650 | VMC850 |
X-axis travel | 550mm | 600mm | 650mm | 800 mm |
Y-axis travel | 350mm | 380mm | 400mm | 500 mm |
Z axis travel | 500mm | 450mm | 500mm | 500mm |
Table size | 800*350mm | 800*300mm | 900*400mm | 1000*500 mm |
Maximum load of table | 300kg | 300kg | 400kg | 500 kg |
T-solt | 3*18*125mm | 3*16*80mm | 3*18*130mm | 5*18*100mm |
Spindle taper | BT40 | BT40 | BT40 | BT40 |
Spindle maximum speed | 8000rpm | 8000rpm | 8000rpm | 8000rpm |
Rapid traverse | 20/20/20m/min | 20/20/20m/min | 48/48/36m/min | 48/48/48m/min |
Spindle power | 5.5kw | 5.5kw | 5.5/7.5kw | 7.5Kw/11kw |
Cutting speed | 1-8000 mm/min | 1-8000 mm/min | 1-8000 mm/min | 1-8000 mm/min |
Spindle nose to table | 100-600mm | 100-550mm | 120/620mm | 130-630mm |
Spindle center to Surface rail | 419mm | 383mm | 481 | 525mm |
Max tool diameter | 90mm | 90mm | 90mm | 78/120mm |
Positioning accuracy | ±0.08mm | ±0.08mm | ±0.08mm | ±0.0075 mm |
Repeat accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.005 mm |
Machine weight | 3000kg | 2600kg | 4000kg | 5600kg |
Machine Size(mm) | 2020*1870*2170 | 1870*1600*2000 | 2300*1950*2450 | 2600 *2300*2800 |
