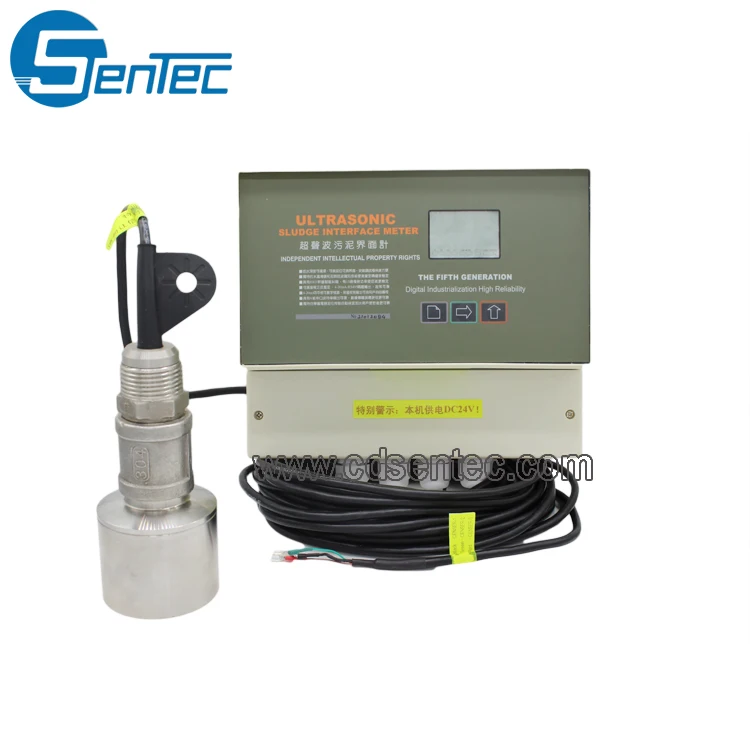

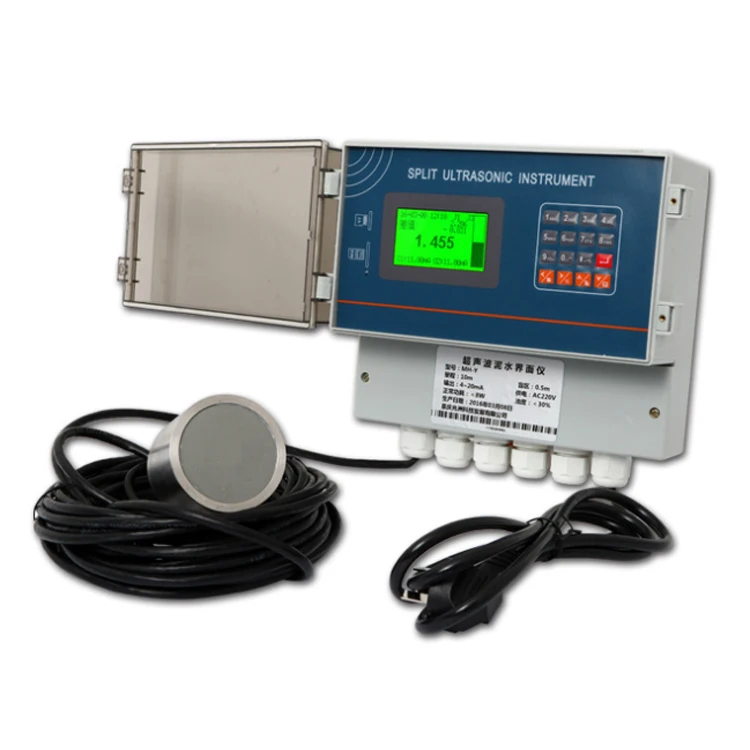

China sentec non contact 4 20ma Liquid Water mud sand sludge Ultrasonic Level Sensor meter
- Category: Level Measuring Tools >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (62382168165):
Product Overview
Description

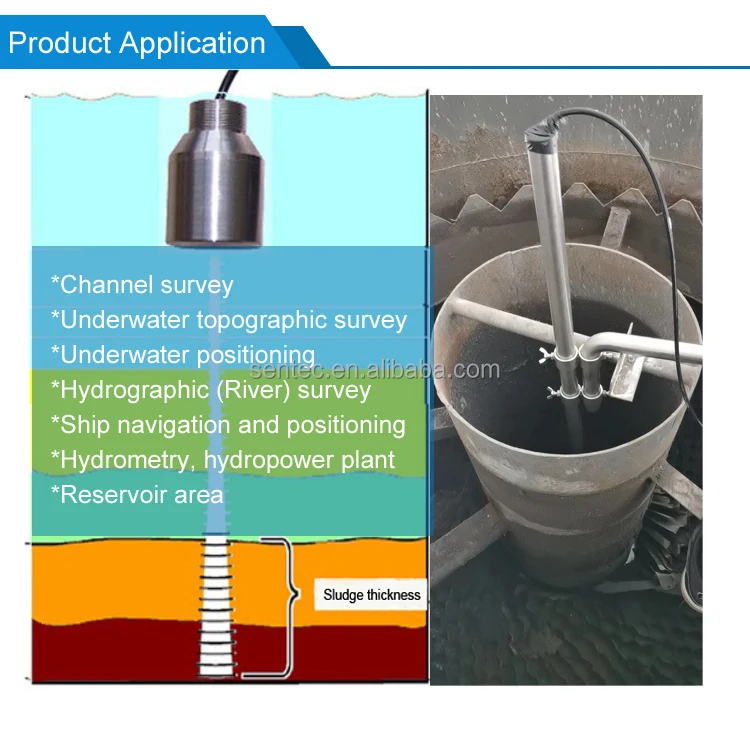

SUL series ultrasonic interface instrument is specially designed for continuous online monitoring of the position of sludge
interface in sewage treatment process. The instrument uses the reliable ultrasonic echo detection principle to detect the position or height of the interface between the sensor probe and the sludge, realizing real-time monitoring of sludge thickness changes and control of related processes, thereby optimizing sludge control and dosing control to prevent The effluent is deteriorated to avoid denitrification and decomposition of sludge and optimize the process control process
interface in sewage treatment process. The instrument uses the reliable ultrasonic echo detection principle to detect the position or height of the interface between the sensor probe and the sludge, realizing real-time monitoring of sludge thickness changes and control of related processes, thereby optimizing sludge control and dosing control to prevent The effluent is deteriorated to avoid denitrification and decomposition of sludge and optimize the process control process
Range | 5m, 10m, 15m, 20m, or be customized |
Blind area | 500mm |
Draught | ≥500mm |
Accuracy | Better than ± 1% F · S (at 20 ℃ water, standard plane) |
Output signal | 4 ~ 20mA, RS485, upper and lower limit relay |
display resolution | Min＝1mm，Max＝10mm |
Display | Multi-information LCD display with green backlight |
Working temperature | sensor 0 ~ 40 ℃; meter -10 ℃ ～ 50 ℃ |
Power supply | AC220V / 50Hz, optional: DC24V / 300mA |
Sensor cable | sensor lead 10m, meter standard terminal |
Protection level | sensor IP68, instrument IP66 |
The specific price is subject to the parameters, please contact us for the quotation
