Product Overview
Description

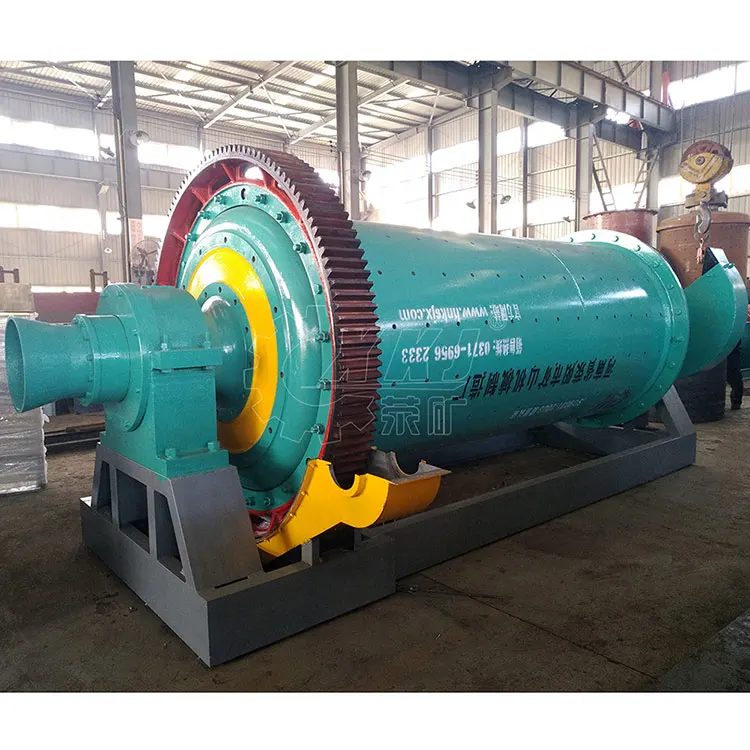

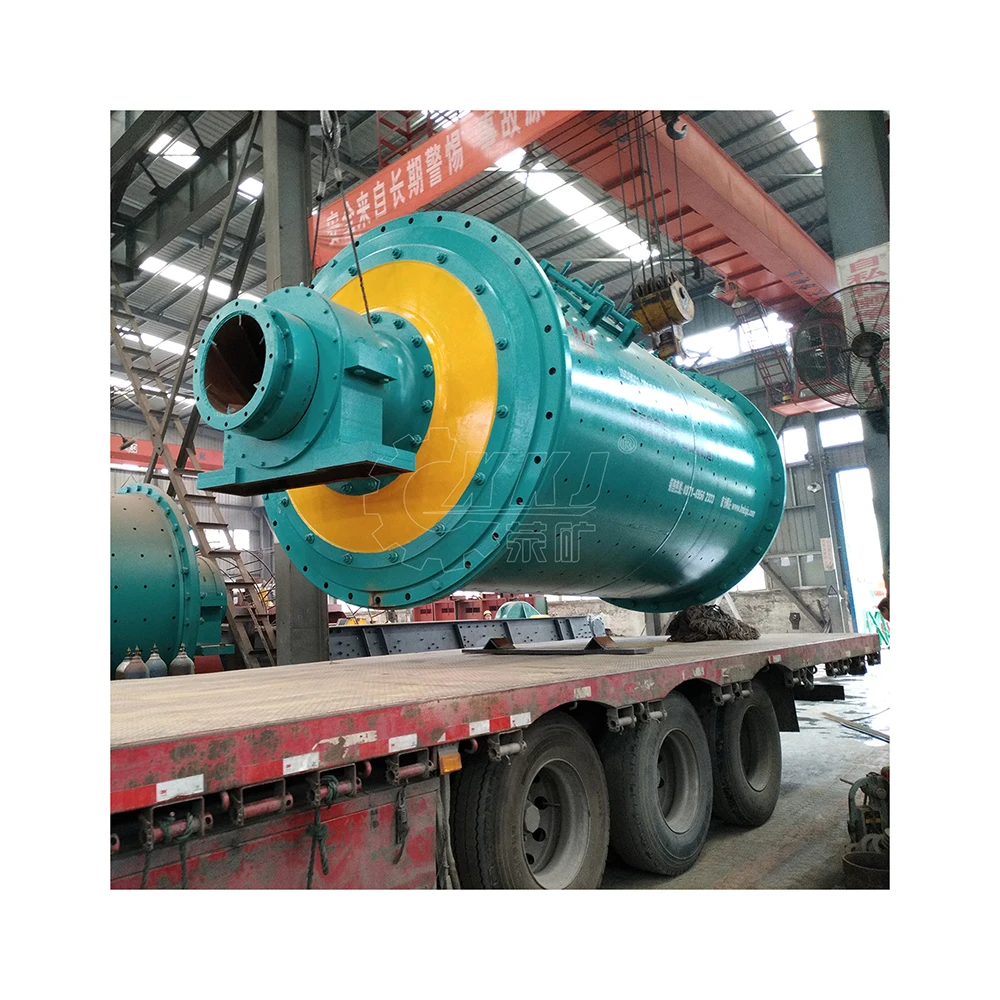

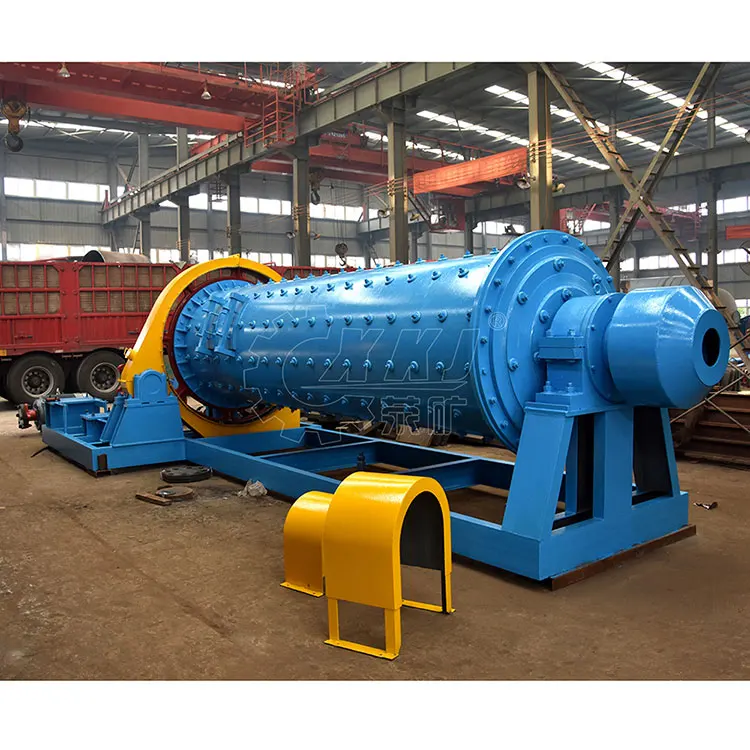

3 51 tph - 500tph Grinding Ball Mill factory price for Cement Gold copper
Ball mill is the key equipment for grinding after crushing Widely used in mineral processing, building materials and others.Ball mill can divide into 2 types, wet ball mill and dry ball mill. Ball mill is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries.
Application areas:
It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal dressing, and glass and ceramics, with dry or wet abrasive ore and other abrasive materials.
Suitable material:
Widely used in geology, minerals, metallurgy, cement, silicate sand, new building materials, refractories, fertilizers and other powder production lines.
Product Description
Ball Mill is the key equipment of crushing material, which is mainly used for single stage fine grinding, grinding, grinding circuit of grade two. Widely used in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry. It is divided into dry method and wet grinding method. According to different ore discharging methods, it can be divided into lattice type and overflow type. Due to different unloading modes, it can be divided into grate type and overfall type.

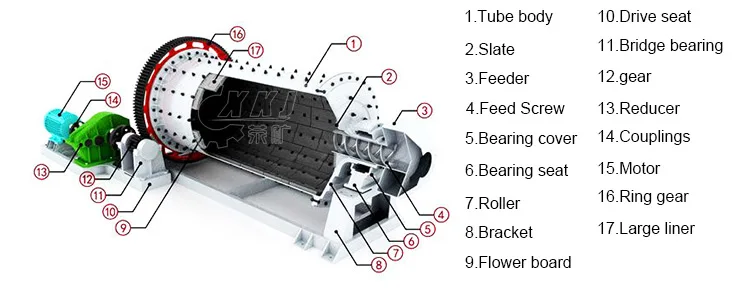

Working principle:

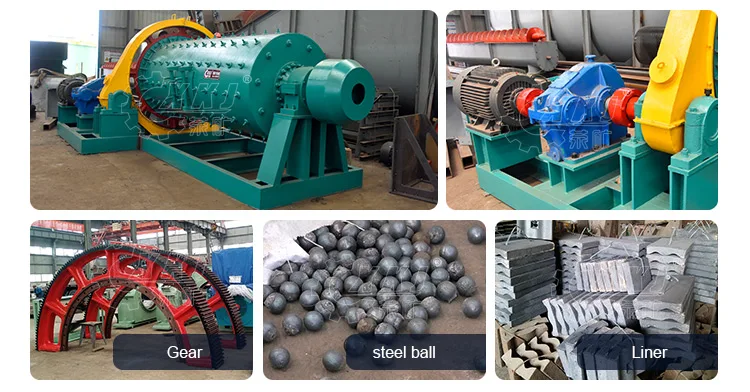

The ball mill is horizontal cylindrical rotation device,driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds.The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.
Technical parameters
| Model | Speed rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
| Ø900*1800 | 36--38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| Ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| Ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Ø1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ø1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Ø1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Ø1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ø1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ø2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Ø2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 38 |
| Ø2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| Ø2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Ø2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 380 | 60 |
| Ø2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Ø2200*7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ø2400*3000 | 21 | 23 | <=25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ø2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø2700*4000 | 20.7 | 40 | <=25 | 0.074-0.4 | 12-80 | 380 | 94 |
| Ø2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Ø3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | 25-130 | 800 | 137 |
Hot-sale Products
Company Information
We Are Manufacturer
Henan Xingyang Mining Machinery Manufactory (in the past is local state-owned enterprises ) the company located in the western of Zhengzhou city,Henan province. Our company was founded in 1956,till now has more than 60 years of development history, since in 1996 changed to joint-stock co., LTD., has five standard heavy industrial workshops ,covers an area of 200,000 square meters, subsidiary company have Henan Xingyang Mining Machinery CO., LTD, Tibet Branch, Xinxiang casting plant, Xinxiang processing factory. We have devoted ourselves all the time to research and develop new products and technologies, we can provide customers with ore-dressing test, process work flow design, equipment manufacture, on-site installation and debugging,mining operations, mining stuff procurement management service etc EPC services.
