High level full automatic Intelligent robot palletizer and wrapping machine line
- Category: Packaging Line >>>
- Supplier: Zhengzhou Yishang Machinery Equipment Co. Ltd.
Share on (62404903990):
Product Overview
Description
High-level full automatic Intelligent robot palletizer and wrapping machine line
Product Description
According to the site situation of your company and the space size of the working area, the installation position of the pallet-stacking machine is designed. The equipment parameters can be changed according to the user's requirements. The pallet-stacking layer can be modified according to the customer's requirements.
| Efficiency | 400-600 bag/hour |
|
power supply | Customized according to customer needs | ||
Operating power | 5KW | ||
Size | L3700mm×W2200mm×H3000mm | ||
The layer number of pallet | 1-12 | ||
Pallet location | Four flower stack, five - flower stack, liushun stack, etc | ||
Air supply pressure | 0.6-1.0Mpa | ||
Equipment weight | 2000Kg |
Equipment advantages
Intelligent stacker features German technology, low failure rate;Host highly integrated integration;Servo motor drive, gear drive;Simple and durable structure;Automatic oiling maintenance;Low noise;Precise control and various stack types.
1. High efficiency of automatic palletizer
2. Exquisite palletizing
3. Intelligent alarm
4. Stacking a variety of styles according to customer requirements.
5. Low requirements on working environment
6. Save stacking time,Simple operation
Product details

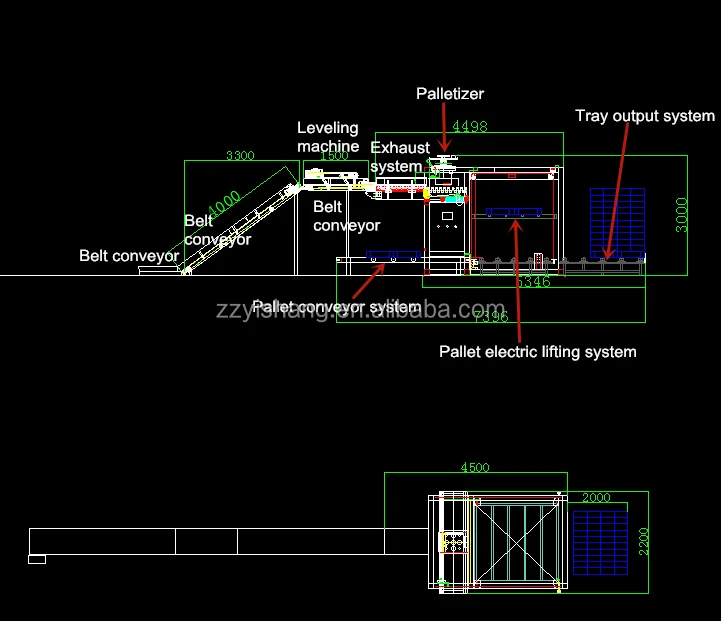

Conveying system 1.Grab and wait conveyor 2.Mechanical reverse conveyor 3.Square pipe vibrating conveyor 4.Leveling conveyor
|  |
 | Palletizer 1. High efficiency of automatic palletizer 2. Exquisite palletizing 3. Intelligent alarm 4. Stacking a variety of styles according to customer requirements. 5. Low requirements on working environment 6. Save stacking time,Simple operation |
| The tray system |  |
| Electric control system 1.PLC+ touch screen control, 2.SIEMENS 1200 series PLC, could communicate with other system. |
Packaging & Shipping
Customer inspection
