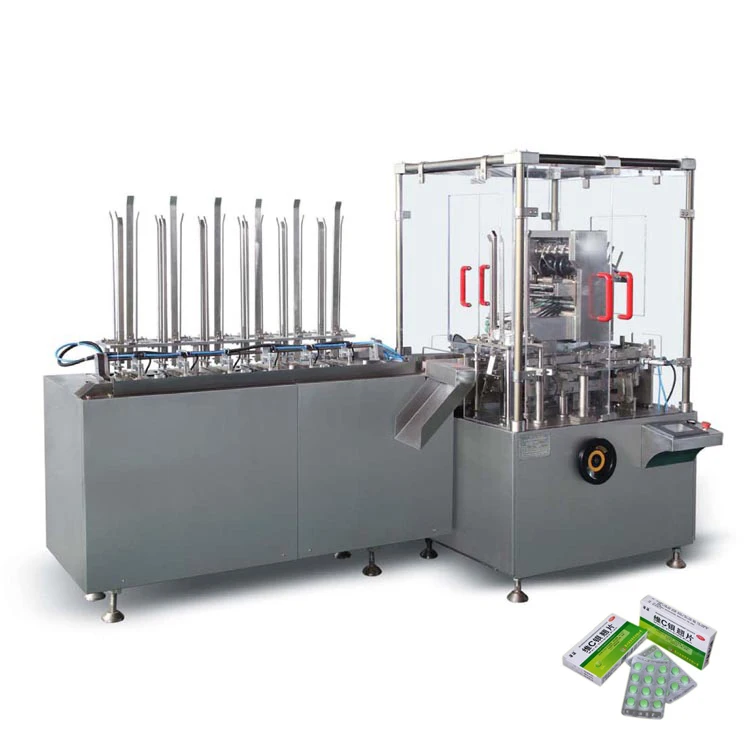

Full Automatic Vertical Cartoning Machine for Blister
- Category: Packaging Line >>>
- Supplier: Sinoped International (Liaoning) Co. Ltd.
Share on (62405486897):
Product Overview
Description
Brief introduction
The equipment is a new type of machine developed by our company in combination with advanced technology at home and abroad.Thus, the performance and working efficiency of the equipment have been greatly improved, and the requirements of fast packing have been realized. Moreover, the equipment still maintains a stable and reliable state during fast operation. This machine is suitable for automatic feeding and packing of similar bag-like items.The whole process of online material detection, manual folding (1-4 times folding) and transmission, carton absorption forming and transmission, material entering the carton, stamping batch number, paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive), missing material elimination and finished product output are all completed automatically
Features：
a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be stopped automatically.
e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it’s overloaded.
g.Stable properties & convenient operation.
model | SINOJDZ-120D( vertical) | ||||
Packing speed | 30-120box/min | ||||
Bagged amount of charge | 1-12bag( It depends on the size of the bag) | ||||
Box | Quality | 250-350g/m2 (It’s decided by the box size.) | |||
Size, L×W×H | (65-125) × (30-85) × (12-50), mm | ||||
Leaflet | Quality | 60-70g/m2 | |||
Size when it’s unfolded, L×W | (80-250) × (90-170), mm | ||||
Folding | 1-4folds | ||||
Compressed air | Working pressure | Not less than 0.6Mpa | |||
Consumption | About 260 ~ 300L/min | ||||
Power supply | 380V, 50Hz | ||||
Main power | 1.1Kw | ||||
Overall dimension, L×W×H | 2880× 1140 × 1800, mm | ||||
Net weight | About 1500Kg | ||||
The specific price is subject to sample negotiation
Detailed Images

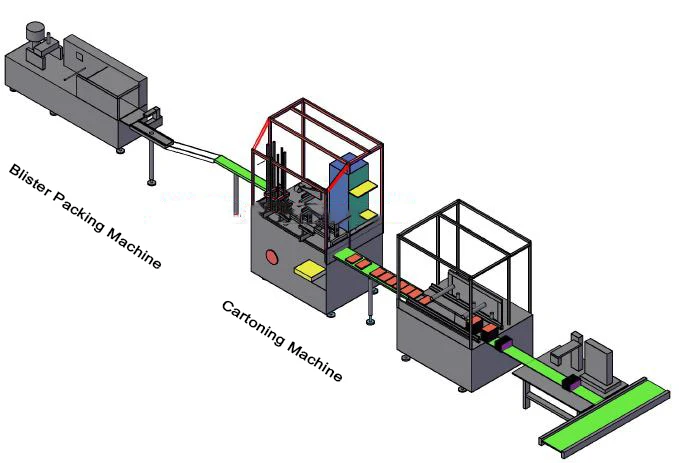

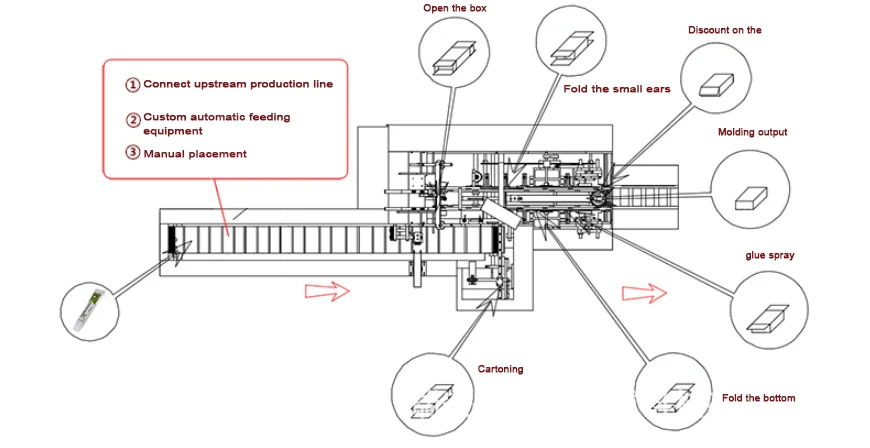

Working principle:
Related Products
Other Products
Why Choose Us
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Packing & Delivery
Our Service & FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
