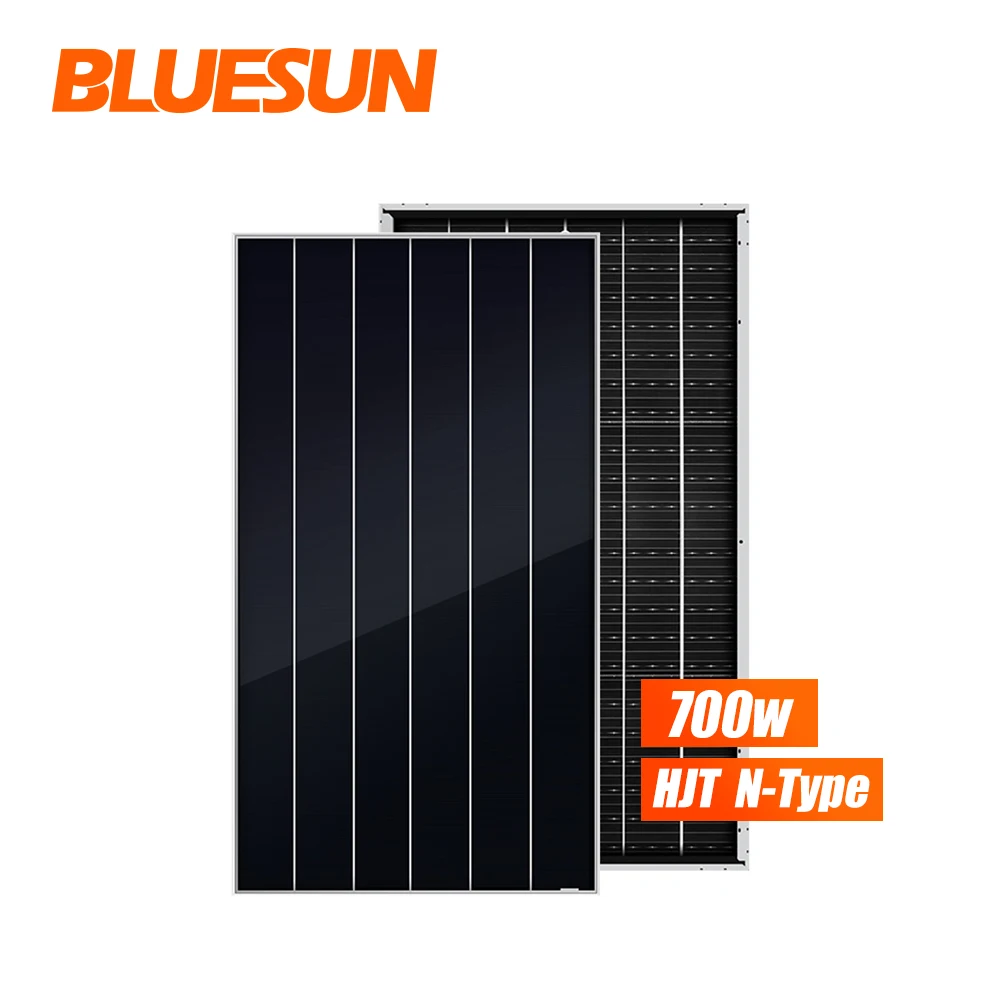

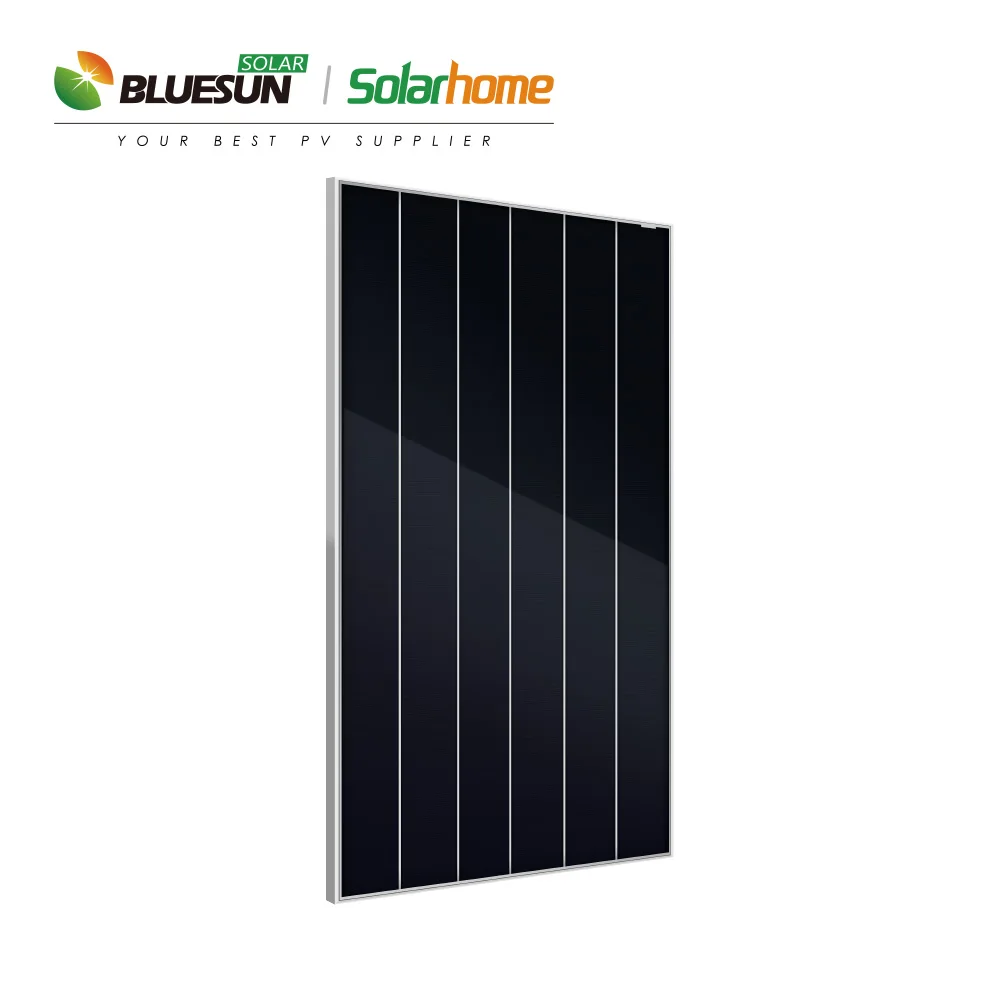

Bluesun HJT Shingled Solar Panel 700w Mono Solar Panel 700w Pv Module
- Category: Solar Energy Products >>>
- Supplier: Bluesun Solar Co. Ltd.
Share on (62407665846):
Product Overview
Description
Products Description

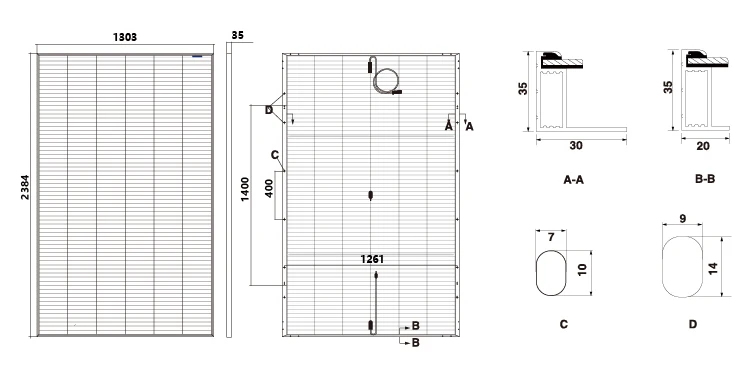

Product Parameters
SPECIFICATIONS | ||||||||||||
SPECIFICATIONS | ||||||||||||
Module Type | BSM675PMB6-70SDC | BSM680PMB6-70SDC | BSM685PMB6-70SDC | BSM690PMB6-70SDC | BSM695PMB6-70SDC | BSM700PMB6-70SDC | ||||||
STC | STC | STC | STC | STC | STC | |||||||
Maximum Power (Pmax/W) | 675 | 680 | 685 | 690 | 695 | 700 | ||||||
Operating Voltage (Vmp/V) | 39.20 | 39.30 | 39.40 | 39.50 | 39.60 | 39.60 | ||||||
Operating Current (Imp/A) | 17.23 | 17.32 | 17.41 | 17.49 | 17.57 | 17.68 | ||||||
Open-Circuit Voltage (Voc/V) | 47.20 | 47.30 | 47.40 | 47.50 | 47.60 | 47.70 | ||||||
Short-Circuit Current (Isc/A) | 18.32 | 18.41 | 18.50 | 18.59 | 18.68 | 18.80 | ||||||
Module Efficiency (%) | 21.90 | 22.10 | 22.30 | 22.50 | 22.60 | 22.81 | ||||||
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5 | ||||||||||||
Electrical characteristics with different rear side power gain(refer to700W front) | ||||||||||
Pmax gain | Pmax/W | Vmpp/V | Impp/A | Voc/V | Isc/A | |||||
5% | 735 | 39.6 | 18.56 | 47.7 | 19.74 | |||||
10% | 770 | 39.6 | 19.45 | 47.7 | 20.68 | |||||
15% | 805 | 39.6 | 20.33 | 47.7 | 21.62 | |||||
20% | 840 | 39.6 | 21.22 | 47.8 | 22.56 | |||||
25% | 875 | 39.6 | 22.10 | 47.8 | 23.50 | |||||

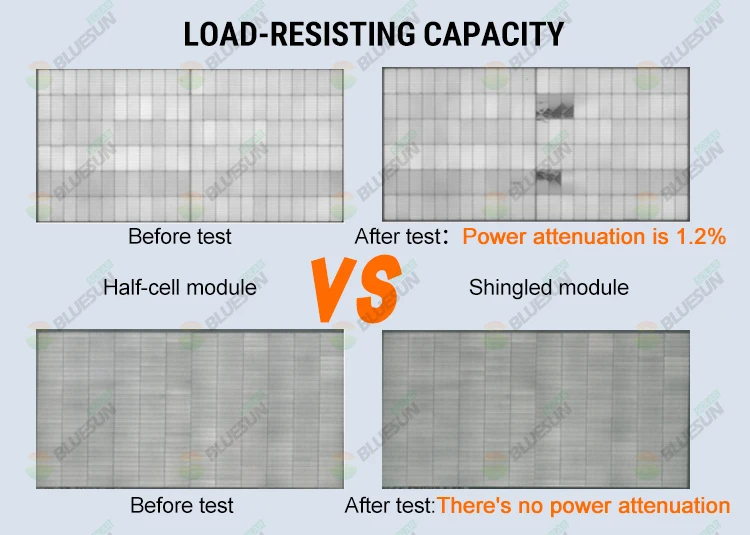

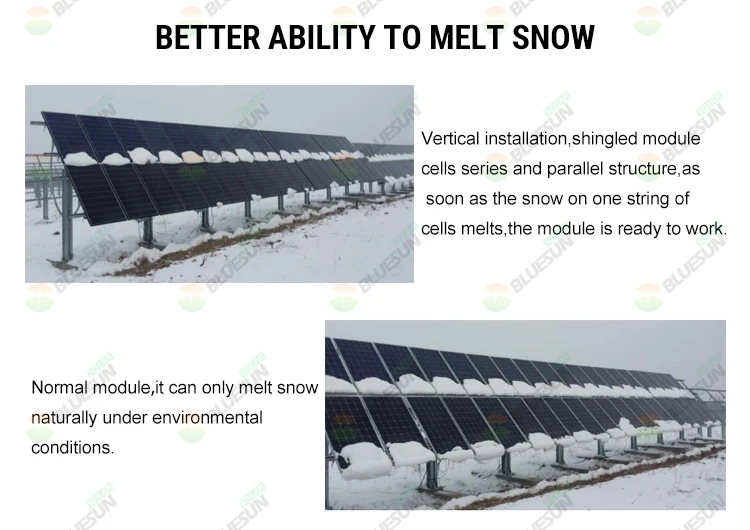

Advantages Of Shingled Panel

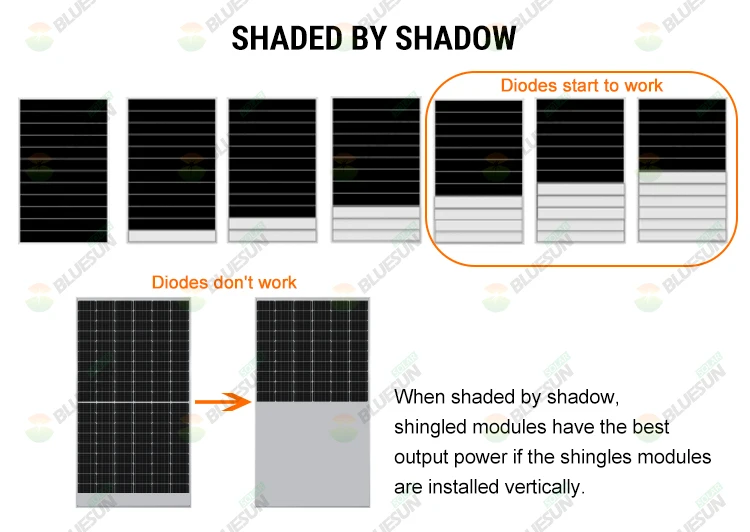

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
Certificate

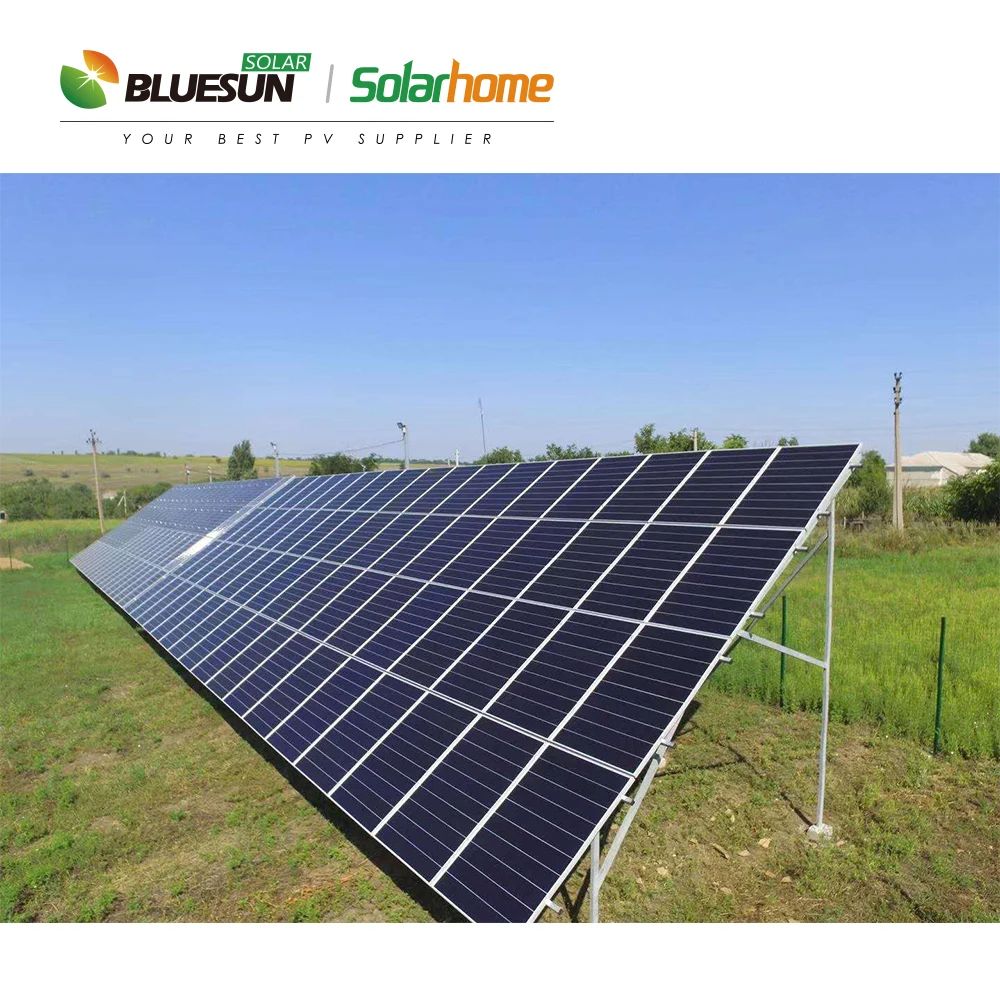

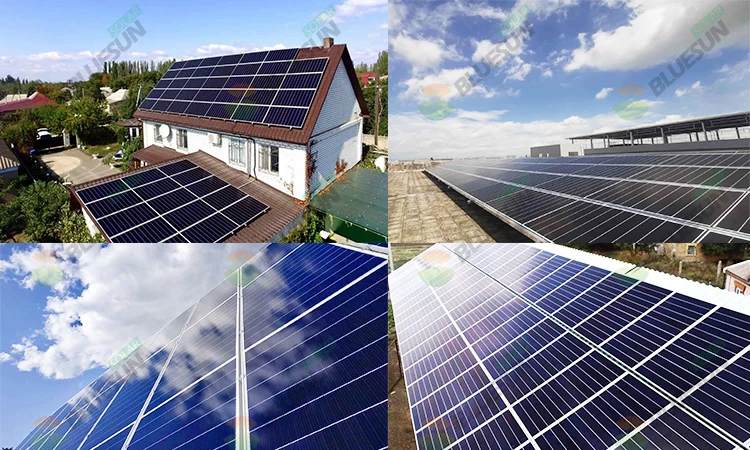

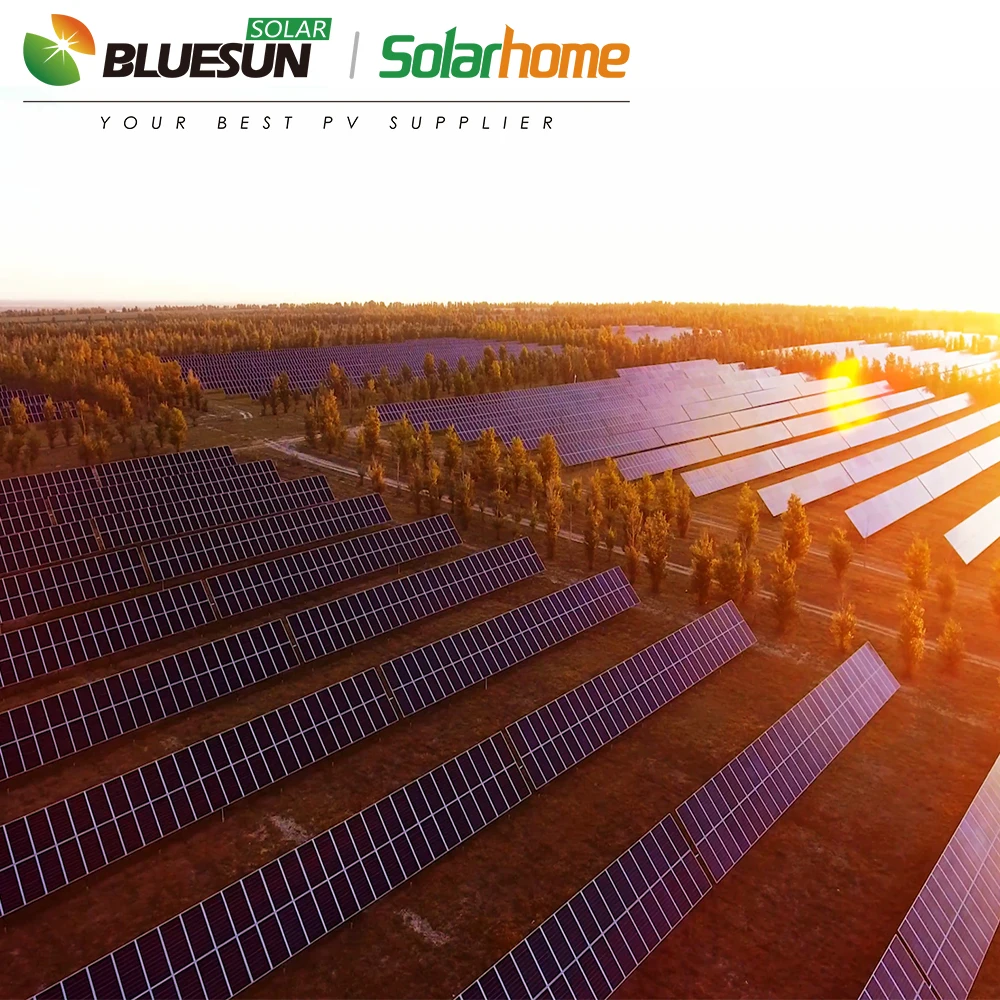

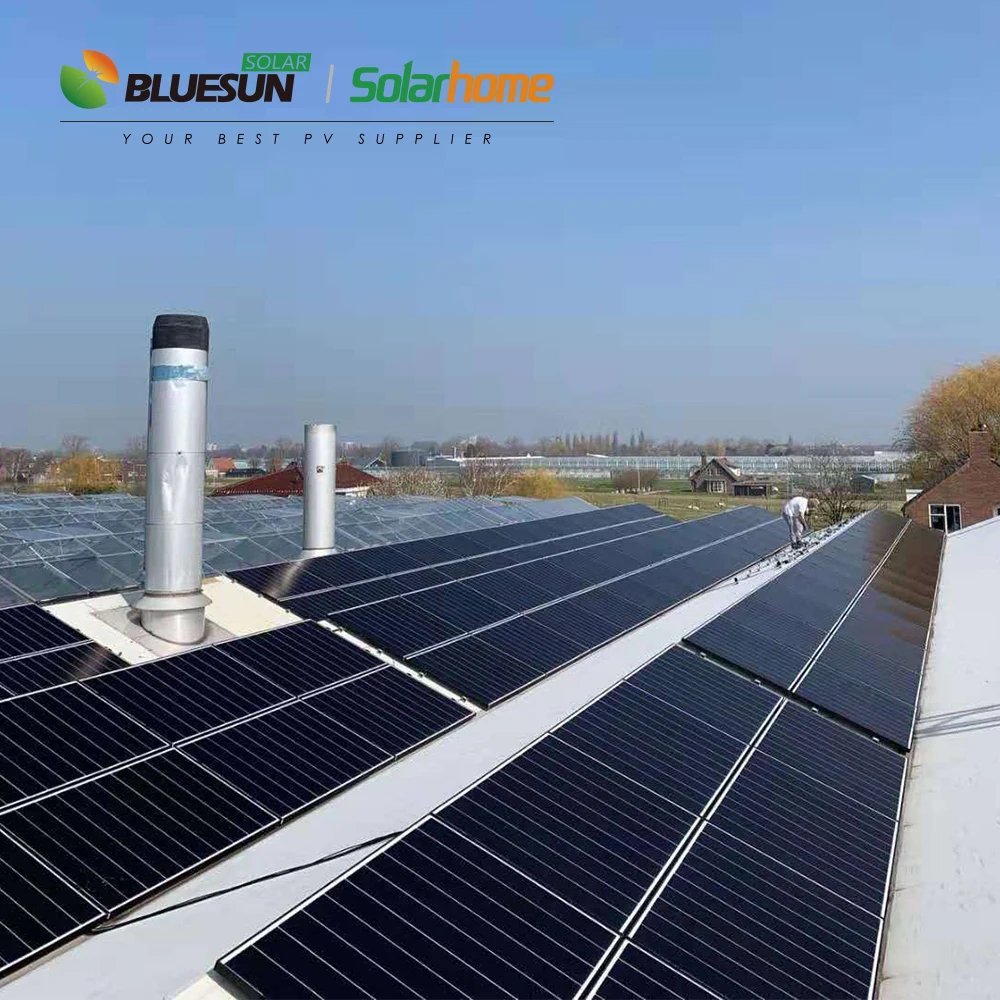

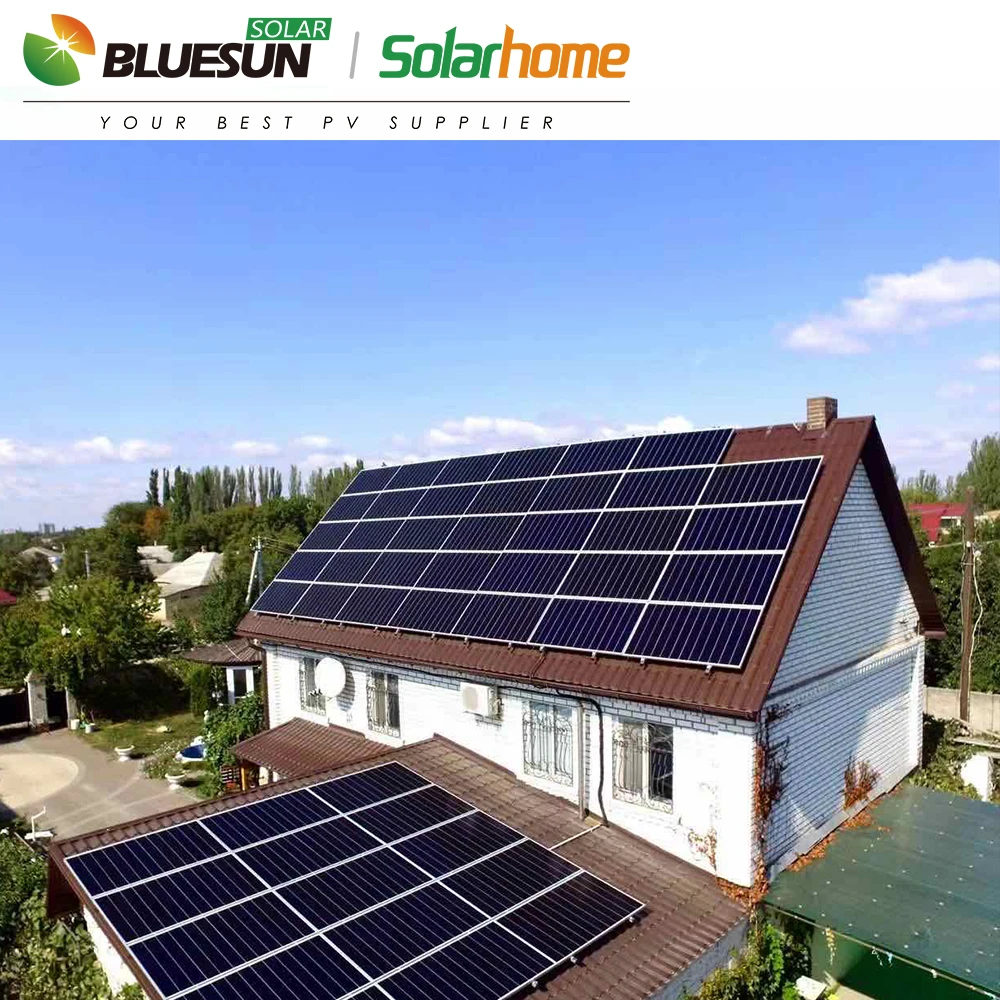

Projects

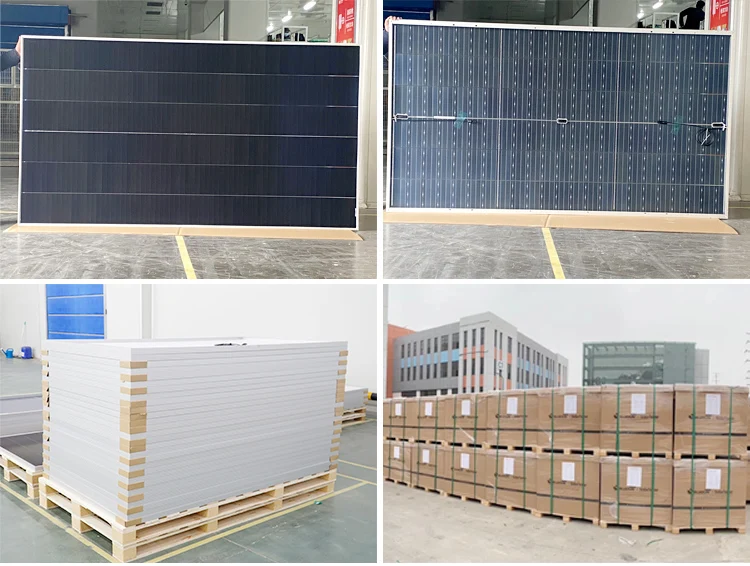

Packing & Delivery
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!
