SMT equipment CHMT560P4 4 heads desktop pick and place machine
- Category: Electronics Production Machinery >>>
- Supplier: Jugetek Co. Ltd.
Share on (62409562048):
Product Overview
Description
Product Description

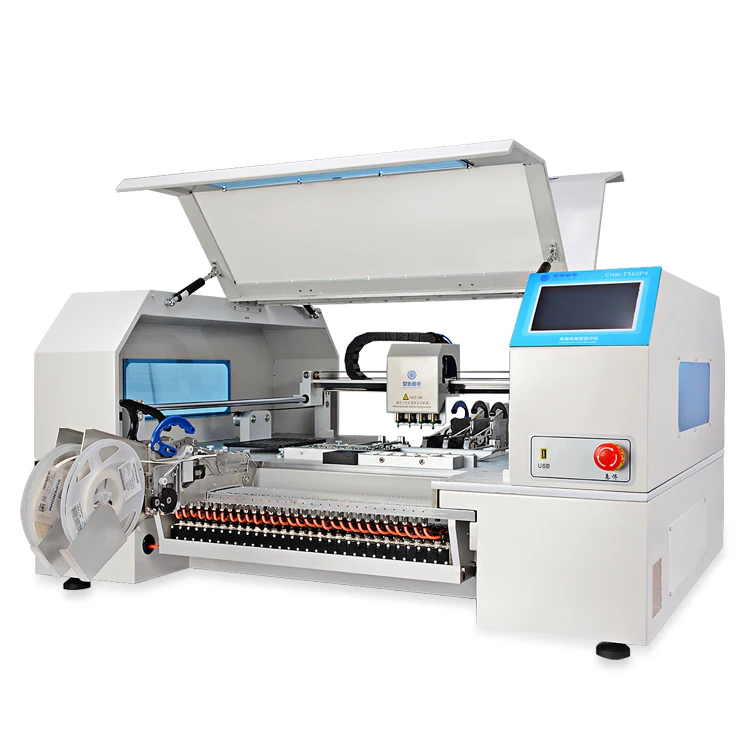

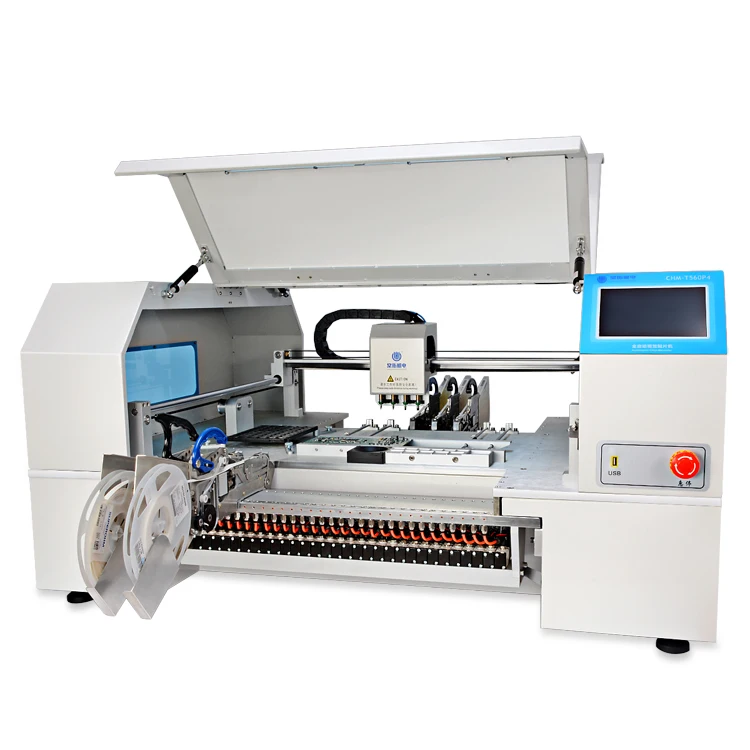

CHMT560P4 4 nozzles pick and place machine
Feeder not included, free shipping to USA
Standard Accessories for CHMT560P4:
HS Code 8479.89.92.00 Automated electronic component placement machines of a kind used solely or principally for the manufacture
of printed circuit assemblies.
1) Pick and Place MachineCHMT560P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1
Feeder not included, free shipping to USA
Standard Accessories for CHMT560P4:
HS Code 8479.89.92.00 Automated electronic component placement machines of a kind used solely or principally for the manufacture
of printed circuit assemblies.
1) Pick and Place MachineCHMT560P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1

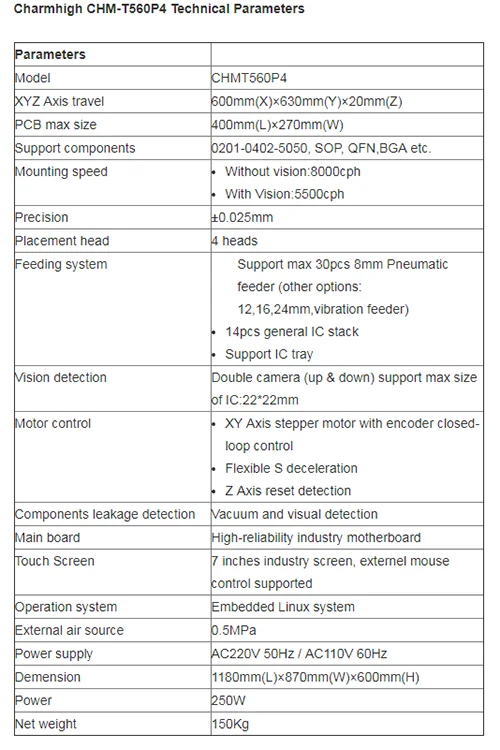

XYZ Axis Stroke 600mm*630mm*20mm
PCB Board:10*10-400*270mm
Component Support 0402, 0603-5050, SOP, QFN, BGA
Material Support: YAMAHA CL Pneumatic Feeder
Power: AC 220V 50Hz/AC110V 60Hz
Dimension: L1180mm*W870mm*H600mm
Need External PC: With Quality Industrial PC
Power: 250W
Air Supply 0.5Mpa
Net Weight: 130kg
Nozzle: 4pcs
Mount Speed: Do not use the visual:8000cph, use visual:5500cph(cph is chip per hour)
SMT precision: 0.015mm
Material Feeding System: 60pcs feeders CL82, CL84, CL12, CL16, CL24, pre IC tray: 14pcs general IC stack, support custom IC tray,
vibration feeder are available and can be purchased separately.
Controlling system: XY axis with motor for driving, Z axis with reset detection All motors with S flexbility lower or faster speed
Compatible operating Embedded Linux system
Vacuum Detection:Vacuum detection, visual detection
Visual system UP camara automatic adjust(max22mm*22mm),Down camara PCB automatic MARK adjust.
PCB Board:10*10-400*270mm
Component Support 0402, 0603-5050, SOP, QFN, BGA
Material Support: YAMAHA CL Pneumatic Feeder
Power: AC 220V 50Hz/AC110V 60Hz
Dimension: L1180mm*W870mm*H600mm
Need External PC: With Quality Industrial PC
Power: 250W
Air Supply 0.5Mpa
Net Weight: 130kg
Nozzle: 4pcs
Mount Speed: Do not use the visual:8000cph, use visual:5500cph(cph is chip per hour)
SMT precision: 0.015mm
Material Feeding System: 60pcs feeders CL82, CL84, CL12, CL16, CL24, pre IC tray: 14pcs general IC stack, support custom IC tray,
vibration feeder are available and can be purchased separately.
Controlling system: XY axis with motor for driving, Z axis with reset detection All motors with S flexbility lower or faster speed
Compatible operating Embedded Linux system
Vacuum Detection:Vacuum detection, visual detection
Visual system UP camara automatic adjust(max22mm*22mm),Down camara PCB automatic MARK adjust.
CHMT560P4 is multifunction pick and place machine which can load traditional pneumatic feeders, the precision and speed are surely
better than CHMT36VA or CHMT48VB benchtop type Not only because of the working principle but also for small SMT components 0201 or
0402. The pick and place machine CHMT560P4 together with T-961 reflow oven and the 3040 classic stencil printer is the cost
performance SMT production line for batch production IoT or LED, etc.
better than CHMT36VA or CHMT48VB benchtop type Not only because of the working principle but also for small SMT components 0201 or
0402. The pick and place machine CHMT560P4 together with T-961 reflow oven and the 3040 classic stencil printer is the cost
performance SMT production line for batch production IoT or LED, etc.
If you need,please contact to get the quotation,thank you!
