Высокоэффективная сельскохозяйственная техника пила машина для пыли бамбуковые опилки дробилка

Product Overview

Description

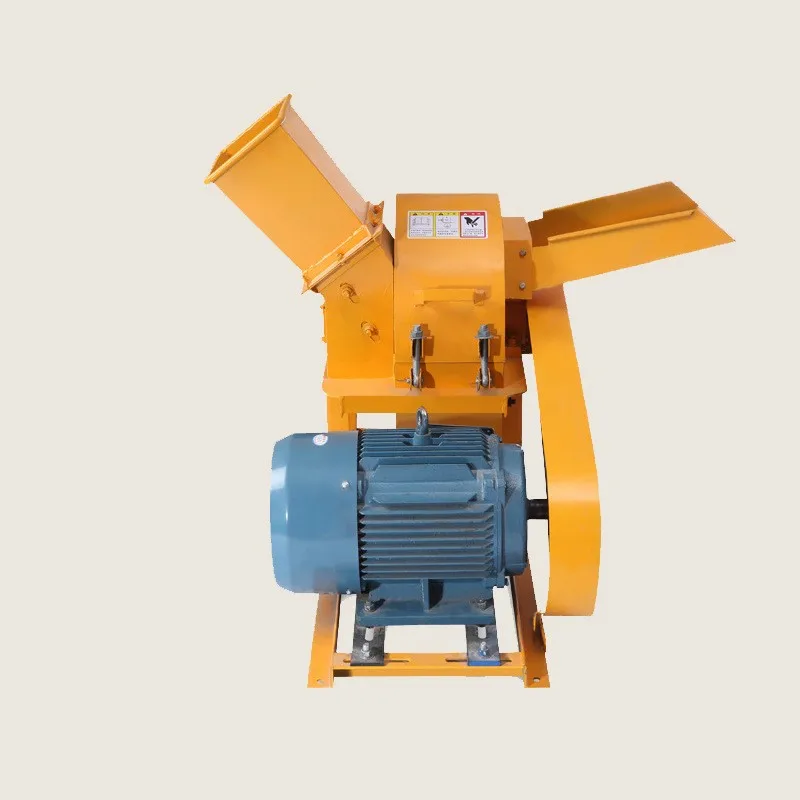

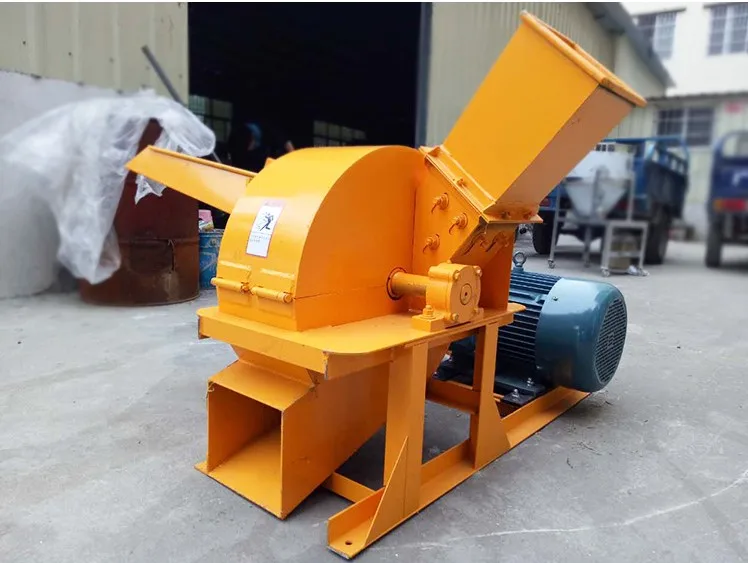

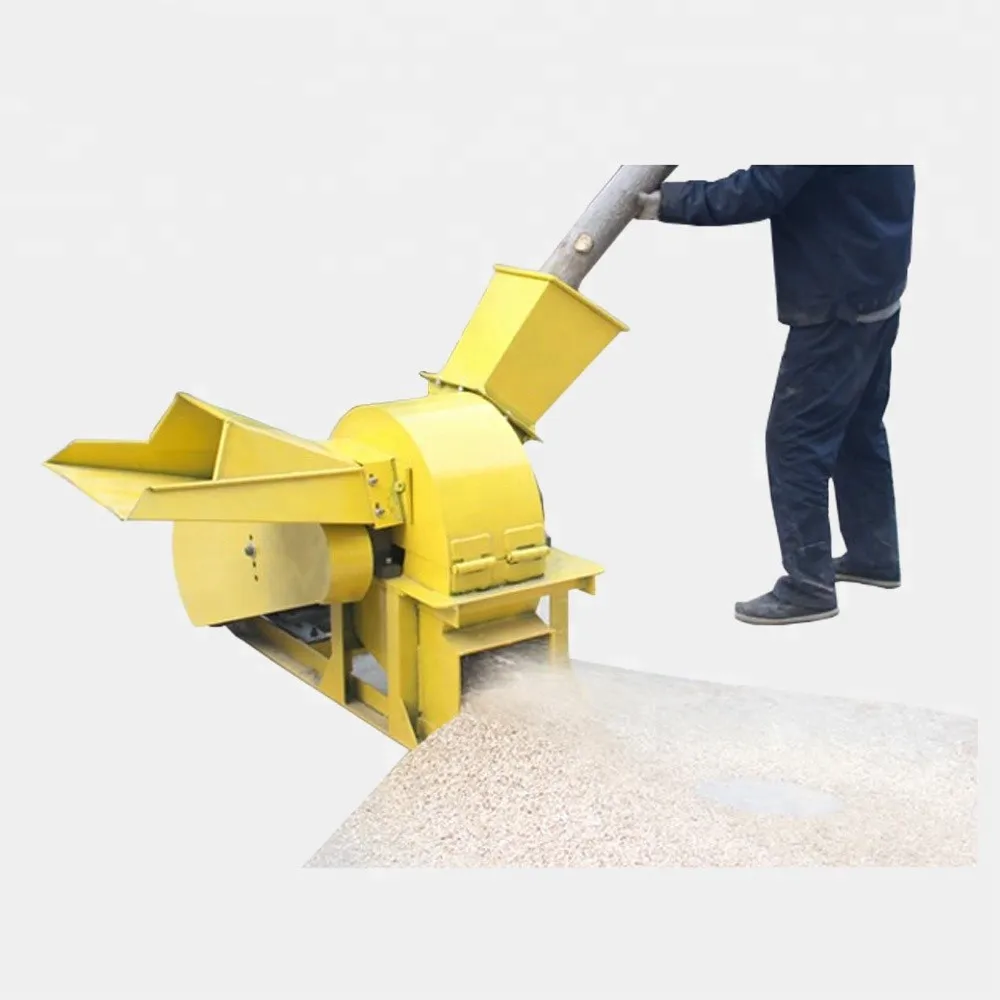

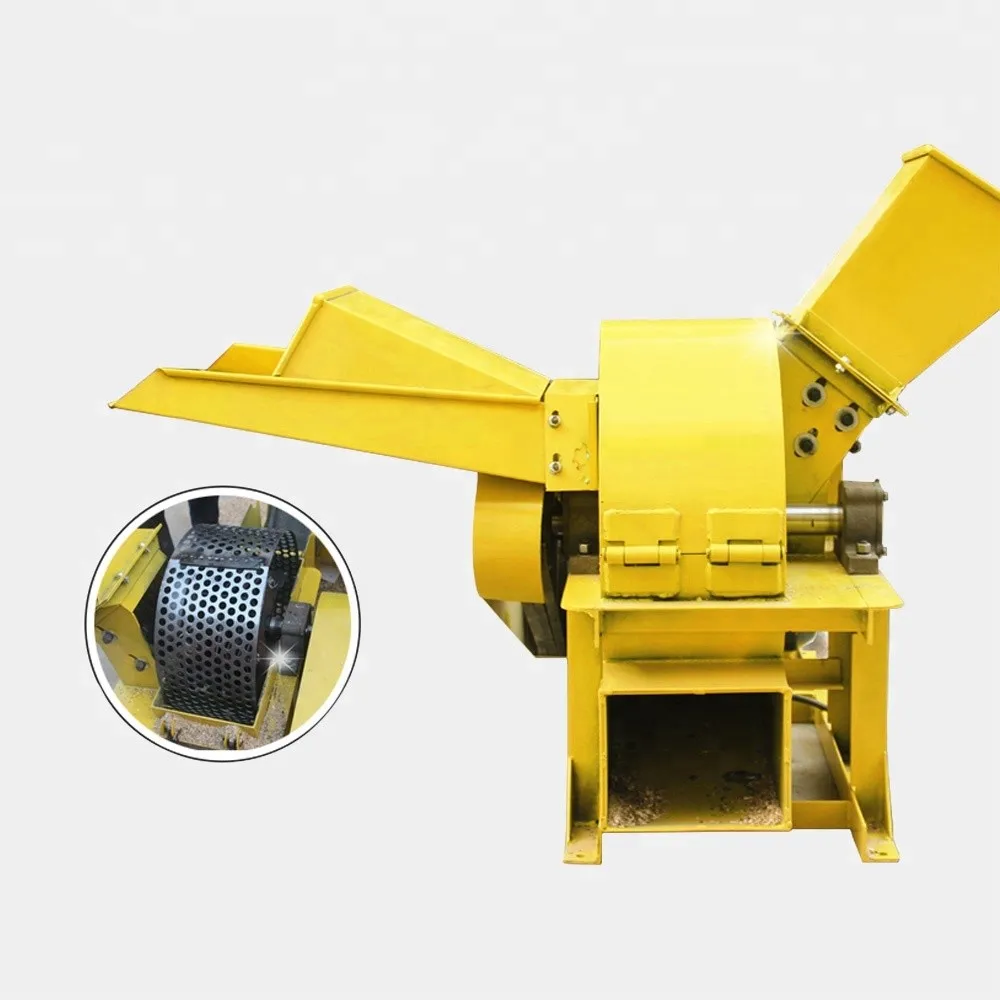

High efficiency Agricultural machinery saw dust machine bamboo sawdust crusher





Ainuok brand Agricultural machinery saw dust machine bamboo sawdust crusher can be used to crushed the hardwood which diameter less than 250mm into sawdust size at 1-40mm.





High efficiency Agricultural machinery saw dust machine bamboo sawdust crusher:

1.Compact structure and considerable layout;

2.Easy to install,operate and maintain;

3.Small size ,high production efficiency,low investment,high profit return;

4.Product good quality sawdust ,size can be adjusted in range 1-10mm

5.Long service life, low noise, stable working situation;

6.Can use electrical motor/diesel motor according to customer's needs;

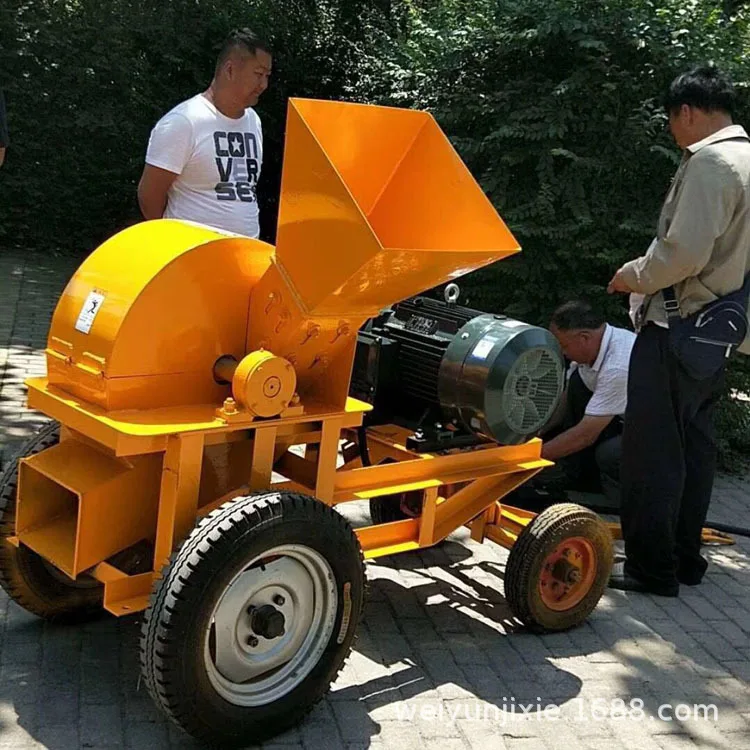

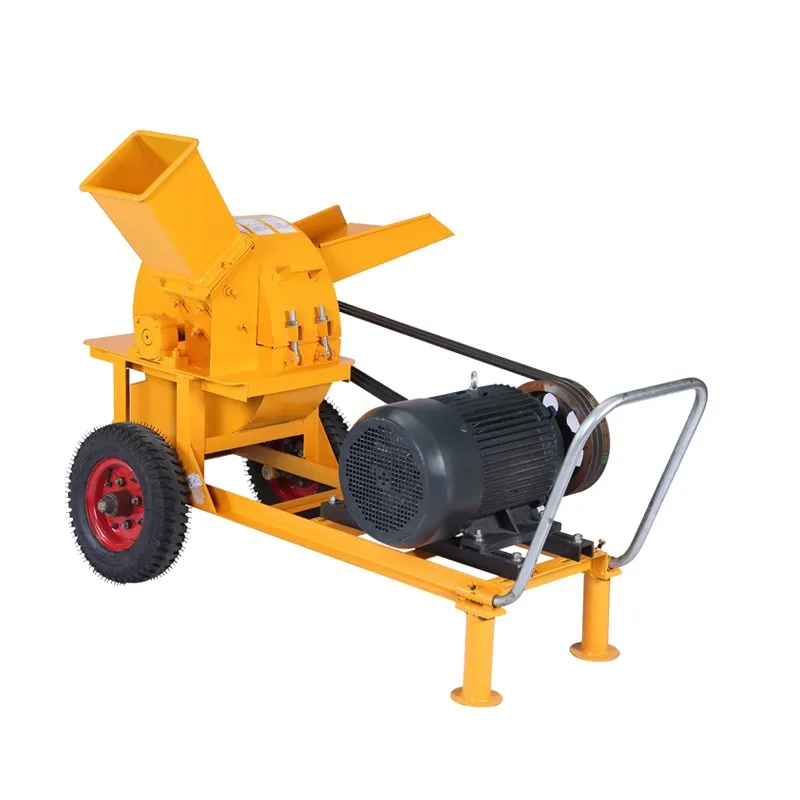

7.Can Install the wheels, Cyclone and make other customized designs for customers.



Traditional Design one Inlet	New design Two Inlet,multipurpose





Model no.	H420	H600	H800	H1000
Disc Dia.(mm)	400	600	800	1000
Speed(r/min)	2600	2600	2300	2000
Knives (pcs)	4	4	6	4-6
Feeding size (mm)	150*180	200*200	250*300	300*300
Output(kg/h)	300-600	800-1000	1500-2000	2000-3000
Motor power(kw)	7.5-11	18.5-22	30	75+7.5
Feed Dia.(mm)	40	60	100	150
Weight(kg)	350	400	1500	1800
Dimension( m)	1.2*0.85*0.9	1.5*1.0*1.1	2.1*1.1*1.3	2.6*1.1*1.5







Usage of Sawdust:

1.The base raw material for cultivated edible fungus/Edible mushroom cultivation;

2.Production of biomass fuel pellet/wood charcoal:

For Civil heating burning ,industrial boilers ,replace of coal, heavy oil, natural gas

3.Medium,small particleboard and fibreboard production:

Particleboard, plywood, high density board, sawdust board, MDF, etc.

4.Mosquito-repellent incense making;

5.Paper making raw material.





Wood Sawdust Making Machine plays an necessary role for other production line

1.As crusher ,crushing wood waste,branches,into sawdust to making sawdust briquette charcoal

2.As crusher, Crushing mushroom compost ,prepare raw material for bagging machine

3.As crusher ,crushing wood,branches,logs into sawdust,for making wood pellets.
