LS 02 W 15 15 дюймовый динамик 100 150 Вт/8 8 Ом/LII аудио быстрый 15/W15B/H1502/MUSIC 15 1 пара
- Category: Receivers & Amplifiers >>>
- Supplier: Dongguan Qinhuai Century Technology Co. Ltd.
Share on (62425452365):
Product Overview
Description

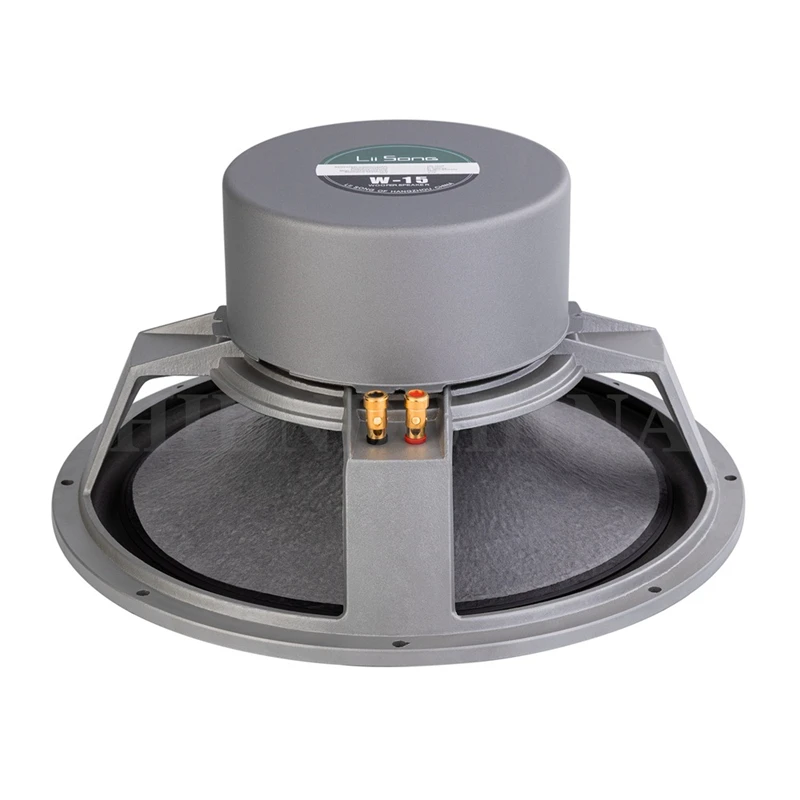

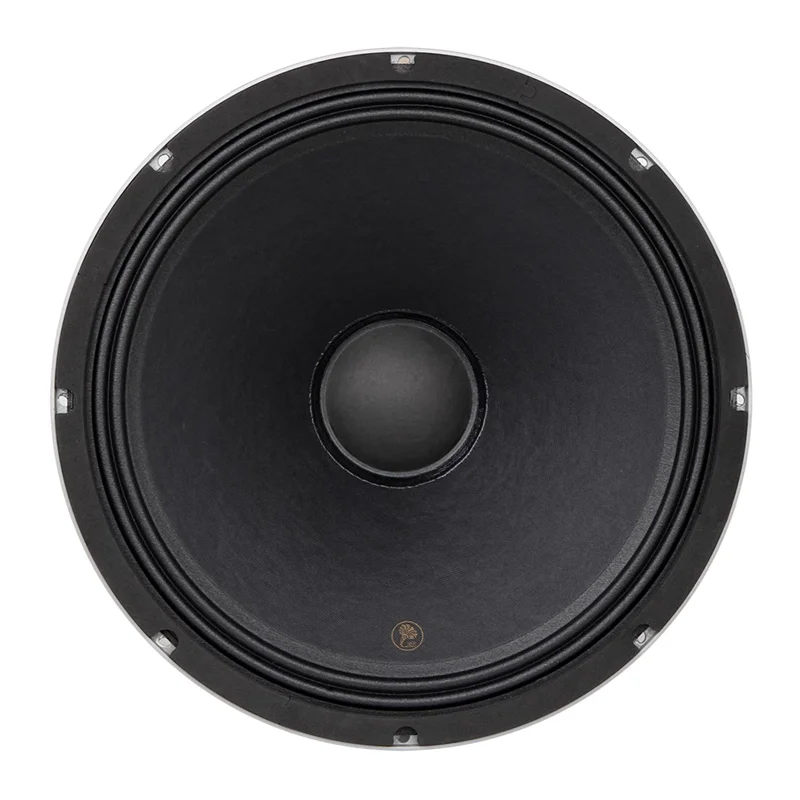

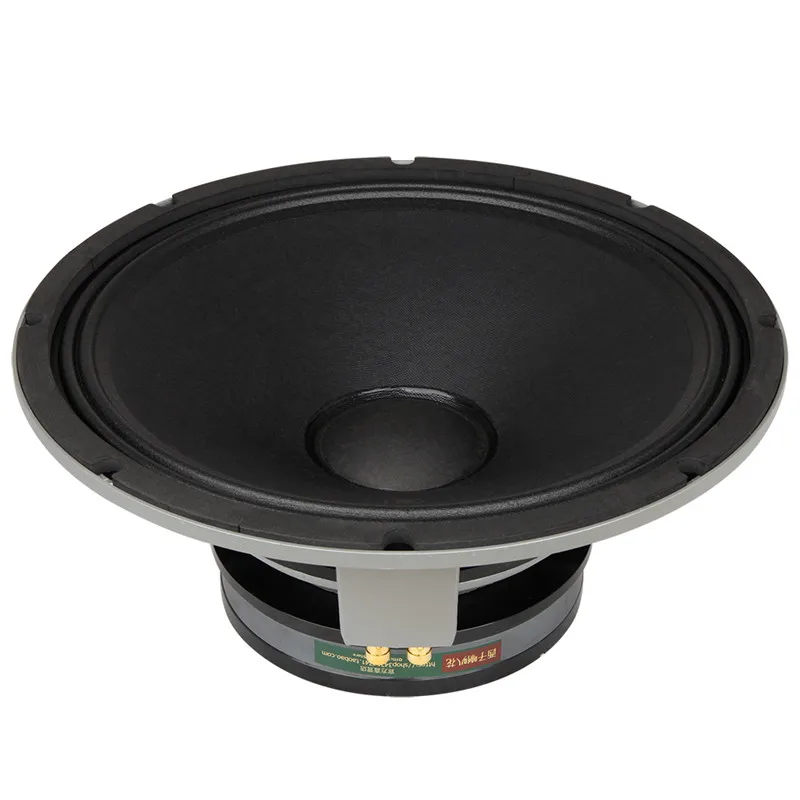

This woofer is the outcome of a experimental development of open baffle with our full range drivers. With superb bass performance, this W-15 can bring good bass even on narrow open baffles. It has a transparent tone so can bring a good coherence with most of the full rangers or tweeters&midrangers.
1: It uses short coil and super thick washer design, leading to very weakened distortion, 15mm Xmax for a good bass.
2:With Lii Song paper cone of unique material, it has a wide frequency response and transparent sound so that it can coordinate with a great variety of full range drivers.
3:Double coil design let it competent to be adapted with amplifiers and connect in parallel or in series with other driver units, according to impedance.
4:The double coil makes it possible to be served as subwoofer, giving you more possibilities to play with these drivers.
5:As Lii Song driver developed by the same creator, this is a wonderful companion for other Lii Song full range drivers, especially on open baffle
W-15 Technical Data:
Related power – Maximum power: 100W – 150W
Nominal Inpendance Z: 8+8 Ohm
Fs: 27.6Hz
Qms: 14.6
Vas: 656 L
Cms: 0.6 mm/N
Mms: 95 g
Rms: 0.81 kg/S
Xmax: 15 mm(peak)
Xmech: 20 mm(peak)
Sd: 855 sqcm
Vd: 2.05L (p-p)
Qes: 0.97
Re: 3.12 ohm
Le: 0.04 mH
Z: 6.7 ohm
Bl: 6.1 T/m
Pe: 100W (cont.)
Qts: 0.79
Sensitiviry (2.83V / 1m): 91 .3dB （single coil）
Sensitiviry (2.83V / 1m): 95.6 dB （dual coil）
Weight (1 Pair ) 27KG
Dimension (package) 45 x 45 x 30 cm

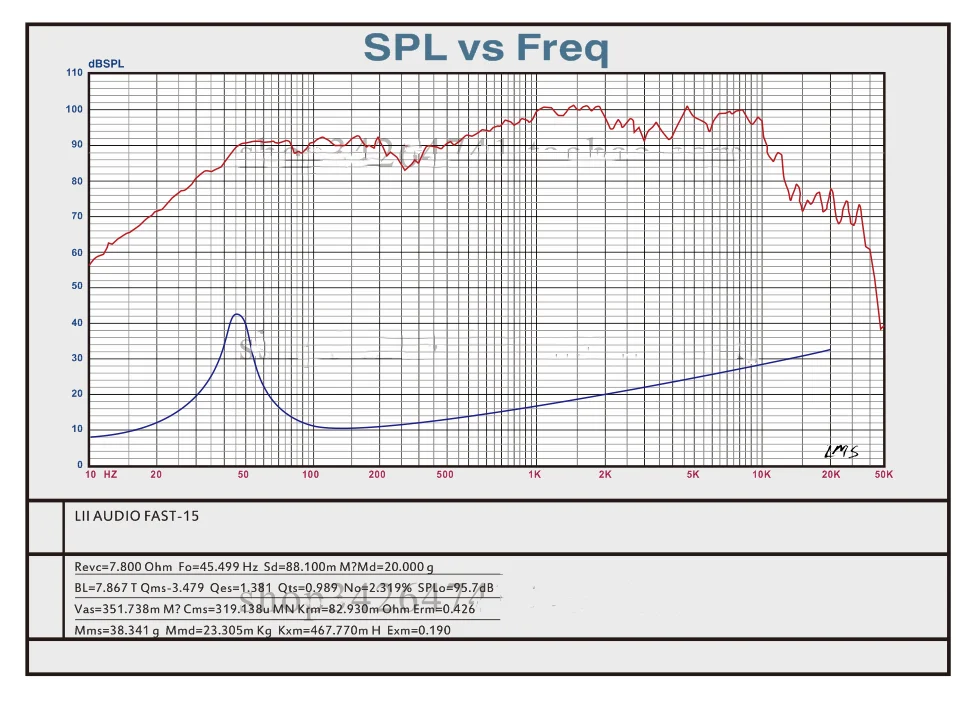

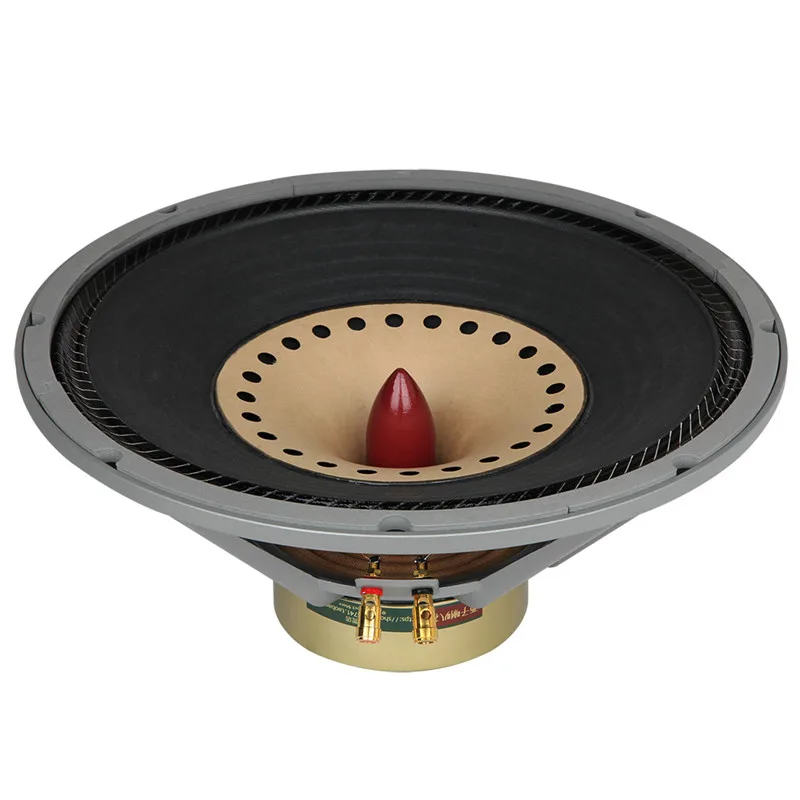

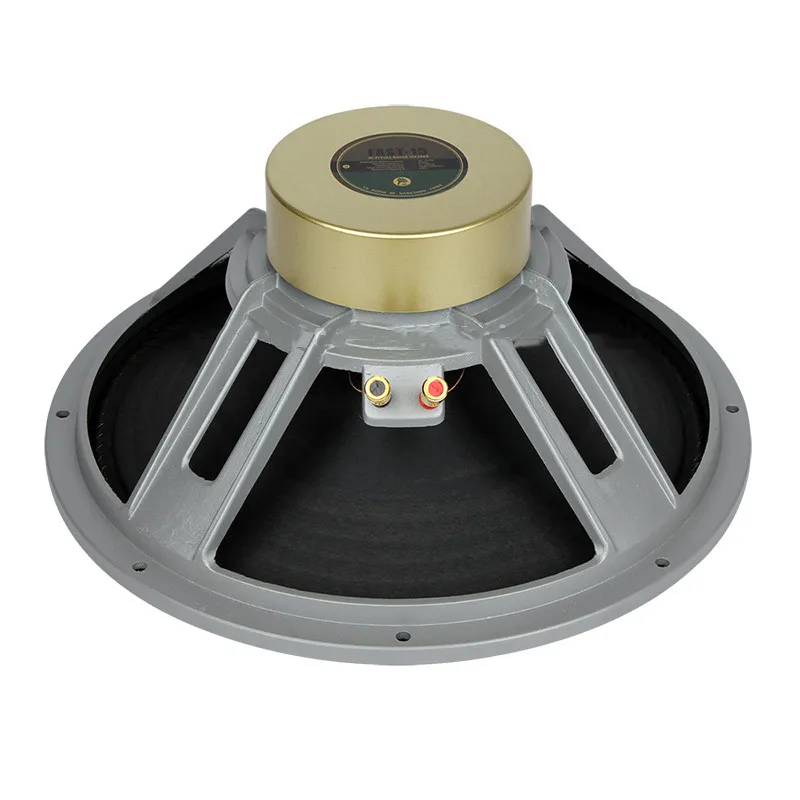

LII AUDIO FAST-15 Product parameters:
Standard impedance: 8 Ω
Power: 50-80W
Frequency response range: 45.5-16khz
Magnetic flux: 13500gauss
Total quality factor value (QTS): 0.99

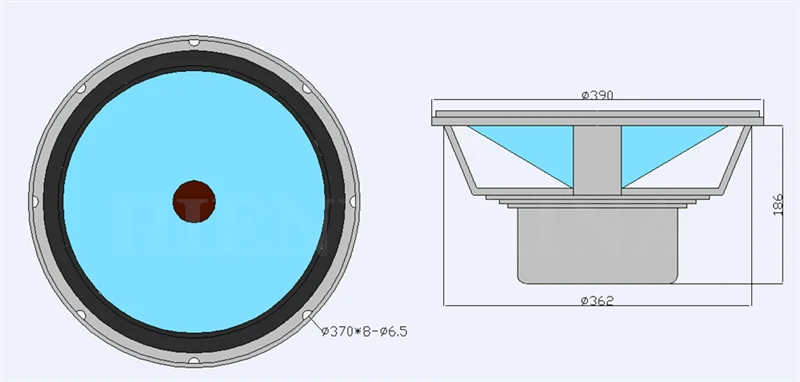

Outer diameter: 390MM
Opening diameter: 360MM
Magnet grade: Y35 (ferrite)
Sensitivity: 96dB (2.83V/1m)
Weight: 4.8KG/piece
Basin material: paper basin mixed with pulp
Pot frame material: cast aluminum
Hanging: selvage
Phase cone: solid wood
Standard impedance: 8 Ω
Power: 50-80W
Frequency response range: 45.5-16khz
Magnetic flux: 13500gauss
Total quality factor value (QTS): 0.99
Outer diameter: 390MM
Opening diameter: 360MM
Magnet grade: Y35 (ferrite)
Sensitivity: 96dB (2.83V/1m)
Weight: 4.8KG/piece
Basin material: paper basin mixed with pulp
Pot frame material: cast aluminum
Hanging: selvage
Phase cone: solid wood
LII AUDIO W15B product parameters:
Fs: 27. 6HZ
Qms: 14.6
Vas: 656L
Cms: 0.6 mm/N
Mms: 95g
Rms: 0.81 kg/S
Xmax: 15 mm(peak)
Xmech: 20 mm(peak)
Sd: 855 sgcm
Vd: 2.05L(p-p)
Qes: 0.97
Re: 3.12 ohm
Le: 0.04 mH
Z: 6.7ohm
BI: 6.1T/m
Pe: 100W(cont.)
Qts: 0.79
2.83V: 91.3dB (single voice coil)
2.83V: 95.6dB (dual voice coil)
Fs: 27. 6HZ
Qms: 14.6
Vas: 656L
Cms: 0.6 mm/N
Mms: 95g
Rms: 0.81 kg/S
Xmax: 15 mm(peak)
Xmech: 20 mm(peak)
Sd: 855 sgcm
Vd: 2.05L(p-p)
Qes: 0.97
Re: 3.12 ohm
Le: 0.04 mH
Z: 6.7ohm
BI: 6.1T/m
Pe: 100W(cont.)
Qts: 0.79
2.83V: 91.3dB (single voice coil)
2.83V: 95.6dB (dual voice coil)

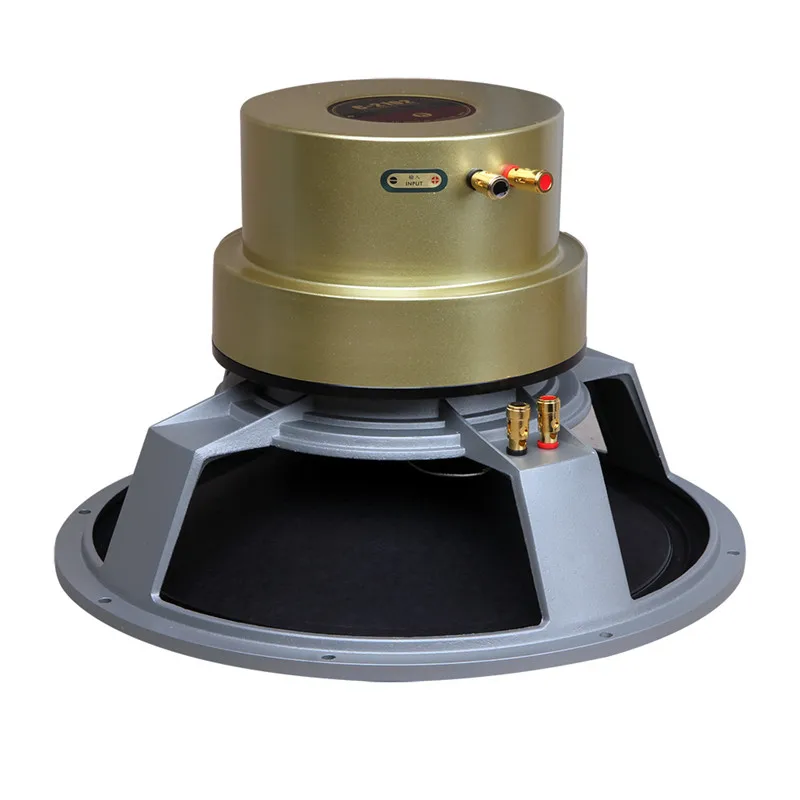

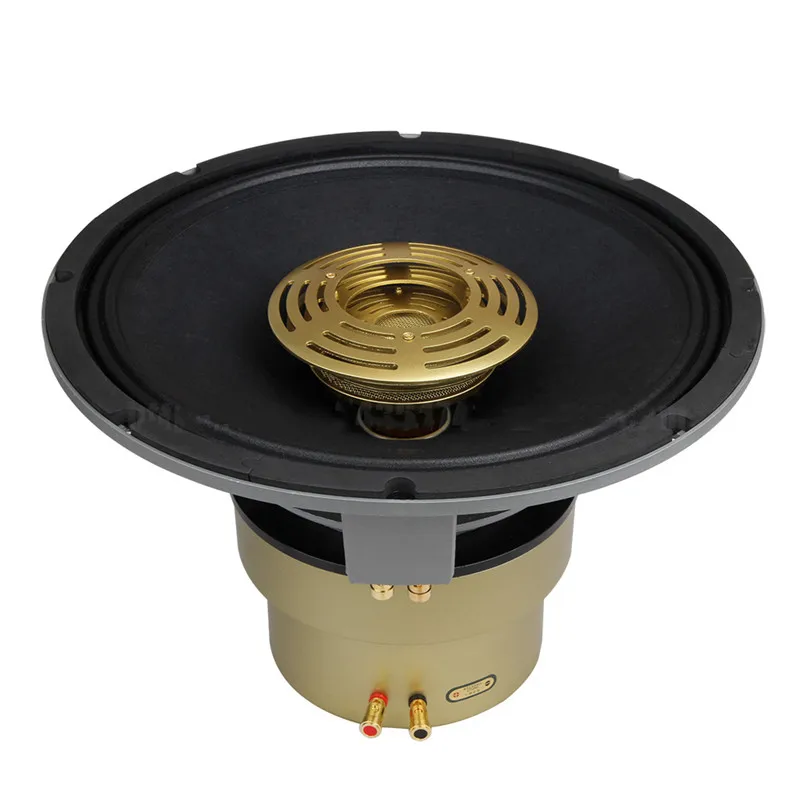

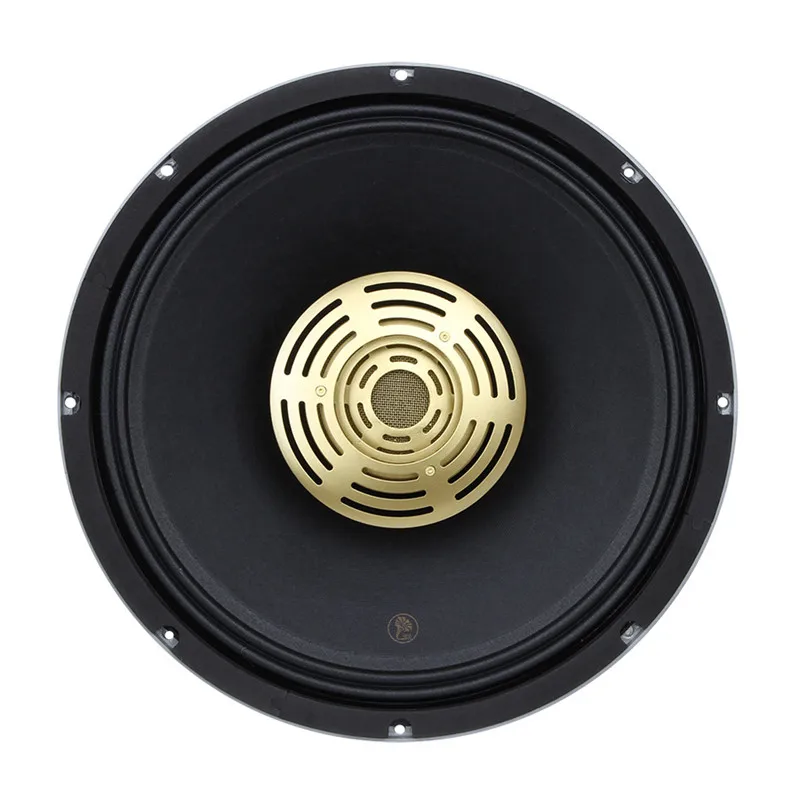

LII AUDIO H1502
*H1502 crossover point to take about 1000HZ, avoiding the most sensitive human ear 1200-3500HZ area, this area is also the majority of the middle frequency range
(vocal instrumental music) is located in the range, many small two-way speakers due to the performance of the speaker crossover point is basically in this sensitive range, so
So it does not sound natural is one of the reasons why there is no full-range speakers.
*H1502 bass cone smoothness, bass using the short voice coil design, very good to push, the power requirements of the amplifier is not high. The dynamics are excellent, and the large programming
The music is as stable as a mountain. The texture of the vocal instrumentation is very good. The crossover is equipped with a mid and treble attenuator, which allows you to adjust the mid and treble frequencies according to your own listening tastes.

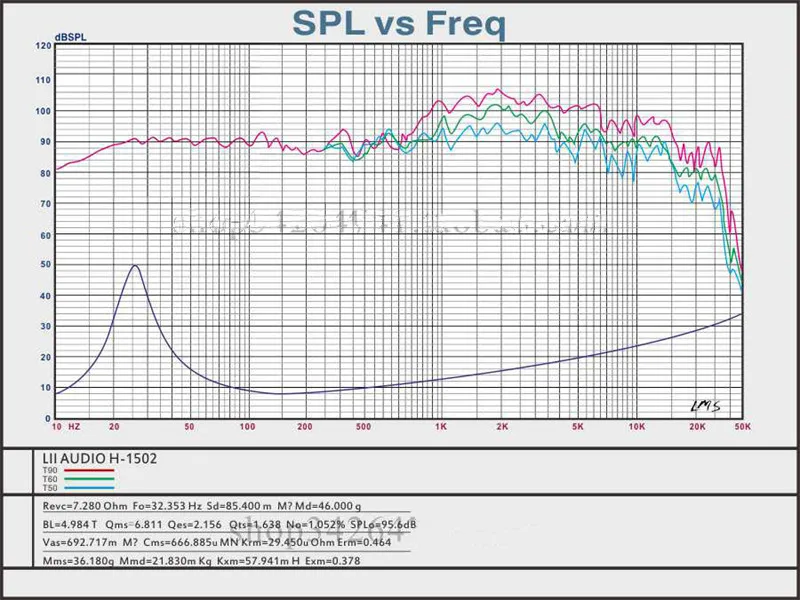

The crossover is equipped with a mid and treble attenuator, which makes it easy to adjust the ratio of mid and treble to bass to suit your listening tastes. The parameter diagram shows the effect in three different steps (50-60-90 scale).
Usage.
* The speaker is a major accessory of the speaker, not a complete product, the speaker are required to design and make the box (or a simple baffle), fitted into the cabinet to give full performance. The low frequencies will be very small when you listen to it bare, because the low frequencies will be short-circuited (the role of the cabinet and the baffle).
Do not try to audition too loudly, as the short-circuiting of the low frequencies will cause the sound to cancel out a lot, and it is easy to overload the cabinet by listening too loudly.
*The H1502 is equipped with a special crossover for each horn, so you can wire it as required after receiving it.
Do not connect the wrong tweeter and bass.
Basic parameters.
Frequency response range: 32-20KHZ
Power: 150+80W
Impedance: 8 ohms
Sensitivity:96DB
QTS:1.6
Outer diameter:391MM
Diameter of opening: 360MM
Material: loosely pressed paper pot with cloth edge, cast aluminium pot frame, aluminium horn
Net weight: 14.5KG/PCS
Gross weight: 16KG/PCS
Packing size: 64X48X48CM (1 pair)
*H1502 crossover point to take about 1000HZ, avoiding the most sensitive human ear 1200-3500HZ area, this area is also the majority of the middle frequency range
(vocal instrumental music) is located in the range, many small two-way speakers due to the performance of the speaker crossover point is basically in this sensitive range, so
So it does not sound natural is one of the reasons why there is no full-range speakers.
*H1502 bass cone smoothness, bass using the short voice coil design, very good to push, the power requirements of the amplifier is not high. The dynamics are excellent, and the large programming
The music is as stable as a mountain. The texture of the vocal instrumentation is very good. The crossover is equipped with a mid and treble attenuator, which allows you to adjust the mid and treble frequencies according to your own listening tastes.
The crossover is equipped with a mid and treble attenuator, which makes it easy to adjust the ratio of mid and treble to bass to suit your listening tastes. The parameter diagram shows the effect in three different steps (50-60-90 scale).
Usage.
* The speaker is a major accessory of the speaker, not a complete product, the speaker are required to design and make the box (or a simple baffle), fitted into the cabinet to give full performance. The low frequencies will be very small when you listen to it bare, because the low frequencies will be short-circuited (the role of the cabinet and the baffle).
Do not try to audition too loudly, as the short-circuiting of the low frequencies will cause the sound to cancel out a lot, and it is easy to overload the cabinet by listening too loudly.
*The H1502 is equipped with a special crossover for each horn, so you can wire it as required after receiving it.
Do not connect the wrong tweeter and bass.
Basic parameters.
Frequency response range: 32-20KHZ
Power: 150+80W
Impedance: 8 ohms
Sensitivity:96DB
QTS:1.6
Outer diameter:391MM
Diameter of opening: 360MM
Material: loosely pressed paper pot with cloth edge, cast aluminium pot frame, aluminium horn
Net weight: 14.5KG/PCS
Gross weight: 16KG/PCS
Packing size: 64X48X48CM (1 pair)

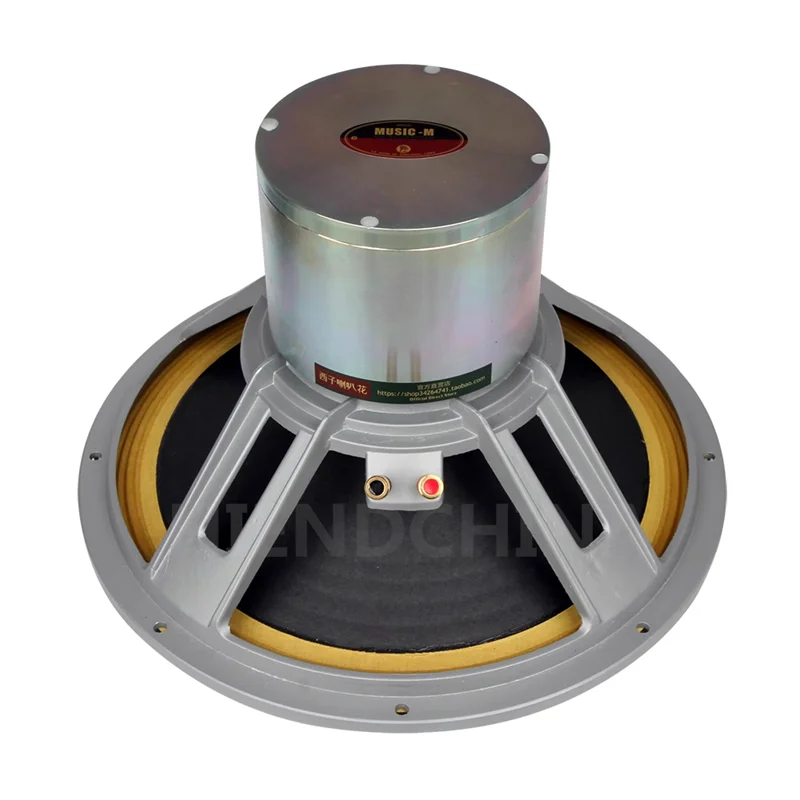

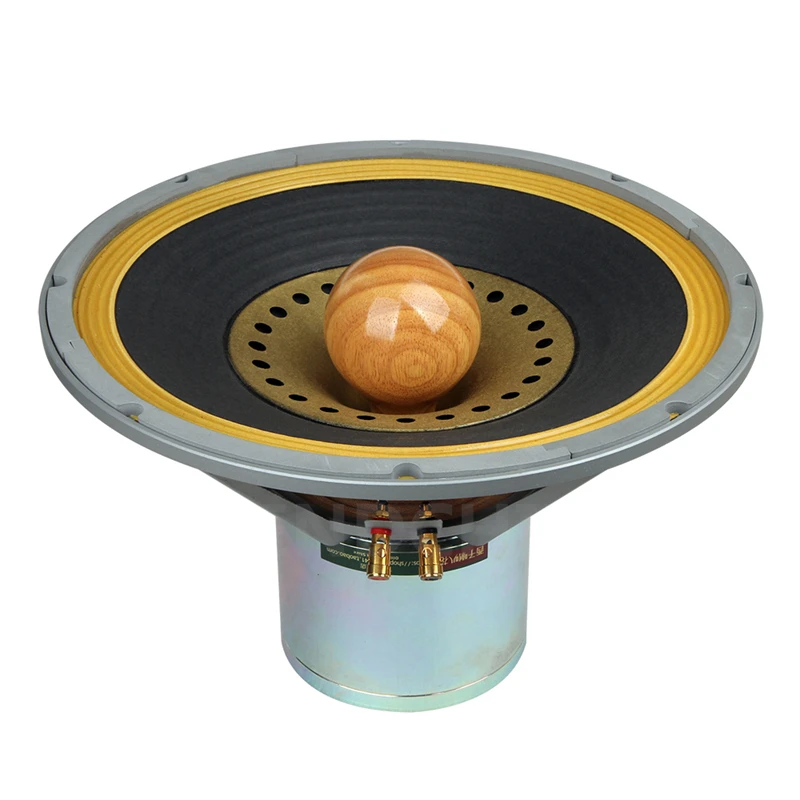

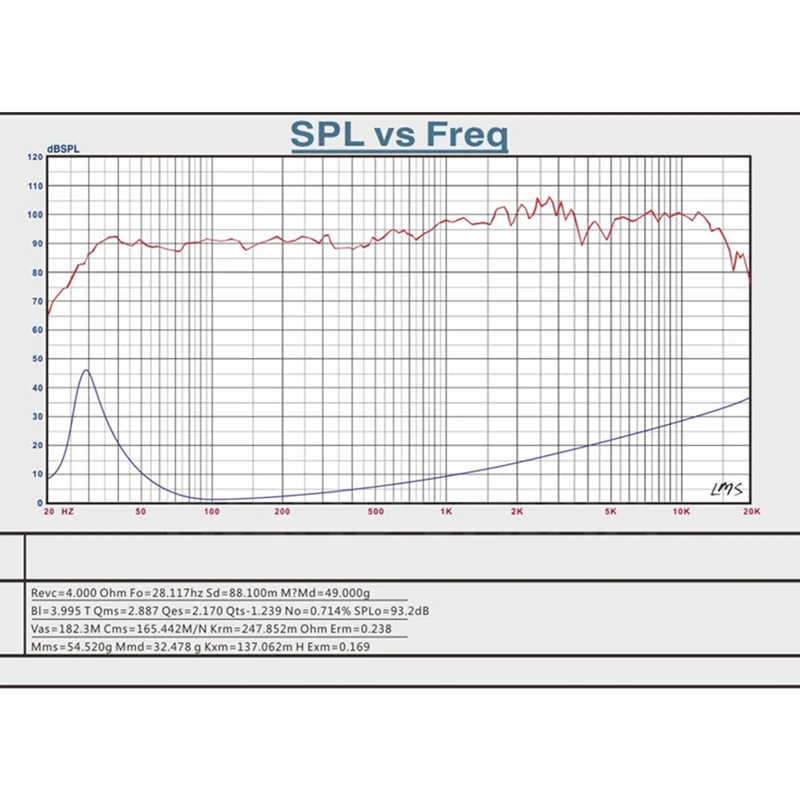

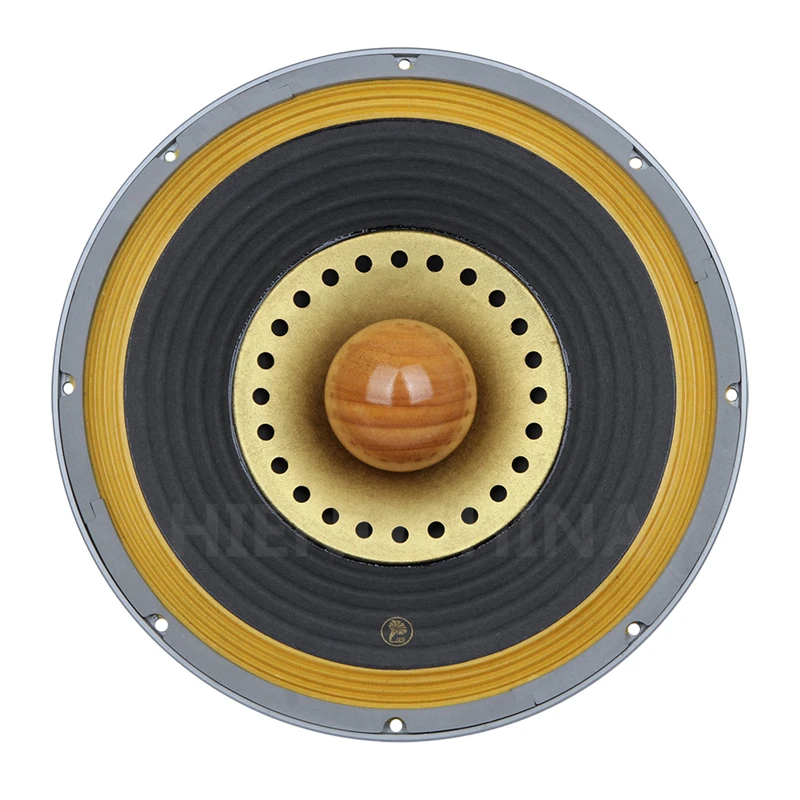

LII AUDIO MUSIC-15
Technical Parameters：
Resonate Frequency fs:28hz
Frequency Range:28-20khz
Sensitivity (1w/1m) :93dB
Nominal Impedance:8Ω
Shortterm Maximum Power:80w
Total Quality Factor ,Qts:1.2
Voice Coil Diameter: 38mm
Magnet Diameter: 150mm
Magneric: AIlnico 5
Equivalen Air Volume to Cms,Vas:182L
Mechanical Quality Factor,Qms:2.88
Nominal Diameter:390mm
Net Weight:12kg
Technical Parameters：
Resonate Frequency fs:28hz
Frequency Range:28-20khz
Sensitivity (1w/1m) :93dB
Nominal Impedance:8Ω
Shortterm Maximum Power:80w
Total Quality Factor ,Qts:1.2
Voice Coil Diameter: 38mm
Magnet Diameter: 150mm
Magneric: AIlnico 5
Equivalen Air Volume to Cms,Vas:182L
Mechanical Quality Factor,Qms:2.88
Nominal Diameter:390mm
Net Weight:12kg
