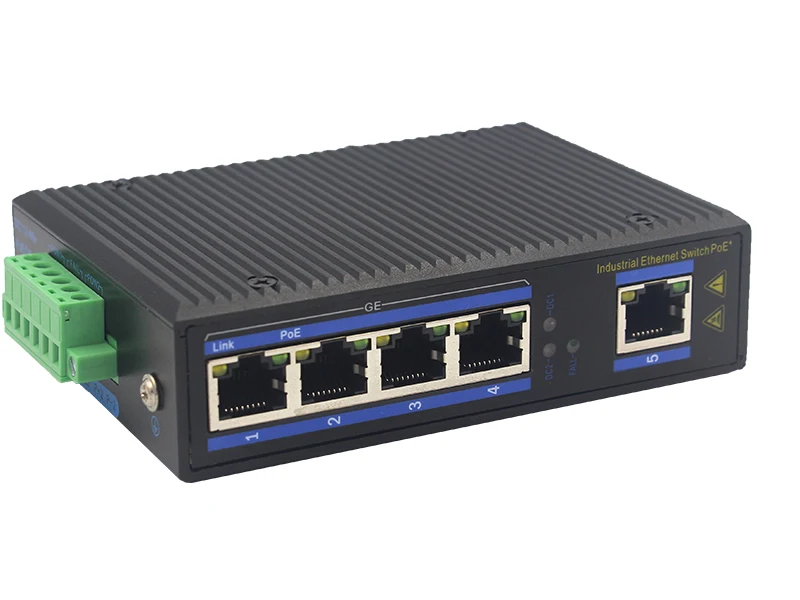

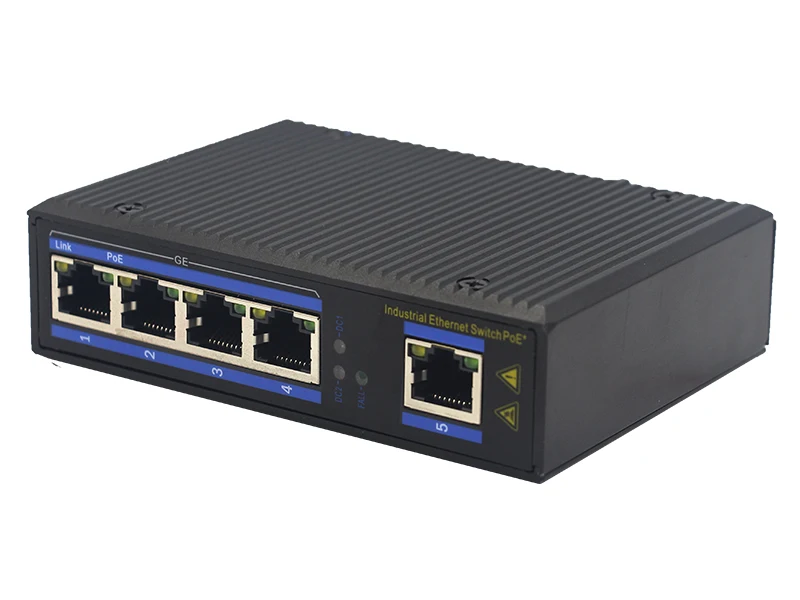

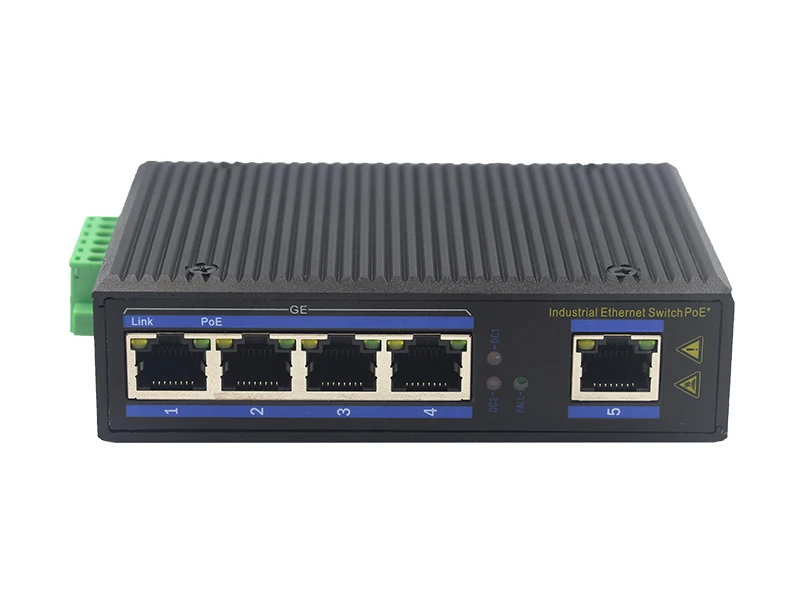

Outdoor Ethernet Hub RJ45 5 Port Network Switch Unmanageable
♦5Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/Ethernet Switch/Industrial Switch/Inustrial Switch
♦5-Port 10/100/1000Base ports
♦12-48V DC, dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.

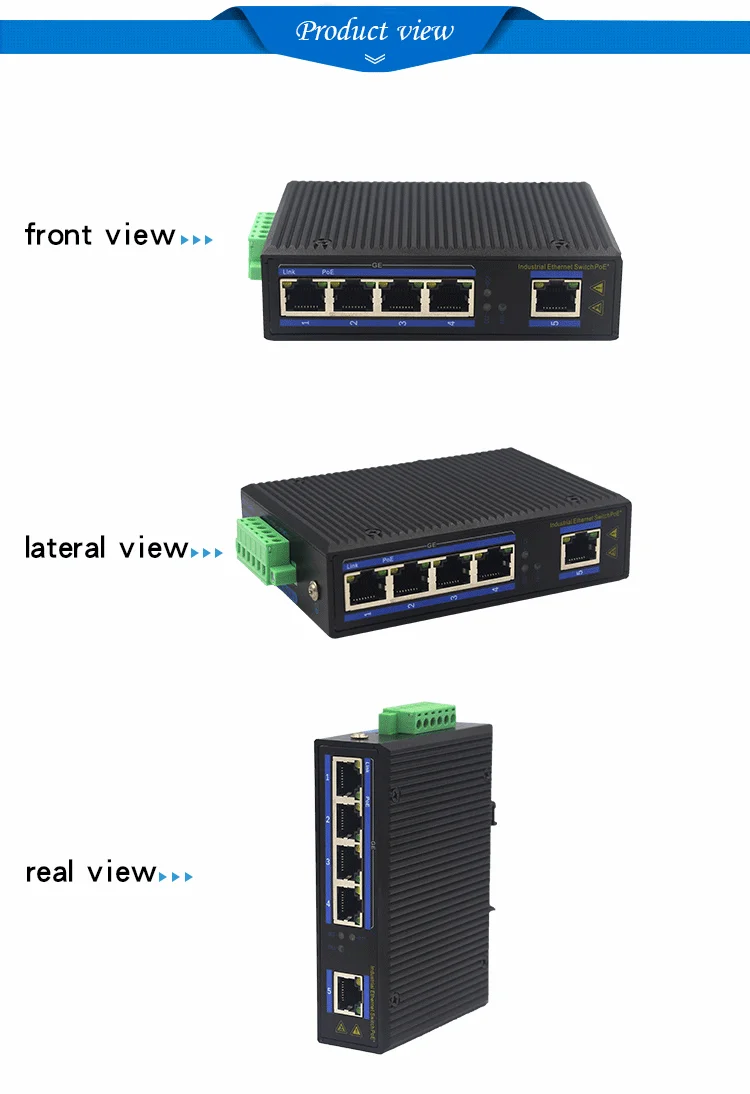

♦DIN-Rail mounting or Wall-mounted install
| Specification | |
| Product Name | 5 Port 10/100/1000M Network Switch |
| Product Model | YHD05G |
| Interface | 4x 10/100/1000Base-T ports+ 1 port uplink |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at |
| Fiber Media | Multi-mode: 2km; Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 10Gbps Packet Buffer Memory:1M Packet Forwarding Rate:1488000pps/port MAC Address Table: 8K |
| Forwarding Mode | Store-and-Forward |

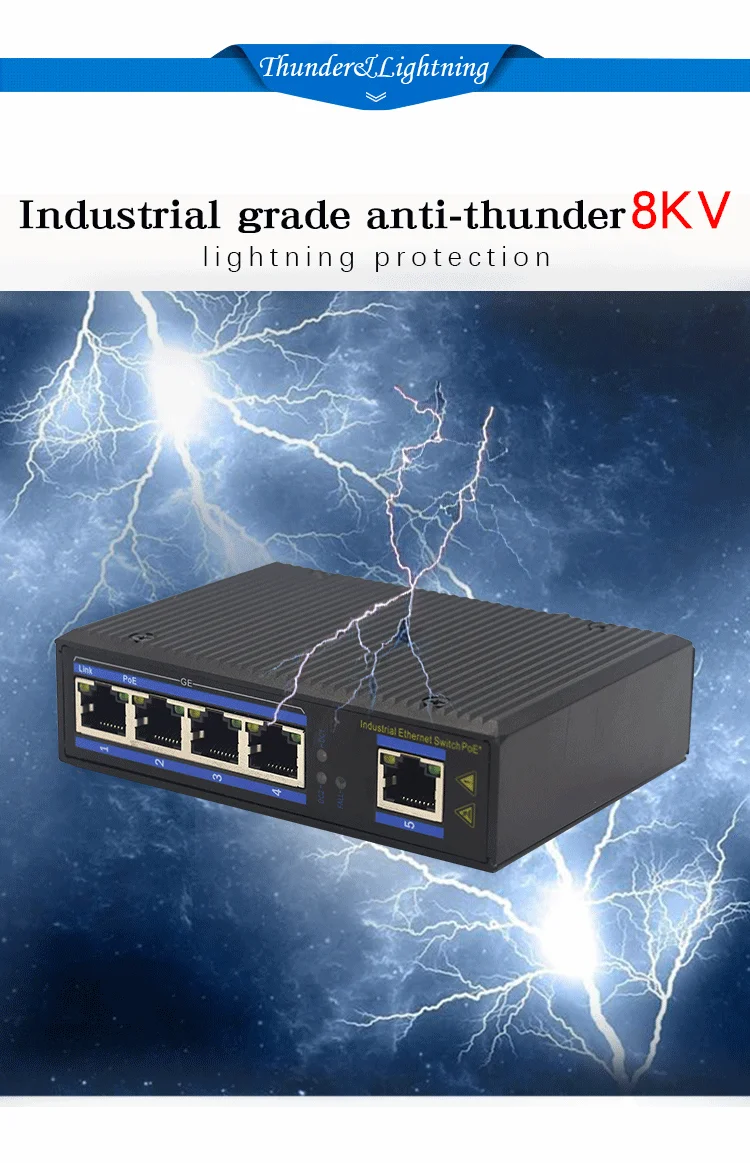

| Protection | Lightening protection, IP40 protection |
| Power Supply | Input Voltage: DC12-48V/Terminal block |
| Other Specifications | |

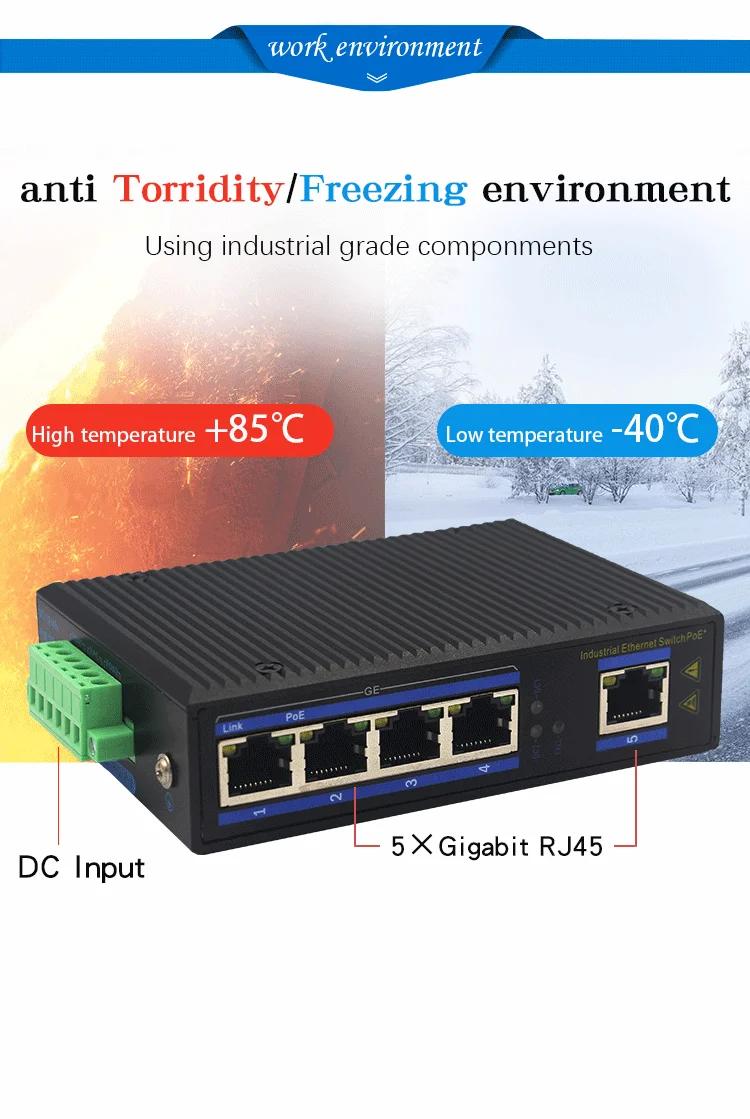

| Working Environment | Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Weight & Size | Product Weight: 0.36 KG Product size (L×W×H): 118mm× 86m m× 39mm |
| Warranty | 5-years |









We are manufaturer with rich experiense in Industrial Ethernet Switch, provide OEM service.
Warmly welcome for inquiry, we will be the first time to give you the best solutions!
