20hp 220v 50hz AC 20 compressor with air dryer
20hp 220v 50hz AC-20 compressor with air dryer
20hp 220v 50hz AC-20 compressor with air dryer

20hp 220v 50hz AC 20 compressor with air dryer

Share on (62443245808):


Price:

Quantity:


Product Overview

Description


Product Description
Product pictures

Product information

1.Inlet temperature:≤80℃(45℃)
2.Cooling Method: Air-Cooling
3.Inlet Pressure:0.4~1.3Mpa
4.Pressure Drop:≤0.03Mpa
5.Dew point:2~10℃
6.Refrigerant:R22

Technical specification

Model
Flow(Nm3/min)
DimensionPower AC
Dimension(L*W*D)
Weight KG
ND-05AC
0.8
220-240V/50HZ 1HP
600*430*490mm
24
ND-10AC
1.3
220-240V/50HZ 1HP
650*300*680mm
47
ND-15AC
1.8
220-240V/50HZ 1HP
650*300*680mm
50
ND-20AC
2.6
220-240V/50HZ 1HP
700*300*740mm
60
ND-30AC
3.8
220-240V/50HZ 1HP
830*340*850mm
71
ND-50AC
7.0
220-240V/50HZ 1HP
940*500*970mm
120
ND-100AC
14.5
220-240V/50HZ 1HP
1100*640*1370mm
188
ND-150AC
18.0
380V/50HZ 3HP
1100*640*1370mm
256
ND-350AC
40.0
380V/50HZ 3HP
1430*790*1780mm
475
ND-500AC
55.0
380V/50HZ 3HP
1600*2010*965mm
750

Main Features

1.Stable Performance: Stable exhausted pressure dew point.No water entering compressed air line.No ice plug phenomenon.
2.Reliable Performance: Adopt high quality components,bigger model for smaller application.Simple and reliable design.High effective refrigerating control system.
3.Easy Installation:Install and direct to run. Single electrical connection.All components with test.Less time for self adjusting and maintenance.Long internal maintenance time. Almost no replacement.
4.Efficient and Energy saving:Incerase the service life and durability of pneumatic tools and equipment.Less air line leaking,energy consumption reduction.Reduce the maintenance times for pneumatic tools,equipment and pipes.Reduce the stop-repaire times.
5.Satisfy Varied Requirement.

Related Products

2~10 degree C 1059scfm refrigerated air dryer for industrial

91.8% Response Rate

25m3/min Heatless type desiccant air dryer of ZAKF

91.8% Response Rate

Water cooling 55m3/min air dryer for air compressor with R22

91.8% Response Rate

Our Company

     Dongguan City Jiubei Compressor  Co., Ltd was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town.

     We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor and air dryer. With our rich experience, professional technology and rigorous quality control, our products has been widely used.

Corporate Culture


Business philosophy
Quality first,the credibility of the first ,to create the good products and services
to win-win cooperation,development and innovation to meet different customer
needs,forge innovative,and strive to passenger and i win .

Corporate Mission
Manufacture of energy efficient screw air compressors,green power,so that human life is more harmonious,low-carbon .

Our team

Our Customer

Our exhibition

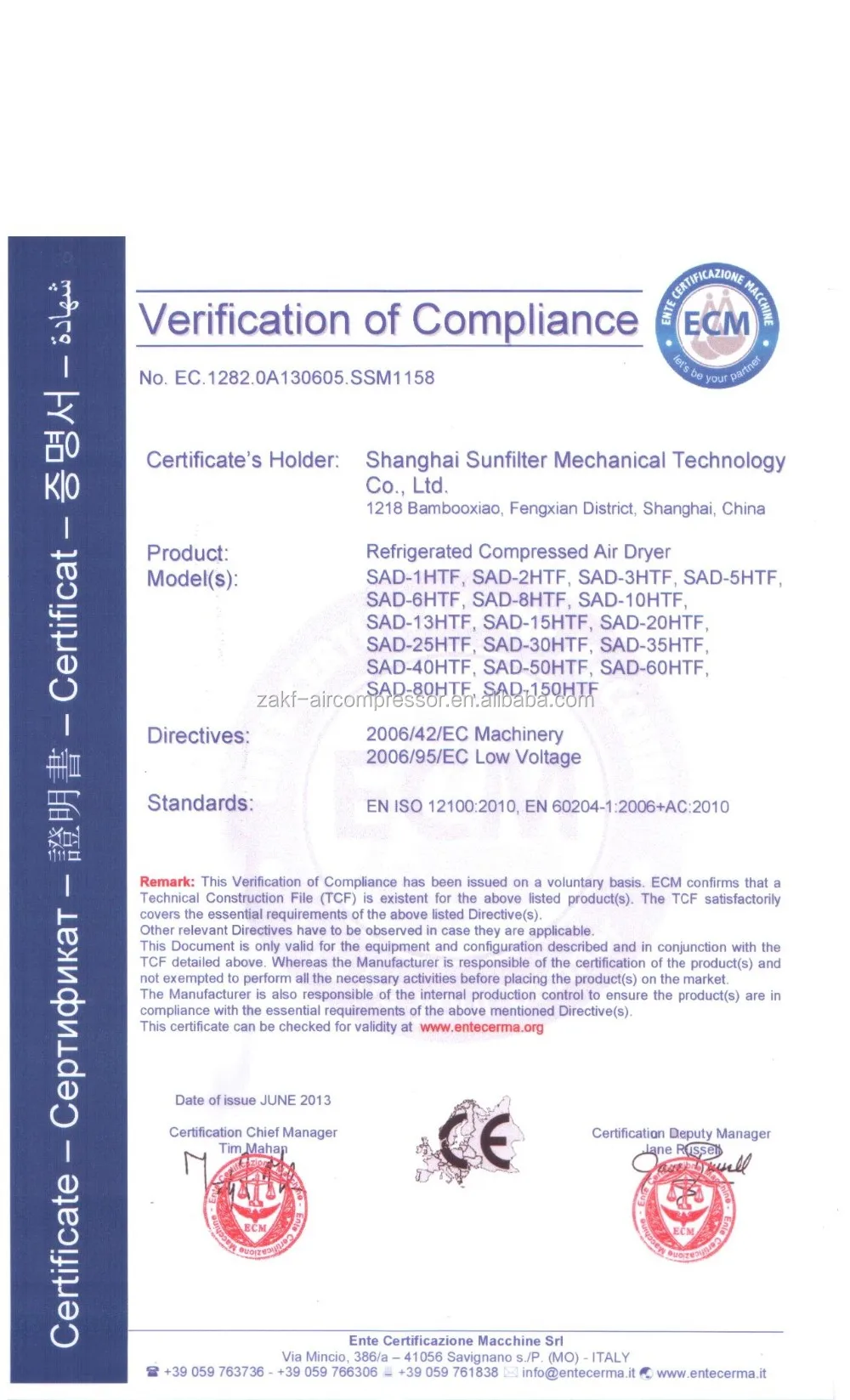

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1600(L) * 2010(W) * 965(D)
Weight
750KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2:How long is your air compressor warranty?
A2: 1 year.

Q3:How about your price?
A3: Based on high quality, Our price is very competitive in the world

Q4: What about product package?
A4: We pack our products with wooden case.
