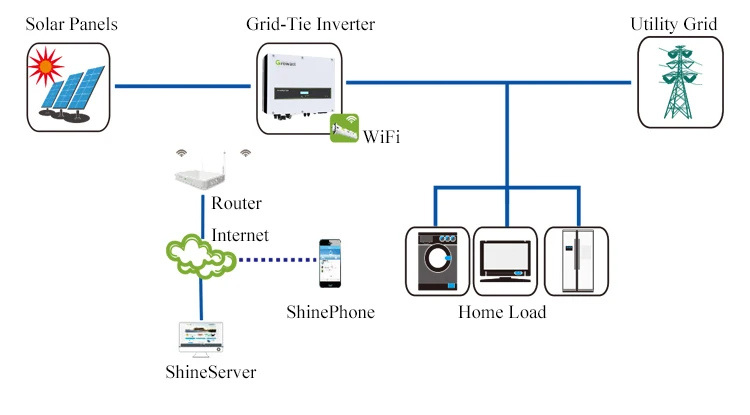

Grid-tied, on-grid, utility-interactive, grid intertie and grid backfeeding are all terms used to describe the same concept - a solar system that is connected to the utility power grid.

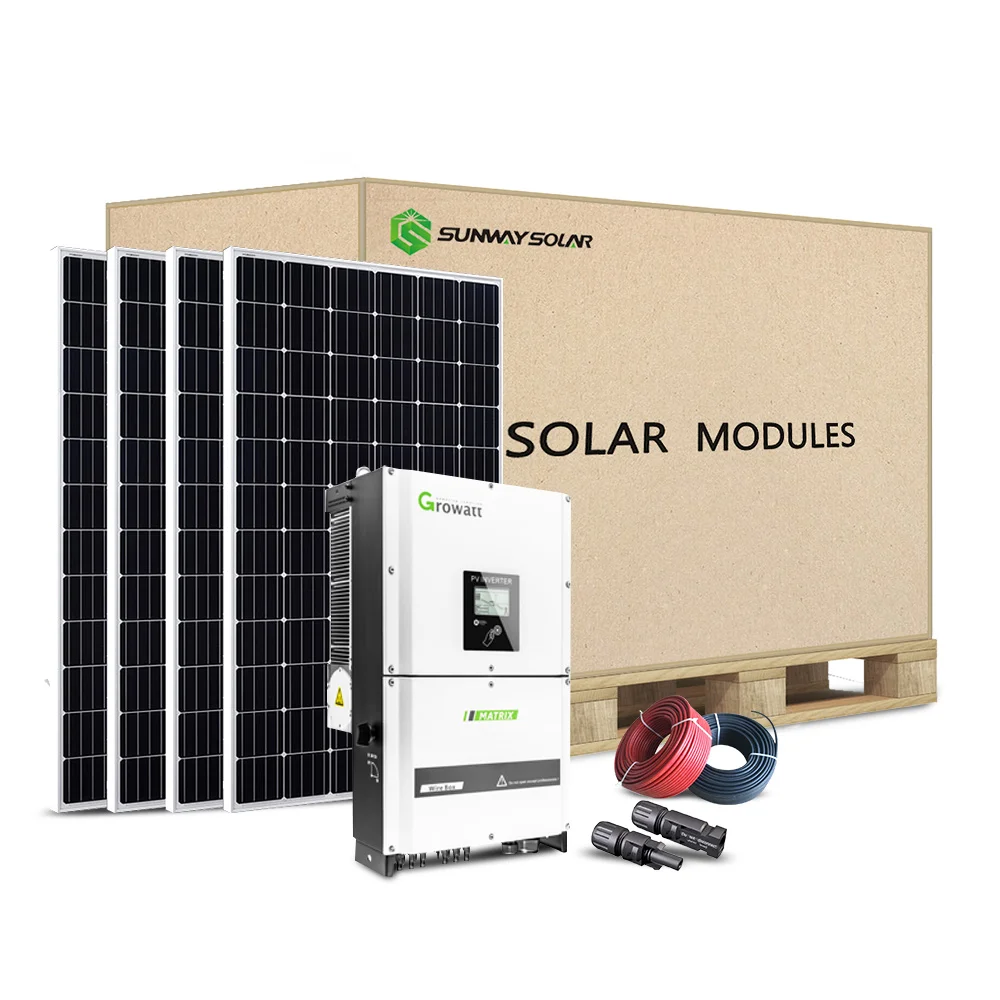

20kw on grid solar system
Our Difference SATISFACTORY SERVICE - 15 working days delivery - 5 years warranty - on-site installation instruction
ADVANCED LIGHTING TECHNOLOGY - Design for lighting applications - Dimming and operating profiles for adaptive lighting - Superior LED luminaires
CUSTOM SOLUTION FOR YOUR APPLICATION - Precision- engineered for your application - Array for solar engines available for your application - Aesthetic- design and value-built engine options

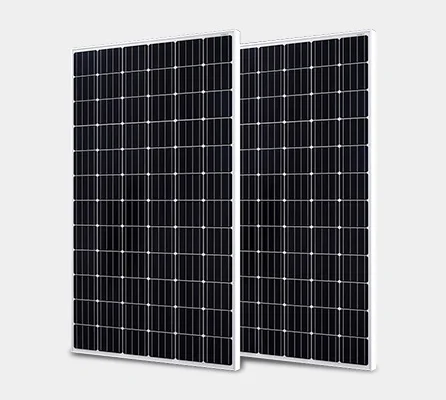

*EL Double-inspection ensures modules are defects free *Modules Binned by Current to improve system performance *Potential induced
Degradation(PID) Resistant

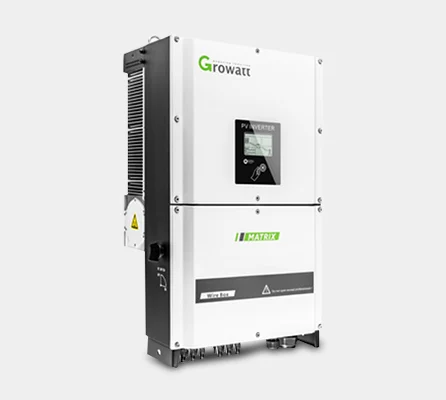

20kw On Grid Inverter
*Max. DC Voltage up to 1000V
* Max efficiency 99%
*Dual MPP trackers
*Supports export limitation*Intergrated DC switch
*Strings fuse and string monitoring
*PID-recovery function
*Natural Cooling
*Type II DC and AC SPDS

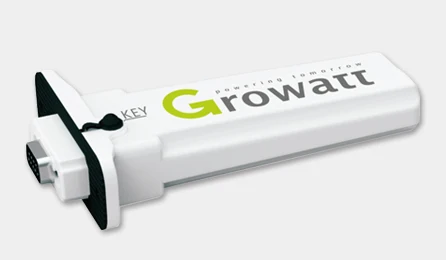

Shine WiFi
1. Easy to use
2. Plug-and-play commissioning
3. 100-meter wireless connection to inverter
4. Remote firmware updating for inverter
5.Free online monitoring via Shine Server
Growatt 20000TL3-S
Input data (DC)
Max. recommended PV power
(for module STC)
25000W
Max. DC voltage
1000V
Start voltage
250V
MPP voltage range
200V-1000V
Nominal voltage
580V
Max. input current
37.5A/37.5A
Number of independent MPP trackers/
strings per MPP tracker
2/3
Output (AC)
Rated AC output power
20000w
Max AC apparent power
22200va
Max. output current
32.2A
AC nominal voltage
230V/400V
AC grid frequency
50Hz/60Hz ±5Hz
Power factor
0.8leading - 0.8laging
THDi
<3%
AC grid connection type
3W+N+PE
Mounting structure

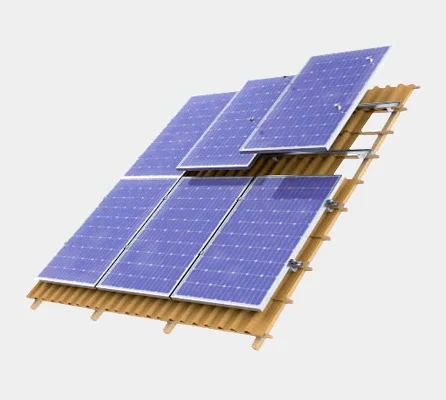

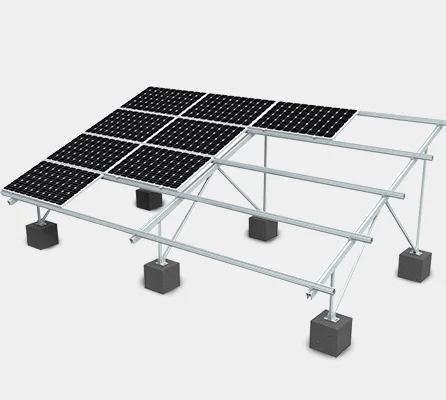

> Residential Roof(Pitched Roof) > Commercial Roof(Flat roof&workshop roof) > Ground Solar Mounting system > Vertical wall solar mounting system > All aluminum structure solar mounting system
> Car parking solar mounting system.
Accessories

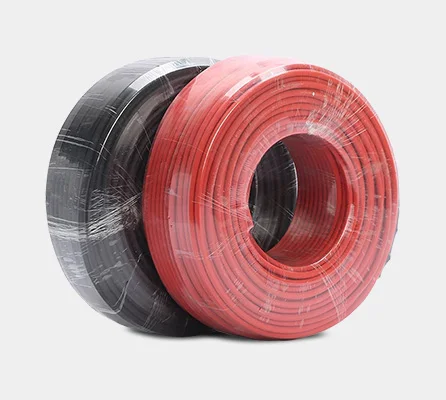

> PV Cable 4mm2 6mm2 > AC Cable > DC Switches > AC Breaker > AC/DC Combiner box
