Многофункциональная одноразовая медицинская маска для лица, автоматическая машина для нанесения картона, прямые продажи с завода
- Category: Packaging Line >>>
- Supplier: Shanghai Shenhu Packaging Machinery Equipment Co. Ltd.
Share on (62480412357):
Product Overview
Description
Product Description

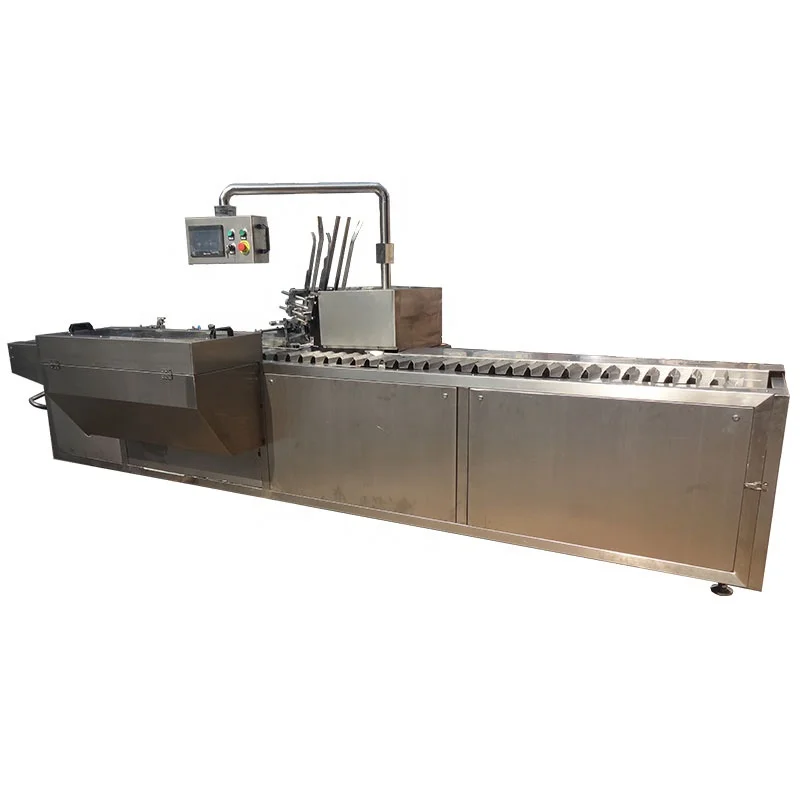

High Quality Box Packing Machine Factory Price Automatic Cartoning Machine

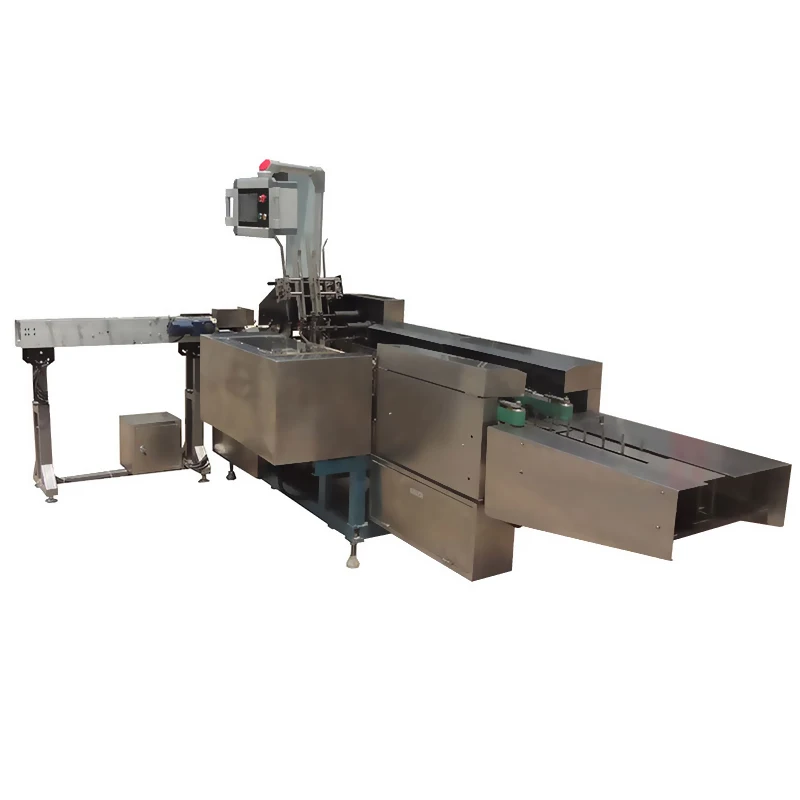

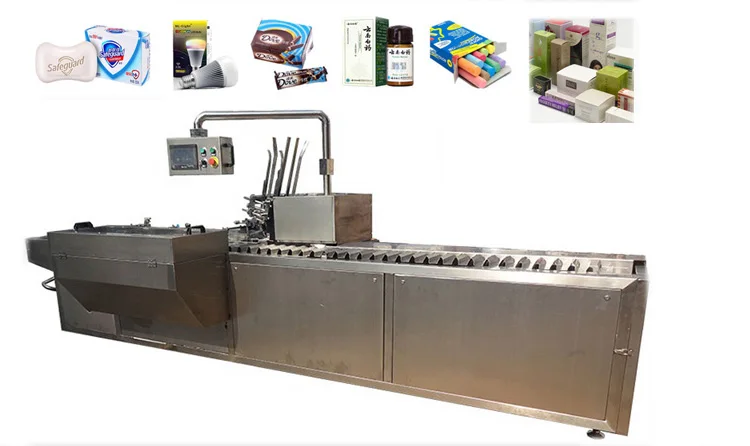

ShenHu HTZH Series Boxing Packing Machine is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic, photo, electric, mechanic in one. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line.
Machine Specification:
| Model | HTZH-80 | HTZH-100 | HTZH-120 | HTZH-200 |
Photo |
|
|  |
|
Box size | L:49-120mm W:30-80mm H:14-50mm | L:5-220mm W:20-120mm H:12-70mm | L:70-180mm W:35-85mm H:14-50mm | L:70-200mm W:35-75mm H:15-70mm |
| Speed | 40-80 pcs/min | 50-100 pcs/min | 50-120 pcs/min | 60-200 pcs/min |
| Power | 1.5kw | 1.5kw | 1.5kw | 5kw |
| Box quality | / | 250-350 g/square | 250-350 g/square | 300-350 g/square |
| Dimension | 1300*1200*1500mm | 4300*1500*1650mm | 3100*1100*1550mm | 4070*1680*1680mm |
| Wight | 950kg | 1200kg | 1400kg | 3000kg |
| Voltage | 220V/380V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz |
| Air pressure | / | 0.5-0.7Mpa | ≥0.6Mpa | 0.5-0.7Mpa |
