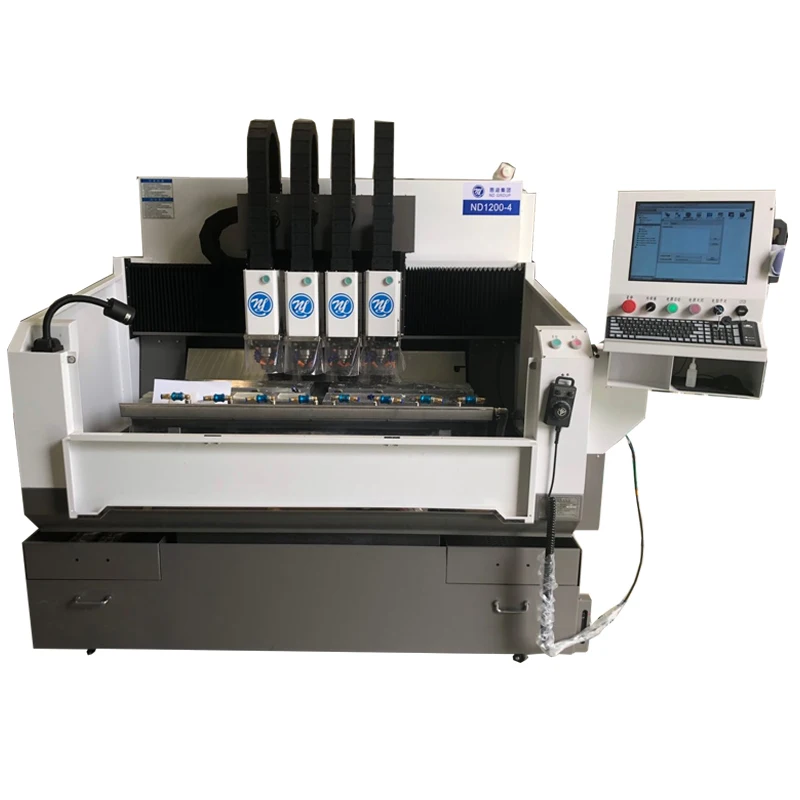

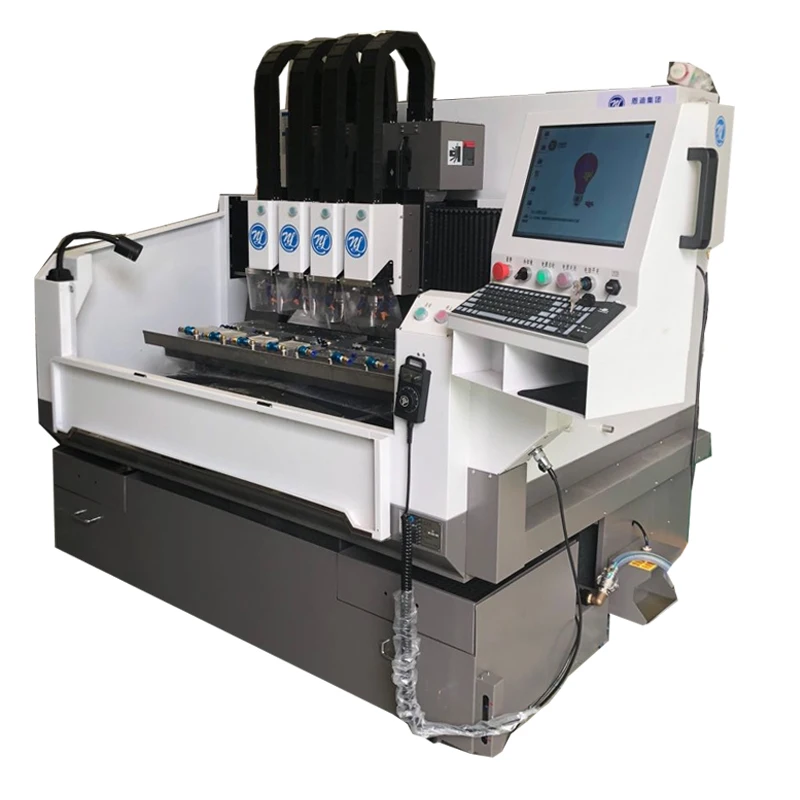

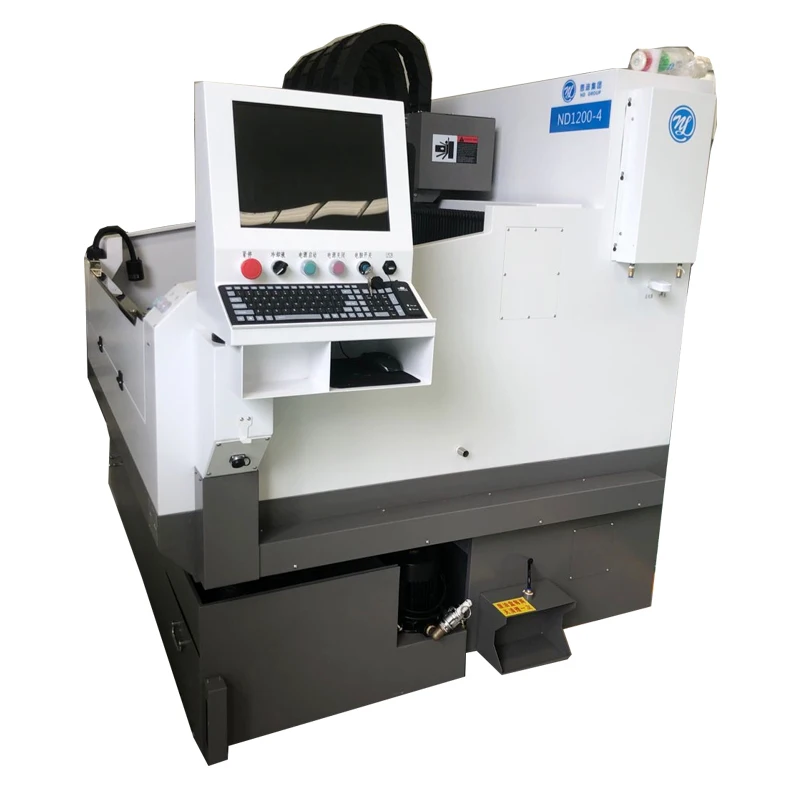

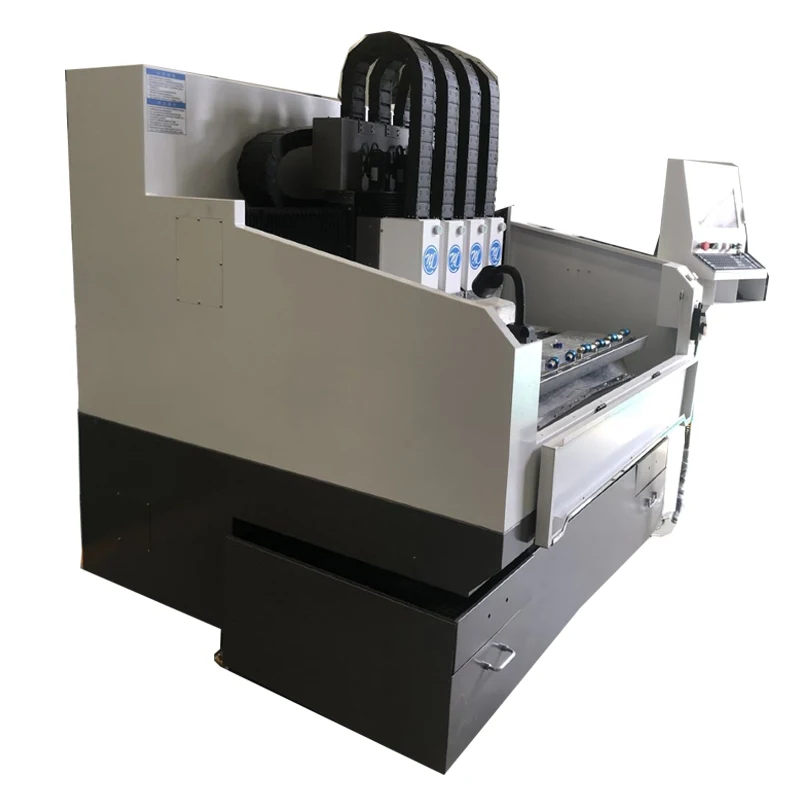

Полировальная Машина Для стеклянного чехла мобильного телефона iphone x

mobile phone cover iphone x glass case glass polishing machine Application

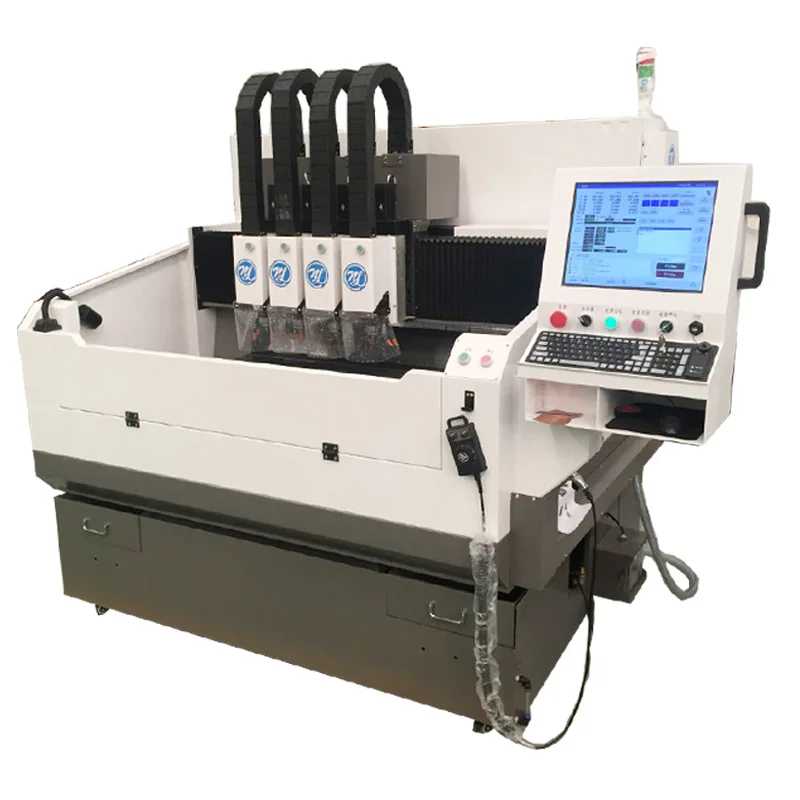

Mobile phone tempered glass screen protector sheet making machine ND-1200IIII is mainly used for glass, window glass high speed cutting, PC high light button and all kinds of digital products processing.

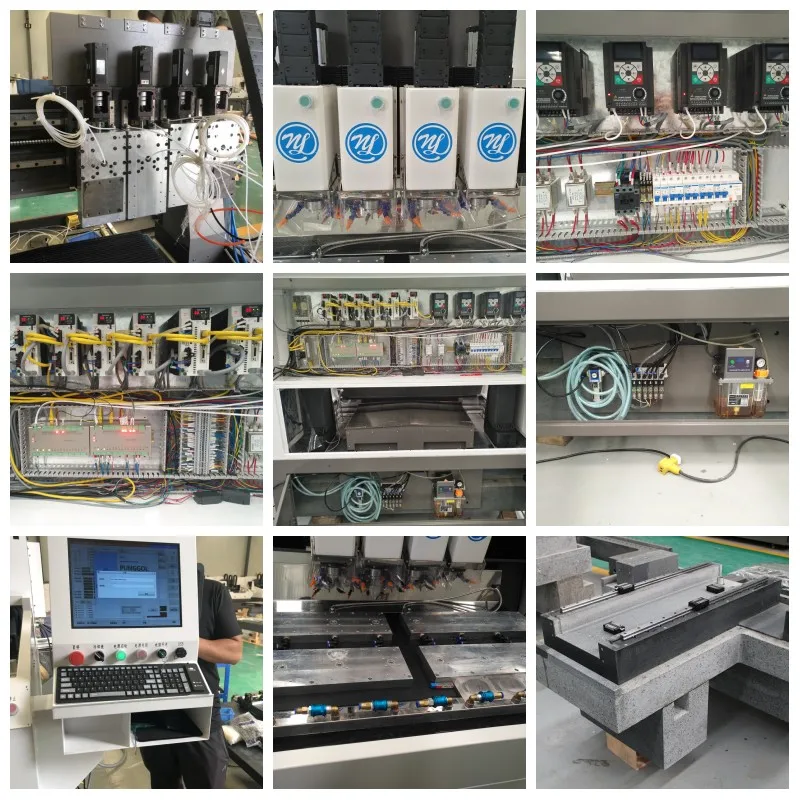

Parameter

1. Jinan Qing Marble body

2. Taiwan C3 grind level ball screw

3. Taiwan P level rails

4. XY axis Japan Panasonic 750w servo motor and driver

5. Z axis Japan Panasonic 400w servo motor and driver system*4

6. Hpmont inverter*4

7. High speed 1.8kW spindle(60000RPM)*4

8. GFD control system

9. Vacuum filter

10. Industrial personal computer

11. Industrial water chiller

12. Lubrication pump

13. Water air condition

14. Tool sensor

15. Water tank and water pump

16. Hand wheel

17. CE standard 220V 1 phase 50Hz

1. Water cooling spindle: adopt water cycle to cooling the spindle, which is effective ,low noise, long use life. But it needs to install a water pump, a little complicated.

2. Square rails stand wear and tear, maintain high accuracy. The precision is higher than round rail. Square rails can bear the load from left & right , up & down. Apply to high speed move and greatly reduce the driving power.

3. Panasonic servo motor apply closed loop,and has higher precision,which is better than stepper motor. AC servo motor runs smoothly,no low frequency vibration phenomenon at low speed.the torque output of the stepper motor will decrease at high speed , while the servo motor performance well even at high speed. It also has a strong overload ability, the control performance is more reliable than stepper motor.

4. Driver on Mobile phone tempered glass screen protector sheet making machine is mainly used to drive step motor or servo motor to shunt, that is to say, by subdivision drive function to further optimized the smallest control of the stepper motor. The subdivided driving technology of stepping motor is improved greatly step torque resolution , reduce the torque ripple ,avoid the low frequency resonance and reduce running noise.

5. Inverter on Mobile phone tempered glass screen protector sheet making machine is mainly used to control spindles’s start, stop ,and adjust spindle speed.

6. Taiwan grind level ball screw,it has high positioning accuracy & high efficiency transmission.

7. Tool sensor can measure “Z “ zero position for single and multiple tool changes through the program. That can automatically measure the distance between the tool head and the material.

8. Limit switch can prevent mechanical impact caused by wrong operation. The hard limit switch at both end of the rails, protect the hard ware equipment. When Mobile phone tempered glass screen protector sheet making machine get out of control, it can block the spindle moving.

9. Automatic oiling system continuously supply new oils on the surface, can save maintenance costs.

 12 months quality guaranty, the Mobile phone tempered glass screen protector sheet making machine with  main  parts (excluding the consumables)  shall  be  changed  free  of  charge  when  if any problem during the warranty period.

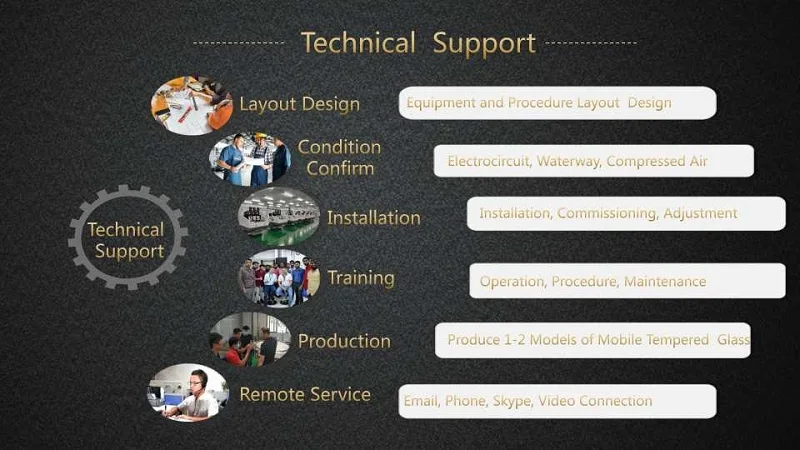

Service: ( Provide whole life technical support, 24h online )

Before sale:

We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;

During sale:

We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;

After sale:

1) We would provide English Version working manual.

2) If you have any questions during using and maintaining, our engineers who could speak very  good  English would answer you online or by calls.

3) Mobile phone tempered glass screen protector sheet making machine warranty is one year. So if your machine has any unintentional damages, we would provide parts  for free.

4) If your Mobile phone tempered glass screen protector sheet making machine has big problems if by any chance, our engineers would arrive there to debug and fix.

5) Could be remote control if needed.

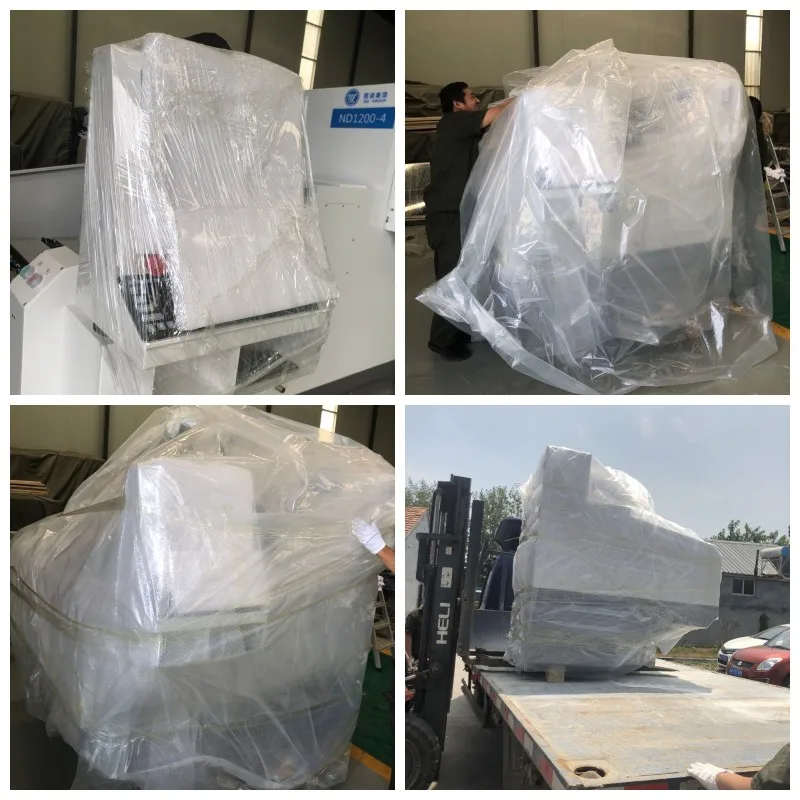

 1).Mobile phone tempered glass screen protector sheet making machine CNC ND820III adopt wooden case which with fumigation treatment.Needn’t to process timber inspection, save shipping time.

2).All the spare parts of the Mobile phone tempered glass screen protector sheet making machine were covered by pearl wool to avoid damage that would happen in delivery.Then wrap  it out  tightly with water-proof plastic to make sure intact  of  the  covered soft materials, also ensure Waterproof and  rust proof.

3).Packed with fixed framework wooden case.

4).There is firm iron jack on the bottom of wooden case, convenient to Handle and transport.

ND Group

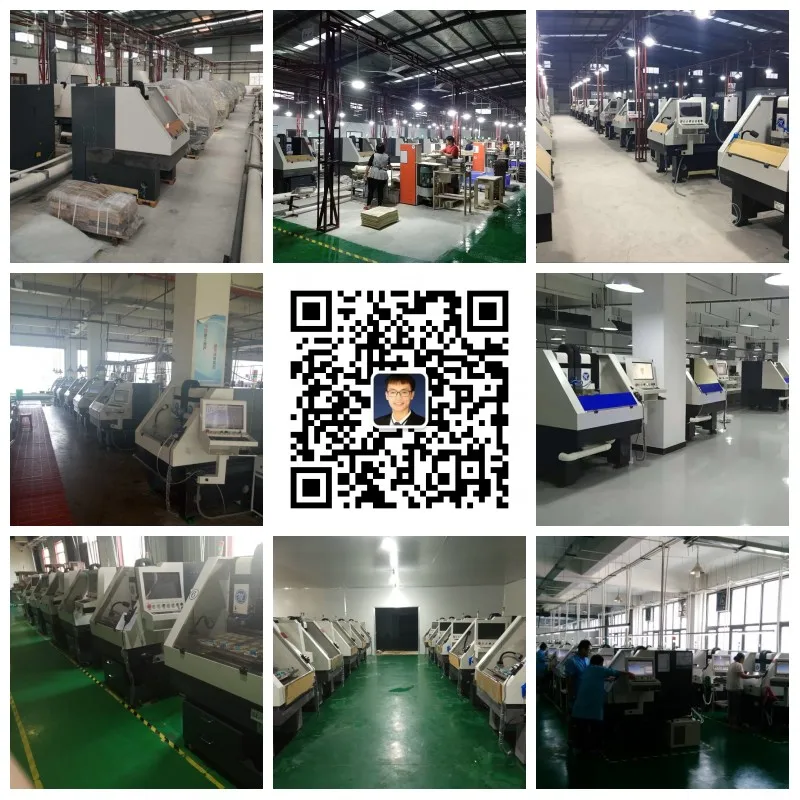

ND Group is located in Shanghai with the headquarters and R&D department, show room in shenzhen city and two plants in Jinan city.

ND Group integrates the excellent design,production and CNC service, specialty engaged in the precision CNC machine,Granite Mechannical Components and marketing up to 15 years.

Now we have mature production workers. More than 100 people, 2 product R&D departments, 10 sales departments. We provide package solution with one-stop service, such as metal/tempered phone glass/tempered panel glass processing.ND team aims to help you achieve your dreams by providing you with the best service and high quality machinery.

"Machinery, Control, Inspection, Measurement, Testing--Technology Solution Expert " ---NDCNC Group.

Paul Zheng

Tel/Whatsapp/Wechat: +86-151 0691 2735

E-mail: paul AT nd-cnc.com sales AT nd-cnc.com

Skype: PaulZhengY
