Price:$40.00 - $45.00

Quantity:

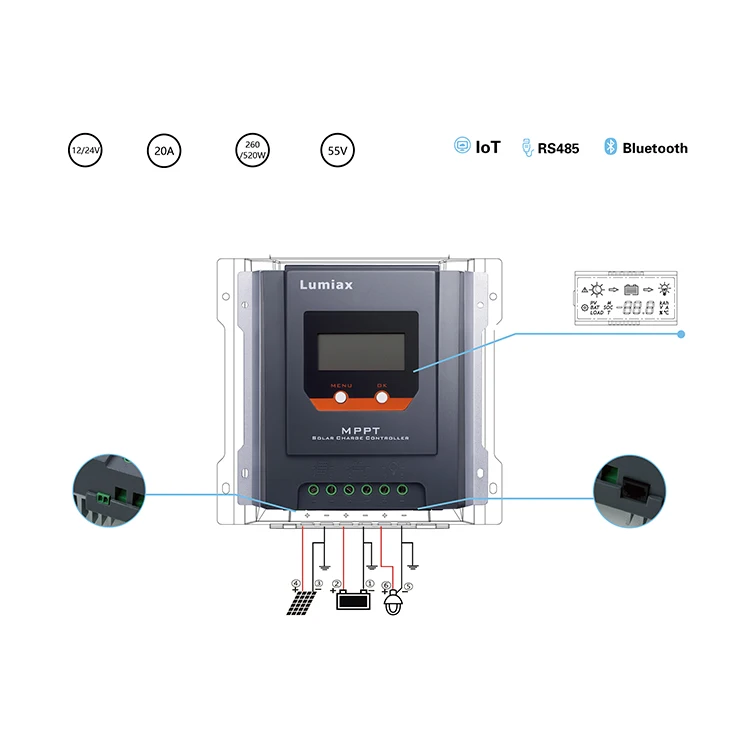

Product Overview

Description





Type
MT3075
Battery Parameters

Parameters
System Voltage
12V/24V automatical recognization
Max Charging Current
30A
MPPT Charging Voltage
before boost or equal charging stage
Boost Voltage
14.0~14.8V/28.0~29.6V@25℃（default:14.5/29V）
Equal voltage
14.0~15.0V/28.0~30.0V@25℃（default:14.8/29.6V）Liquid,AGM）
Float Voltage
13.0~14.5V/26.0~29.0V@25℃（default:13.7/27.4V）
Low Volt. Disconnect
10.8~11.8V/21.6~23.6V,SOC1~5（default:11.2/22.4V）
Reconnect Voltage
11.6~12.8V/23.2~25.6V
Overcharge Protect
15.5/31.0V
Max volt on Bat. terminal
35V
Temp. Compensation
-4.17mV/K per cell (Boost, Equal)， -3.33mV/K per cell (Float)
Battery Type
Liquid, Gel, AGM,Lithium
Panel Parameters
Max volt on PV terminal
55V
Max input power
390/780W
Dusk/Dawn detect volt.
8.0/16.0V
MPPT tracking range
（Battery Voltage + 1.0V）~ Voc*0.9
Load
Output Current
30A
Work mode
Always on, Street lamp, User-defined mode
System Parameters
Max tracking efficiency
>99.9%
Max charge conversion
98.00%
Dimensions(mm)
189*182*64
Weight
1300g
Self consumption
7mA
Ambient temperature
-20 ~ +55℃
Storage temperature
-25 ~ +80℃
Ambient humidity
0 ~ 100%RH
Protection degree
IP32
Max Altitude
4000m

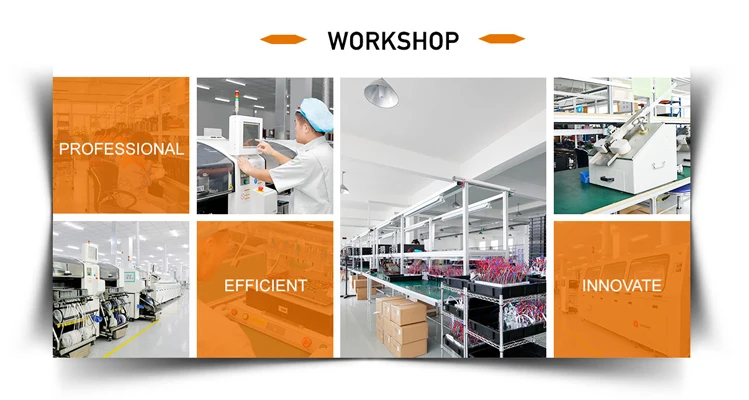

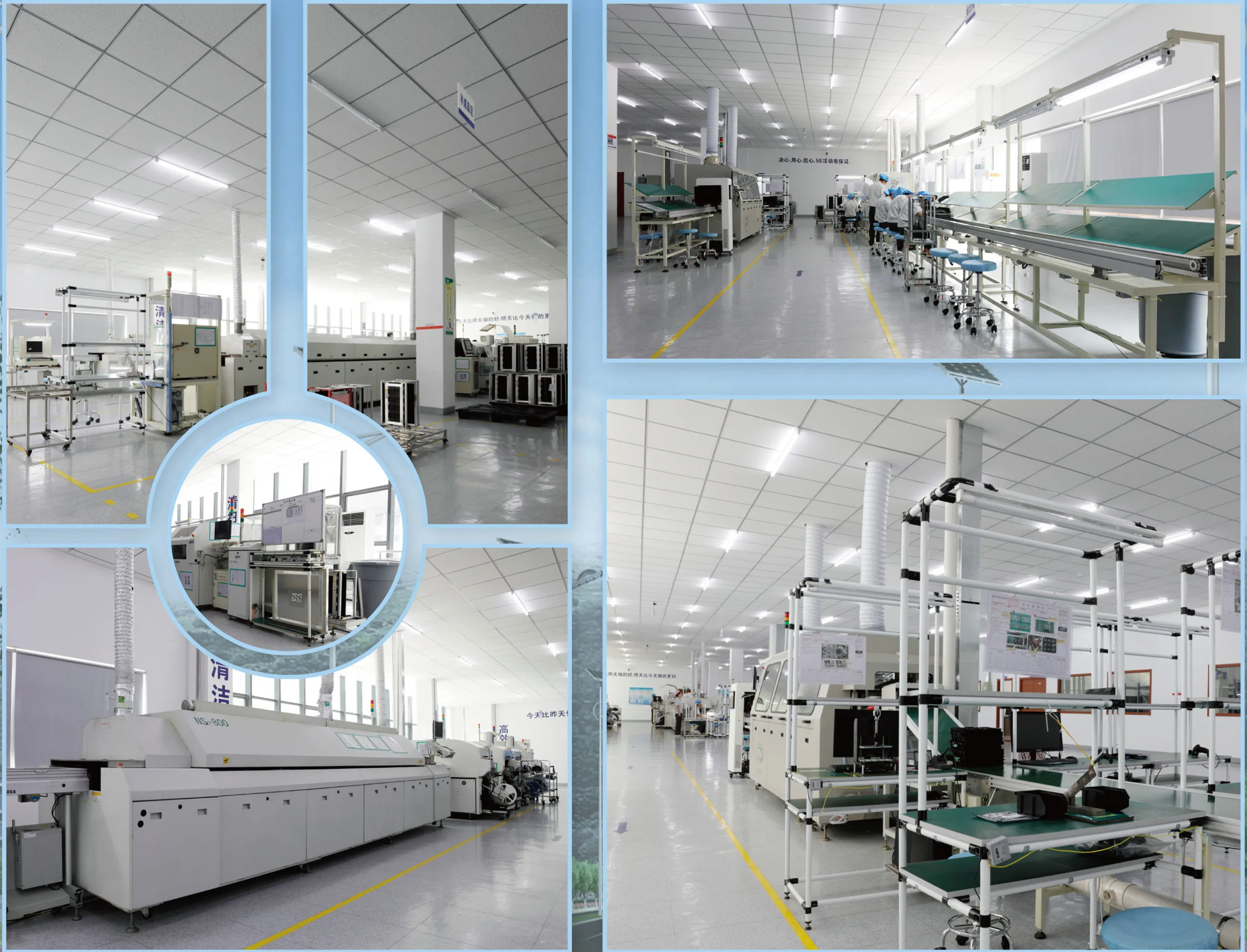

Our Factory
