Автоматическая паяльная маска 645*581, печатная плата, УФ светодиодная экспозиционная машина, двухсторонняя вспышка за раз

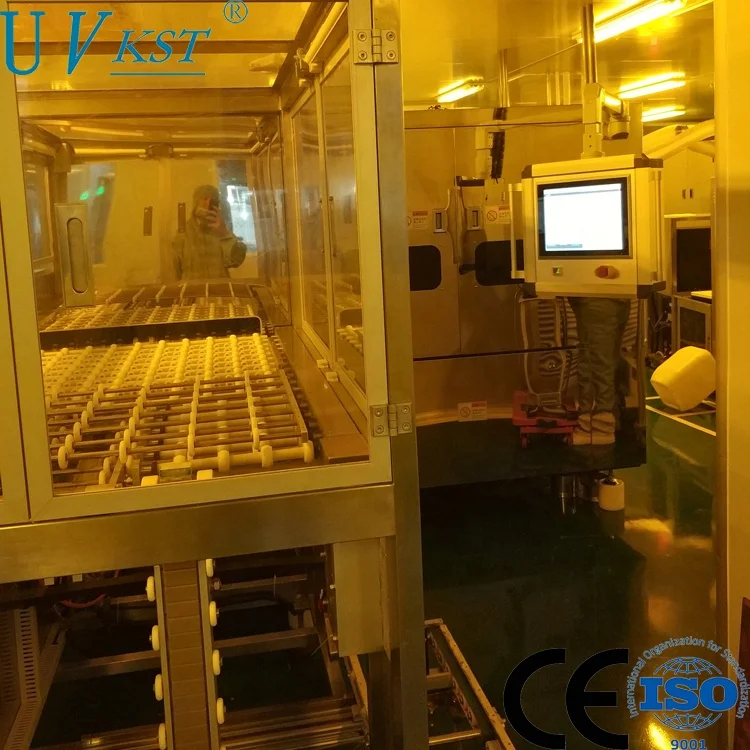

KST-AEM6254-FH Automatic PCB UV LED Exposure machine is designed and developed by our own R&D Department. It is an ideal equipment for solder mask, PISM. The machine with 8 CCD camera to do the alignment, the undercut can reach 14.43um, The solder mask opening 1.5mil. This machine is specialized in the mass production of various
kinds of color ink.

This machine is equipped LED light sources, greatly saving energy, cover different wavelengths, greatly meet the customer requirments one machine expose all colors ink. No matter white, green, black, blue etc. colors ink. The machine applied by the PC control system,Touch screen . With LED lamp imported from Korea, super power saving, and long service life, with 3 years warranty. High energy, greatly short down the exposure time, main white ink only takes 3-5s,  Its reasonable design and stable performance improve the work efficiency and the quality of the products greatly.

1) Simple structure in linear type ,easy in installation and maintation.

2) Automatic energy calibration and compensation, uniformity>90%

3) LED Technology, power savings, high efficiency, cost effective.

4) Built in temperature monitor module, alarming when LED over temperature.

5) High precision constant current driving power supply design, reducing the current impact of LED, greatly prolongs the LED service life.
