Solar Panel 1 String PV Combiner Box for solar Distribution Power System

Product Overview

Description



   Solar Panel 1 String PV Combiner Box for solar Distribution Power System



 Product description



PowerSA-SUNio-PV 1/1 DC Combiner box is suitable for inverter(Max input voltage DC500/DC1000V, 1 Input channel 1 output channel,single MPPT inverter) Box body is made of plastic engineering materials , with test for fire retardant ,temperature rise,anti impact ,anti ultraviolet etc .IP65 protection grade .

Intelligent design and configuration strictly accordance with CGC/GF 037:2014 "Technical specification for photovoltaic junction equipment " .we provide users with a safe,brief, bright and applicable photovoltaic system products.



Advantages:

• High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch

• Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation,the simplified system wiring, the convenient wiring
The box body is made of cold rolled steel and other metal materials

• Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified

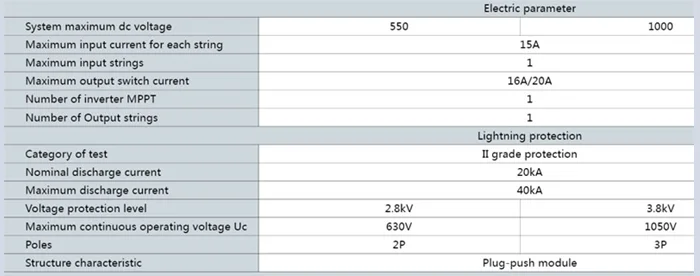

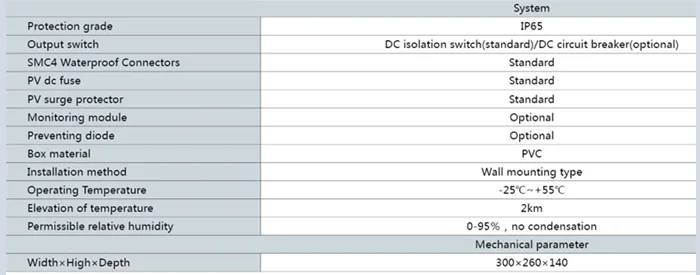

 Technical Parameters

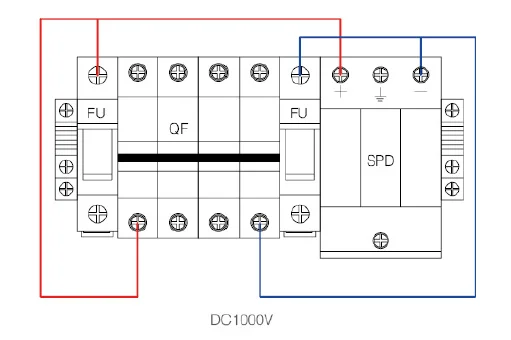

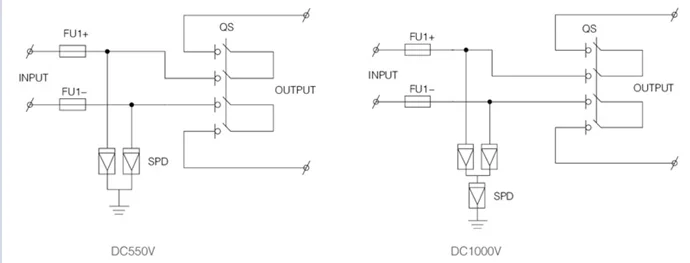

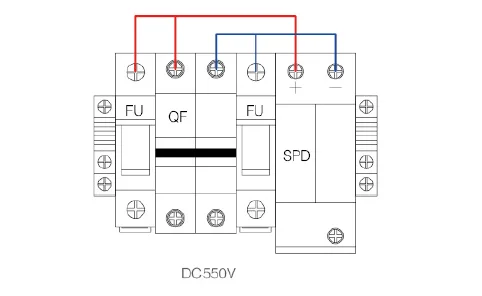

 Schematic Diagram

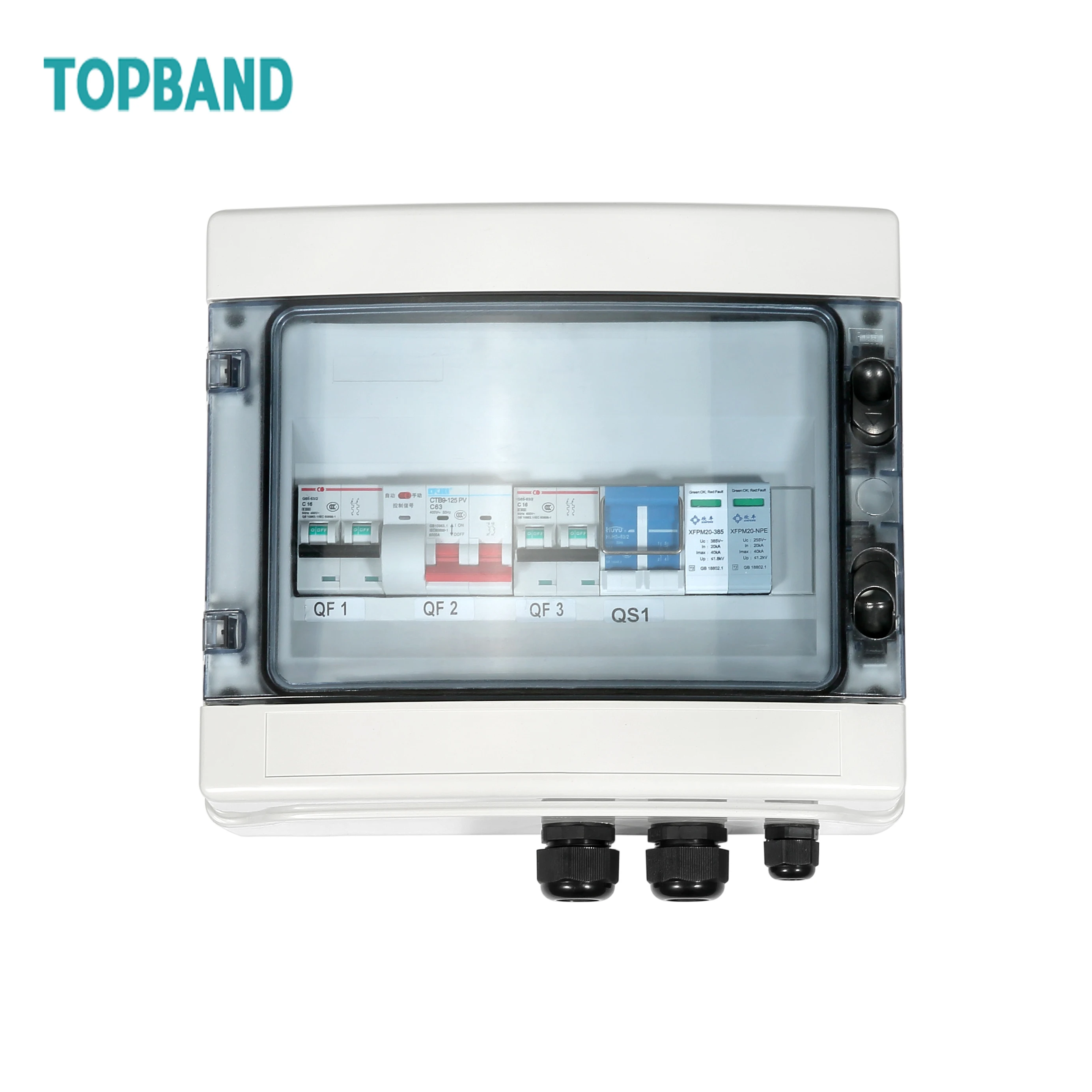

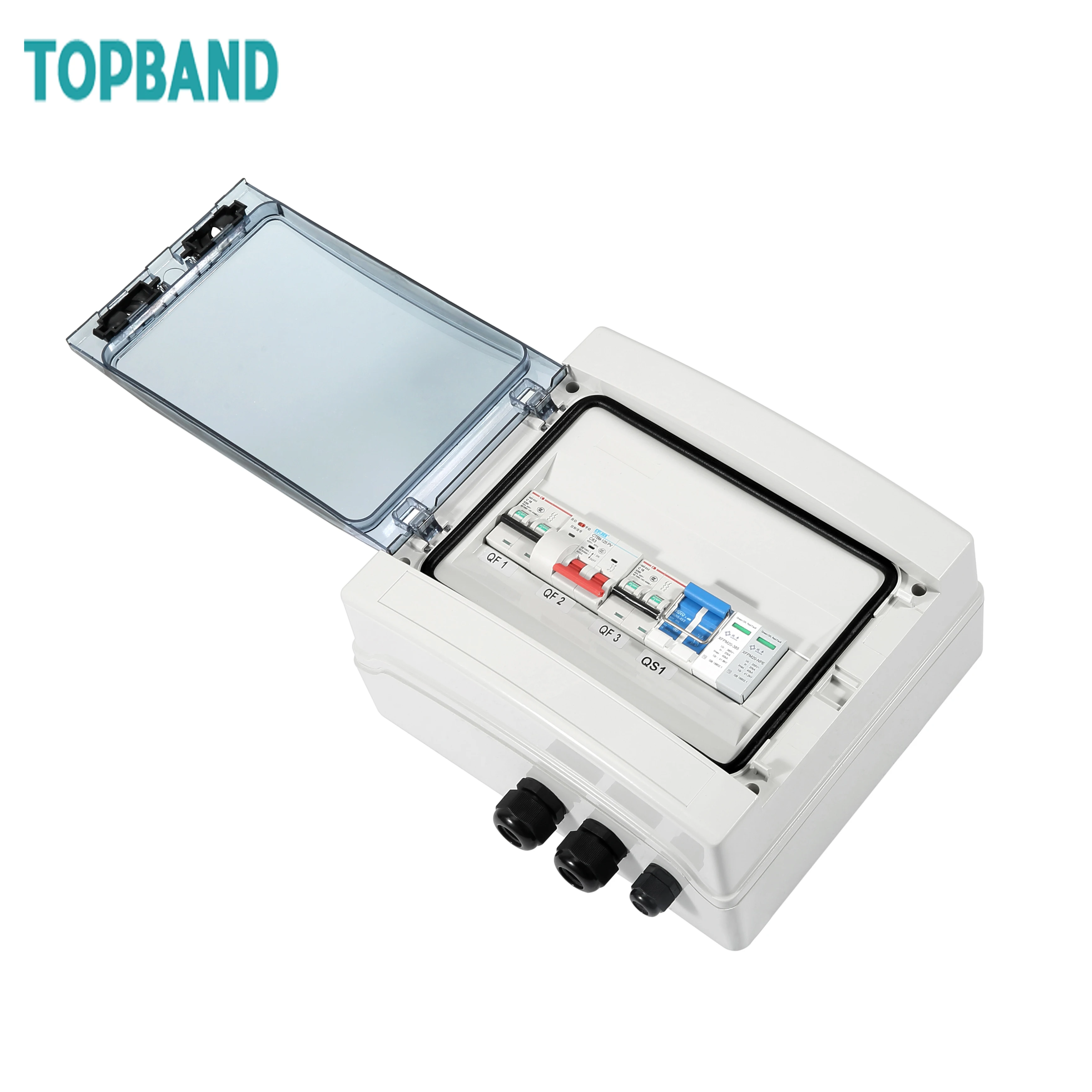

 Photos show



























 Packing and shipping



Shipping

1. we will ship the products within 15 working days after receipt of payment .

2. we can ship to you by UPS/FEDEX/DHL/TNT/EMS and so on .other shipping terms can also be arrange according specific requirements.



Logistics

1.UPS:3-5days arrive, door to door ,cheap

2.DHL:3-5days arrive, door to door ,cheap

3.TNT:3-5days arrive, door to door ,cheap+

4.FEDEX:3-7days arrive, door to door ,cheaper

5.EMS:5-9days arrive, door to door ,cheaper

6.By sea:15-30days arrive,to seaport,cheapest

7.By air:3-6days arrive,to airport,economy



Packaging

1.packaging detail : 1unit/CTN

2.Standard carton package
