Small Glass Crusher Machine 2Pg Double Roll Crushers Price
- Category: Mining Machinery >>>
- Supplier: Sino Mining Co. Ltd.
Share on (62528544742):
Product Overview
Description
Product Description

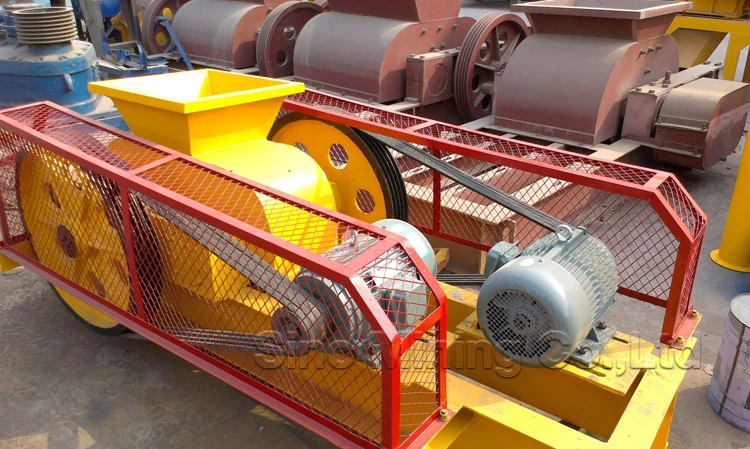

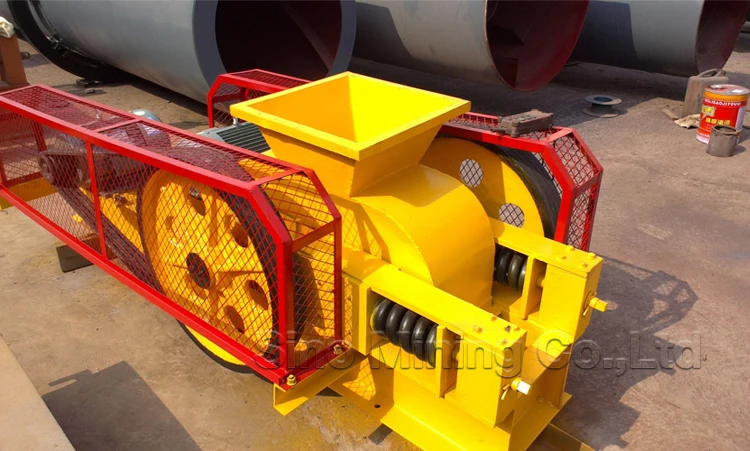

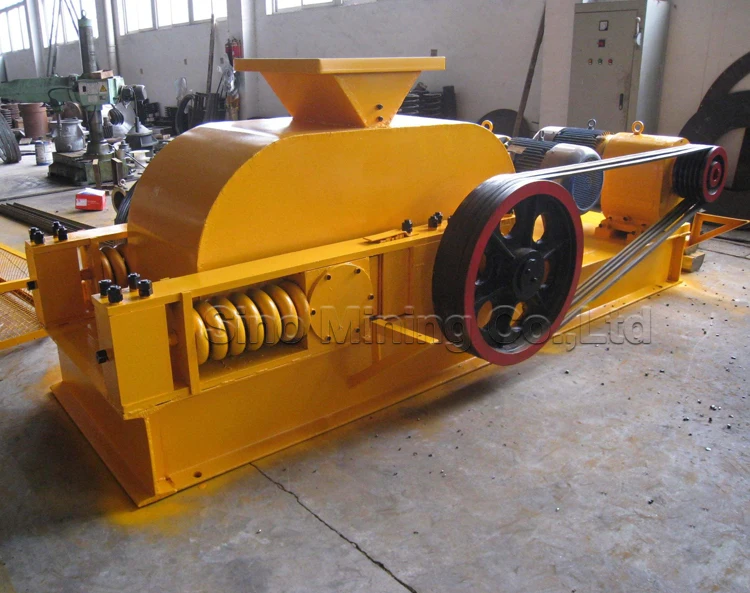

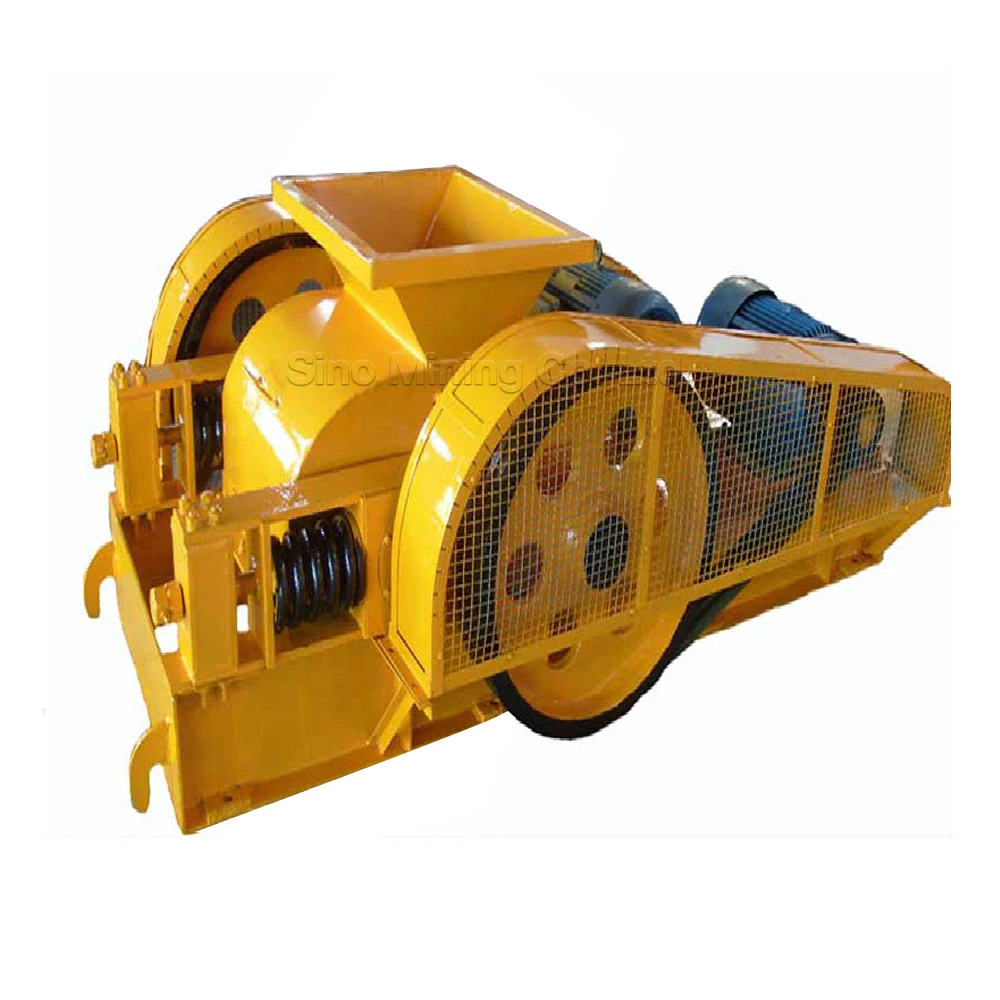

Small Glass Crusher Machine 2Pg Double Roll Crushers Price
Introduction:
Double roller crusher is made of high manganese steel, which can stand up to heat treatment. Double roller crusher is suitable for rough and intermediate crushing of brittle materials in such industries as cement, chemical industry, electric power, mine, building materials and metallurgy. The grain size of the input material is large, the particle size of the output product can be controlled.
| Model | Max. Feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weighy (t) |
| 2PG-400*250 | 25 | 1-8 | 5-10 | 5.5*2 | 1.5 |
| 2PG-610*400 | 40 | 1-20 | 13-35 | 15*2 | 4.5 |
| 2PG-750*500 | 2-20 | 15-40 | 18.5*2 | 12.25 | |
| 2PG-900*500 | 3-40 | 20-50 | 22*2 | 14 | |
| 2PGC450*500 | 300 | 15-75 | 20-45 | 7.5*2 | 4.2 |
| 2PGC600*750 | 400 | 15-125 | 30-180 | 18.5*2 | 7.8 |
| 2PGC600*900 | 40-100 | 18.5*2 | 8.4 | ||
| 2PGC600*1200 | 50-120 | 22*2 | 11.2 | ||
| 2PGC800*1000 | 20-150 | 80-180 | 22*2 | 12.6 | |
| 2PGC800*1200 | 100-220 | 30*2 | 15.2 | ||
| 2PGC900*900 | 500 | 30-150 | 80-180 | 30*2 | 14.5 |

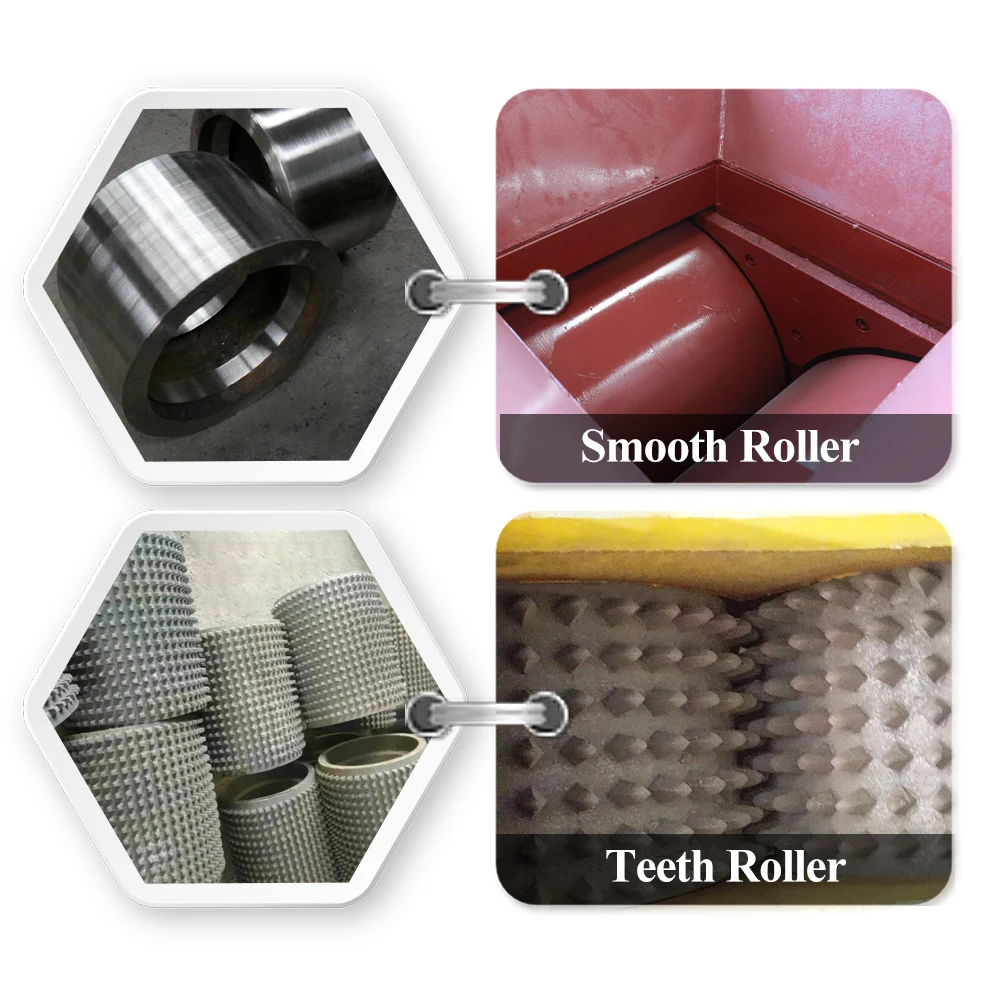

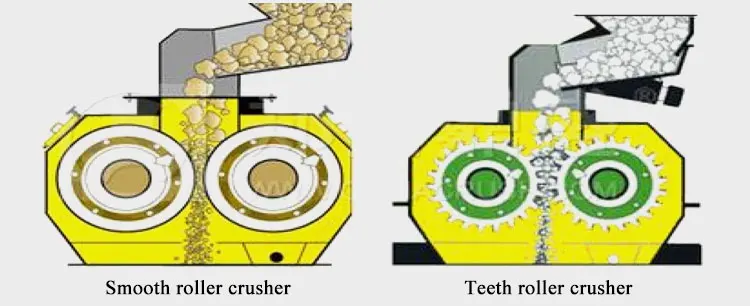

2-roller crusher with its simple structure, the tooth shape, size and arrangement of the roller surface can be adjustable according to the property of different materials. It can be used for secondary anf fine crushing of medium hardness and soft hardness ores, such as limestone, feldspar, glass, coal etc.

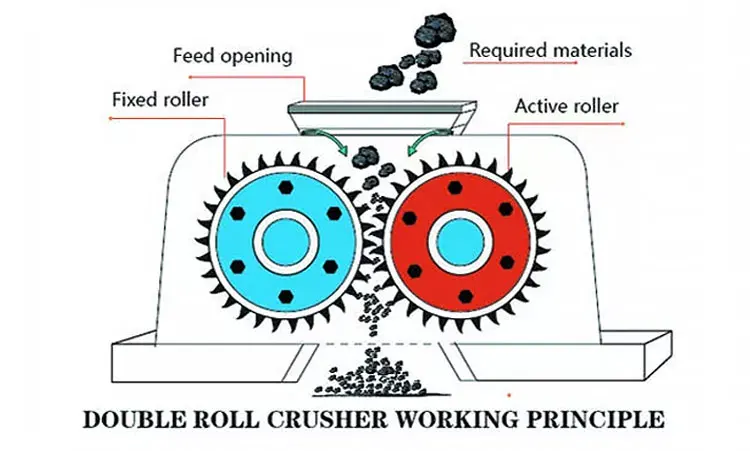

Working principle:
The particles are drawn into the gap between the rollers by their rotating motion and a friction angle formed between the rollers and the particle, called the nip angle. The two rollers force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rollers.

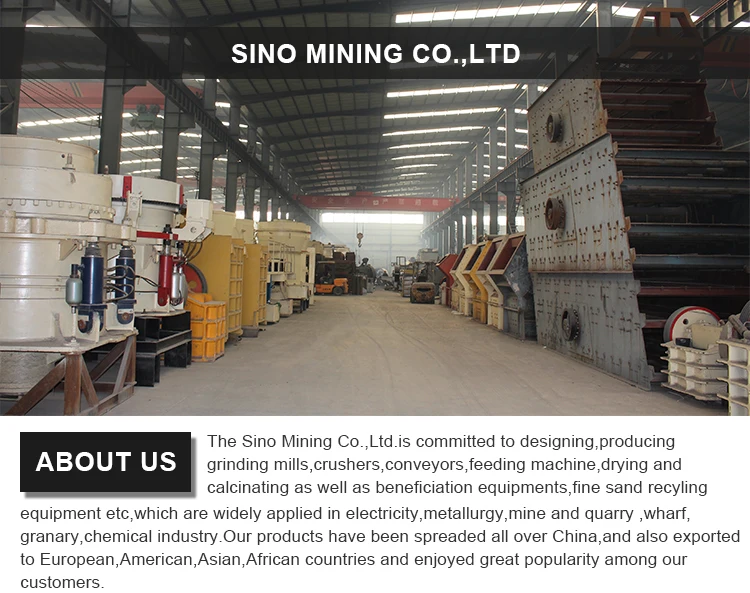

About Us
Since its establishment in 1987, Sino Mining has gradually grown into an important force to push forward the reform and development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.
The Company

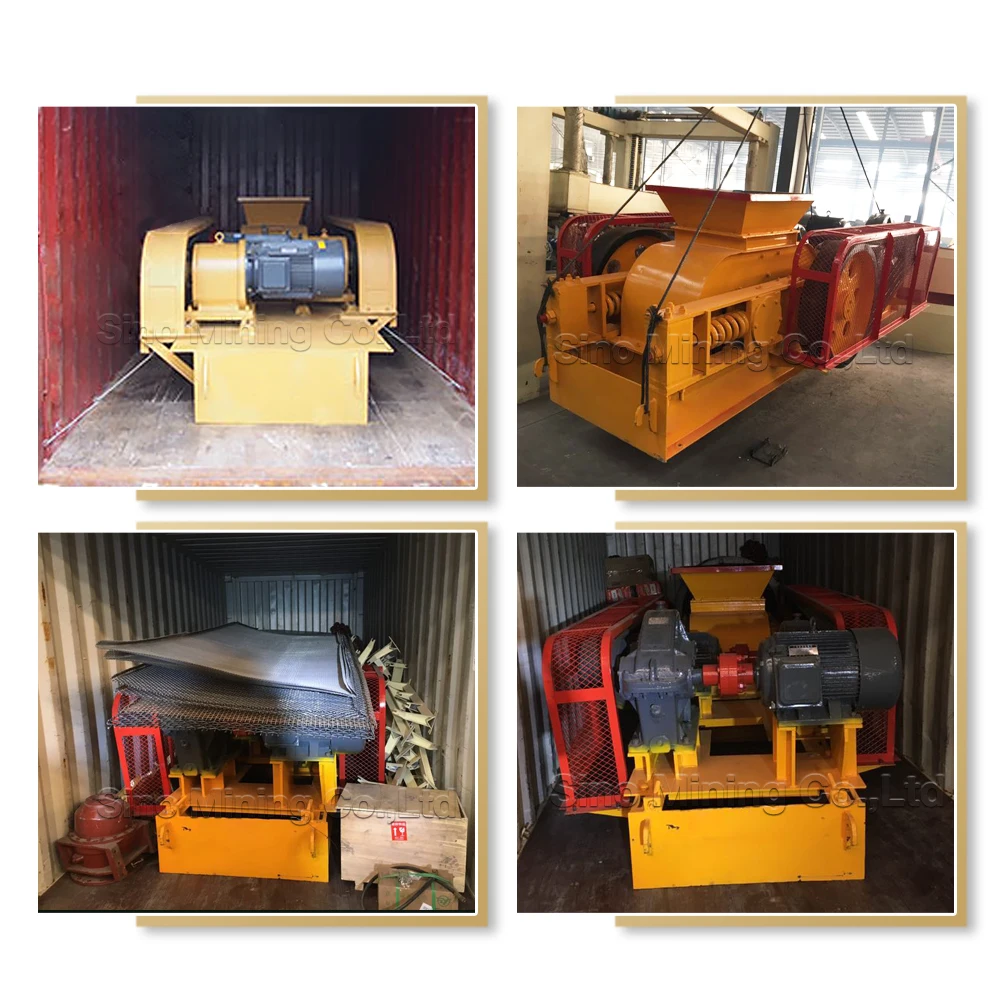

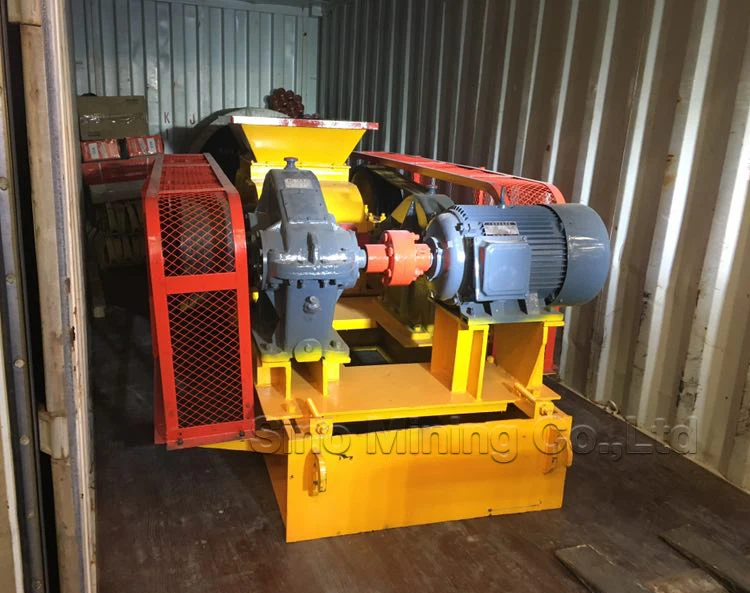

Package&shipment
Our Advantages

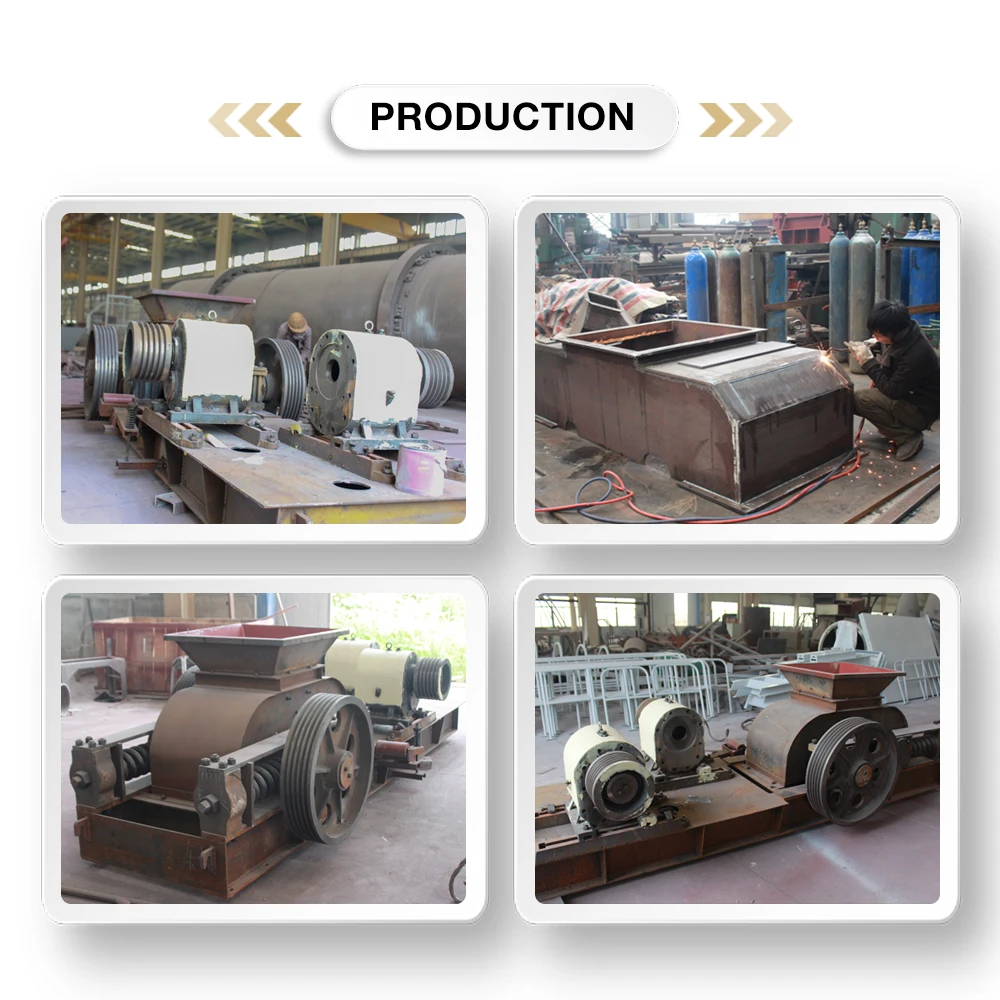

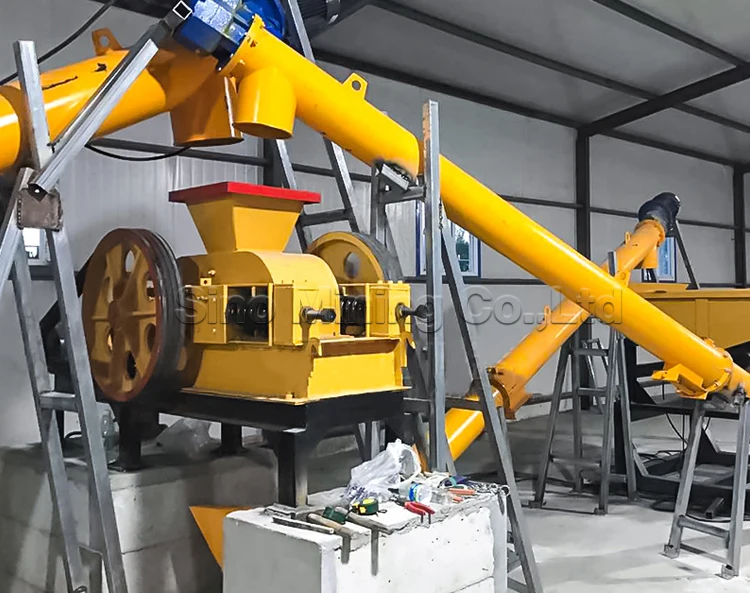

Products Site
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.
Q5: What about the payment method?
A5:T/T, L/C Paypal is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
