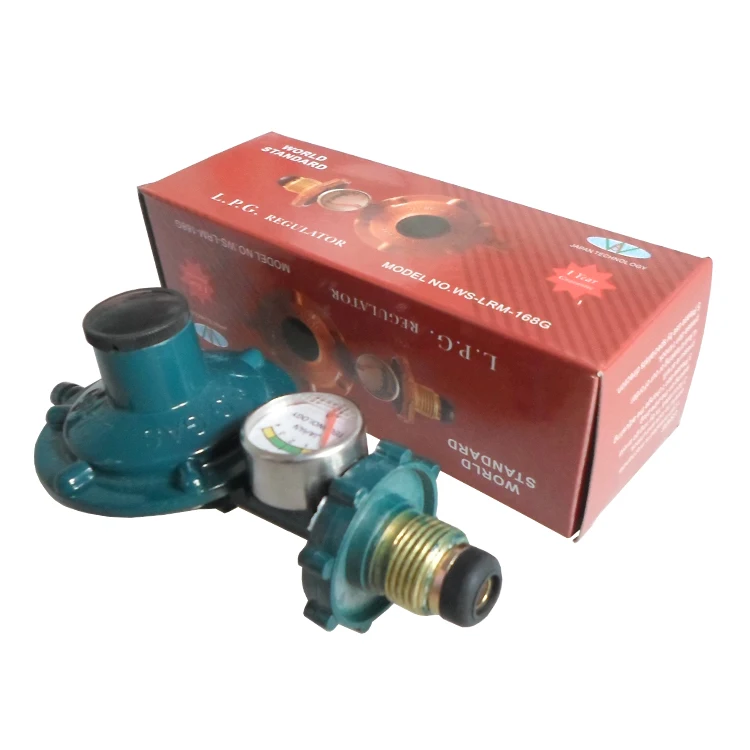

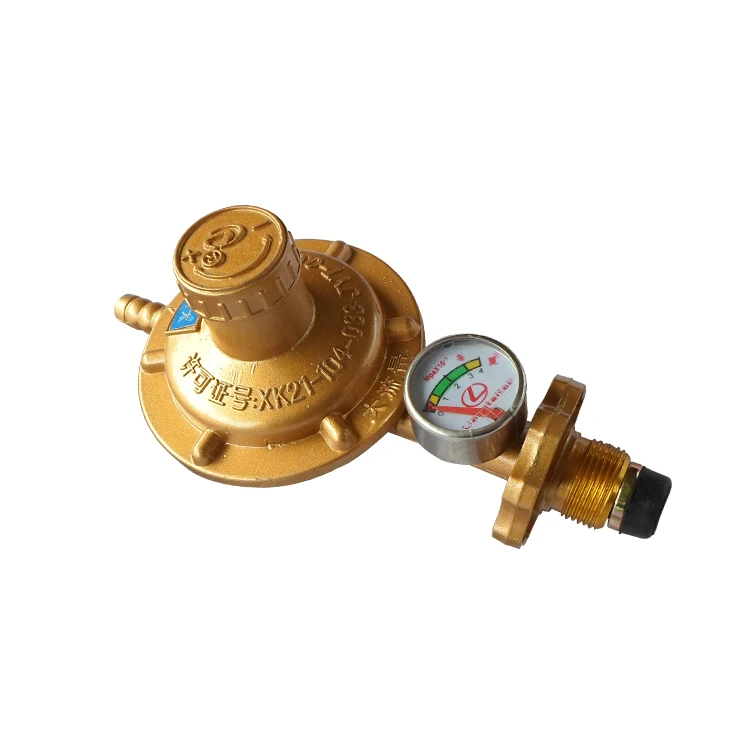

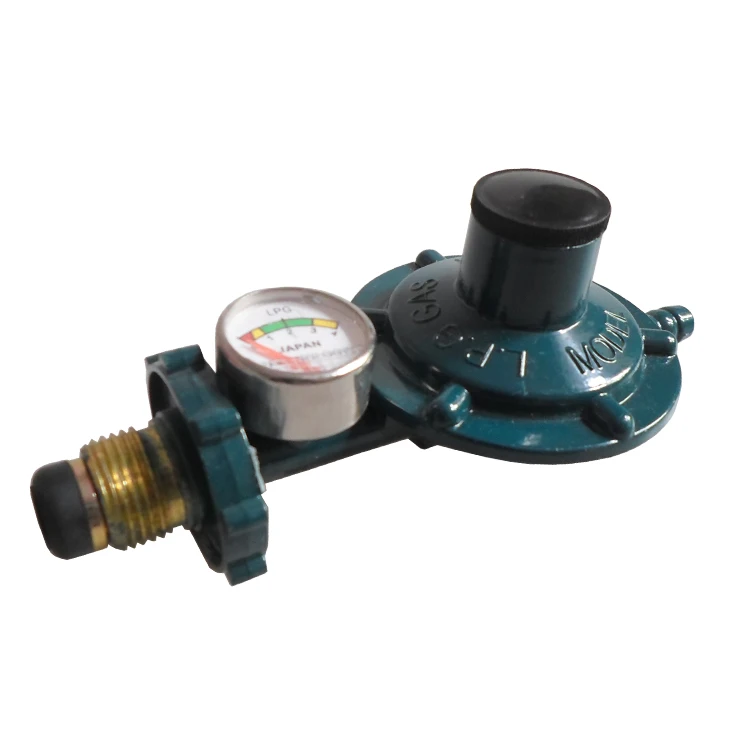

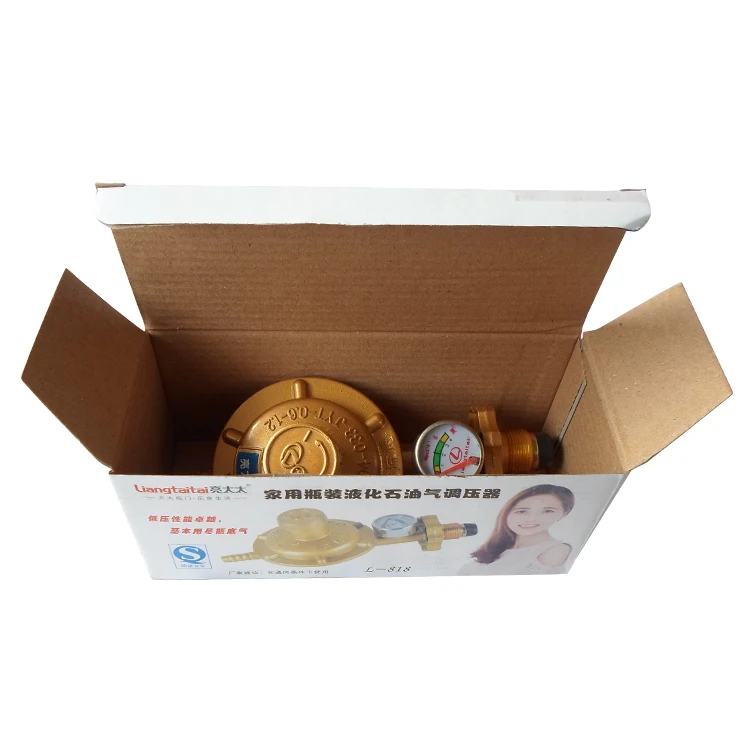

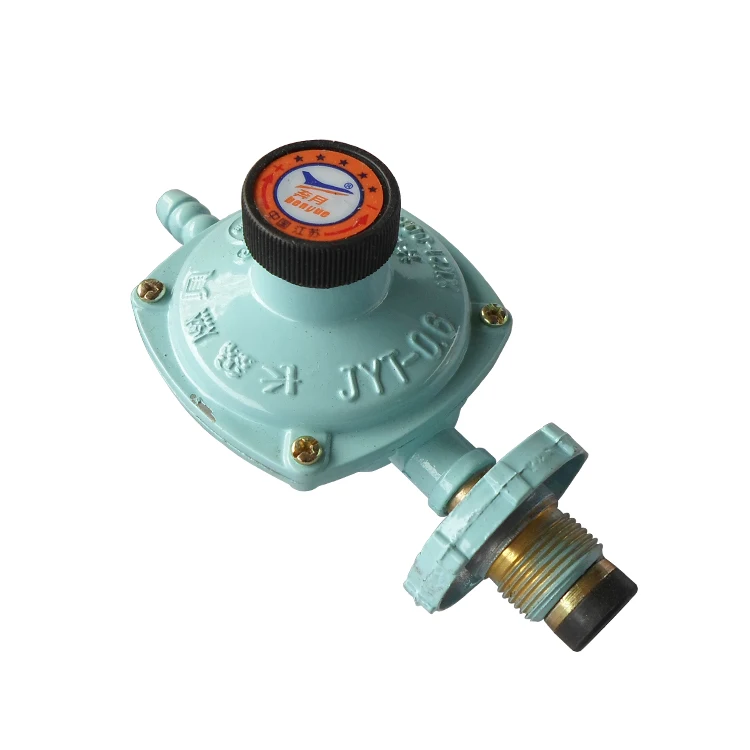

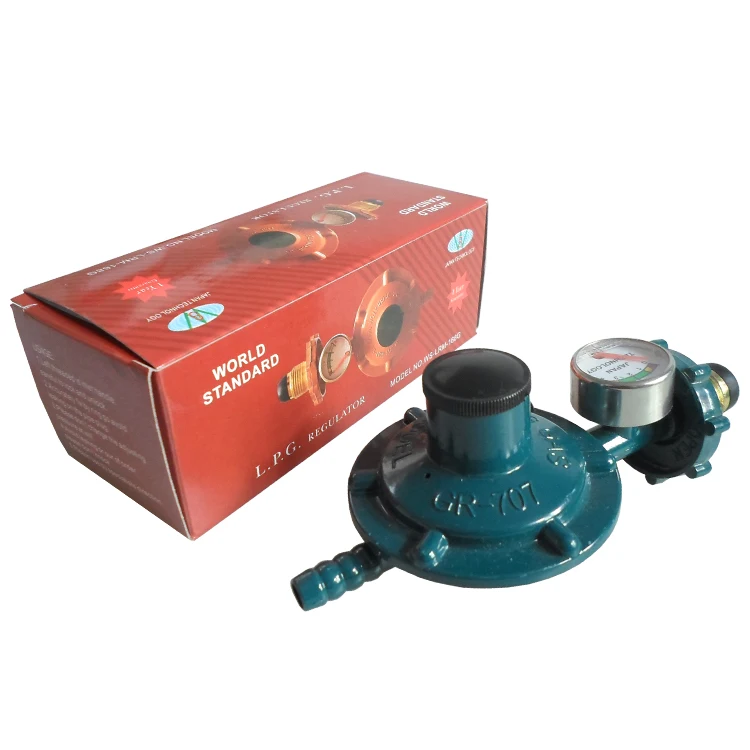

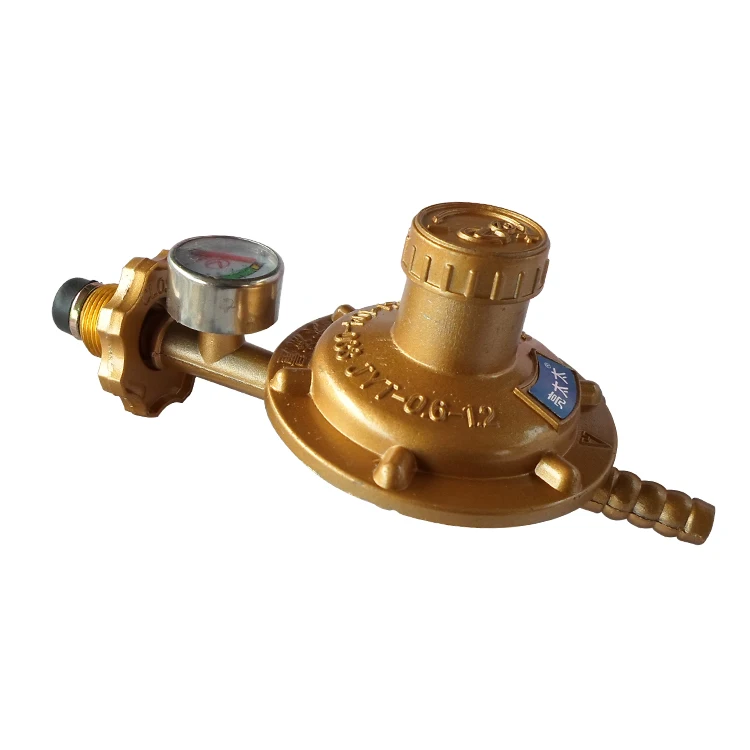

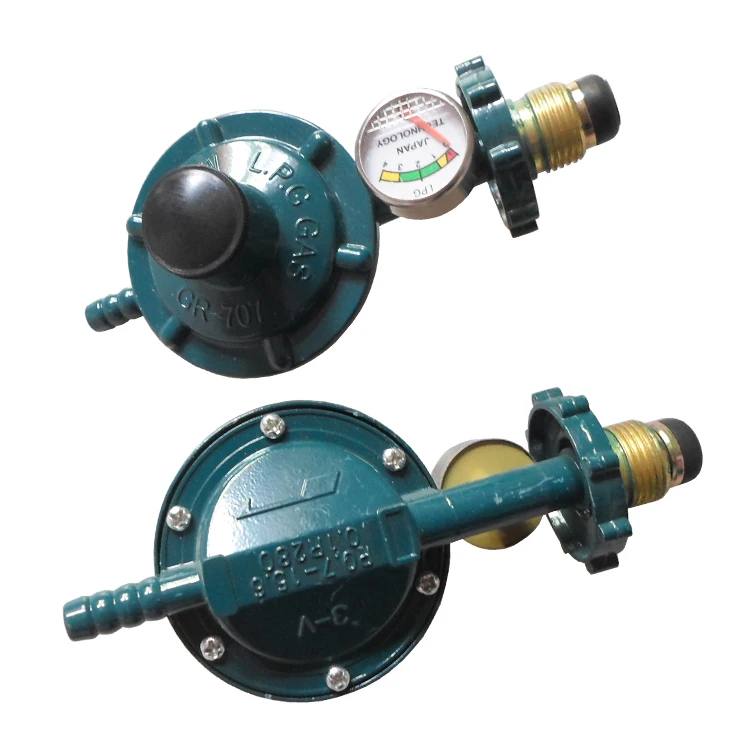

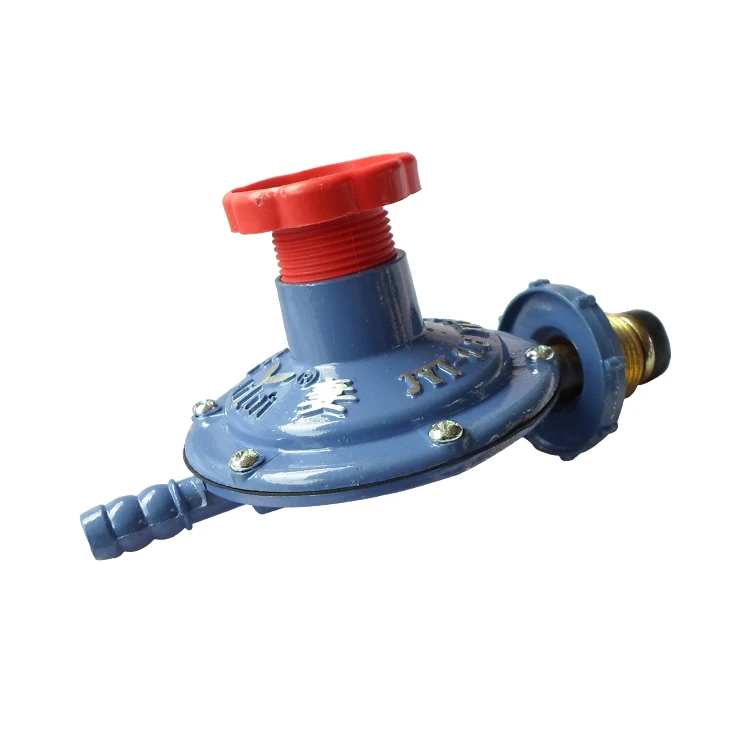

LPG low pressure gas regulator

Product Overview

Description

LPG low pressure gas regulator

Pressure	Temperature	Medium	Handwheel	Material
0.06MPa	normal temperature	LPG	22 * 1.5 left / 9mm pagoda head	Aluminum / Copper

I . Product features:
1. Membrane of key components: A unique rubber cloth vulcanization process is used, which is safer, more durable and reliable, and is unmatched by other similar regulators.
2. The gas volume required for each household gas within the flow range of 0.6 ~ 1.2m3 / h can be adjusted and selected.
3. Can exhaust the residual gas at the bottom of the bottle.
II . Installation instructions:
1. Check whether the inlet seal is intact before installation.
2. During installation, the hand wheel should be aligned with the screw hole of the angle valve, and the valve body should be kept upright and horizontal.
3. After installation, open the gas cylinder angle valve, apply soap to the link to check for leaks, and close the gas cylinder angle valve to prolong the service life when not using a gas appliance
III . How to use:
1. Turn the adjusting knob to the minimum position as indicated by the arrow on the nameplate before use
2. According to the combustion status and gas inventory, gradually increase the fine adjustment until it is satisfactory; when replacing the full bottle of gas, the adjustment knob should be rotated to the minimum position.
3. The range of the rotation adjustment position designed by this product is 360 °, that is, one circle. Do not force the rotation beyond the range to avoid accidents caused by damage to the parts.
IV .matters needing attention:
1. When using this product, liquefied gas mixed with dimethyl ether is strictly prohibited, because dimethyl ether has serious corrosiveness to the product, which leads to the safe use of the product.
2. This pressure regulator is used for household liquefied petroleum gas burning appliances. Non-domestic burning appliances and other places are prohibited.
3. If the voltage regulator fails, please contact the distributor or the company, do not disassemble and repair by yourself
4. The user is responsible for all consequences caused by users' illegal use
