KDVM1000L завод низкая стоимость мини cnc вертикальный обрабатывающий центр
- Category: Machine Centre >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (62567813343):
Product Overview
Description

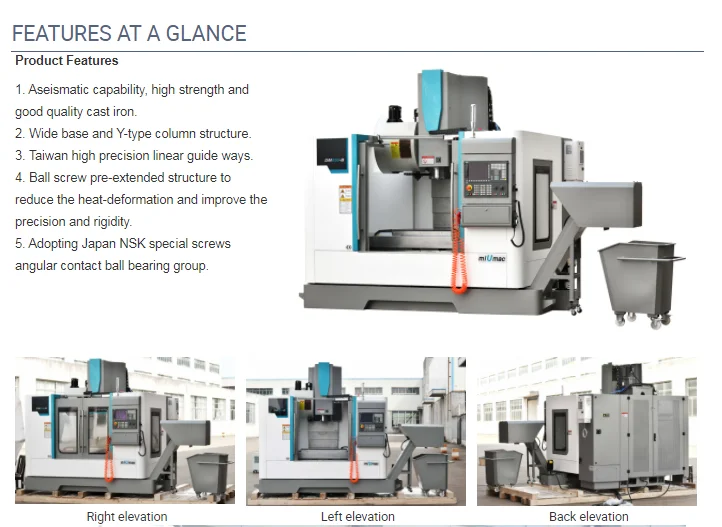

FEATURES AT A GLANCE

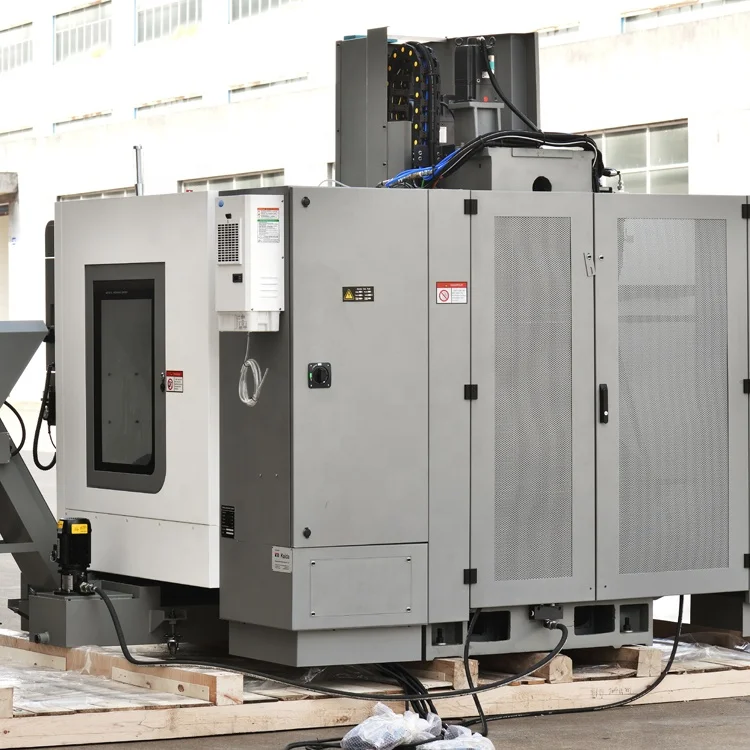

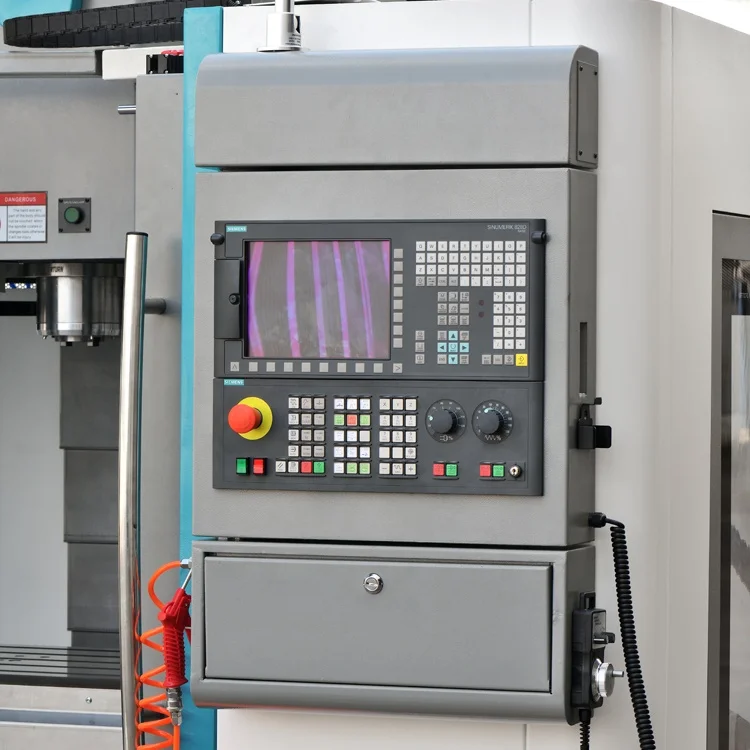

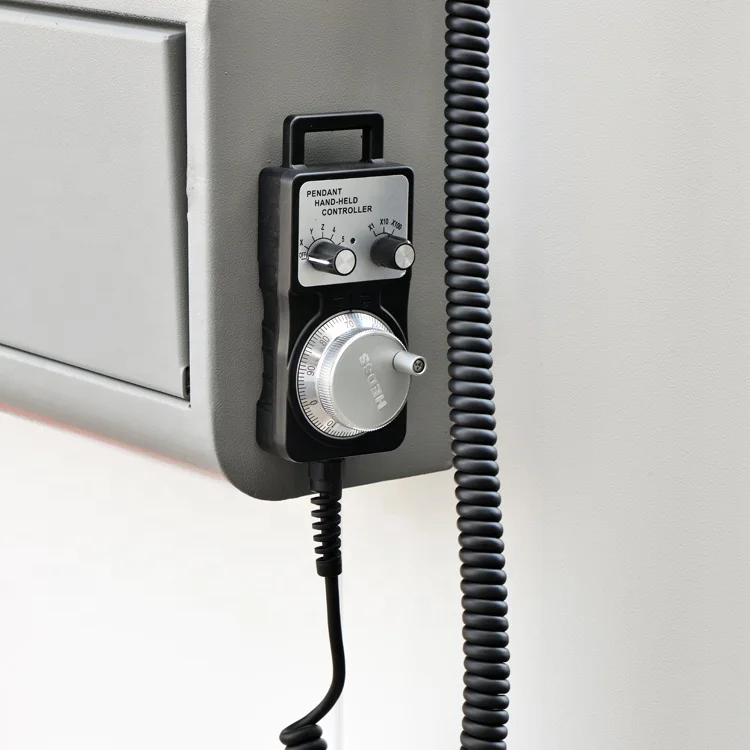

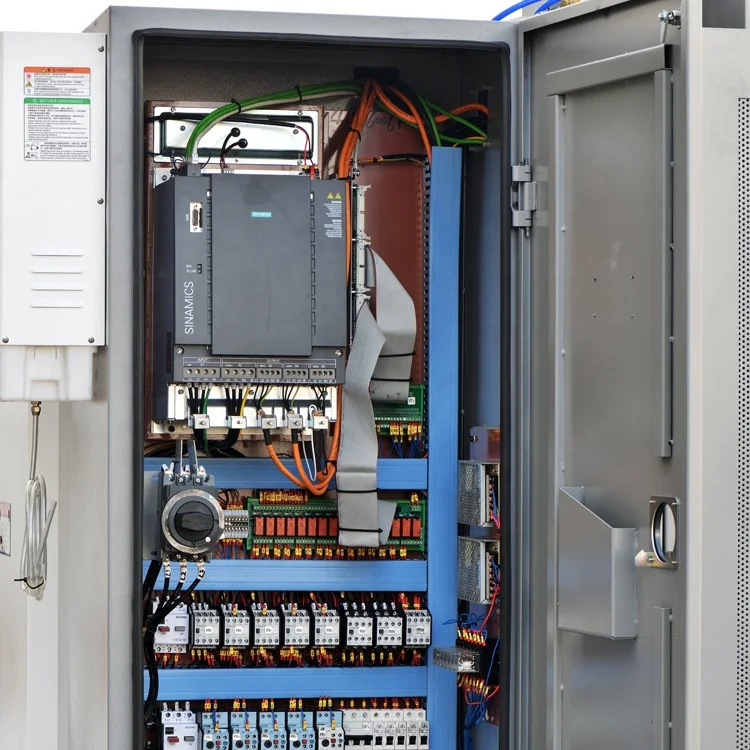

Product Display
Product Description
Model / Parameter | KDVM800L | KDVM1000L | |
X travel | 800 mm | 1000 mm | |
Y travel | 520 mm | ||
Z travel | 520 mm | ||
Distance between spindle center and column guide ways | 550 mm | ||
Distance between spindle end and table | 145-675 mm | ||
Table size | 930×510 mm | 1130×510 mm | |
T-solt (width×number-space) | 18×3-160 mm | ||
Max.table load | 800 kg | ||
Taper bore of spindle | BT40 | ||
Spindle speed | 8000 rpm(FANUC MAIN MOTOR) | ||
Main motor power | 7.5/11 kW | ||
Motor power/torque of X/Y/Z | 1.4/1.4/1.4 kW (10.5 Nm) | ||
Guide ways number of X/Y/Z | 3/3/2 | ||
Rapid speed of X/Y | 24 m/min | ||
Rapid speed of Z | 24 m/min | ||
Guide ways of X/Y/Z | P3-grade precision ball linear guide ways | ||
Guide ways wide of X/Y/Z | 30 mm | ||
Distance between guide ways of X/Y/Z and margin | 426/888/462 mm | ||
Diameter and screw pitch of X/Y/Z lead screw | Φ32×10 | ||
Bearing number of X/Y/Z lead screw | 7/7/7 | ||
Connect way of X/Y/Z motor | Direct connect | ||
Position accuracy of X/Y/Z | ≤0.010 mm | ||
Repeatability accuracy of X/Y/Z | ≤0.004 mm | ||
Tool capacity of ATC | 24T (Disk style) | ||
Tool change time（tool to tool） | 1.8 S | ||
Pneumatic boosting cylinder | 3.5T | ||
Power of coolant pump | 550 W | ||
Capacity of lubrication pump | 2L | ||
Capacity of coolant tank | 180L | ||
Overall dimensions(LxWxH) with auto chip conveyor | 3750×2300×2700 mm | 4300×2300×2700 mm | |
Net weight | 5150 kg | 5480 kg | |
PRODUCT CONFIGURATION
