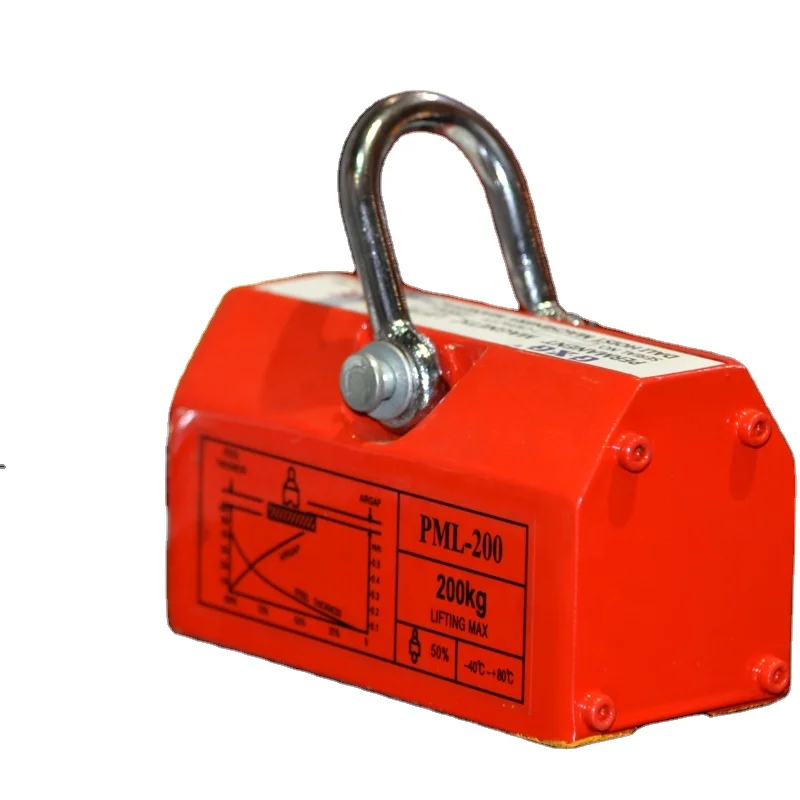

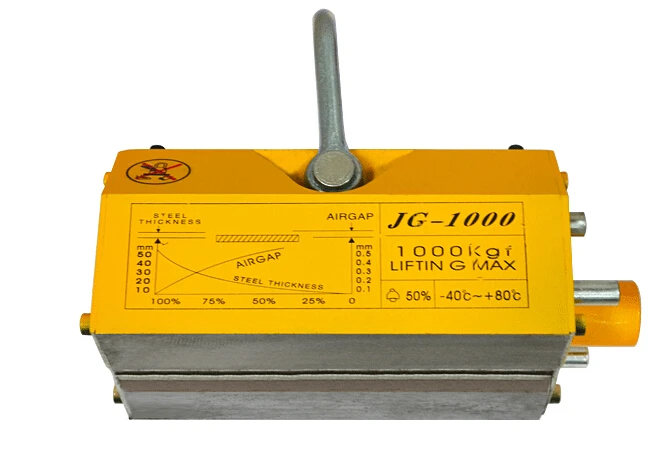

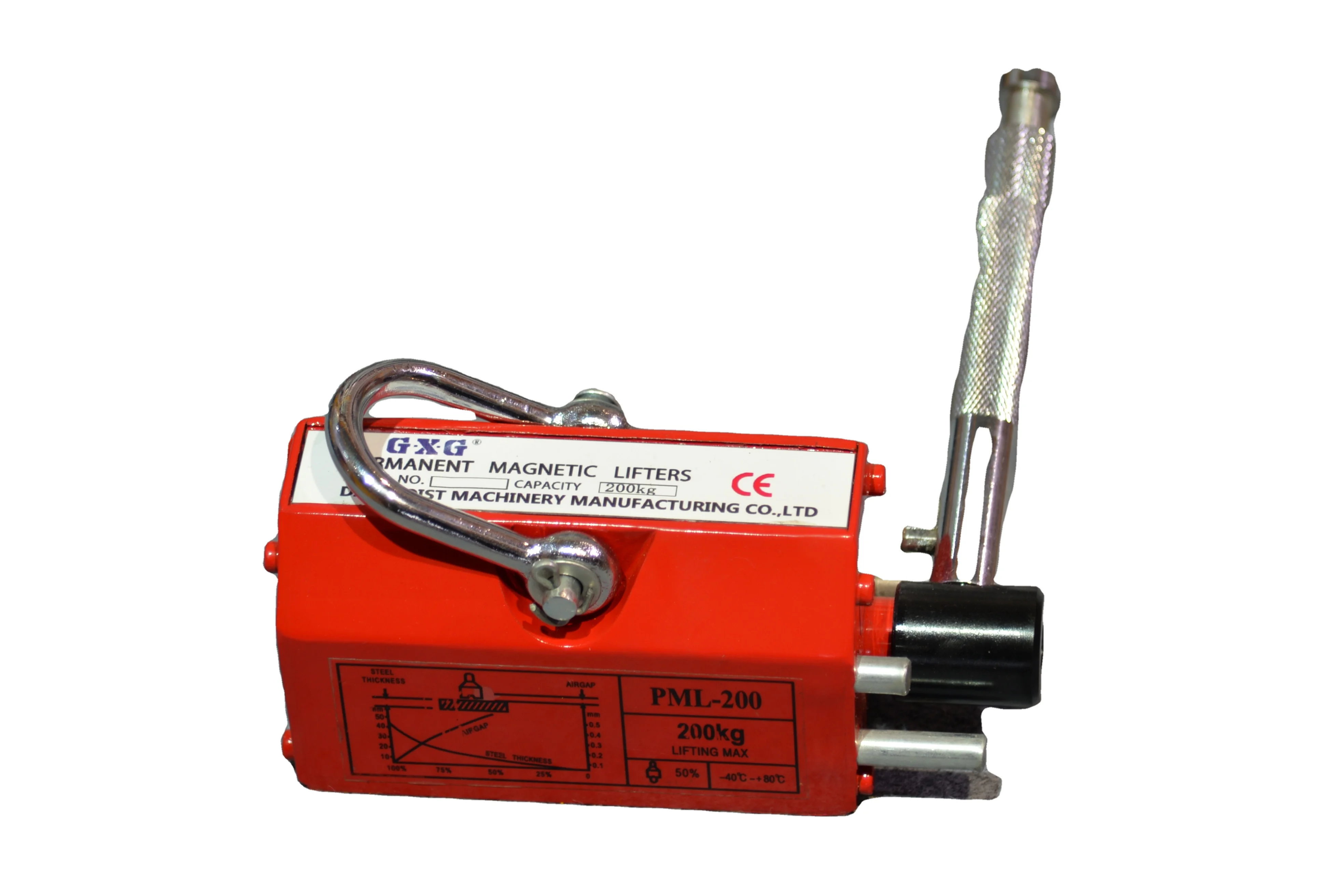

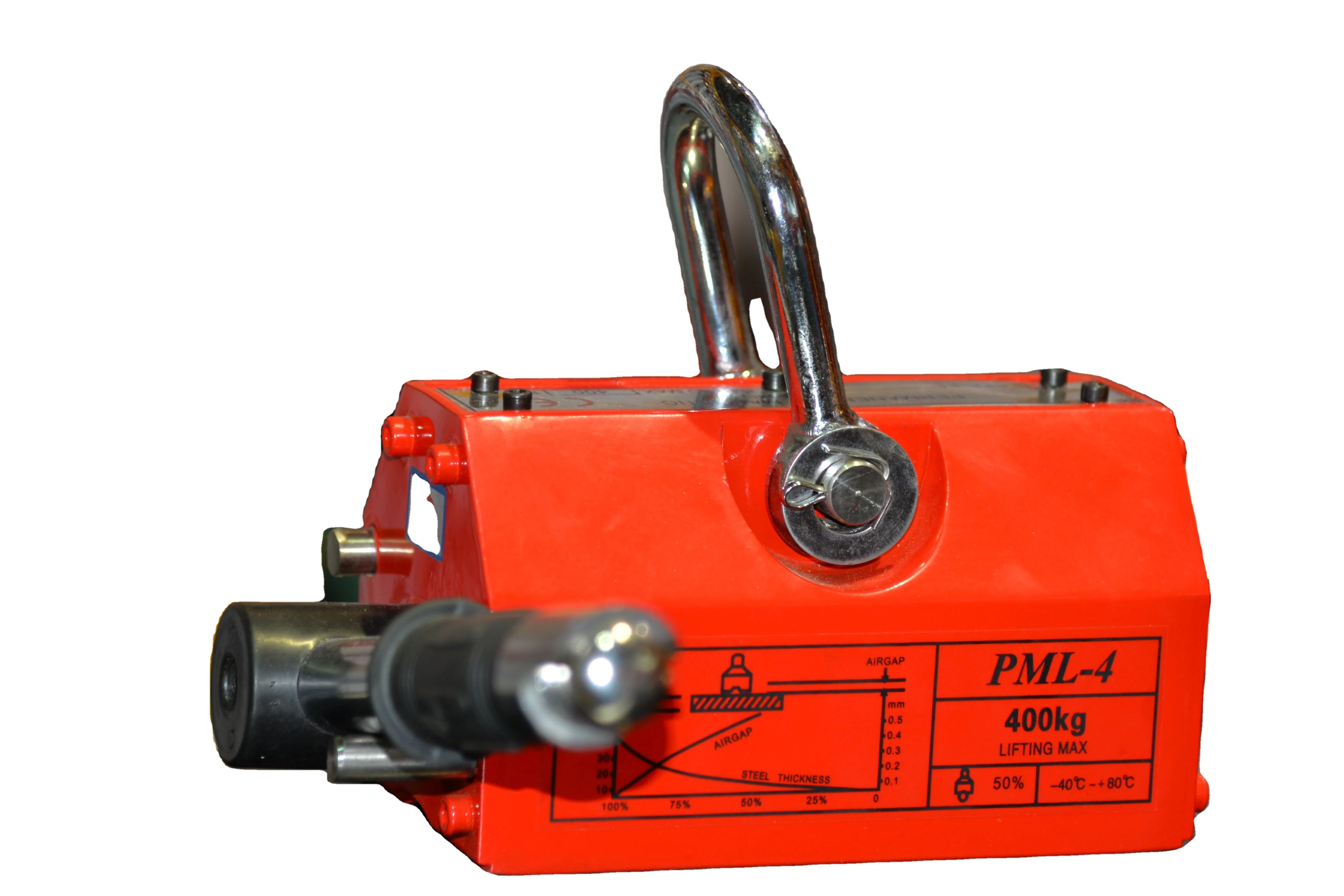

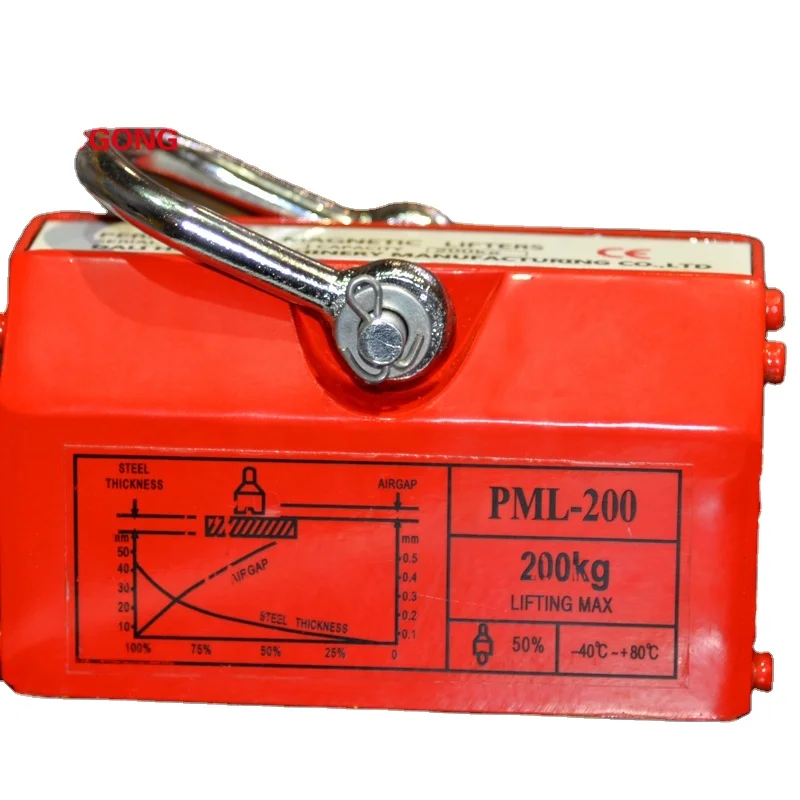

2.5 Safety Rate magnetic crane 100kg Pull Force permanent magnetic lifter

Product Overview

Description





2.5Safety Rate magnetic crane 100kg Pull Force permanent magnetic lifter



Parts presentation of our magnetic lifter





specifications of Metal Steel Plate Used Lifting Magnet 600 KG Permanent Magnetic Lifter



Lifting weight:100kg,300kg,500kg,1000kg,2000kg,3000kg

pulling-out force:3 times,3.5 times



It is very easy to use the lifting magent, only need the operator manually switch the lock-on and block-off states.

Widely used in machining, mould producing industry.



Model	Rated capacity(Ton)	Max tension(kg)	Size(mm)	Net weight(kg)
L	B	H	R
YS-100	100	300	90	63	68	145	3
YS-400	400	1200	160	95	180	160	11
YS-600	600	1800	220	115	125	230	20
YS-1000	1000	3000	260	145	145	280	40
YS-1500	1500	3750	310	145	145	280	48
YS-2000	2000	5000	340	160	165	410	60
YS-3000	3000	7500	420	185	185	510	90
YS-4000	4000	10500	480	200	200	510	120
YS-5000	5000	15000	580	300	300	650	400



Advantage of Metal Steel Plate Used Lifting Magnet 600 KG Permanent Magnetic Lifter







1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

3. Using high-performance permanent magnet, ensure the power and high safety.

4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.

5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.

6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.

7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.



Usage and application of 100kg small lifting magnet permanent magnetic lifter

:
The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.



magnetic lifting parts

Package of 100kg small lifting magnet permanent magnetic lifter

magnetic lifting application case



Note !
Never stand under loading being lifted. Always use extra caution. Only use the lifting magents on material that doesn't on flex or bend.
The surface of the lift, and the parts being loaded, should keep clean and free of chips, oil,slag,dirt,etc. Lifting magnets must be centered on load parts. Do not recommended for painted or finish coated surfaces.
