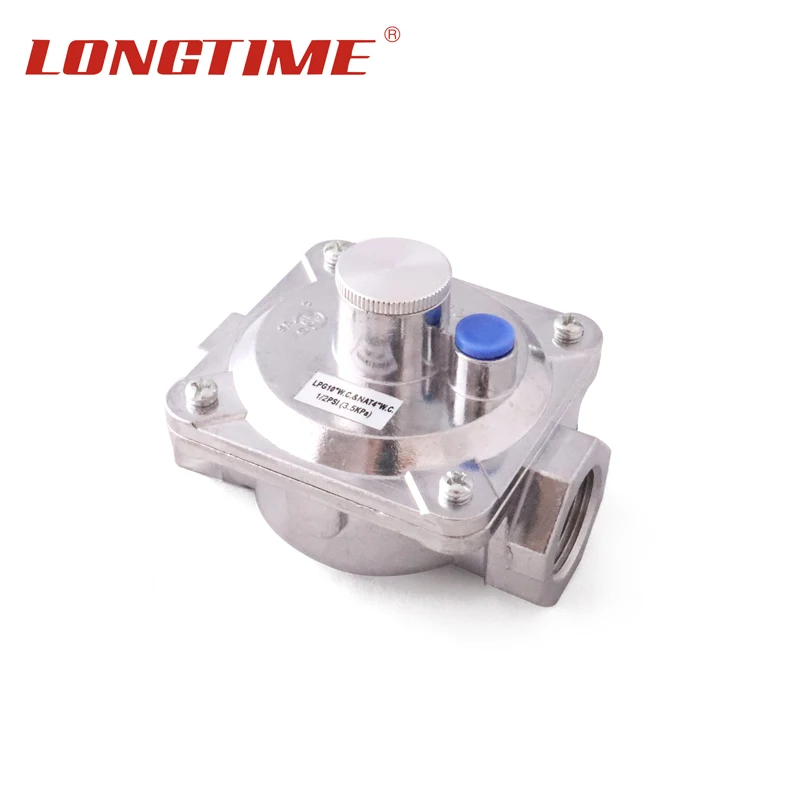

3/4 FNPT 240,000 BTU Second Stage Pipeline LPG Natural Gas Pressure Regulator for Gas Heater Cooker Oven
3/4 FNPT 240,000 BTU Second Stage Pipeline LPG Natural Gas Pressure Regulator for Gas Heater Cooker Oven
3/4 FNPT 240,000 BTU Second Stage Pipeline LPG Natural Gas Pressure Regulator for Gas Heater Cooker Oven
3/4 FNPT 240,000 BTU Second Stage Pipeline LPG Natural Gas Pressure Regulator for Gas Heater Cooker Oven

3/4 FNPT 240,000 BTU Second Stage Pipeline LPG Natural Gas Pressure Regulator for Gas Heater Cooker Oven

Share on (62588542124):


Price:RUB 386.51

Quantity:


Product Overview

Description

* This regulator is intended for primary use of main burner and pilot load applications.
* In conformity with ANSI Z21.18/CSA 6.3-2007, ANSI Z21.18a/CSA 6.3a-2010, ANSI Z21.18b/CSA 6.3b-2012.
* This model is varied in 3 sub-models in terms of gas type:
XD08-NG
XD08-LPG
XD08-DUAL
For N.G only
For L.P.G only
Convertible,  for both N.G and  L.P.G
Contact us for HELP anytime, if you:
* Have requirements that differ from the specs listed below.
* Don't know which specific type that's being used in your country or area.
* Want to brand your own logo for the regulator.
* Look for supreme quality that value for the money..........
Technical Specifications
Model
XD08
Inlet Connection
3/4" FNPT
Outlet Connection
3/4" FNPT
Max. Inlet Pressure
1/2 PSI (34.4mbar)
Delivery Pressure Range
XD08 (NG): 4~6" W.C
XD08 (LPG): 8~10 " W.C
Max. Flow Capacity
240,000 BTU

This is CSA-certified regulator / stablizer,
for AGA-certfied one, please check the link in the next column.
