Product Overview

Description

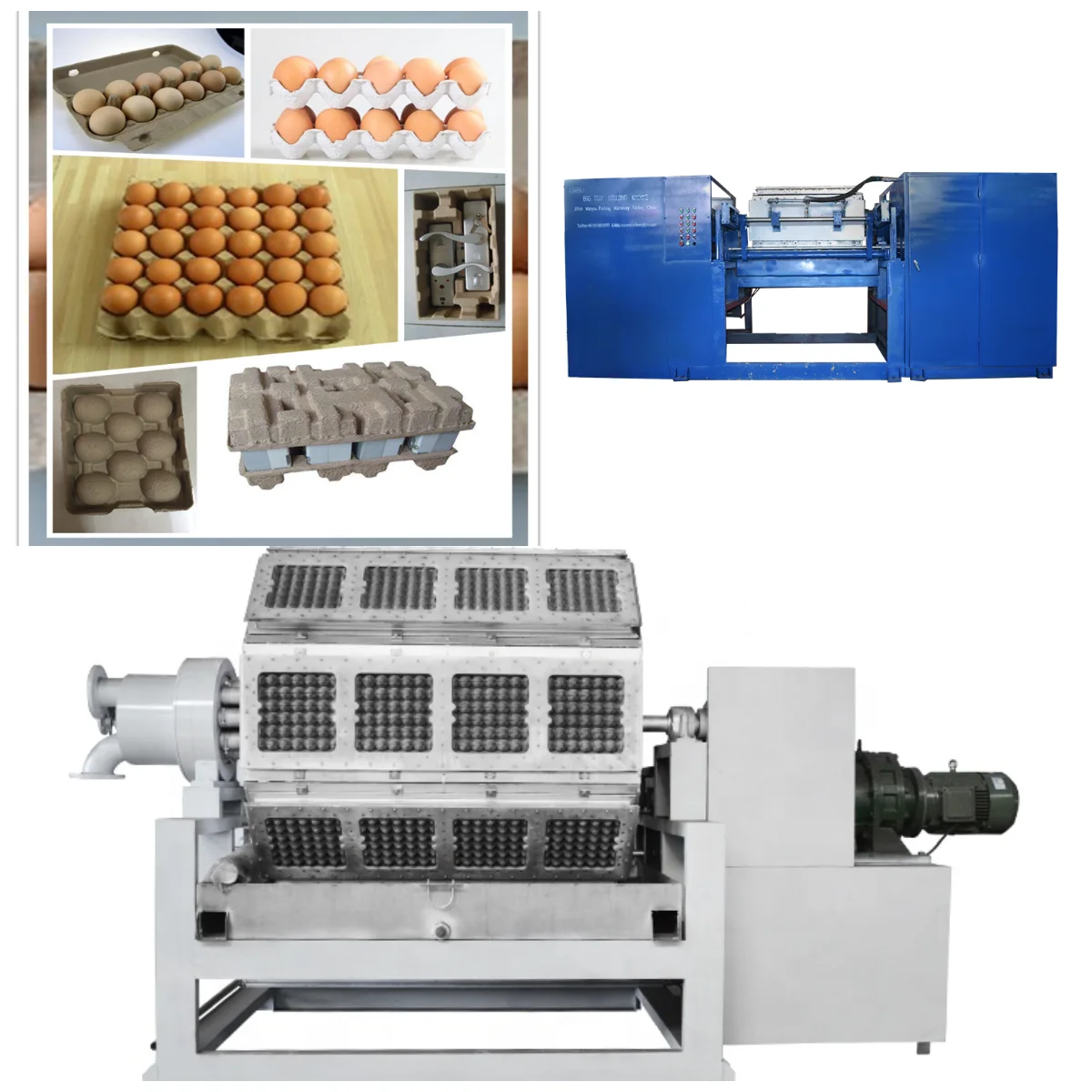

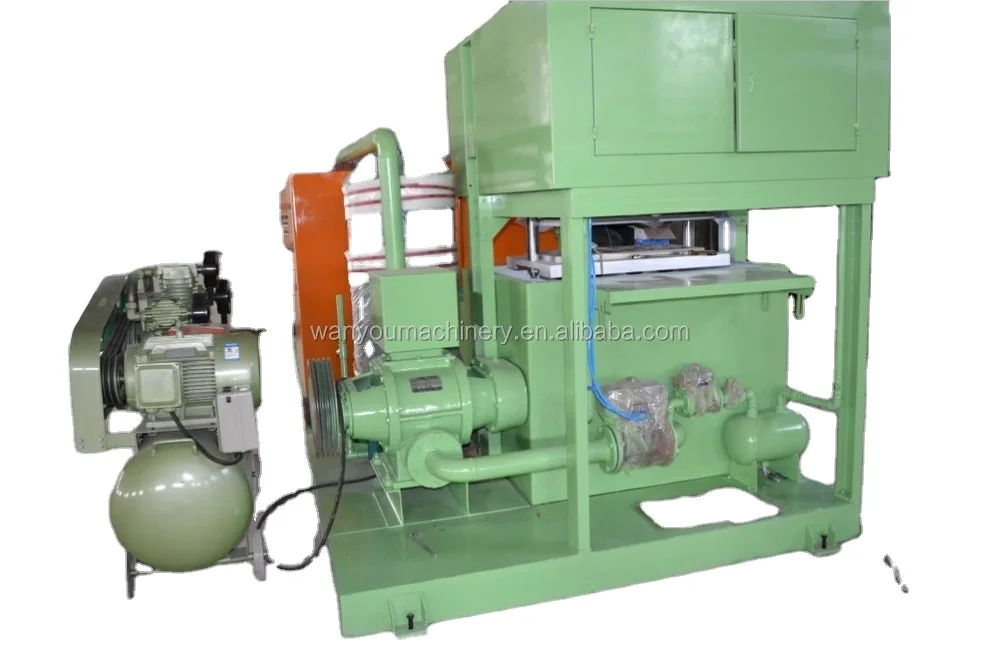

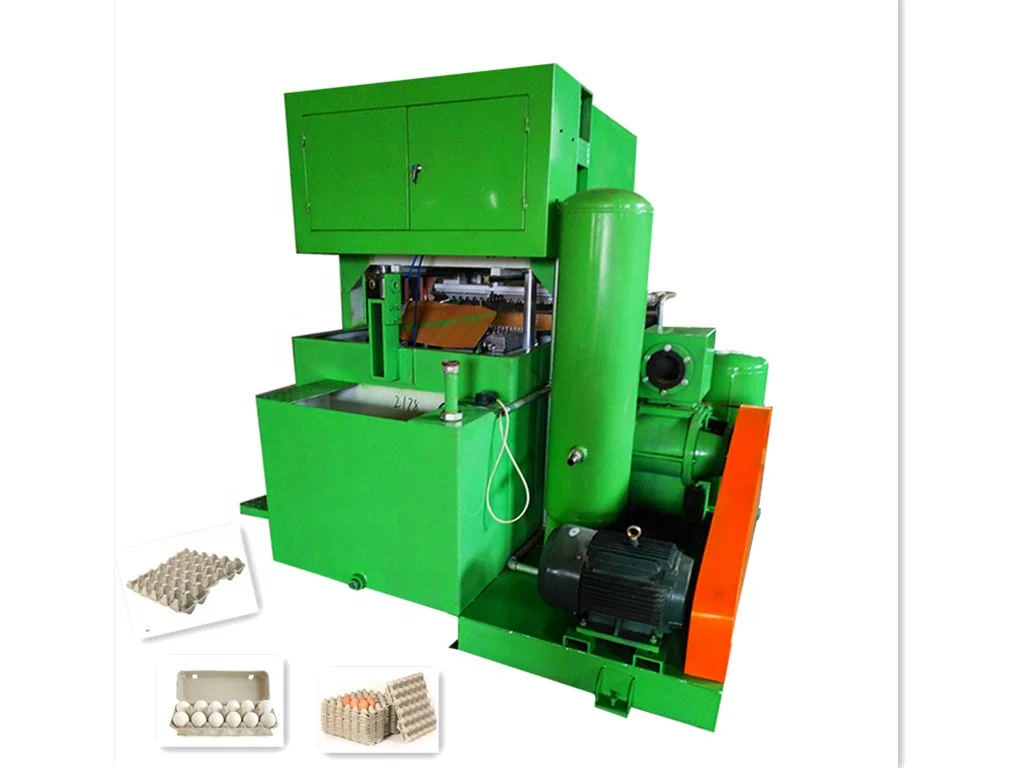

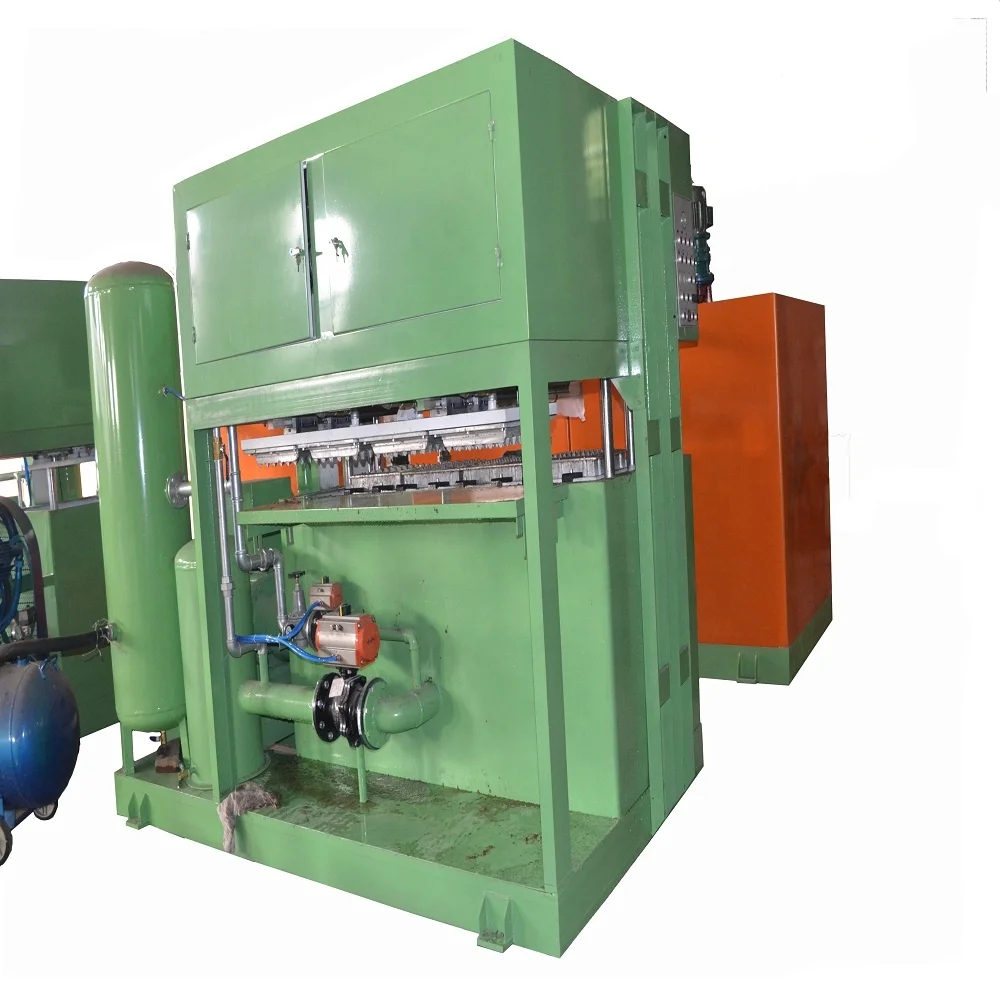

Egg tray production line waste paper Egg Tray Egg Carton Machine

1.capacity 350pcs/h,700,1000,1300pcs per hour,2000pcs/h, 2500pcs/h,3000pcs/h, 4000pcs/h, 5000pcs/h,6000pcs/h etc.

2.use waste paper as  raw materials

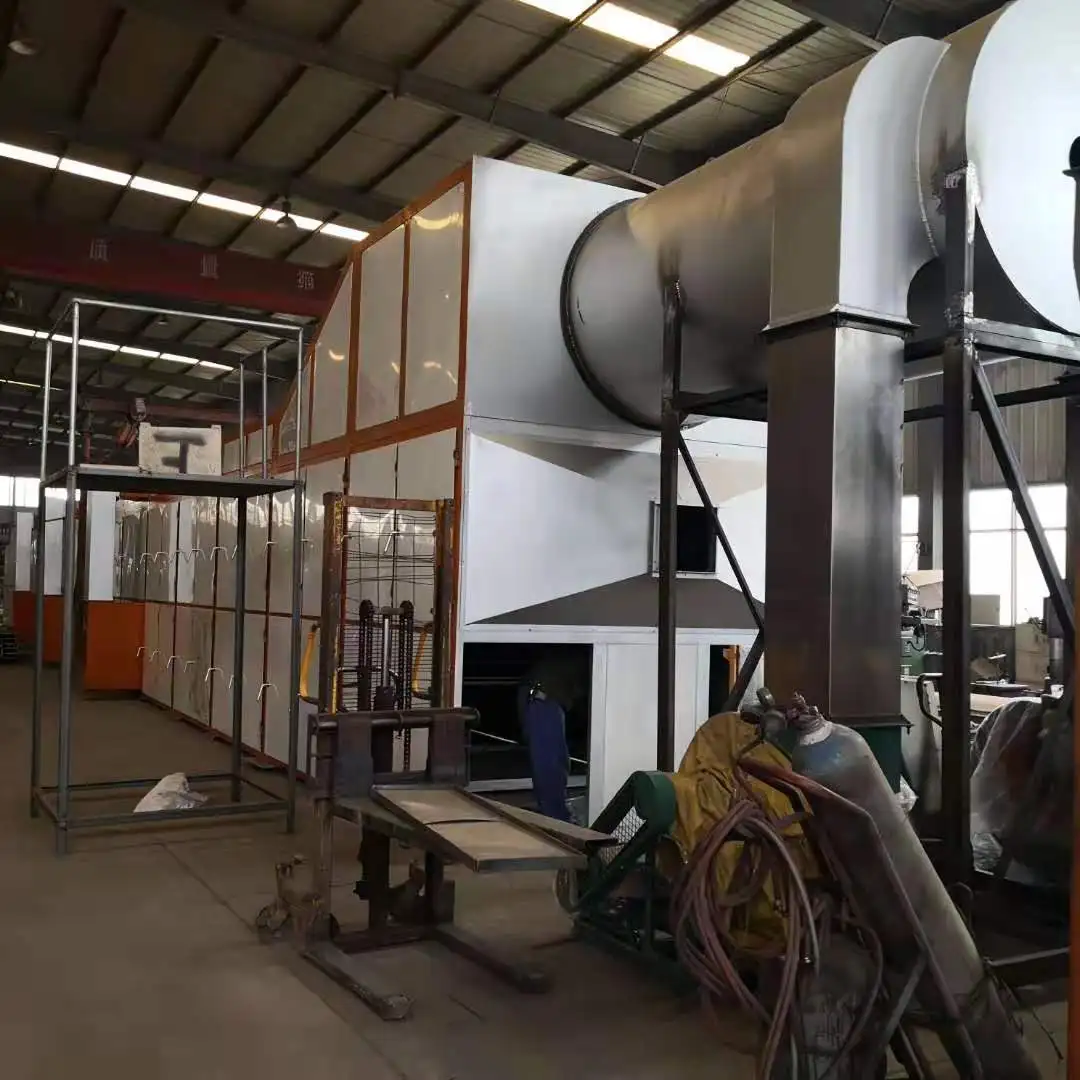

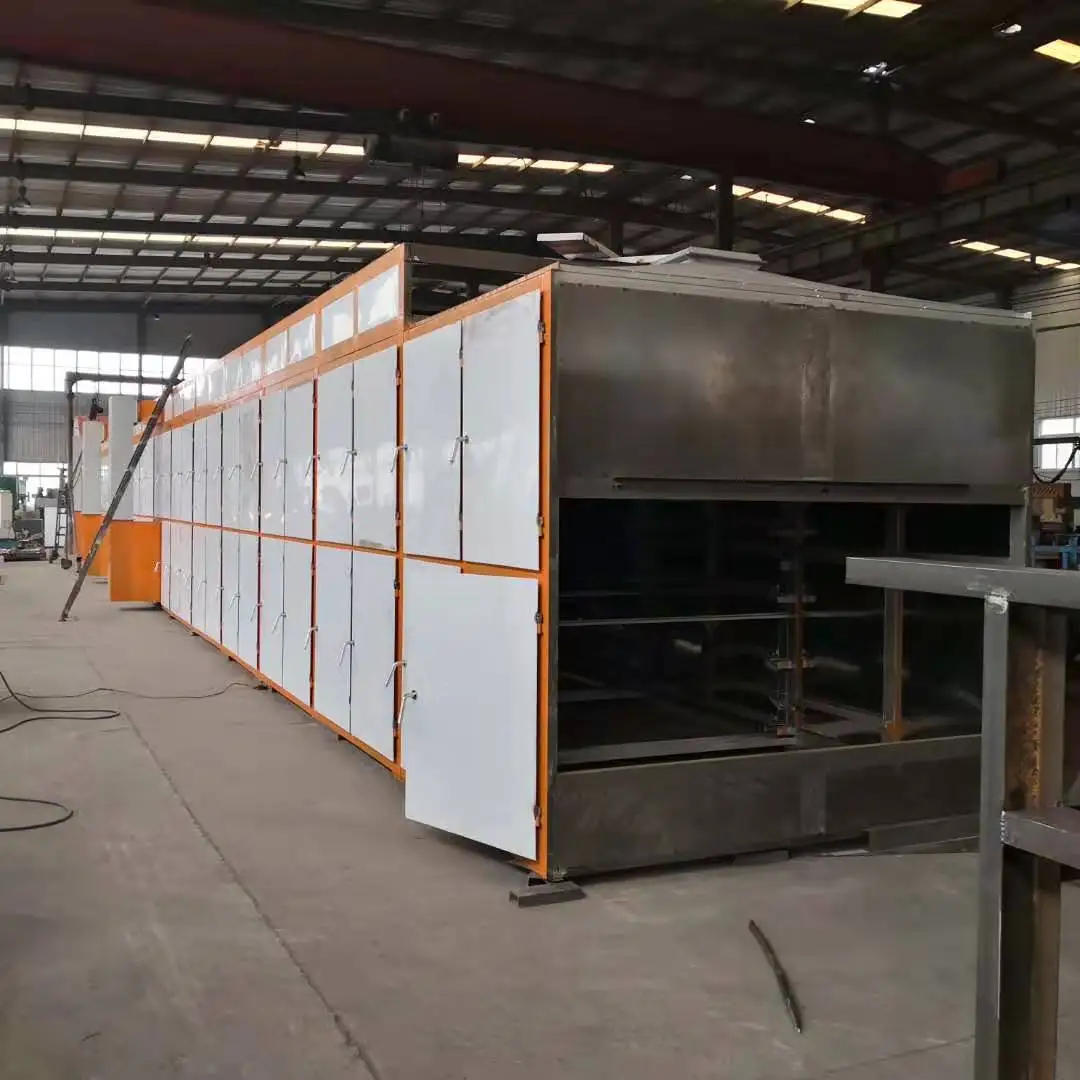

3.machine including Paper Pulping System, Paper Pulp Molding System, and Egg Tray Drying System

4.computer control



3Molds paper egg tray machine technical specification

Technical Parameters
Egg Tray mould quantity	3pcs	Container Required
Raw material	Waste paper	About 40ft*1(without dryer)
Output for egg tray	1000pcs/hour
Net weight per piece (gram)	70g-75g
The volume of waste paper consumed	75kg / hour
The volume of water consumed	0.15ton / hour
Machine Weight	5-20tons
Egg tray Size	295mm*295mm 30eggs



	Description	Quantity	Motor power
Pulping system	Pulping machine	1set	7.5kw
	Pulp Pump	1set	4kw
	Pulp pump	1set	1.5kw
	Mill pulp pump	1set	7.5kw
	Water pump	2sets	0.75kw*2=1.5kw
	Mixer	1set	1.5kw

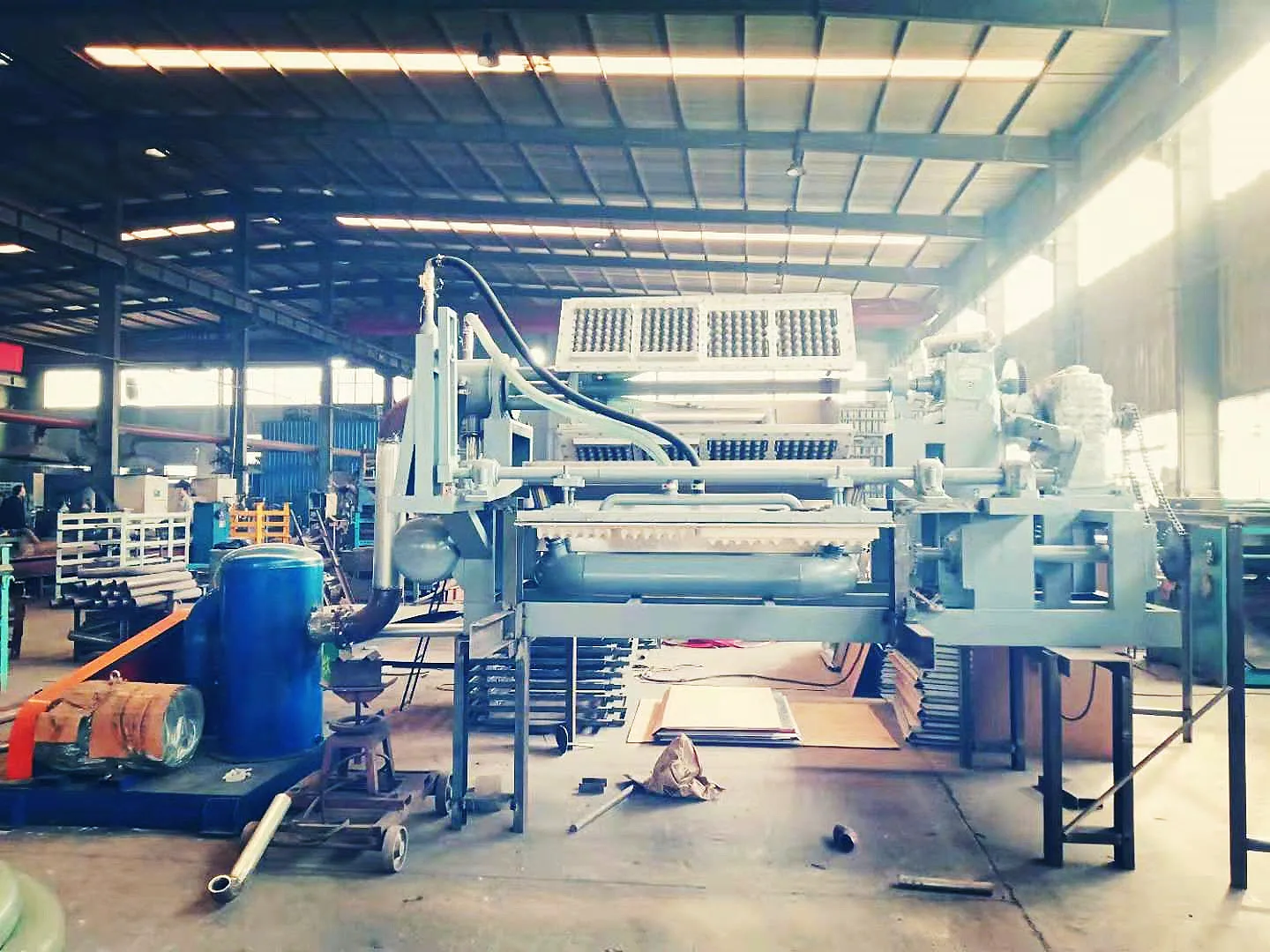

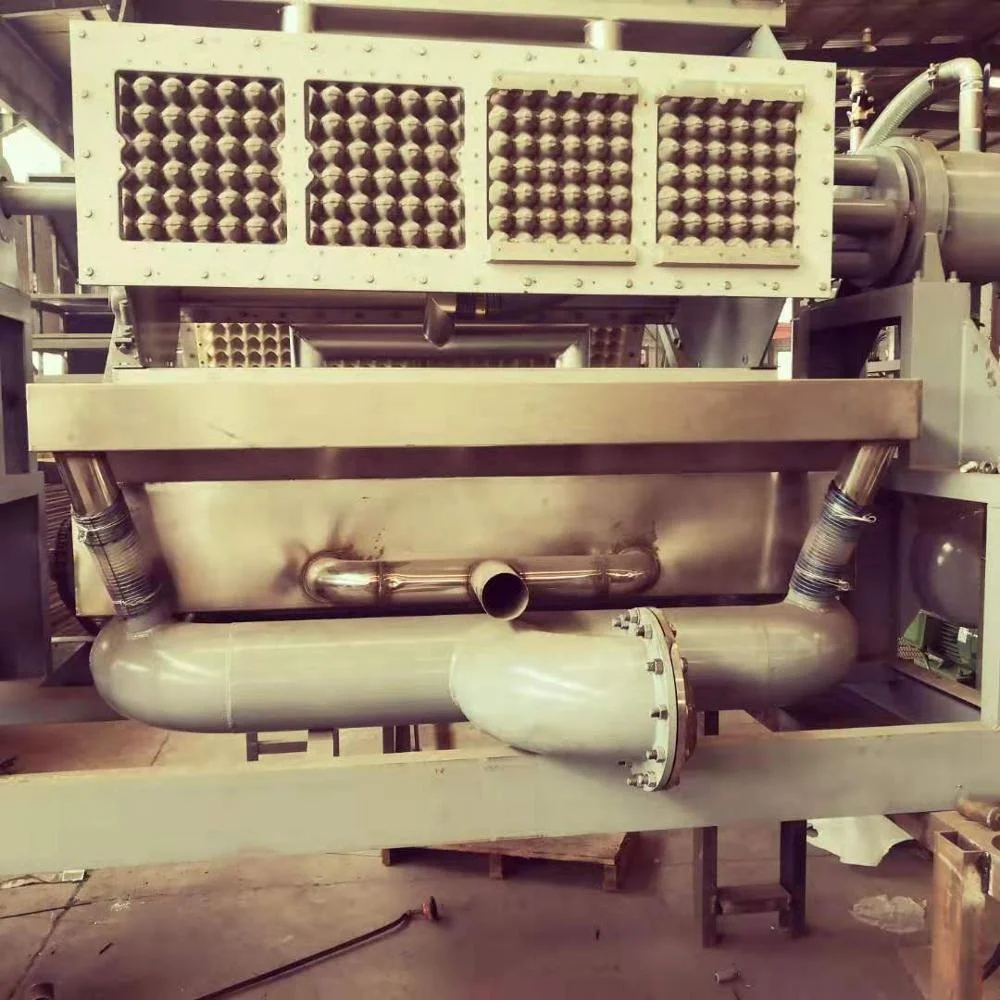

Forming system	Moulding machine	1set	With 3 pcs forming molds(Aluminum Molds)
	Vacuum pump	1set	7.5kw
	Mold Washer	1set	1.1kw
	Pulp pump	1set	1.5kw
	Air Compressor	1set	11kw
	Vacuum tank	1set
	Air tank	1set









Advantages of our machine:

1). Controlled by automatic computer soft ware

2). No need for basic infrastructure, machine can start running only after connecting some pipes, power and water, and preparing the material

3). Some parts are Germany brand or other famous brand

4). Our egg tray machine can make different trays at same time by using different moulds

5). Besides egg tray, fruit trays, our machine also can produce industrial package

6). All installation and debugging work will be done before shipment.

7). 20 years' experience on egg tray machine

8). 2 years warranty time

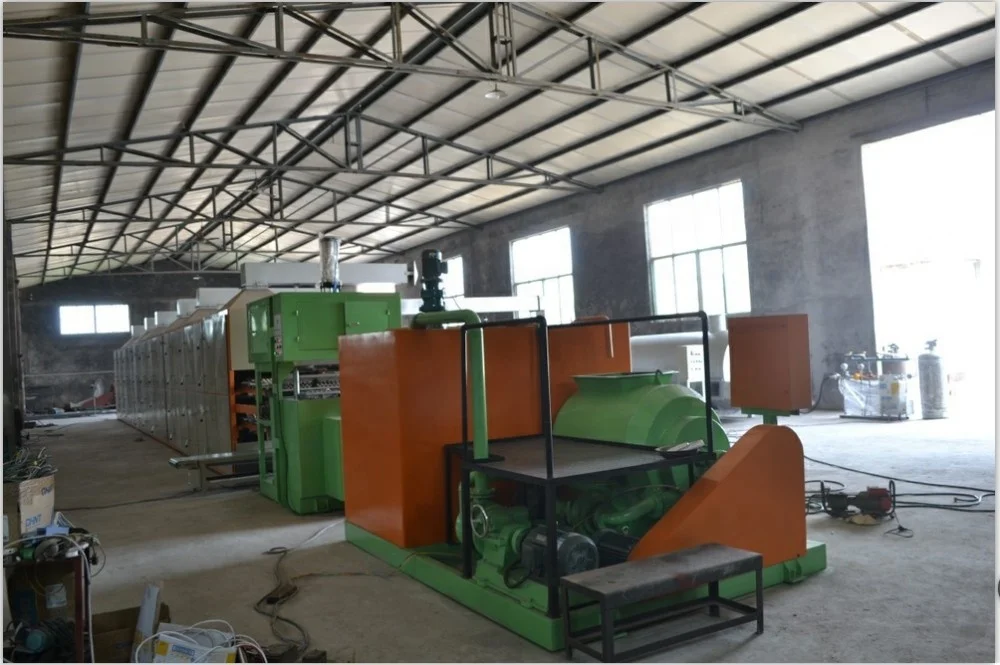

Egg Tray Machine Working Flow







End products
