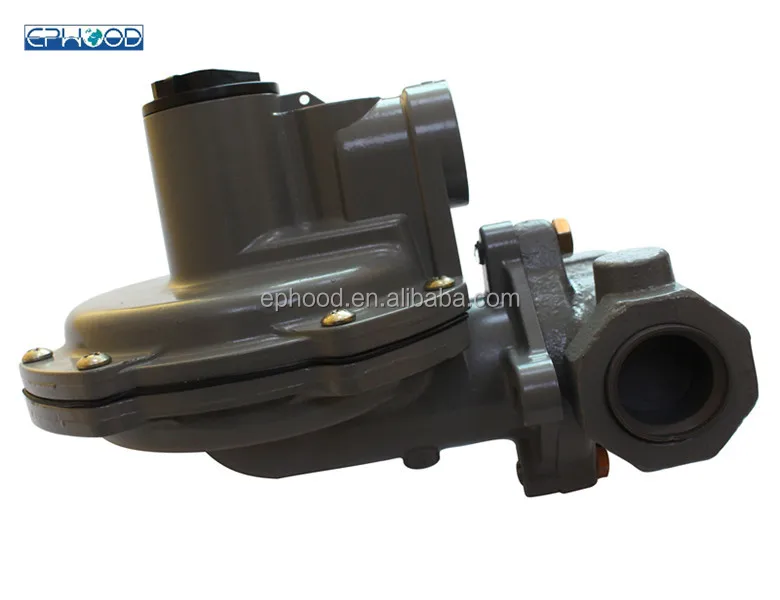

EMERSON FISHER HSR Pressure Gas Regulator use for Gas Fired Burner

Product Overview

Description

Body Size and End Connection Styles
 1 x 1-inch, NPT     Globe  Body

Allowable Inlet Pressure
Emergency: 150 psig / 10,3 bar
Maximum Operating Pressure: 125 psig / 8,6 bar

Allowable Outlet Pressure
   Emergency (Casing): 25 psig / 1,7 bar
   Maximum Operating Pressure to Avoid Internal Parts Damage: 3 psi    / 0,21 bar differential above outlet pressure setting

Outlet Pressure
1.25 to 2.2psi/0.09 to 0.15bar



  Outlet Pressure Ranges Of fisher HSR pressure regulator

               4 to 6-inches w.c. (10 to 15 mbar)

                6 to 8-inches w.c. (15 to 20 mbar)

                8 to 10-inches w.c. (20 to 25 mbar

               10 to 12.5-inches w.c. (25 to 31mbar)

               12.5 to 20-inches w.c. (31to 50 mbar)

               20 to 35-inches w.c. (50 to 87 mbar)

               1.25 to 2.2 psig (0.09 to 0.15 bar)



Pressure Registration
Internal

Temperature Capabilities
-20 to 160°F / -29 to 71°C

Approximate Weight
4 Pounds / 2 kg
