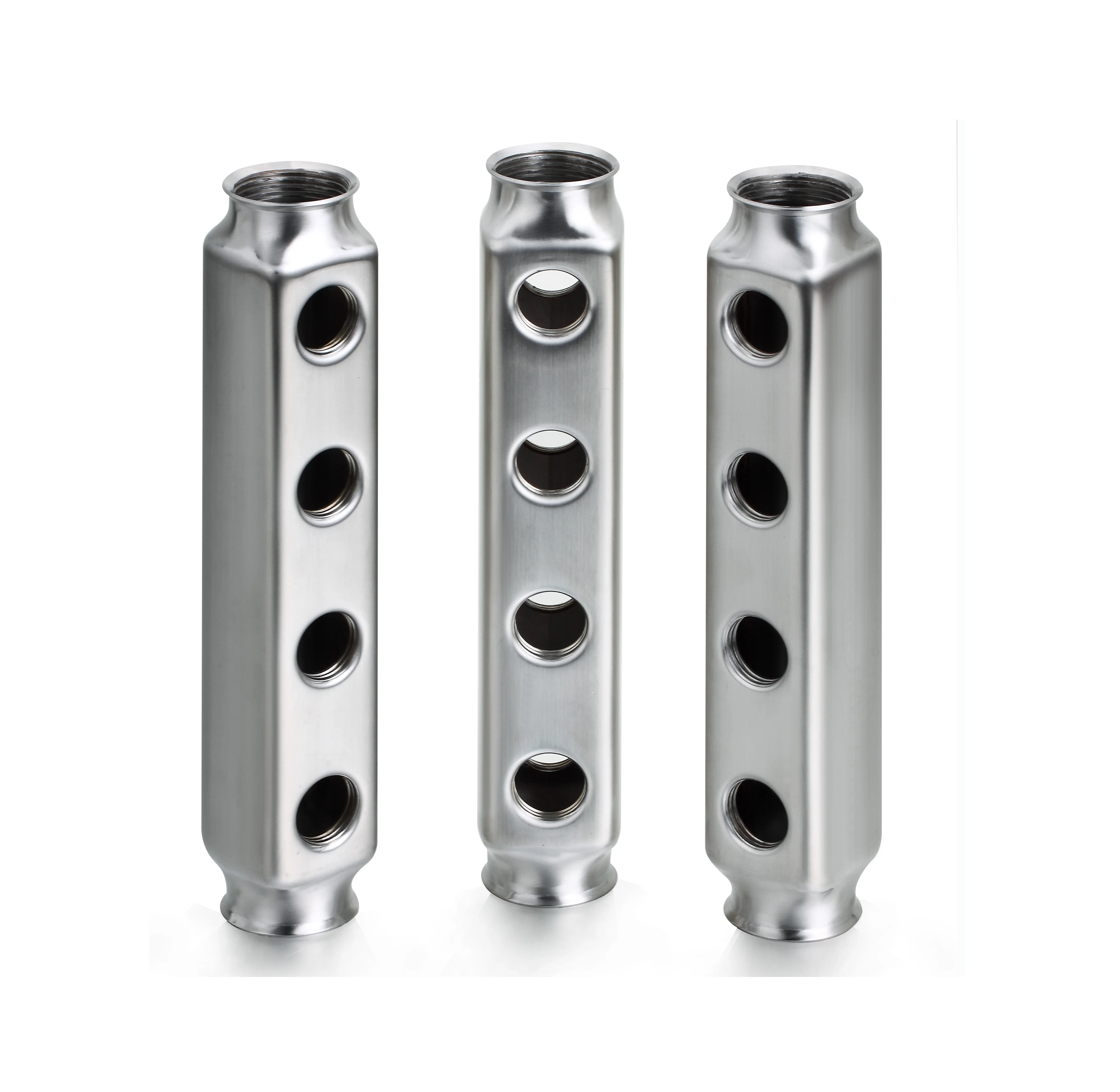

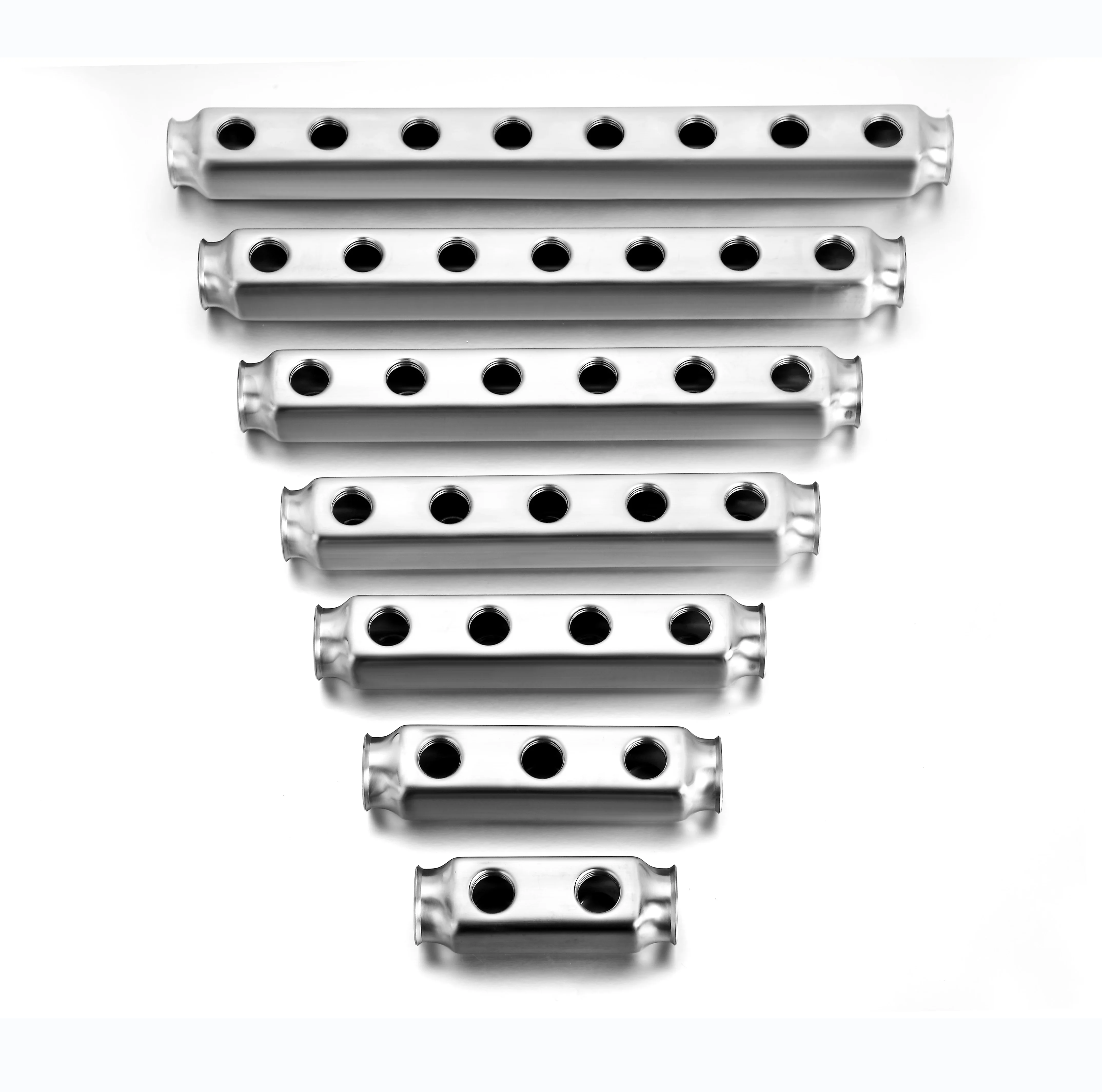

Stainless steel floor heating manifold bar

Share on (996457927):


Price:

Quantity:


Product Overview

Description


Brief Introduction:



Ningbo Hrale Plate Heat Exchanger Co., Ltd. is currently the dominant supplier of Brazed Plate Heat Exchanger and Stainless Steel Manifold in China. Since the establishment, Hrale has been devoted to the innovation of heat exchanger technology and solution, to impelling the progress of Chinese heat exchanger industry.



Description of Products:










  • Number of branch lines: 2 to 13
  • Maximum working temperature: 95°C
  • Maximum working pressure: 1.25MPa
  • Branch distance: 50/55mm
  • Main pipe height: 40.7/47mm
  • Main pipe length: 125 to 735mm
  • Plate length: 135 to 575mm
  • Valve size: Ø12 to 16 and 16 to 20mm
  • Both ends of the caliber: G-1/G1-1/4 inches
  • Branch caliber: G-3/8/G-1/2 inches



Stainless steel underfloor manifold, floor heating manifold, stainless steel water separator
