Product Description

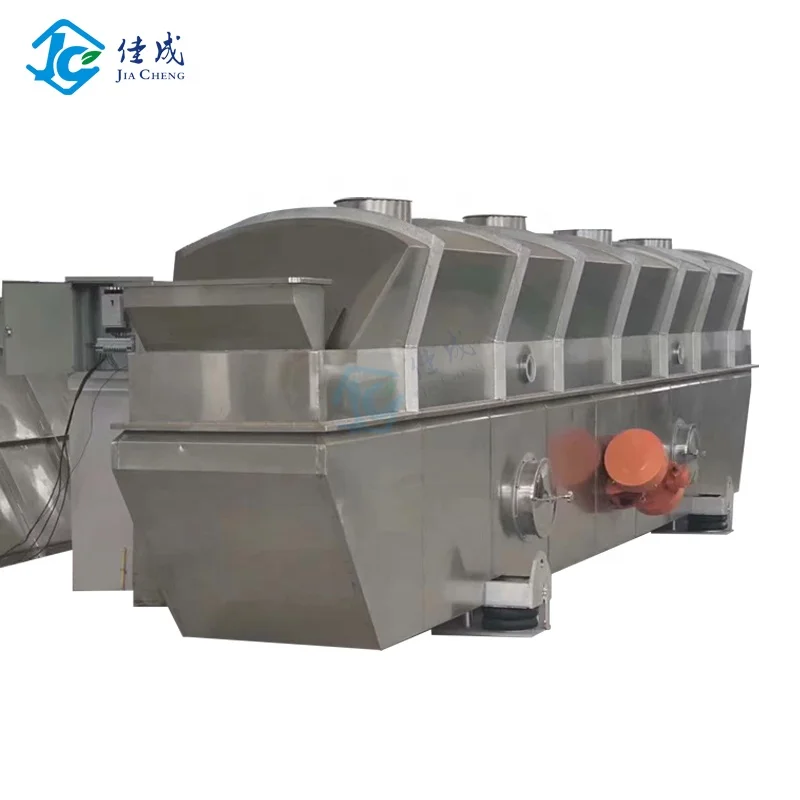

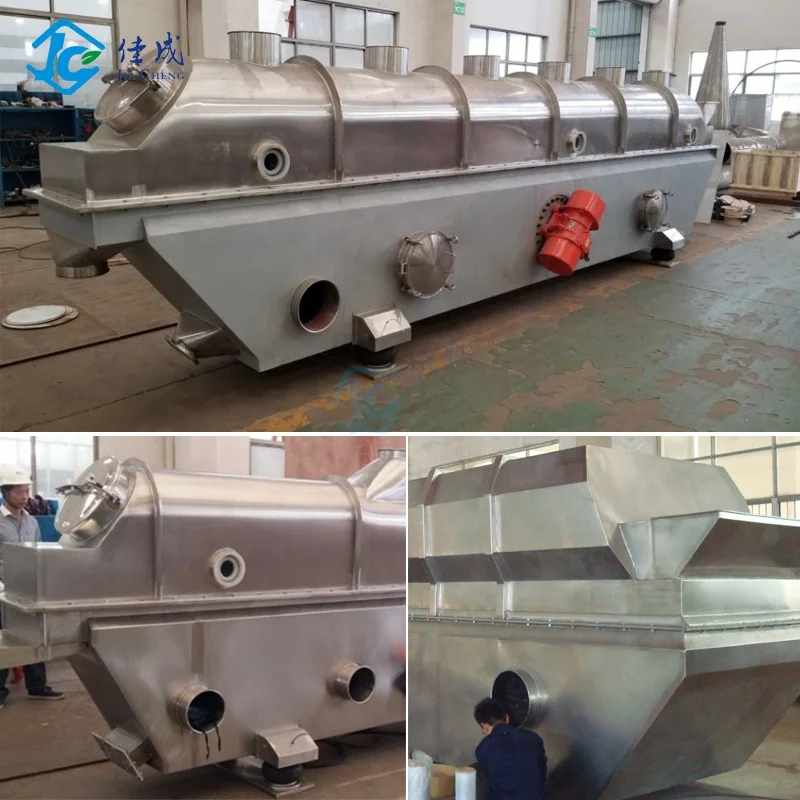

China Manufactory ZLG Fluid bed dryer for food /sea/ granule Salt

I. Features of ZLG Fluid bed dryer for food /sea/ granule Salt

Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.

The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.

The lower bed is supported by stainless steel seamless tube. It’s more strong.

Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.

The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.

II. Work principle of ZLG Fluid bed dryer for food /sea/ granule Salt

Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchanging with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.

III. Application of ZLG Fluid bed dryer for food /sea/ granule Salt

1. Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on.
2. Foodstuff and construction material industries: distiller's grains, monosodium, edible sugar, edible salt, mine residue, bean, seeds and so on.
3. Also can be used for material cooling, humidification etc.

IV. Technical parameters of ZLG Fluid bed dryer for food /sea/ granule Salt

Type	Fluidized-bed (M2)	Inlet air temperature(°C)	Outlet air temperature (°C)	Evaporate capacity (kg/h)	Vibration motor
Type	Fluidized-bed (M2)	Inlet air temperature(°C)	Outlet air temperature (°C)	Evaporate capacity (kg/h)	Type	Power (kw)
ZLG3×0.30	0.9	70-140	40-70	20-35	ZDS31-6	0.8×2
ZLG4.5×0.30	1.35	70-140	40-70	35-50	ZDS31-6	0.8×2
ZLG4.5×0.45	2.025	70-140	40-70	50-70	ZDS32-6	1.1×2
ZLG4.5×0.60	2.7	70-140	40-70	70-90	ZDS32-6	1.1×2
ZLG6×0.45	2.7	70-140	40-70	80-100	ZDS41-6	1.5×2
ZLG6×0.60	3.6	70-140	40-70	100-130	ZDS41-6	1.5×2
ZLG6×0.75	4.5	70-140	40-70	120-140	ZDS42-6	2.2×2
ZLG6×0.9	5.4	70-140	40-70	140-170	ZDS42-6	2.2×2
ZLG7.5×0.6	4.5	70-140	40-70	130-150	ZDS42-6	2.2×2
ZLG7.5×0.75	5.625	70-140	40-70	150-180	ZDS51-6	3.0×2
ZLG7.5×0.9	6.75	70-140	40-70	160-210	ZDS51-6	3.0×2
ZLG7.5×1.2	9	70-140	40-70	200-260	ZDS51	3.0×2
