Долгий срок службы, полностью закрытый двойной стол для лазерной резки, обменная платформа, лазерная резка
3 837 694,00 ₽
Станок для лазерной резки из углеродистой стали 2000 Вт
- Категория: >>>
- Поставщик: Accurl Cnc Machine(anhui) Manufactory Co. Ltd.
Сохранить в закладки 1601256495258:
Описание и отзывы
Характеристики
Products Description

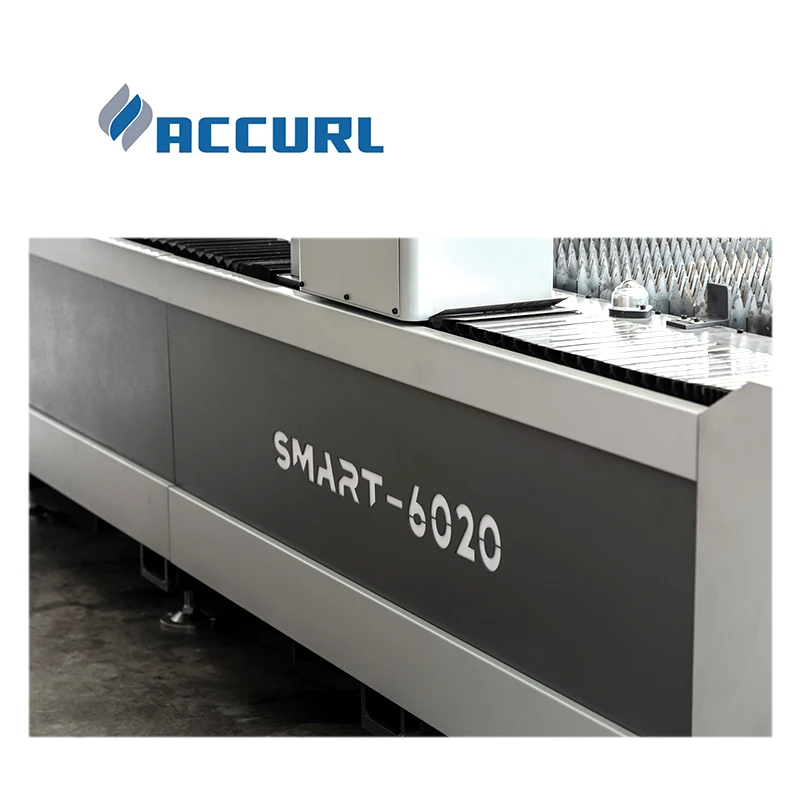

Single table laser cutting machineSMART 6020
ACCURL® assemble their lasers cutting machine 2000w/3000w/4000w/6000w to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price. SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
The following elements are included:
• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
• CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
HYPCUT Touch FSCUT8000 TwinCAT CNC System
• Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm
• Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
ACCURL BRAND
SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications,
manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
FULLY ANNEALED FRAME
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion. Auto changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.
LASER BEAM SECTION
The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is
casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be
maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be
maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
GRAPHITE ANTI-BURN TECHNOLOGY
The area in the entire machine tool where the laser can shoot at isall covered and protected by 20mm thick graphite anti-bruning.
To insuring the machine bed and working table not be out of shape and burned-out.
To insuring the machine bed and working table not be out of shape and burned-out.
DRIVE SYSTEM
The beam is mounted on a pair of precision REXROTH linear guide rails & with advanced German ALPHA engineering and precision
manufacturing have created the highest quality linear systems available today.
manufacturing have created the highest quality linear systems available today.
High-speed EtherCAT communication
Servo Motors and drives from YASKAWA
DUST EXTRACTION SYSTEM
This system is used to filter dry dust from industrial leaks, in accordance with VDI guidelines 3677, paragraph. The filter
elements use compact porous filters. In many countries it is forbidden to circulate filtered air during the cutting of stainless steel (CrNi). Therefore, it is recommended that the user install air ducts to the outside.
elements use compact porous filters. In many countries it is forbidden to circulate filtered air during the cutting of stainless steel (CrNi). Therefore, it is recommended that the user install air ducts to the outside.
CNC CONTROL SYSTEM
The FSCUT2000 laser cutting control system of an economical laser cutting control system.
Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.

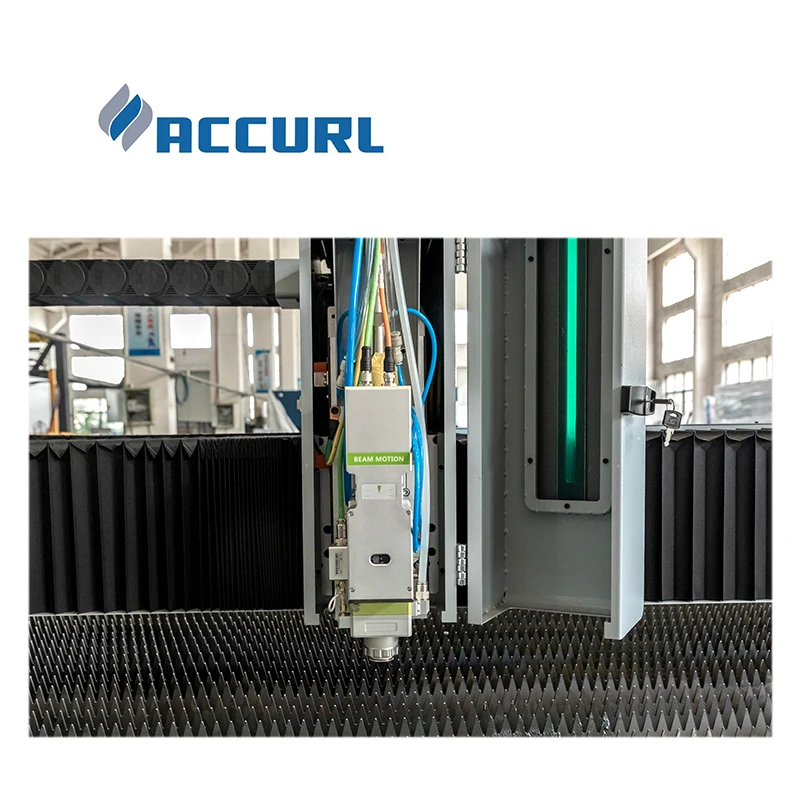

CUTTING HEAD RAYTOOLS
The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
CUTTING HEAD PRECITEC LIGHTCUTTER AUTO FOCUS(OPTIONAL)
The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a highcutting quality for all metals - especially mild steel, stainless steel and aluminum.
PROFILE & PIPE CUTTING SYSTEM(OPTIONAL)
The Smartline series offers unparalleled versatility.accurl optional tube and pipe cutting system has the capability to precisely cut pipe/tube and makes it a necessity for anyone who needs precision parts made from various materials, sizes, and thicknesses.
LASER SOURCE
Germany IPG Fiber Laser Resonator
IPG 3000W Ytterbium Laser Resonator
IPG 4000W Ytterbium Laser Resonator
IPG 6000W Ytterbium Laser Resonator
MACHINE DIMENSION AND WEIGHT | WORKING AREA | ||||||||
MACHINE MODEL | 3015 | 4020 | MACHINE MODEL | 3015 | 4020 | ||||
Lenght(mm) | 8000 | 10500 | X axis(mm) | 3060 | 4060 | ||||
Width(mm) | 2600 | 3280 | Y axis(mm) | 1540 | 2050 | ||||
Height(mm) | 2250 | 2250 | Z axis(mm) | 100 | 100 | ||||
Weight(kg) | 12000 | 15000 | Max.sheet weight(kg) | 1100 | 1800 | ||||
OPTIONAL FOR LOADER & UNLOADER BRG SYSTEM 2.0
Accurl Loader & unloader BRG System 2.0 is the automated solution that best optimizes the flow of material, which improves boththe safety at work and the safety of the process. The solutions included range from simple operation to fully automated operation.
Related Products
Company Profile
WHY CHOOSE ACCURL ?
■The right tube laser.
■Innovative features such as bevel cutting.
■Comprehensive technology and cutting data.
■Ergonomic machine concepts.
Our functional features and integrated know-how support your tubes and profiles every step of the way through the machine. Each
component is designed to achieve optimal results. Real benefits every step of the way.
■Innovative features such as bevel cutting.
■Comprehensive technology and cutting data.
■Ergonomic machine concepts.
Our functional features and integrated know-how support your tubes and profiles every step of the way through the machine. Each
component is designed to achieve optimal results. Real benefits every step of the way.
We Got 5 Stars Rating!
Exhibition
Product packaging
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
Our serives
The use of an interferometer records the machines X and Y axis movement during cutting to ensure accuracy.
Adjustments are made to ensure machine is precisely tuned before shipment.
Adjustments are made to ensure machine is precisely tuned before shipment.
A Marble test is performed to measure the X and Y axis, calculating any necessary adjustments to ensure perfect level and alignment along length of machine.
A collimator is run along the full length of the guide rail, testing for straightness. Adjustments are made as required to ensure linear accurae linear accuracy.
FAQ
1.Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Похожие товары
690 машина лазера СО2
218 200,32 ₽

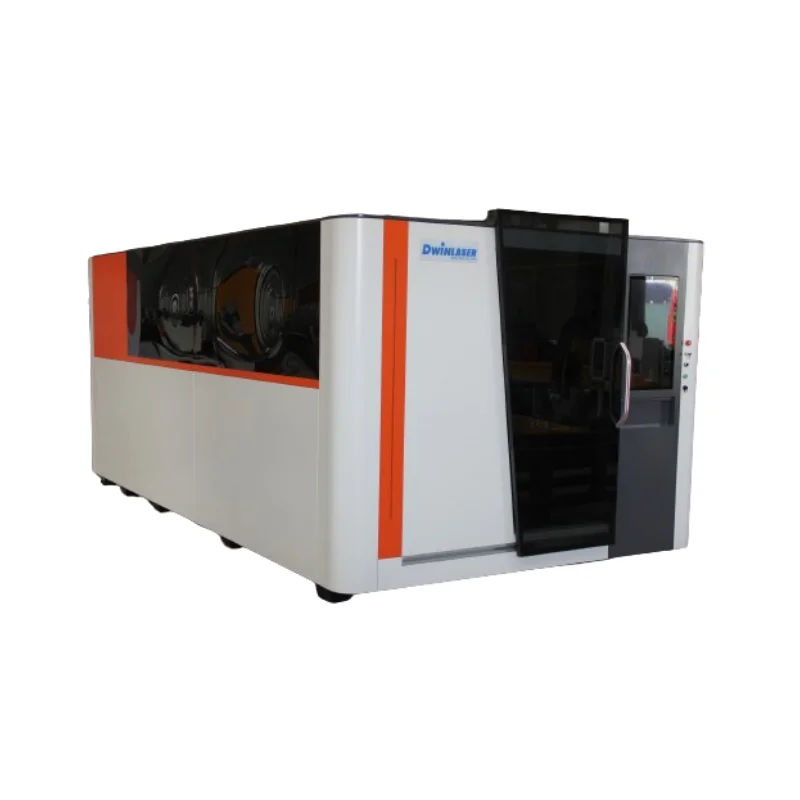

1500 Вт, 3000 Вт, 6000 Вт, обменный стол и волоконно-лазерная машина для резки листового металла по низкой цене
3 837 694,00 ₽

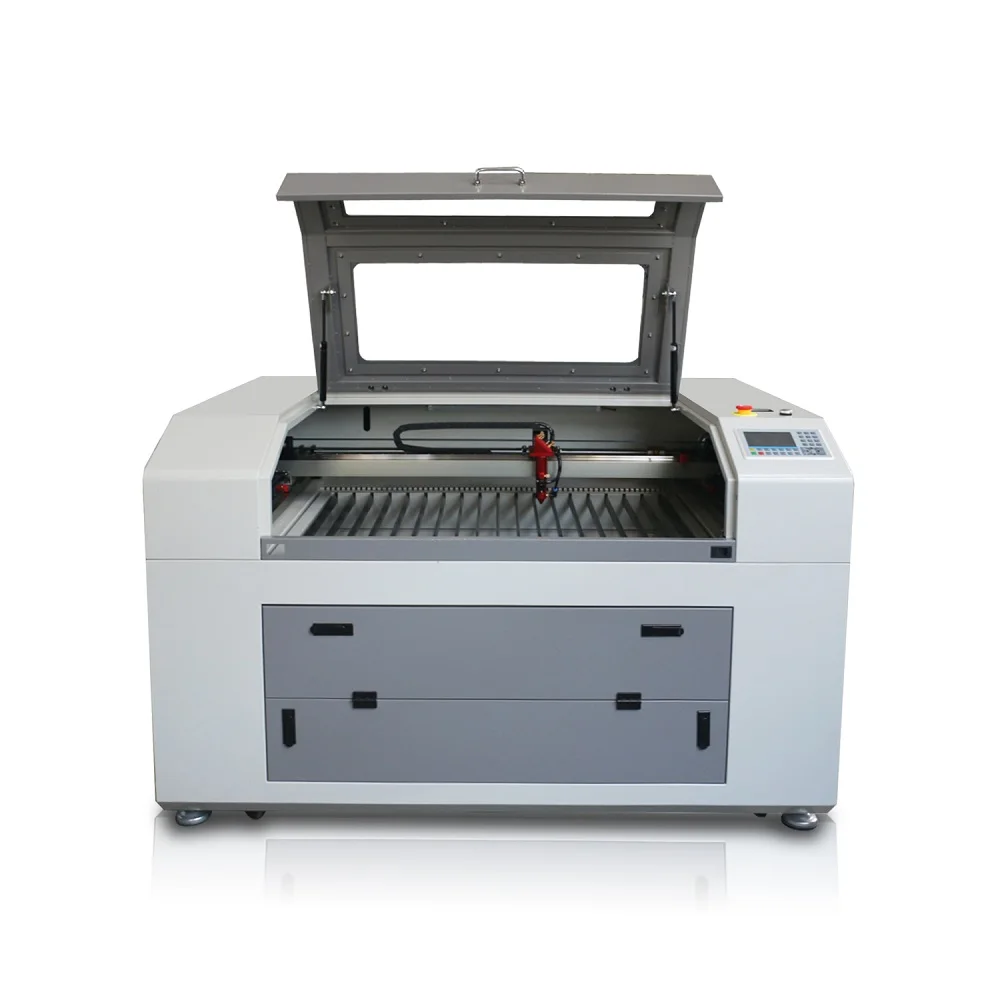

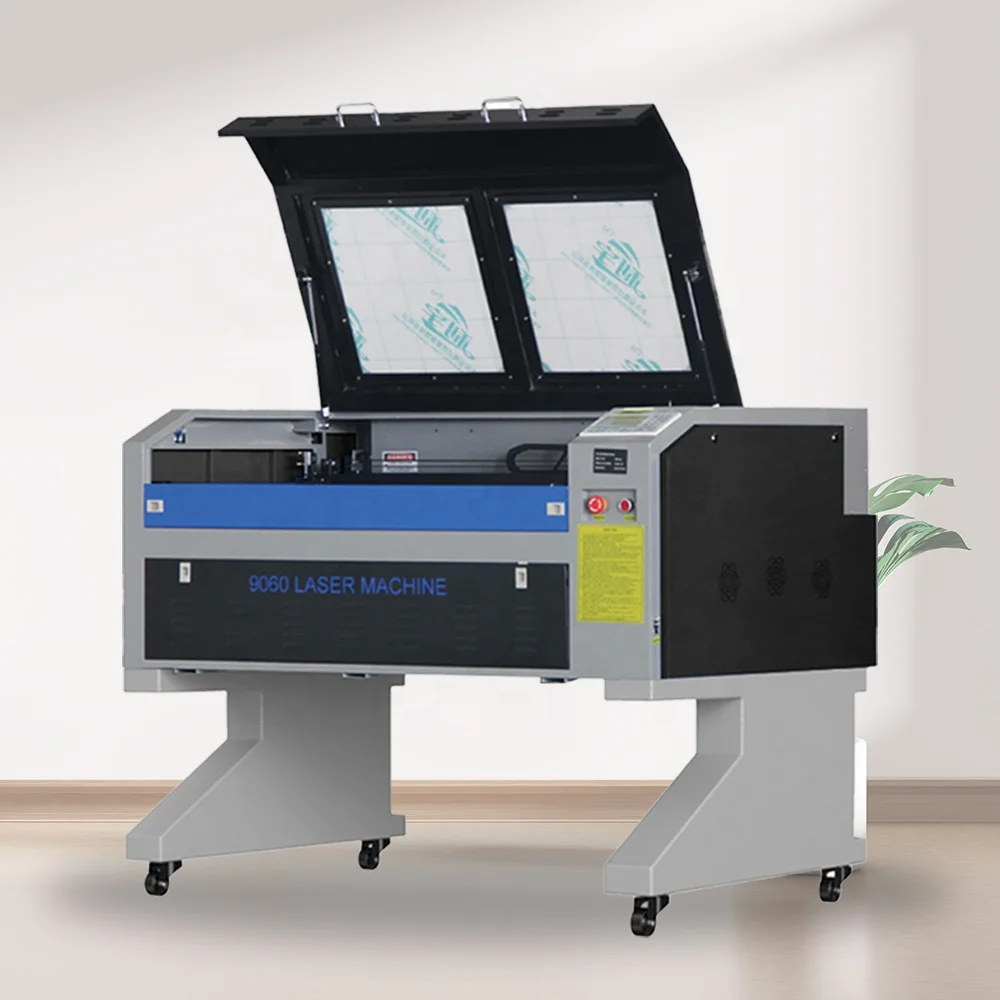

6090 60 Вт 80 Вт 100 Вт 130 wlaser резки co2 лазерная гравировальная машина с системой управления ruida
218 200,32 ₽

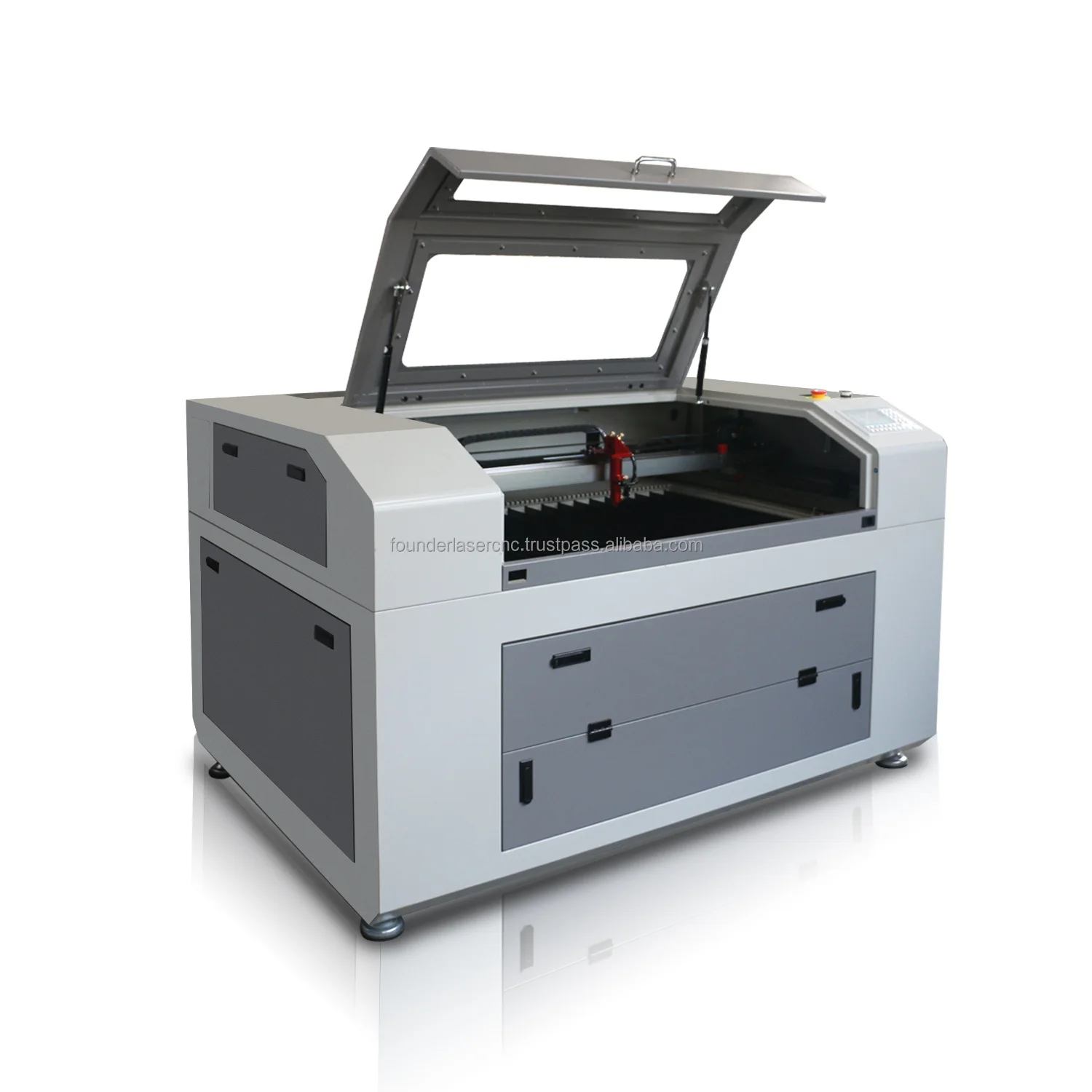

60W80W100W CO2 резак машина CO2 лазерный 6090 лазерный гравировальный станок лазерный станок для резки акрила
128 897,18 ₽ - 137 120,81 ₽
6090 60 Вт 80 Вт 100 Вт 130 Вт 150 Вт 9060 Co2 лазерная гравировка и резка для древесины с X и Y как линейная направляющая
218 200,32 ₽

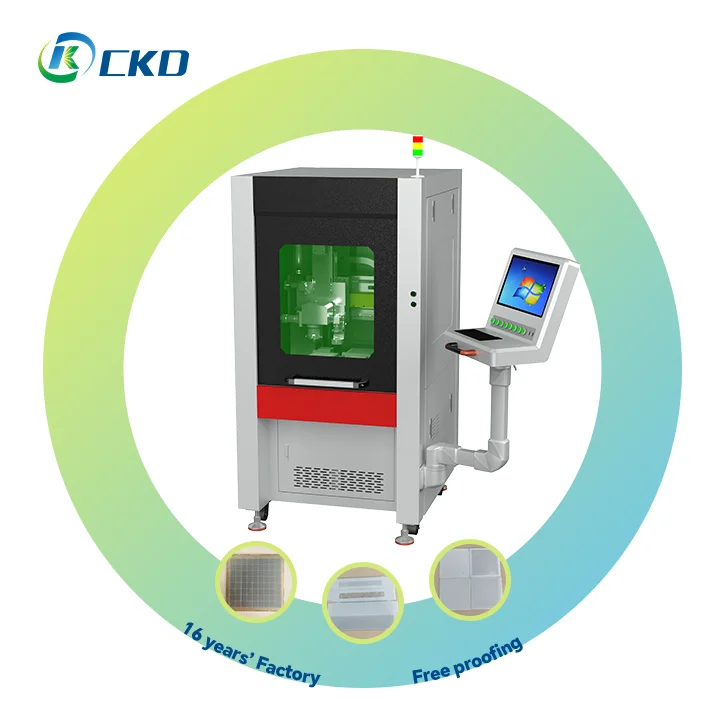

CKD лазерная машина для оксида алюминия и нитрида керамики
5 263 123,20 ₽ - 5 482 420,00 ₽

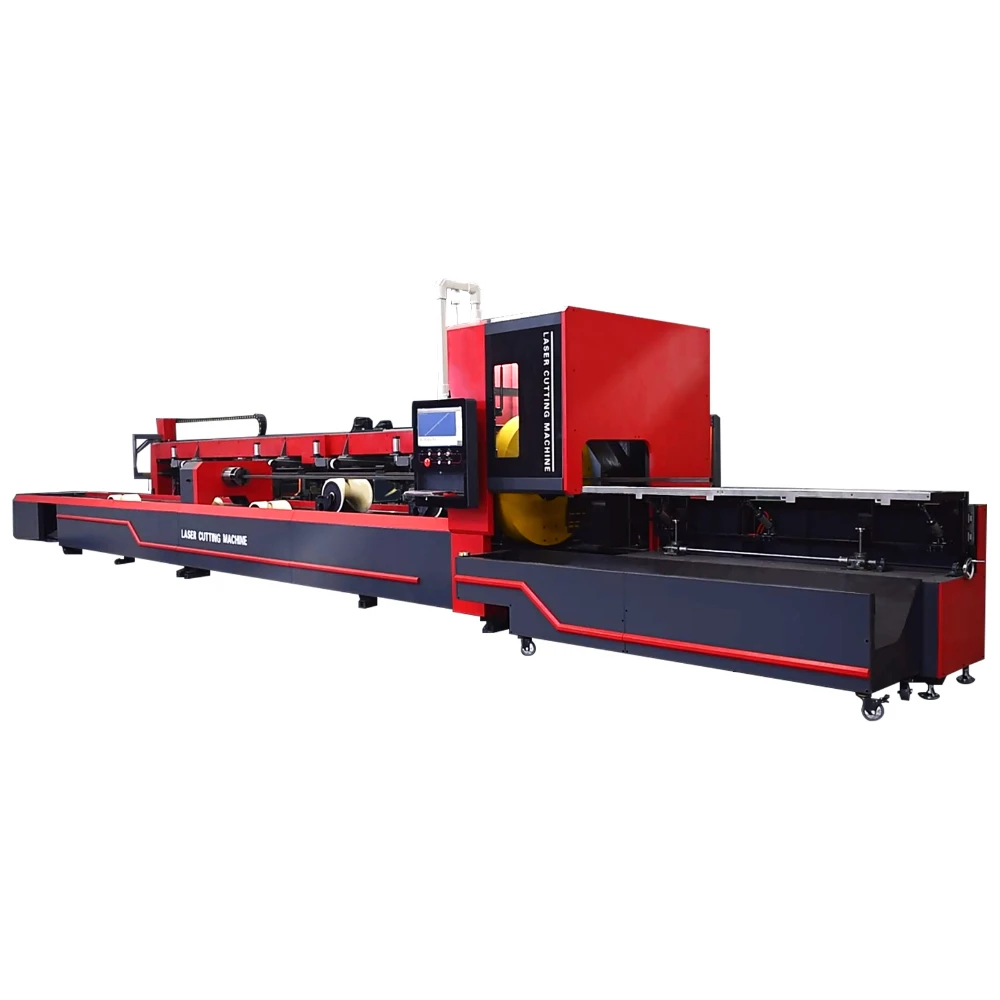

Лазерная полуавтоматическая лазерная трубка металлическая трубка лазерная резка машина
