YS 805A машина для отделения печатных плат

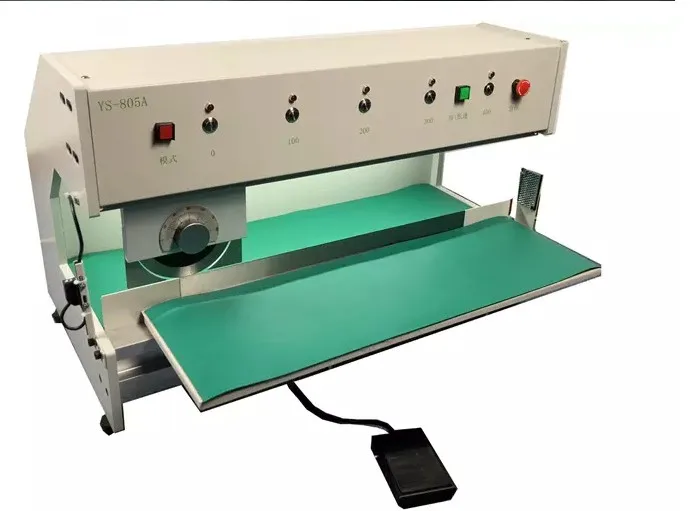

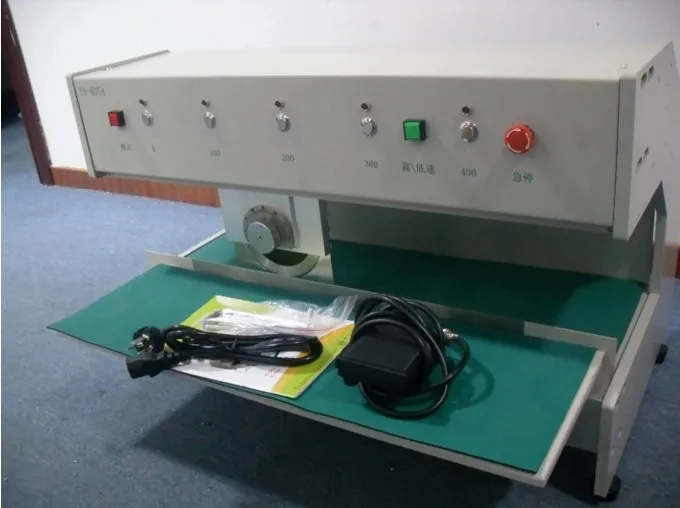

YS-805A Assembly Line PCB Separator Machine

Specification:

Application:

1. Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...

3. Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.

Feature:

1. Controlled by Micro-Computer Program, patented design, high accuracy and with good stablity.

2. Cutting Speed adjustable, have two options : 500mm/s and 300mm/s, if customer want to set other speed, we can customise for customer.

3. Separation length can be programmed: 0-150-300-450-600MM

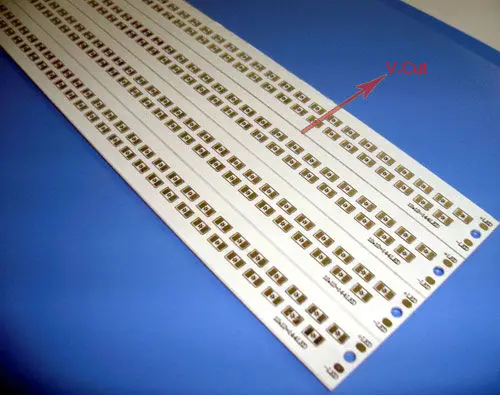

4. Cutting Material PCB must with Pre-scored groove

5. Operating Panel height is adjustable, from 0-50mm.

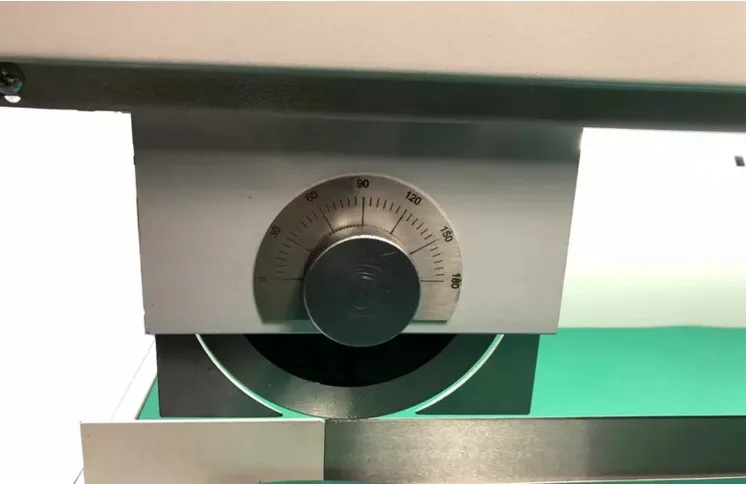

6. Rotary Knife adjustable : 0-2mm . in order to suit for different sickness PCB board and different depth of pre-scored V-cut.

7. For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.

8. PCB Board thickness : 0.2-3.2mm, V-cut depth : 0.2-2mm. PCB Length :0-1300mm.

9. Upper circular blade and Bottom linear balde all exported steel long life blade, durable, when the blade is not sharp, can grind 7-10 times, repeated use.

Q1:What is your Warranty for the product? How do you carry out it?

A1:We provide 1 Year Warranty for unit machine and 3 years warranty for main board.

More details pls contact me.

Q2:May I buy samples from you?

A2:Yes! You are welcome to place sample order to test our superior quality and service.

      Sample's price is the same as bulk's price.

Q3: What’s the leading time? (How long do you need to prepare my goods?)

A3:1-3 working days for sample orders

3-20 working days for bulk order (based on different quantities).

Q4: How will you deliver my goods to me? How long do I need to wait before my goods arrive?

A4:We offer as many shipping options as possible, such as DHL, UPS, FedEx, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo, Direct line, Air Mail according to clients' request.

3-7 days for international express, 5-7 days for air cargo, 20-40 days via sea cargo.

Q5: How is your product quality?

 A5:We provide supreme - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control, and Final Quality Control for every piece. We follow 20 QC test procedure, and do 100% FQC to ensure your satisfaction.

Q6: Can you put my brand name (logo) on the product?

A6:Yes! We can provide professional OEM services to make it your brand even for your trial sample order.

Q7: How much do I need to pay for your  OEM service?

A7: It’s according to your logo's size and color.

Q8: What payment method do you accept?

A8: T/T(Bank transfer), Western Union, Paypal, etc.

Q9: Do you have any After-Sales service?

A9:Yes! We have professional After-sales Dept. follow-up R.M.A.

If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.

----Purchase Guidance

If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.

As one of leading manufacturer in China, we offer factory price and very thorough quality check before

----After Sale Services

We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.

----Technology Consultation

Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide reasonable budget and suggestions.

----OEM Services

We provide OEM services.
