Портативный EDM сверлильный станок буровой Dia.0.5 3 мм небольшое отверстие с доставкой в течение 3 10 мм/мин MB 2000C бурильщик

Описание и отзывы

Характеристики

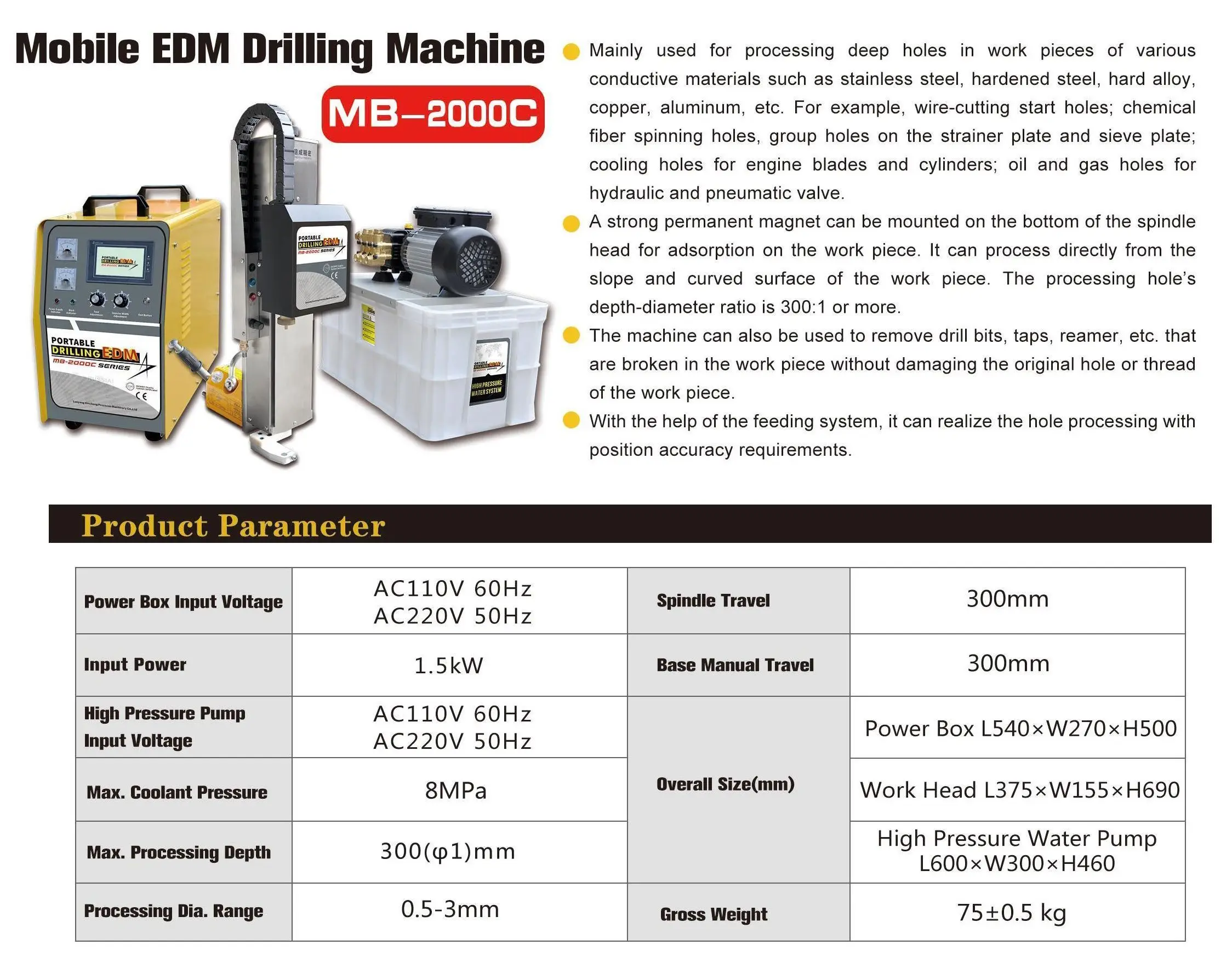

Portable EDM Drill Machine Drilling Dia.0.5-3mm Small Hole Drill Machine with 3-10mm/min

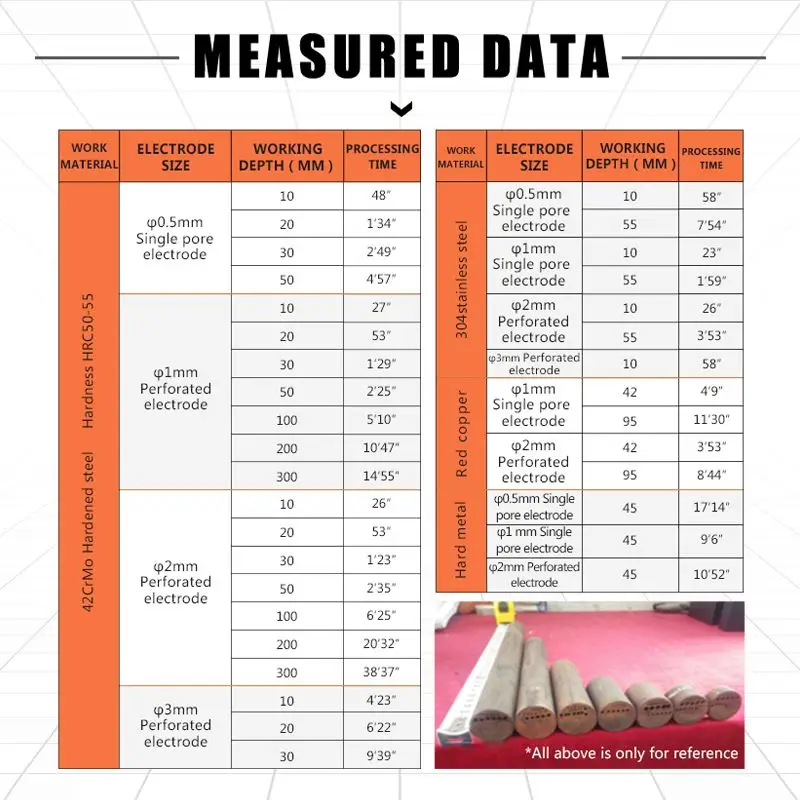

• [ Fast Drilling ] Drill 0.5-3mm hole with 3-10mm/min.The processing hole's depth-diameter ratio is 300:1 or more


• [ Widely Used ] Conductive Material.Stainless Steel,Hardened Steel,Hard Alloy,Copper and Aluminum.Such as wire-cutting holes for wire-cutting workpieces,ground holes on chemical fiber spinning holes,filter plates and sieve plates.


• [ High Temperature Protection ] Avoid damage the equipment under high temperature

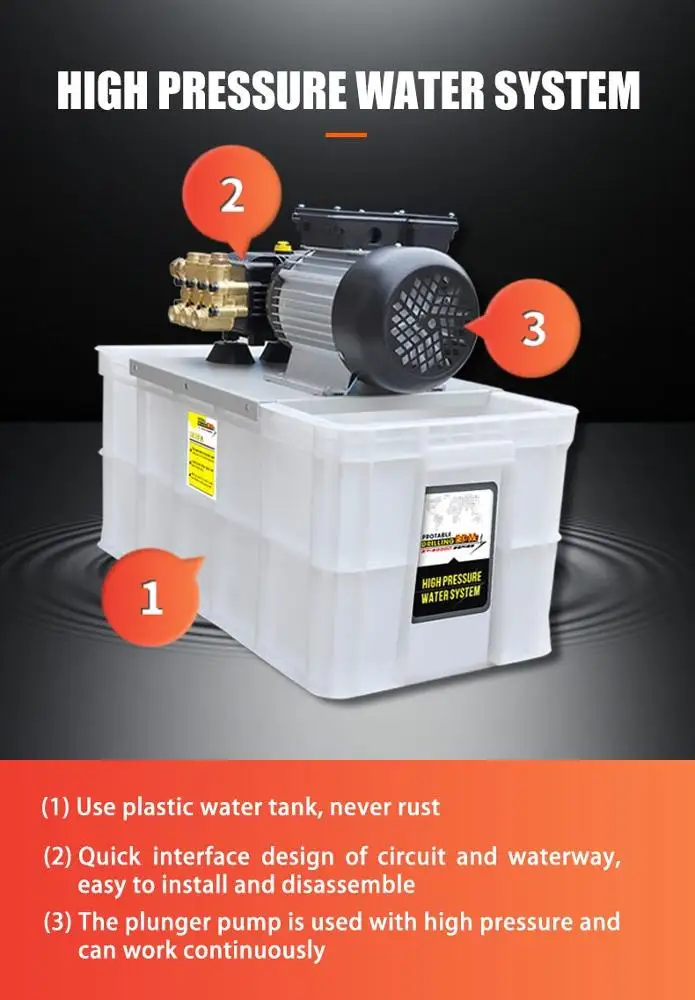

• [ Easy Operation ] PLC Control to realize one-button operation [ Free Shipping including High Pressure Water System ] Easy to install and disassemble,Work continuously.

Feature:Fast processing speed , Low consuming, Spindle hybrid step servo system, Fast up and down function

• PLC Control to realize one-button operation:The high frequency,rotation,water pump and pther actions can be operated separately


• Touch screen desigh:Attractive appearance,easy to learn


• The work head is equipped with a control button which can be processed synchronously with the power box for easier operation


• Stepless pulse width and feed:Instead of the step function, the adjustment parameters are finer

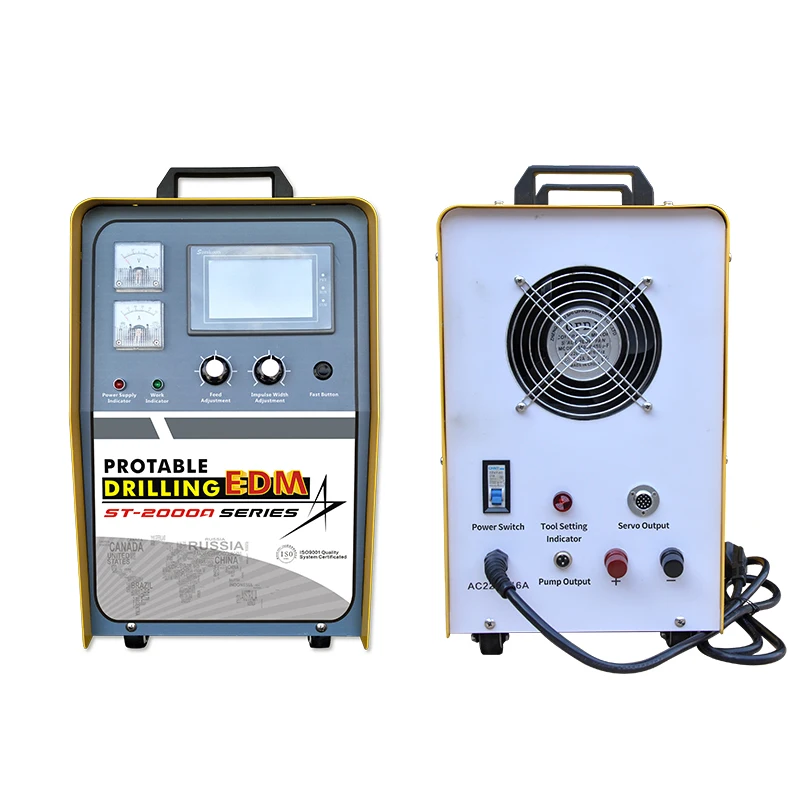

• The power box has high temperature protection:Avoid damage the equipment under high temperature and sever environment workpieces; group holes on chemical fiber spinning holes; filter plates and sieve plates;

Portable EDM Drilling Machine Feature:

• 304 Stainless Steel Housing:Waterproof struceture,attractive appearance and durable


• Select Type 57 Stepper Motor:The torque is not easy to lose step, the performance is stable and the processing is efficient


• Special Aluminum Profile 30120 as the body backboard:Strong rigidity and enhanced stability


• Magnetic base back plate,Chute Structure Design:Manual Adjustment of the work head,easy operation


• Work head design: High-pressure water pipe,high-frequency line, control line interface,easy to move and store
