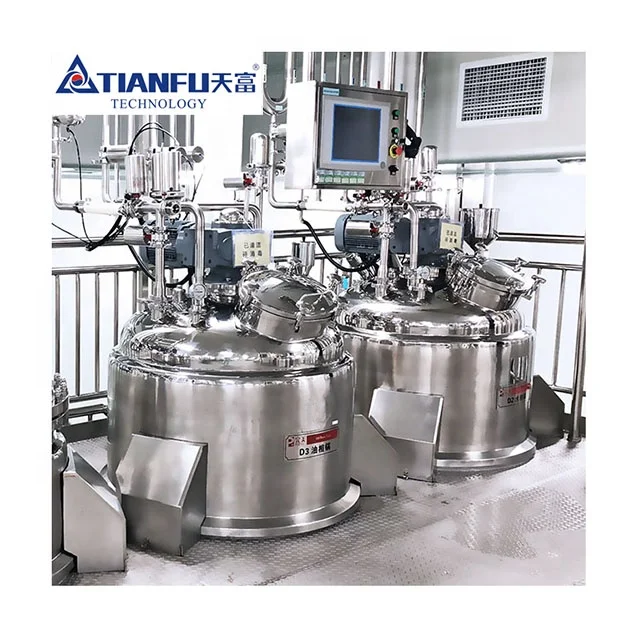

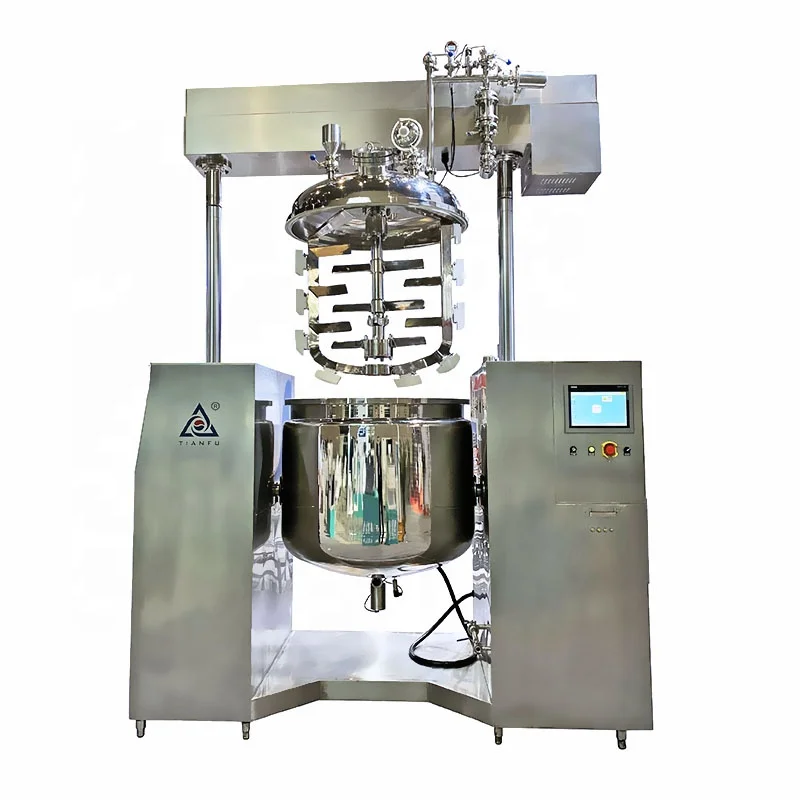

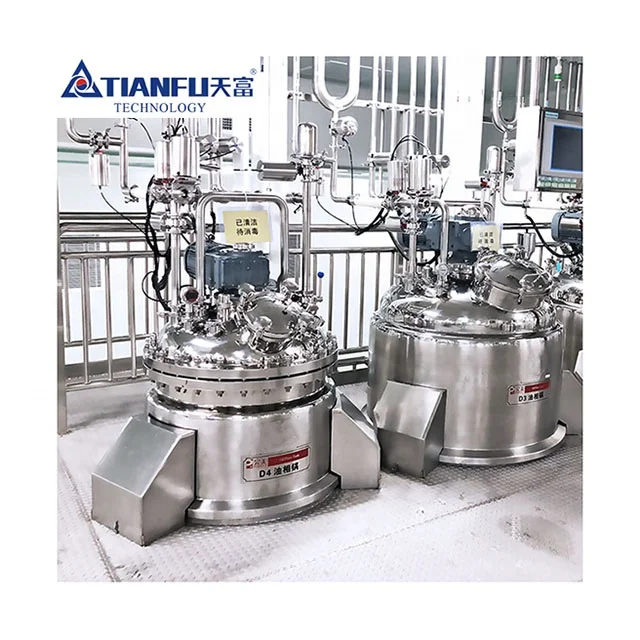

The designing of TFZRJ-2000L Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc.
The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.
Capacity:
2000L
Materials:
SUS316L and SUS304

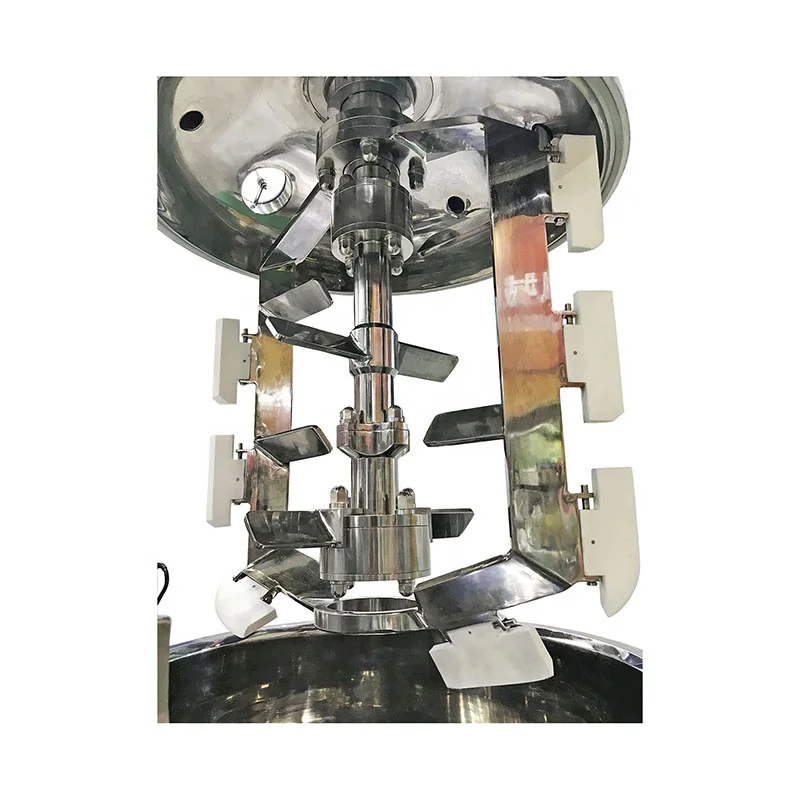

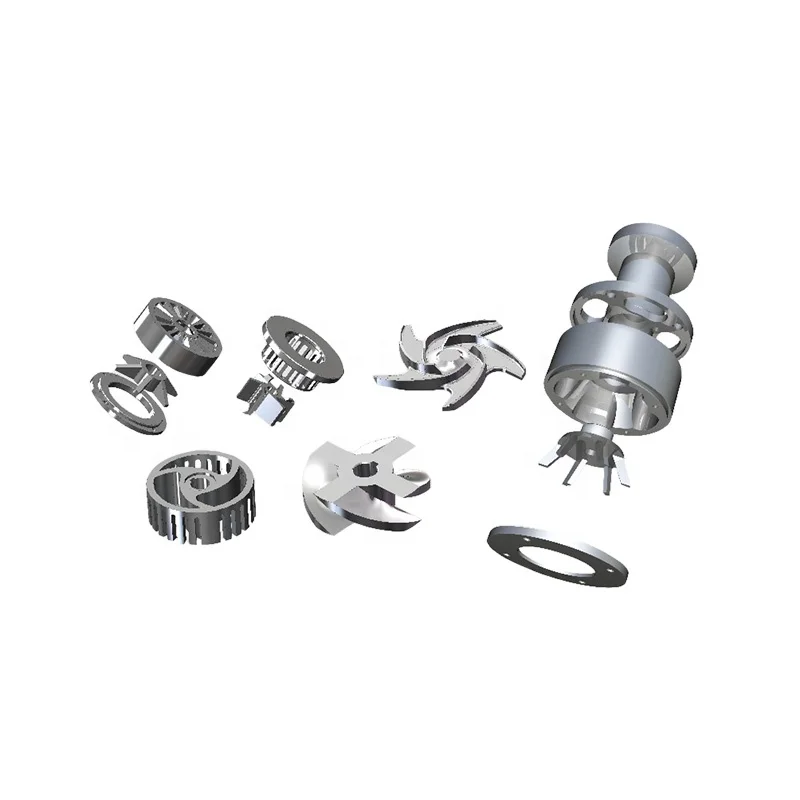

High shear homogenizer:
3500rpm
Agitator:
0-60rpm
Jacket:
Double layer
Application:
Cosmetics, Pharmaceuticals,
Daily Chemicals, Healthcares etc.

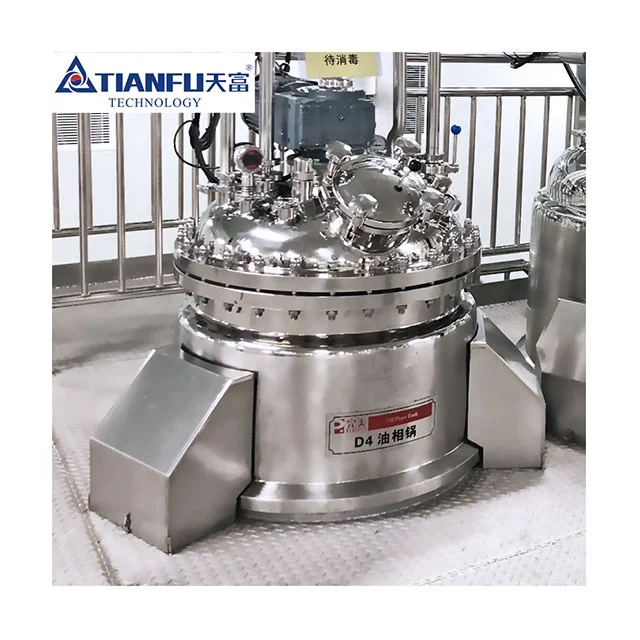

Emulsifying Mixer Pot
Material: SUS316L stainless steel, electrical heating and water-cooling.Structure: 3-layer, upper and down closure heads. The upper closure head joints with tank body by flange, and the down closure head joints with tank body directly. The inner layer of the tank body is made of SUS316L stainless steel with thickness of 4mm, and interior surface is polished by 300 MESH (sanitary level). The middle layer of tank body is made of SUS304 stainless steel with thickness of 3mm, with max working pressure of 0.09MPa.; The external layer of tank body is made of SUS304 stainless steel with thickness of 2mm, and surface is polished by 300 MESH (sanitary level). All the welding joints should be polished after ground. The transition of junction will adopt the forms of arc-flanging type. The thermal insulating layer adopts PU polyurethane foaming process.
Electric control system (PLC control)
3.5.1 PLC is S7-200 series from Siemens, Germany 3.5.2 Touch screen is Smart-1000 10.4” from Siemens Company 3.5.3 Mixing speed can be adjusted and displayed on the touch screen, as well as temperature display of each pot, high and low temperature limitation setting, controlling of automatic valve, setting of Emulsifying time and slow speed emulsifying mixing time, Controlling function of hydraulic lifting system etc., all these functions can be operated through touch screen. Electric elements: From Siemens Transducer: From Panasonic Button/switch: From FUJI Japan Temperature sensors are high quality from well-known domestic companies.
Size Information
Size Chart of This Design
Capacity
50L
100L
500L
3000L
OEM size
Related Products
Packing&Shipping
Packing in wooden framed box
After Sales Service
Company Introduction
Zhejiang Tianfu Technology Co., Ltd. Is located in the “Food and Pharmaceuticals Machinery Industry Base of China”, Wenzhou City, with about 180 employees. It’s a high-tech enterprise that integrated R&D, manufacturing and selling with complete aftersales service. Emulsifying mixer machine is the leading products of TIANFU, which is used widely in the industries of Pharmaceuticals, Daily chemicals, Personal Cares & Cosmetics, Food and Beverage, Nutriceuticals industries etc. Since founded in 2001, insisting and focusing on technical innovation and by introduction of high-quality talents, as well as referring the advanced experiences from home and abroad, TIANFU formed a powerful and competitive R&D team of the emulsifying industry. The most advantaged jet type emulsifying homogenizer in China was created by TIANFU in 2005, which highly improved the development of Chinese emulsifying machinery. With its powerful technology, excellent production equipment, regulatory management, mature inspection skills and complete sales system, TIANFU sells its products to domestic and overseas customers that from more 34 provinces and over 120 cities. The famous clients such as Harbin Pharmaceutical Group Holding Co., Ltd., SANJIU Enterprise Group, RENHE Group, Yang Sheng Tang Pharmaceutical, Perfect China, Lee Kum Kee Group, JALA Group, Nice Group, Life-Beauty, L’Oreal, Bayer Germen etc.. The overseas market contains America, Japan, Russia, Mexico, Israel, India, Thailand, Vietnam, UAE, South Africa, Yemen, Pakistan, El Salvador, The Czech Republic, Kazakhstan, Bangladesh etc. that more than 40 countries. Persisting in “quality and customer’s satisfactory first” as its core principle, we believe that TIANFU Technology will achieve its great aspiration of “Centennial Enterprise” .
Our Services & Strength
Best quality and aftersales service
FAQ
Where's our factory?Tianfu Technology is located in Wenzhou, China How's TIANFU? One of the largest emulsifying machine manufacturer of China Which industries our machines used for? Cosmetics, Pharmaceuticals, Daily chemicals, Food & Beverage etc.. Used for cream and ointment emulsification, liquid and oil mixing, body lotion, shampoo, conditioner, liquid detergent, liquid soap manufacturing etc.
