Cheap Factory Price milling drill machine ZX25 mini vertical milling machine for sale
- Category: Manual Mills >>>
- Supplier: Shandong Huawei Intelligent Equipment Co. Ltd.
Share on (1600199246252):
Product Overview
Description
Product Description

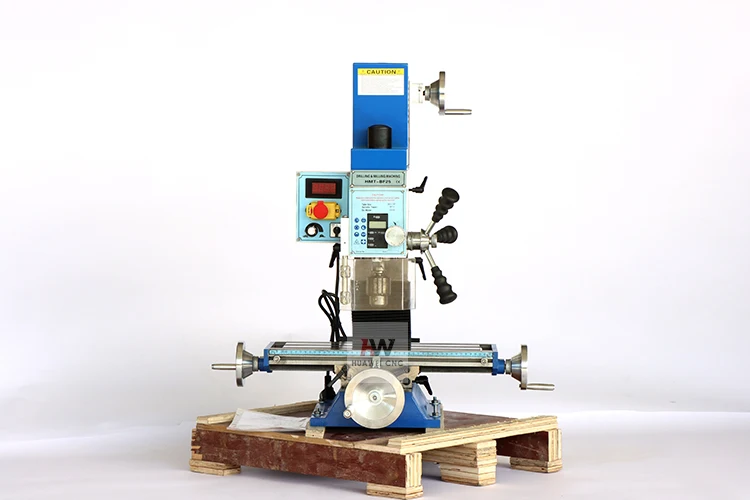

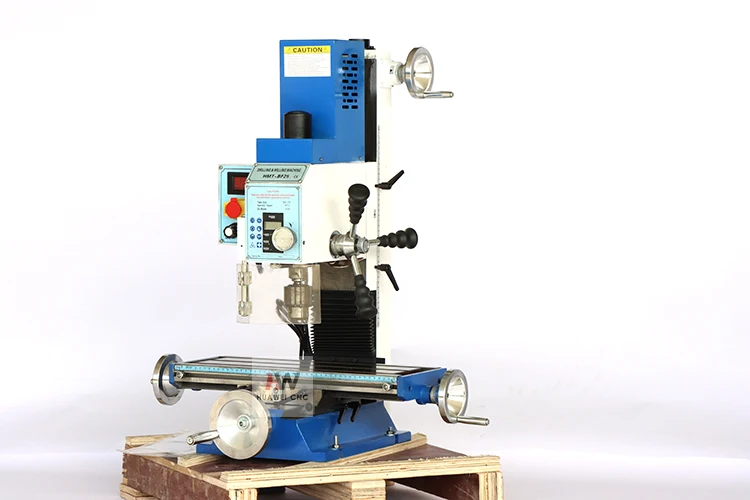

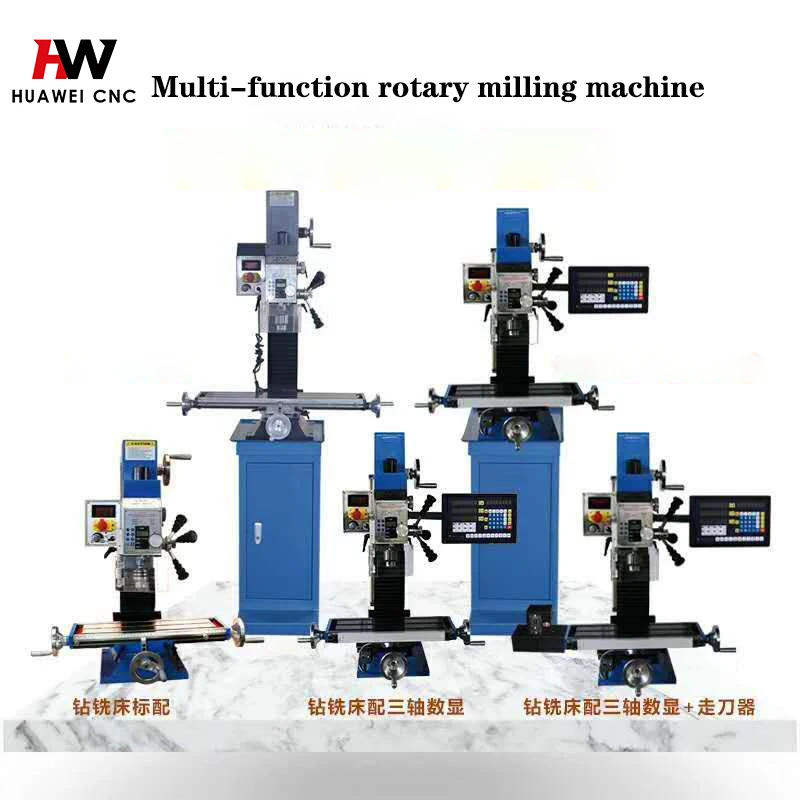

Cheap Factory Price milling drill machine ZX25 mini vertical milling machine for sale
Product main technical parameters:
ZX16 | ZX20 | ZX25 | ZX28 | ZX36 | |
Voltage: Household electricity | 220V | 220V | 220V | 220V | 220V |
power | 600w | 700W | 1000W | 1250W | 2200W |
X-axis travel (left and right travel of skateboard) | 290mm | 290mm | 290mm | 480mm | 480mm |
Y-axis travel (skateboard front and back travel) | 160mm | 180mm | 180mm | 180mm | 180mm |
Z axis travel (nose up and down travel） | 220mm | 380mm | 380mm | 380mm | 480mm |
Distance from spindle to post | 160mm | 185mm | 185mm | 185mm | 185mm |
Spindle box left and right Angle | ±90° | ±90° | ±90° | ±90°° | ±90° |
Maximum hole diameter | 16mm | 20mm | 25mm | 25mm | 30mm |
Maximum surface milling capacity | 52mm | 65mm | 65mm | 65mm | 75mm |
Maximum vertical milling capacity | 16mm | 20mm | 25mm | 28mm | 32mm |
Distance between collet and mesa | 210mm | 350mm | 350mm | 350mm | 470mm |
Morse taper of main shaft hole | MT2 | MT2 | MT3 | MT3 | MT3 |
Sleeve trip | 52mm | 52mm | 52mm | 52mm | 52mm |
Spindle speed | 50-2250rpm | 50-2250rpm | 50-2250rpm | 50-2250rpm | 50-2250rpm |
T-groove width of mesa | M12 | M12 | M12 | M12 | M12 |
Net/gross weight | 65/80kg | 95/110kg | 100/115kg | 105/130kg | 110/135kg |
Packing size (L* W * H) | 480*450*860mm | 540*590*910mm | 540*590*910mm | 720*610*910mm | 730*630*1000mm |
Table size | 400*120mm | 500*180mm | 500*180mm | 700*180mm | 700/180mm |

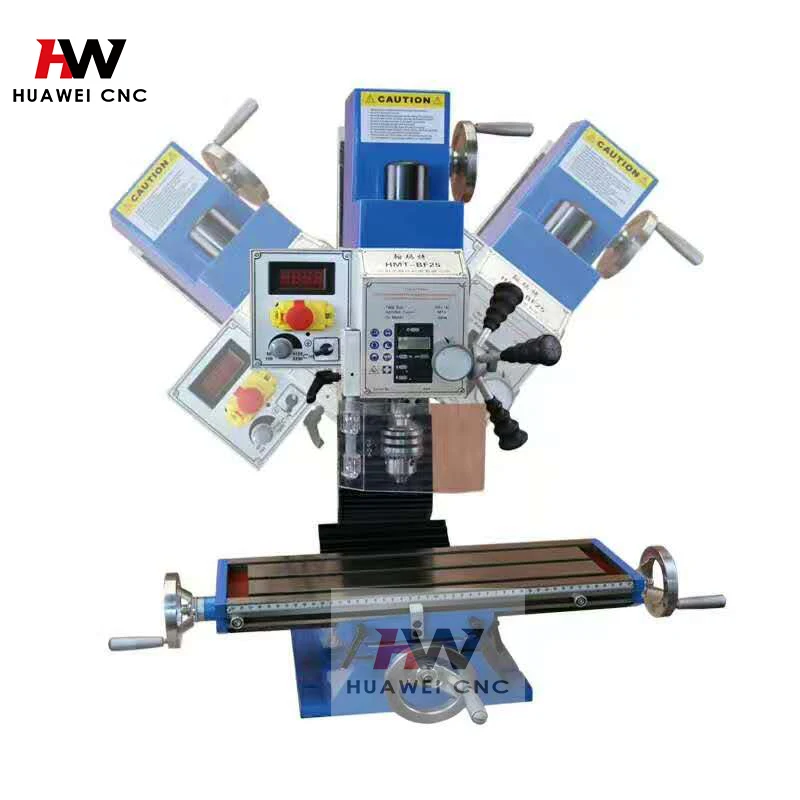

Head swivels ±90° verticaly.
Spindle micro feed precisely.
Adjustable gibs on table precision.
Accurate position, strong rigidity,powerful cutting.
Spindle micro feed precisely.
Adjustable gibs on table precision.
Accurate position, strong rigidity,powerful cutting.
Detailed Images

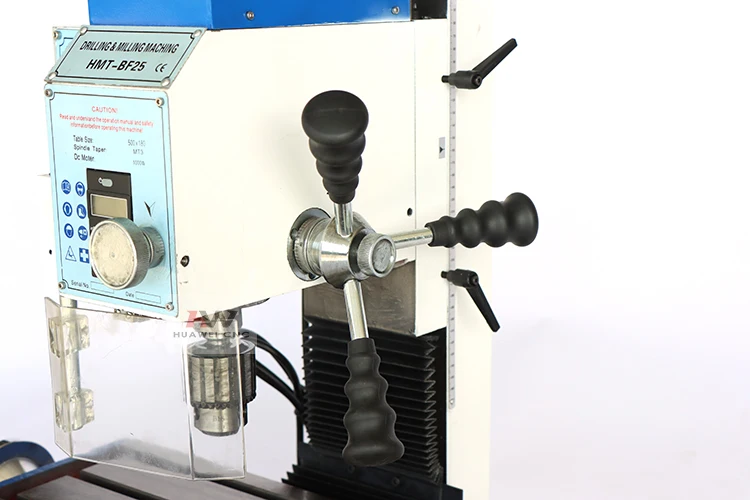

Mechanical handle to control spindle drop range

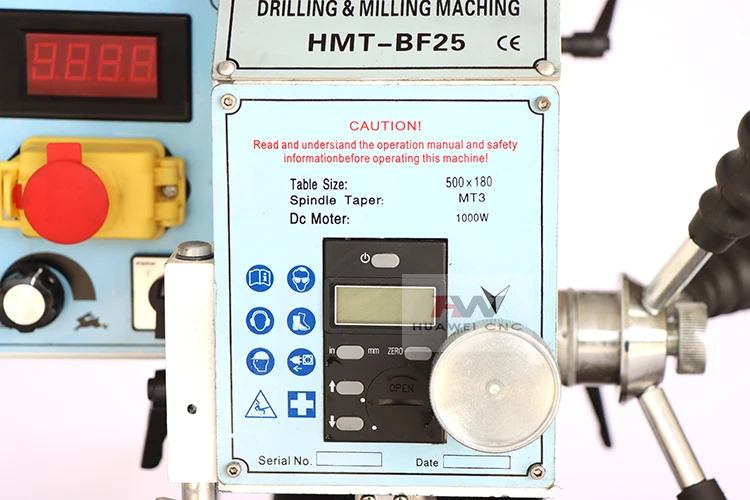

Speed digital display,
Speed digital display, to meet the requirements of different speeds in the processing process

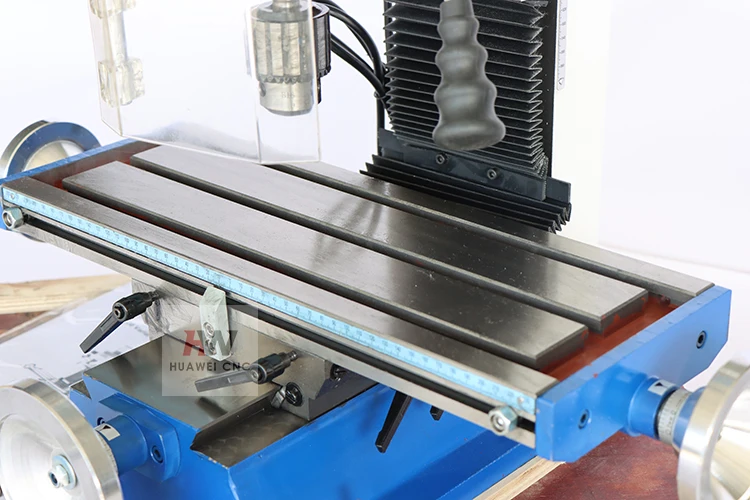

Fine grinding table
Fine grinding table, super flat table, to ensure the levelness of the workpiece

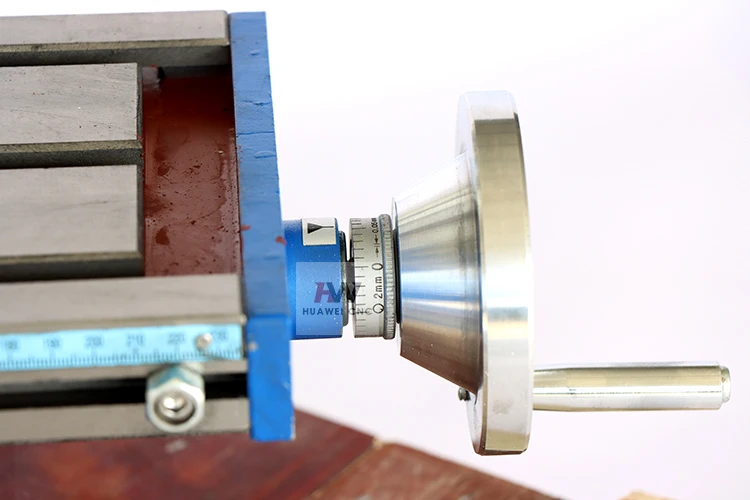

Precision handwheel
Precision hand wheel, ensure the feeding size in the process of processing, improve the accuracy of processing
