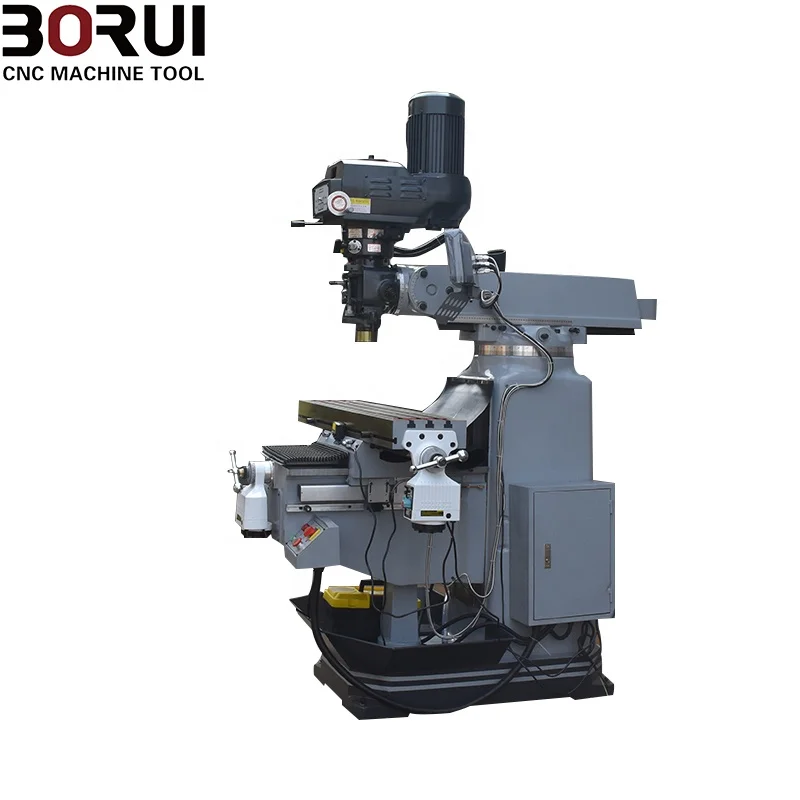

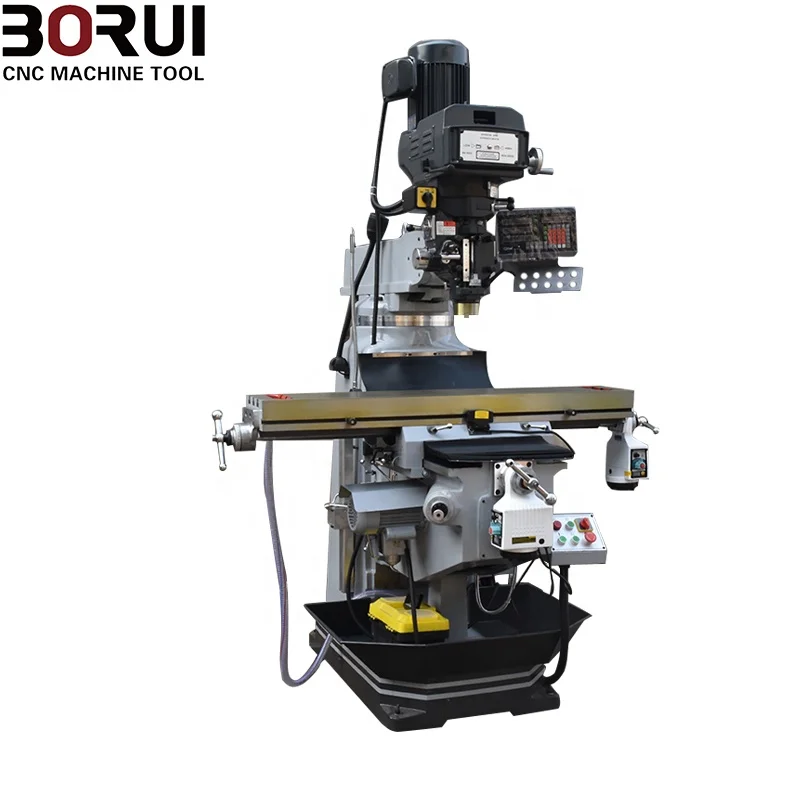

X6325D Taiwan Turret Type Milling Machine High Precisionr x6325 milling machine

Share on:


Price:$4,200.00 - $4,600.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




 fresadora








Application:


1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.

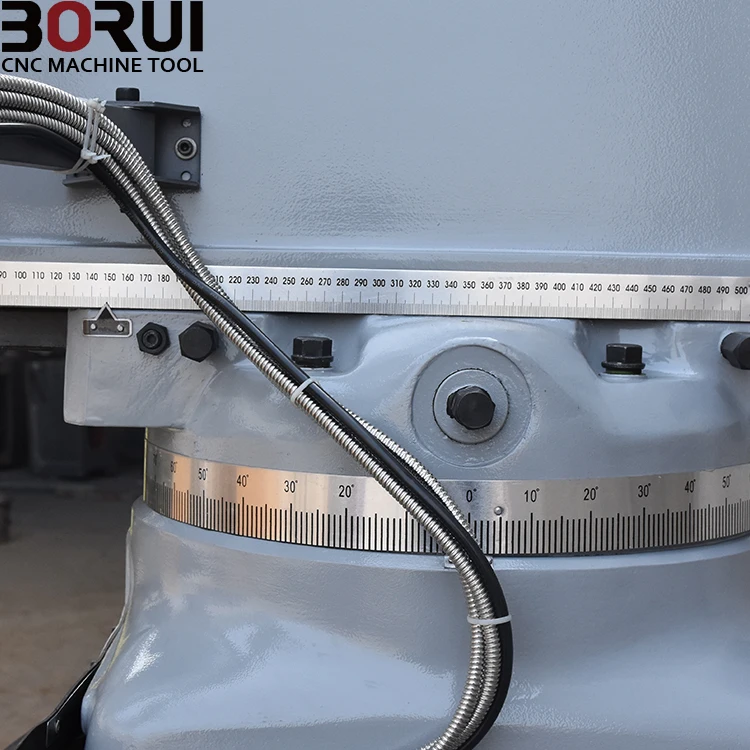

5. The ram can swing 180° horizontally.

6. The working table and guide rail are heating treated and precision grinding.

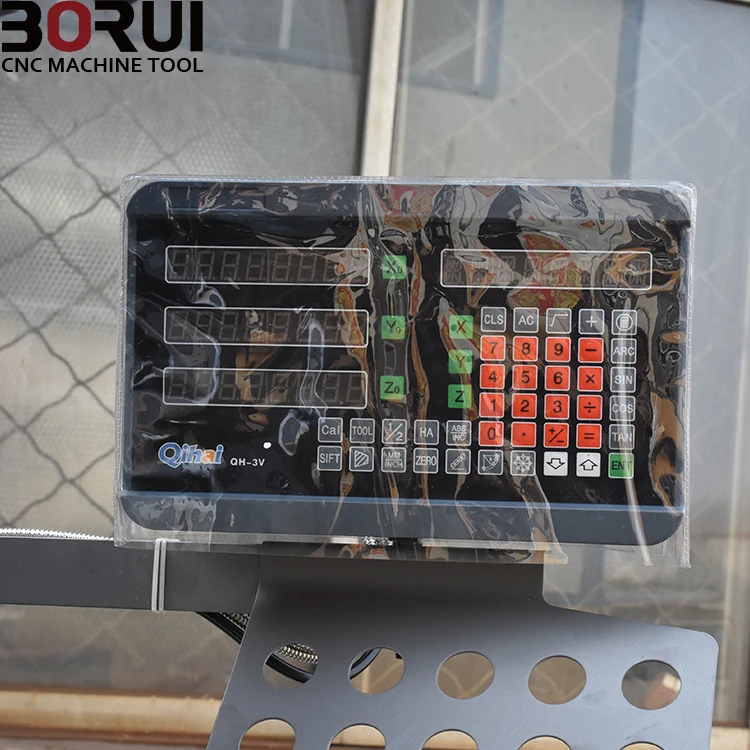

7. DRO and dividing head are for option.

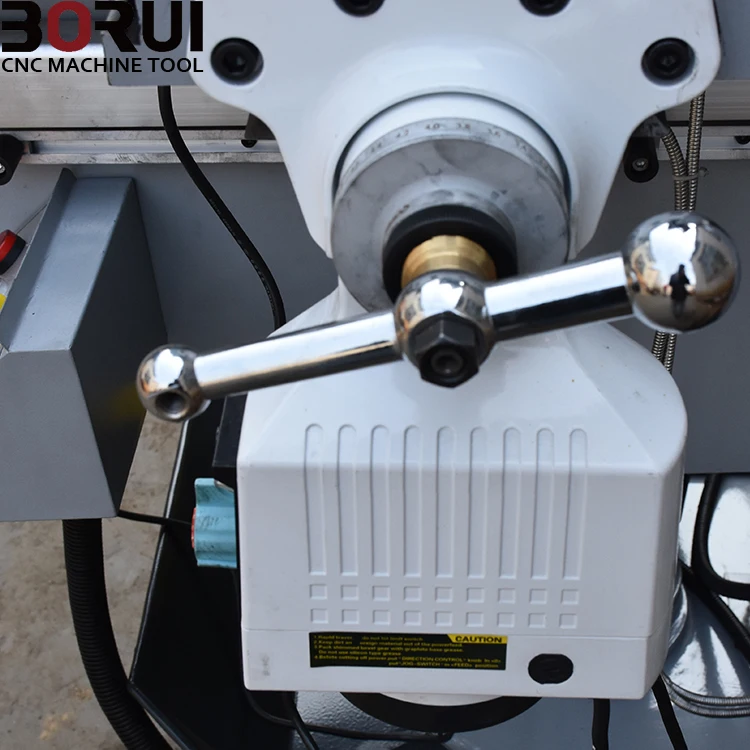

8.Table automatic feed on X,Y,Z direction by gear driven.


Specification :




















































































Machine model



                        4H(X6325D)



Table size



1270*254



      1370*254






travel



Longitudinal travel(mm)



780-850



      880-980



Cross travel(mm)



     380-420



      380-420



Vertical travel(mm)



     350-380



      350-380












Spindle



Spindle taper



      R8       NT30       NT40



Spindle travel(mm)



               127



Spindle speed



               16



Spindle feed(mm)



    0.076 / 0.003     0.038 / 0.0015     0.203 / 0.008



Low speed(r/min)



   66,110,175,270,550,930,1460,2270



high speed(r/min)



   132,220,540,1100,1860,2920,4540






T-slot



mm)



                3X16x65







Main motor



    3HP / 2.2KW         5HP / 3.7KW



Lifting motor



                1.1Kw



Working weight (Kg)



                350



Machine Dimensions (mm)



     1800X 1780X 2350



Net weight (kg)



                1200

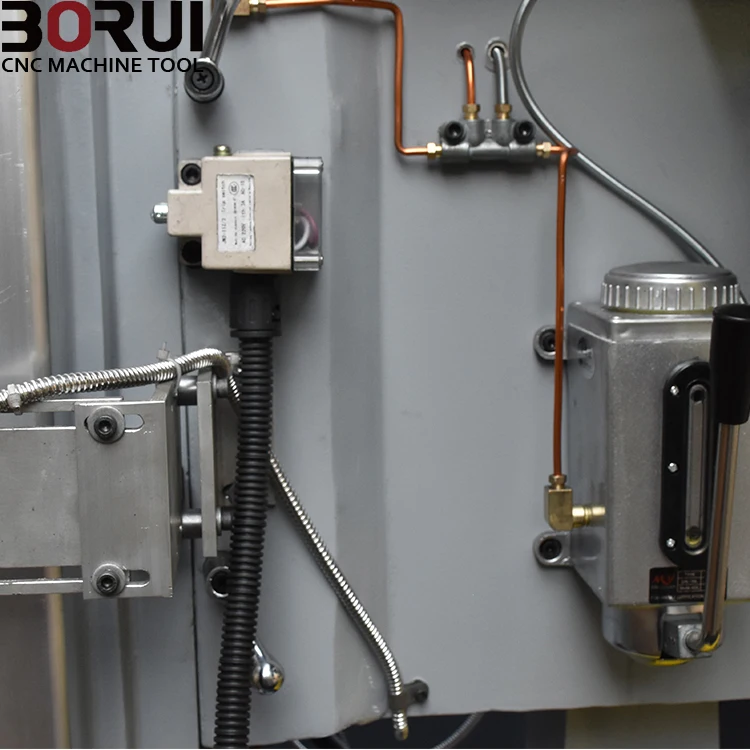

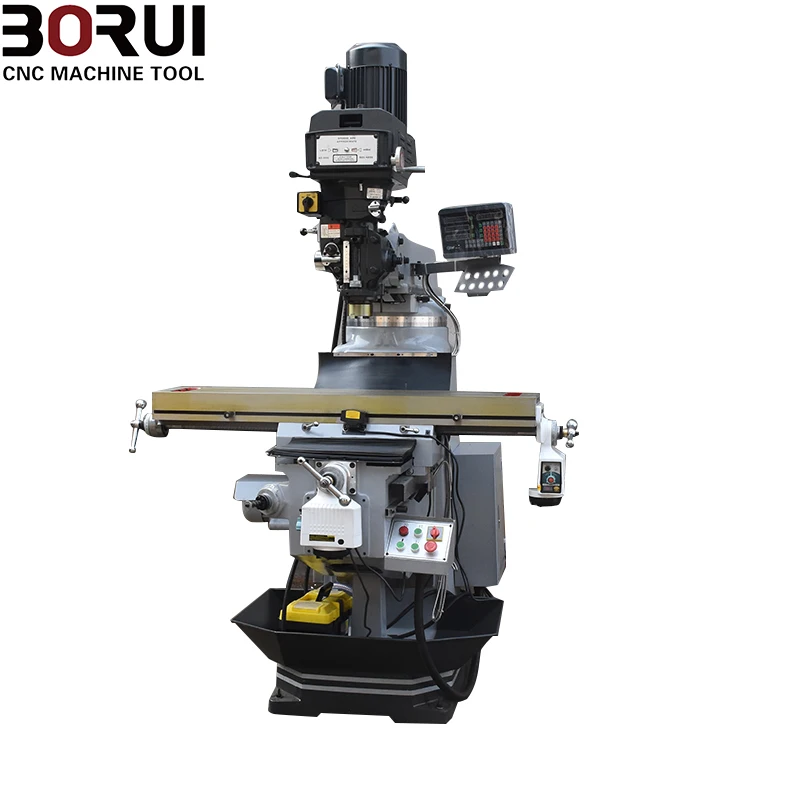

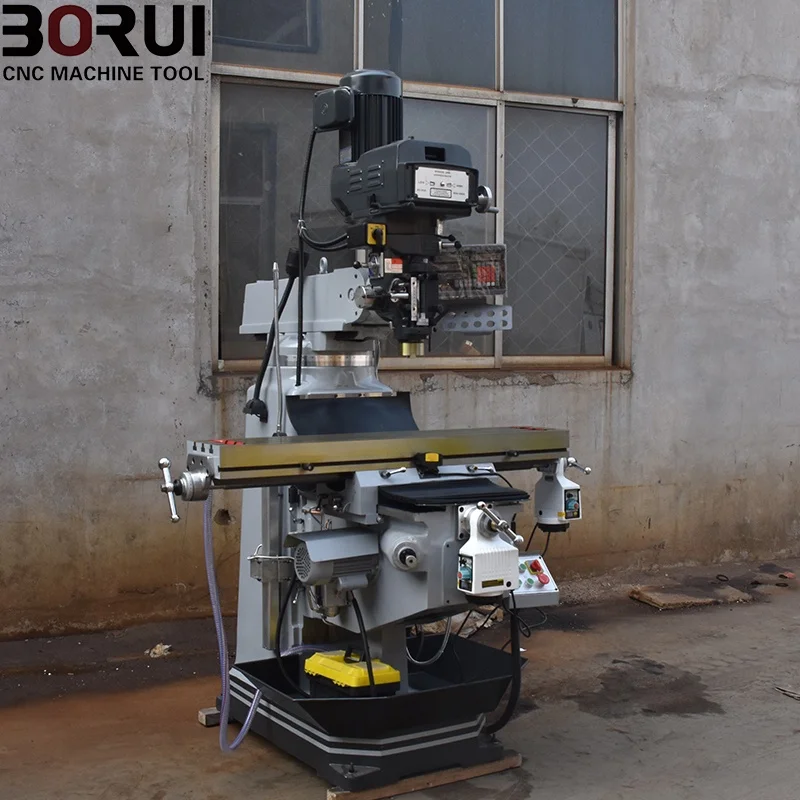

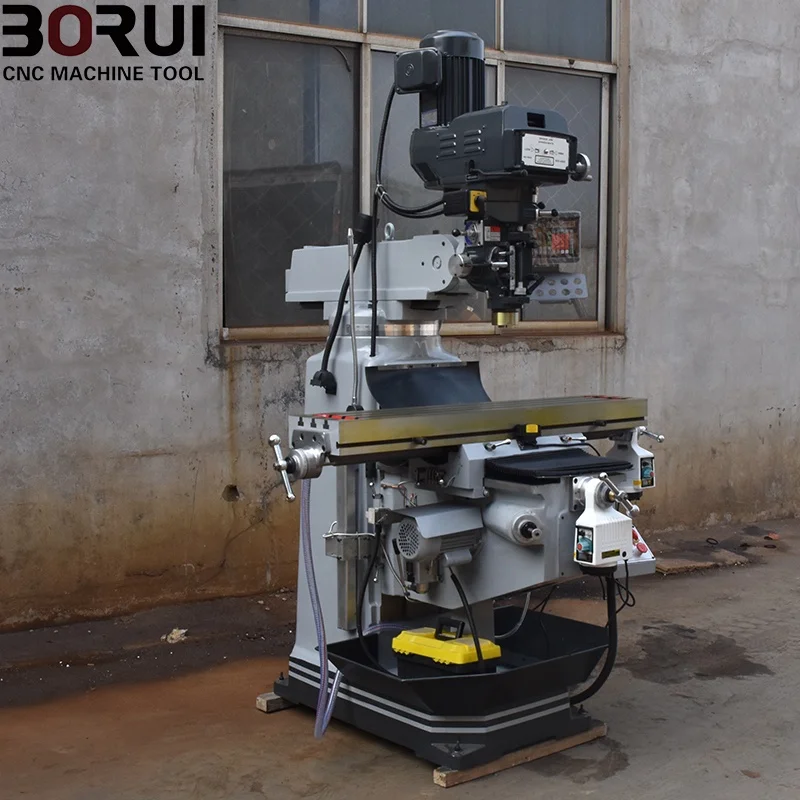

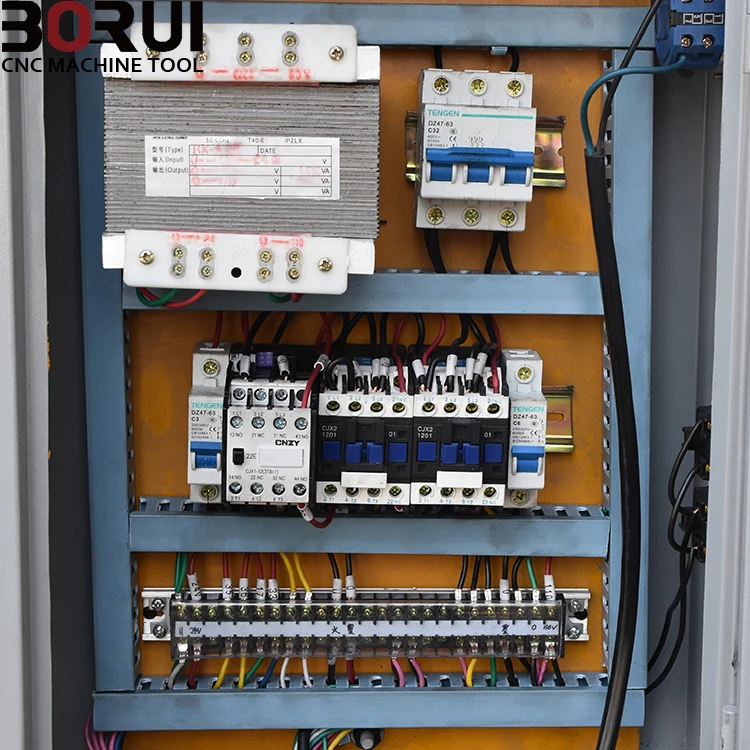

Detailed Images







 fresadora





fresadora





fresadora





fresadora





fresadora





fresadora





fresadora
