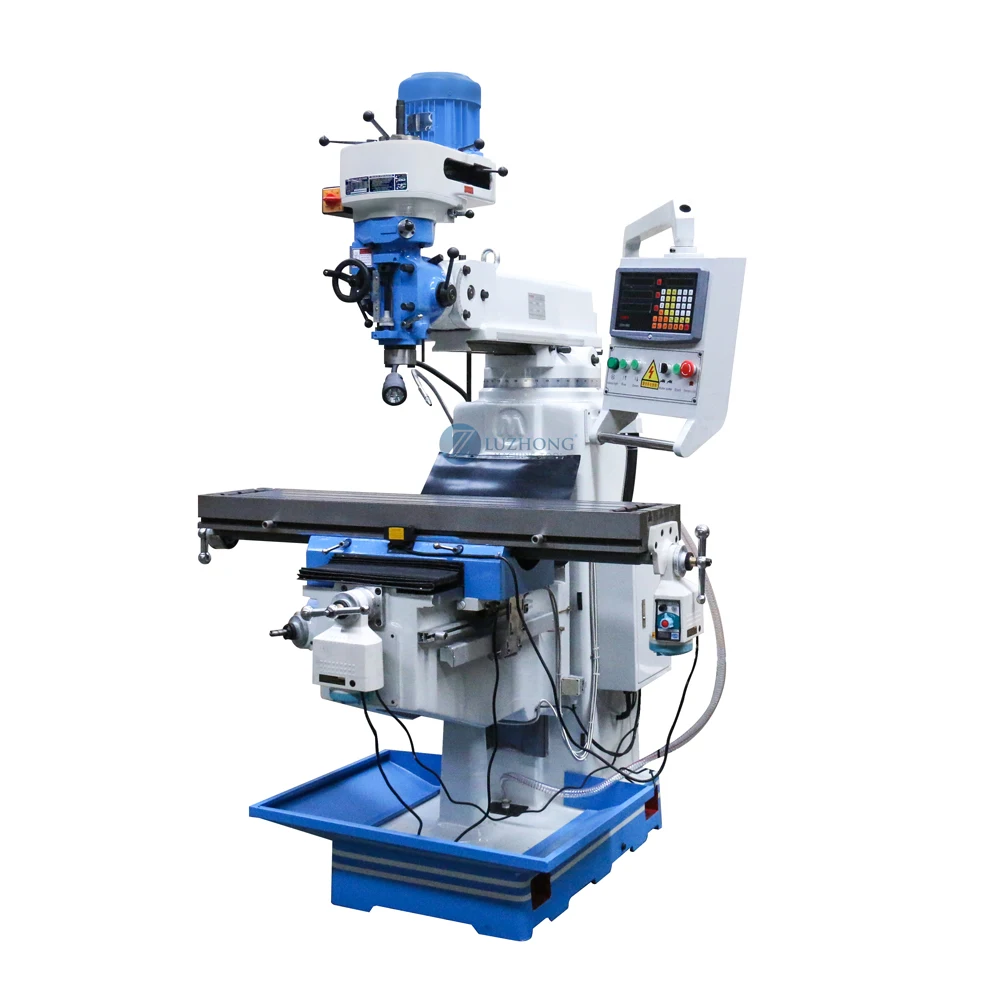

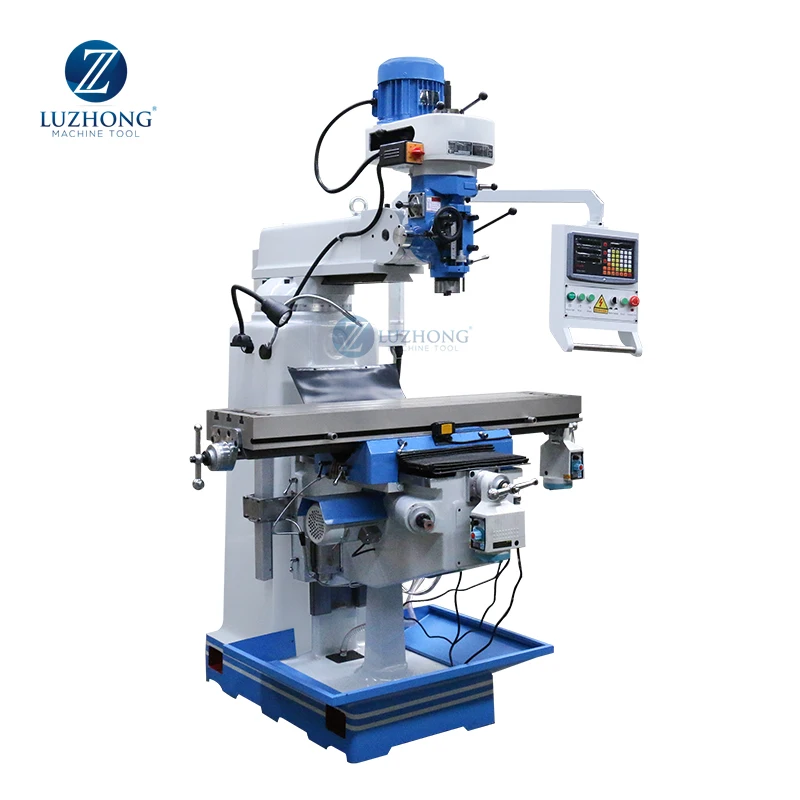

X6330 varaiable speed turret milling machine with cutter feeder

Share on:


Price:$5,600.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Specification


Specifications
Units
X6330
Table size
mm
1370x305
Table travel
mm
810/ 400 /400
T slot(number-width-pitch)
mm
3-16-65
Spindle taper

(V)R8/ISO40


Spindle speed range


rpm
(V) 50HZ:65-4500 60HZ:80-5440 ‘16 steps
(H) 45-1350,12 steps


Optional:variable 65-4000
Spindle travel
mm
127
Spindle feed range
mm
0.04,0.08,0.15
(3 steps)
Distance between spindle nose and table surface
mm
90-510
Distance between spindle axis and table surface
mm
120-520
Main motor power
kw
2.2(V)3(H)
Head rotation (left - right )
°
±90°
Head rotation (front - rear)
°
±45°
Weight
kg
1850
Overall dimension
mm
1550x1650x2250


Details Display
