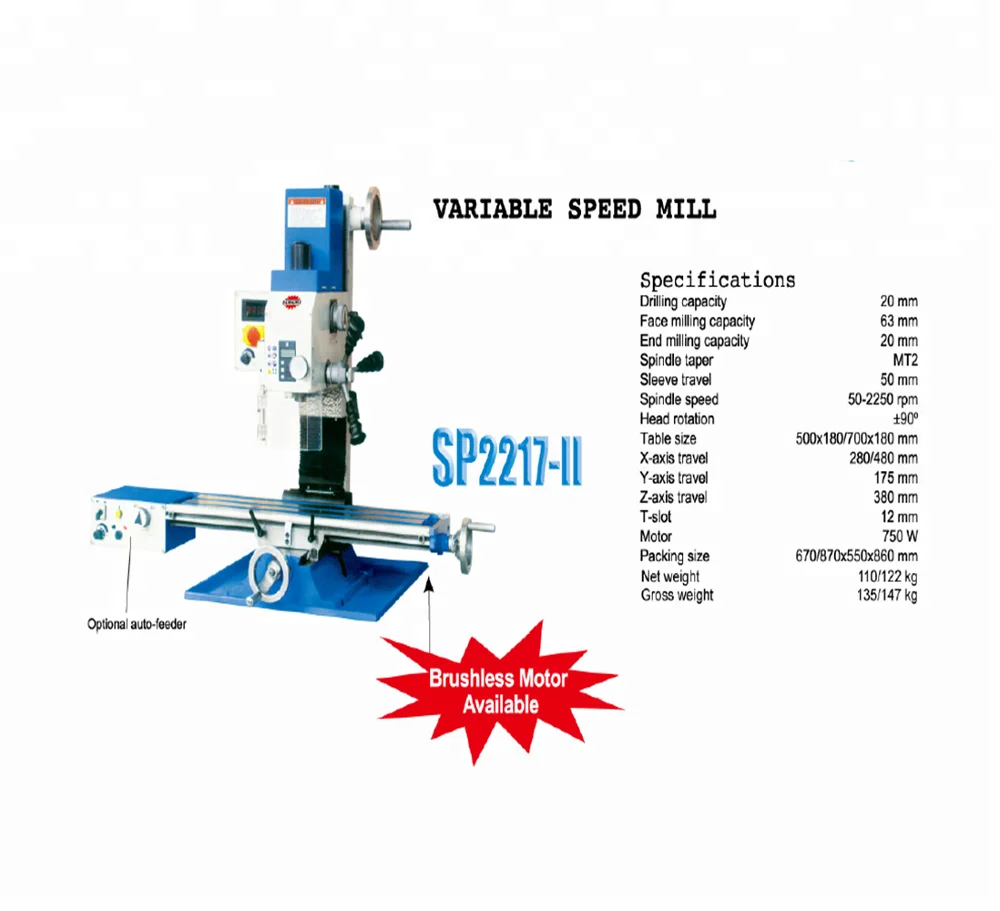

NEW table edge milling machine SP2217-II!!!!!
utilizes integral vertical column and robust construction designs to
achieve impressive higher stability, lower structural loss and longer durability, what’s more,
gears and spindle boxes are both precisely processed to ensure and maintain a high level of
accuracy during either milling, drilling, boring or grinding occasions.
Every Sumore Milling Machine is suitable for both rough & faster manual operation, accurate
& slower turbine operation. Thanks for the features like, variable speed of spindle, digital speed
or cutting depth readout, dedicated metric or imperial leadscrews and dials, 45°/90° left and
right head tilt angles, Sumore Milling Machine is finally allowed to participate into a various
of metalworking applications.
Features
- Exceptional SUMORE Quality
Individual Accuracy Test with Each Machine
- Robust Construction & Stable Performance

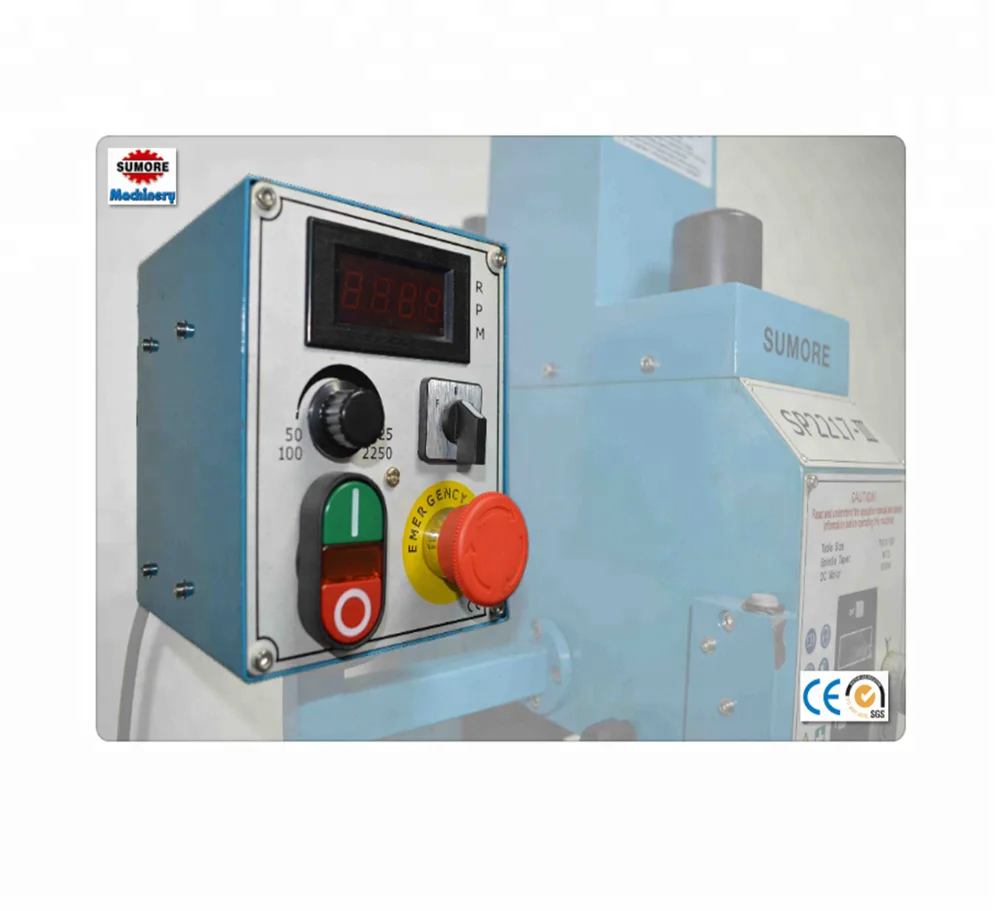

- Brushless Motor & Variable Spindle Speed

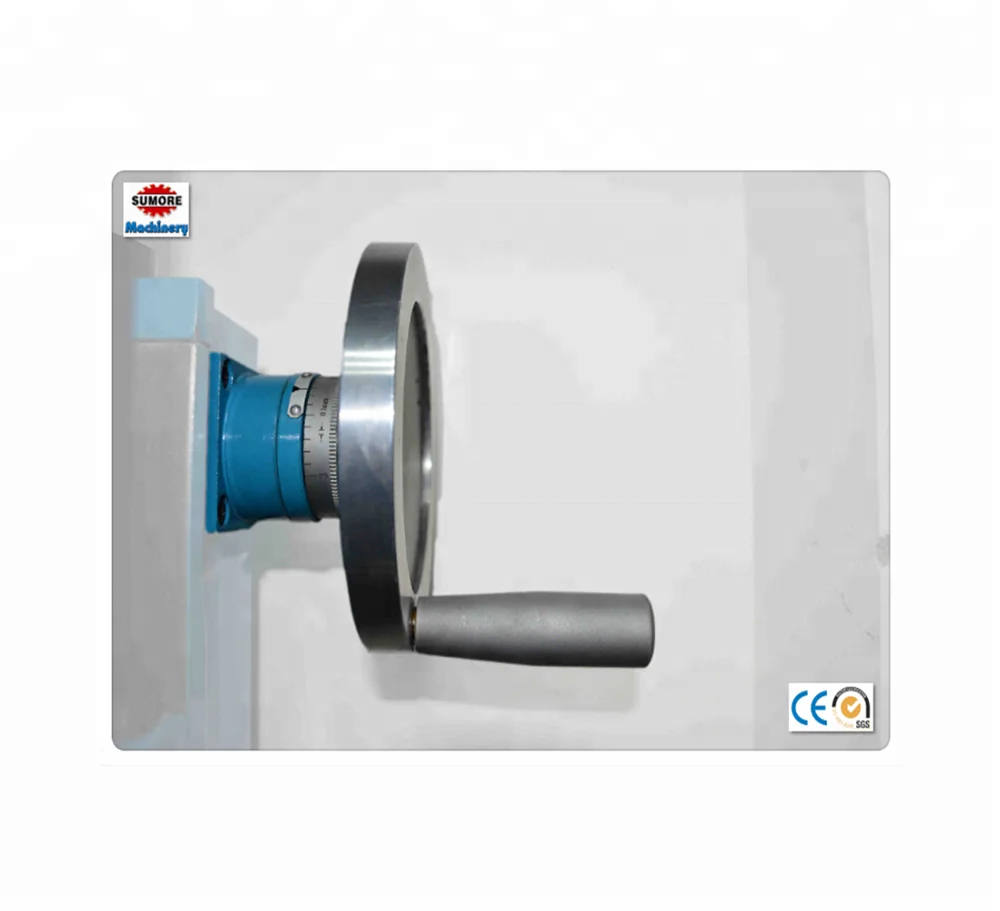

- Fine & Smooth Feeding Movement on Every Directions
- High Precision for Model Engineering

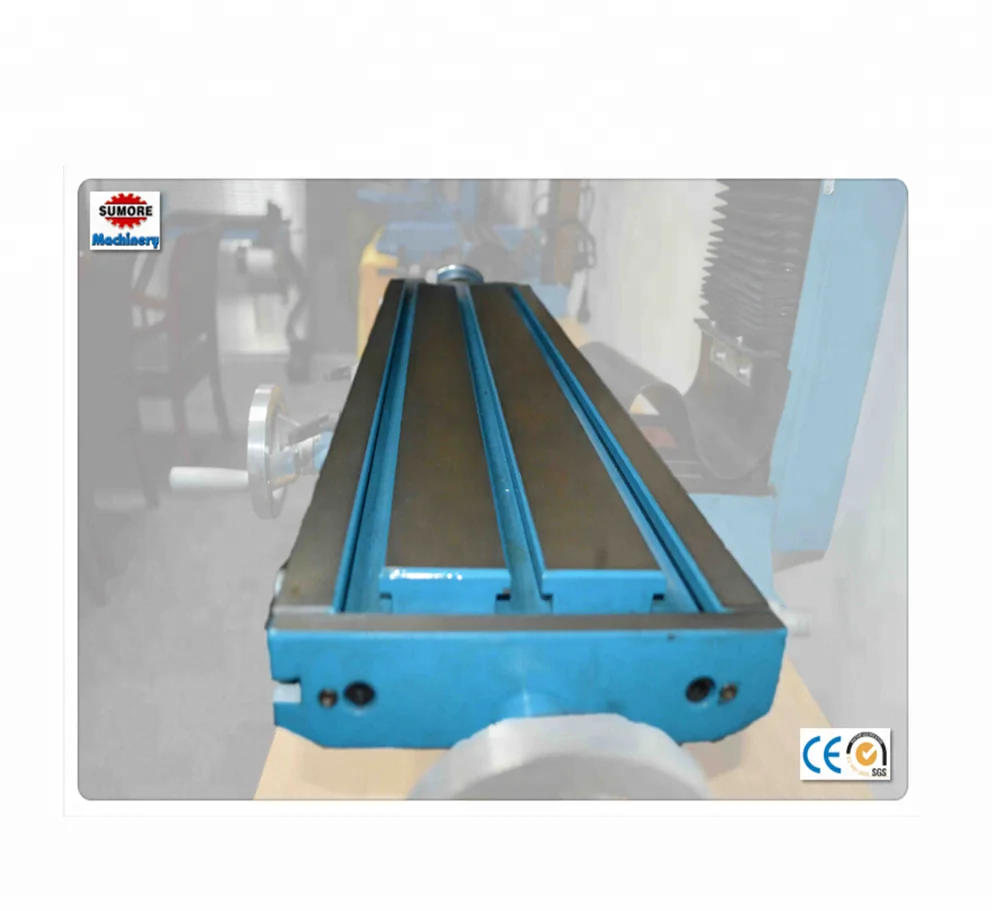

- Changable Table Length for Different Workpieces

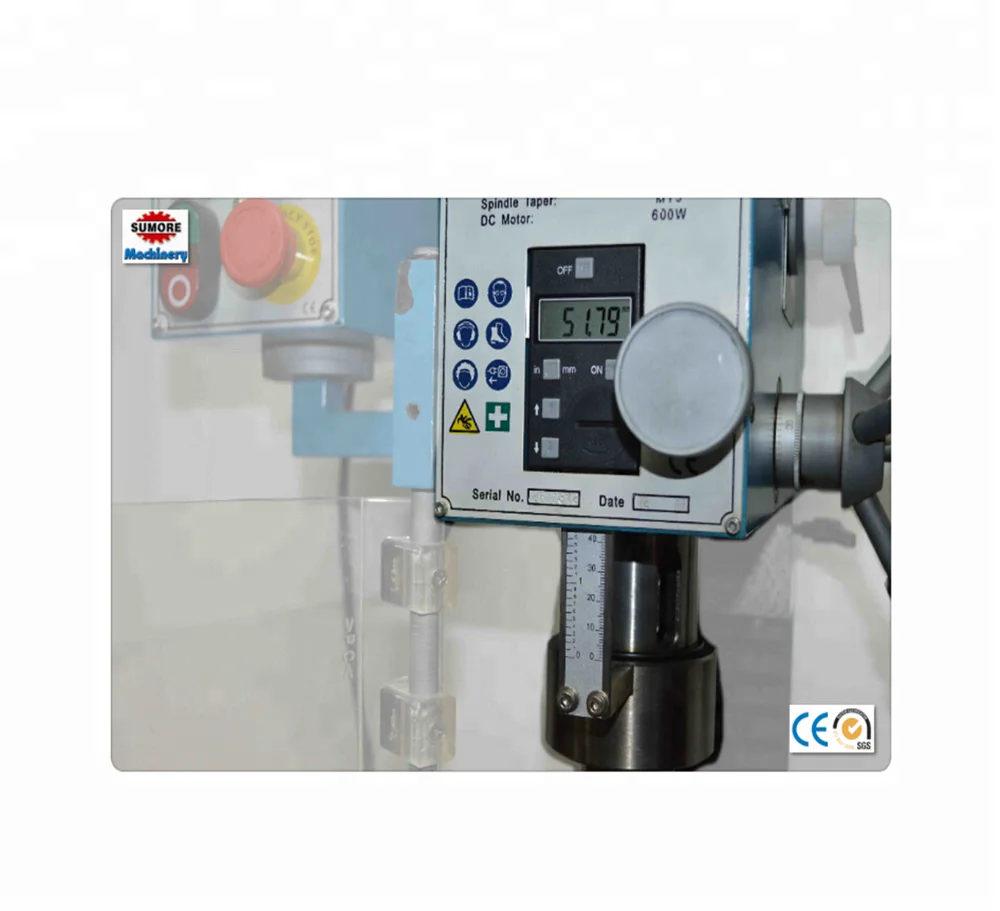

- Optional Spindle Speed & Cutting Depth Digital Readout
- Optional Automatic Longitudinal Feeder
Technical Data
| Model | SP2217-I | SP2217-II |
| Drilling Capacity | 16 mm | 20 mm |
| End Mill Capacity | 16 mm | 20 mm |
| Face Mill Capacity | 50 mm | 63 mm |
| Longitudinal Axis Travel (X) | 220 mm | 280 / 480 mm |
| Cross Axis Travel (Y) | 160 mm | 175 mm |
| Headstoeck Axis Travel (Z) | 210 mm | 270 mm |
| Table Effective Size | 400x120 mm | 500 / 700 x 180 mm |
| Spindle Taper | MT2 | MT2 |
| Spindle Speed Range | 50-2,250 rpm | 50-2,250 rpm |
| Spindle Stroke | 50 mm | 50 mm |
| T-slot Size | 10mm | 12 mm |
| Head Tilt Angle (Left / Right) | 45° / 45° | 45° / 45° |
| Motor Power | 500 W | 750 W |
| Net Weight | 70 kg | 110 / 122 kg |
| Packing Size (LxWxH) | 500 x 450 x 760 mm | 670 / 870 x 550 x 860 mm |
| Gross Weight | 90 kg | 135 / 147 kg |
| Model | SP2217-III | SP2217-IV |
| Drilling Capacity | 25 mm | 32 mm |
| End Mill Capacity | 20 mm | 25 mm |
| Face Mill Capacity | 63 mm | 80 mm |
| Longitudinal Axis Travel (X) | 280 / 480 mm | 425 / 565 mm |
| Cross Axis Travel (Y) | 175mm | 220 mm |
| Headstoeck Axis Travel (Z) | 270mm | 360 mm |
| Table Effective Size | 500 / 700 x 180 mm | 700 / 840 x 210 mm |
| Spindle Taper | MT3/R8 | MT3/R8 |
| Spindle Speed Range | 50-2,250 rpm | 50-2,250 rpm |
| Spindle Stroke | 50 mm | 70 mm |
| T-slot Size | 12 mm | 14 mm |
| Head Tilt Angle (Left / Right) | 45° / 45° | 45° / 45° |
| Motor Power | 750 W | 1.1KW |
| Net Weight | 113 / 125 kg | 220 / 240 kg |
| Packing Size (LxWxH) | 670 / 870 x 550 x 860 mm | 710 / 850 x 890 x1,150 mm |
| Gross Weight | 138 / 150 kg | 250 / 275 kg |
Accessories
| Standard Accessories | Optional Accessories |
| Drill Chuck | Automatic Worktable Feeder |
| Wrench Set | Spindle Speed Digital Readout |
| Toolbox and maintain tools | Cutting Depth Digital Readout |
| Oil Tray | Clamping Kit |
| Manual Instruction & Parts List | Mill Chuck |
| Milling Set | |
| Tapping Set | |
| Boring Set | |
| Swivel Worktable | |
| Vice | |
| Stand | |
| Work Light |
