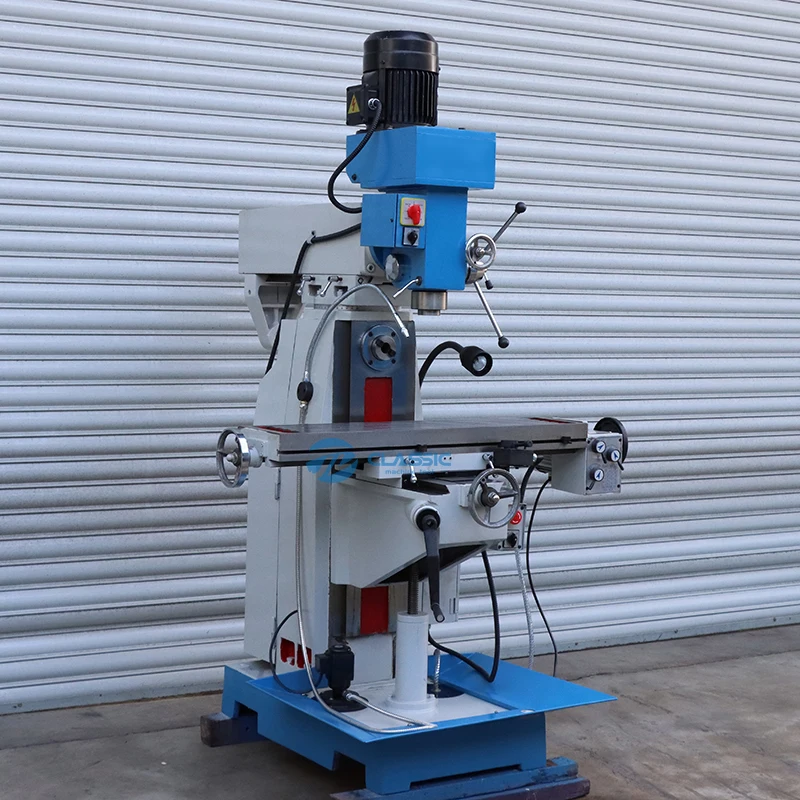

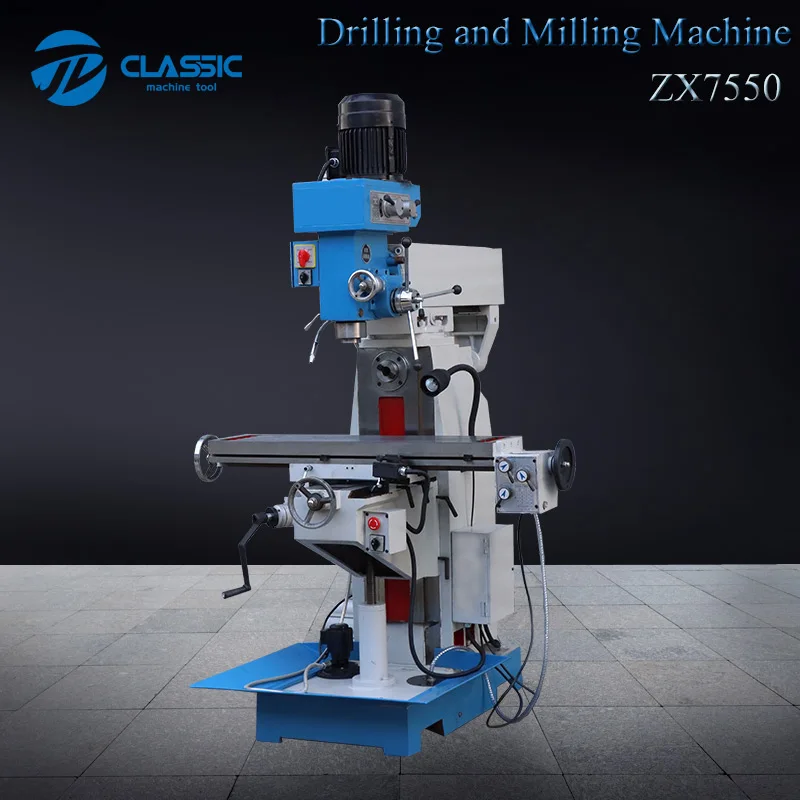

Китай, высокопроизводительный сверлильный фрезерный станок ZX7550CW, вертикальный горизонтальный фрезерный станок для продажи
- Category: Manual Mills >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600370619785):
Product Overview
Description
Product Description
The drilling and Milling Machine advantage :
1.Three axis hardened treatment, high rigidity.
2.vertical horizontal multi-functional ,drilling ,milling, boring operation.

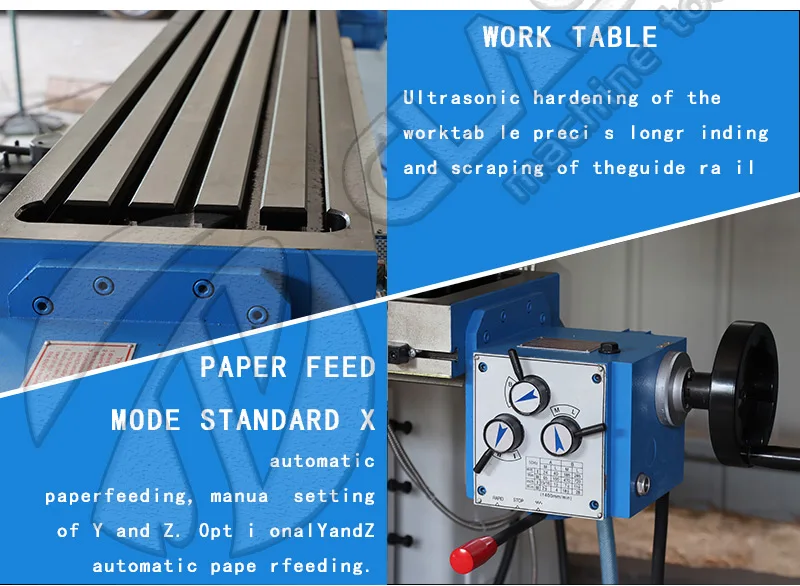

3.X axis mechanical feed,Y.Z axis can be added the device

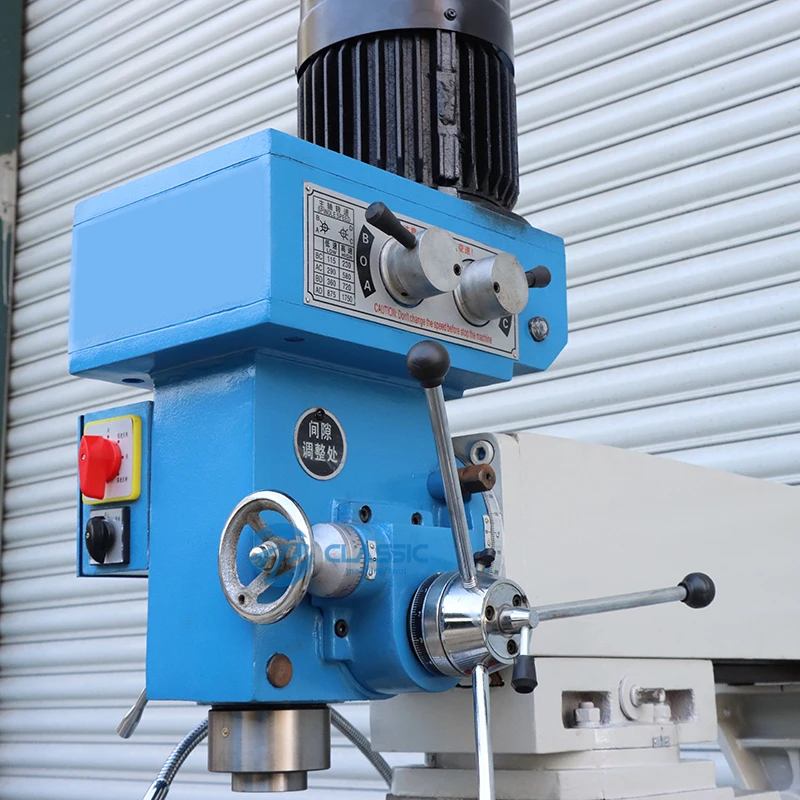

4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance,
1.Uses standardized assemblies from the VH milling machine universal use as
1.Three axis hardened treatment, high rigidity.
2.vertical horizontal multi-functional ,drilling ,milling, boring operation.
3.X axis mechanical feed,Y.Z axis can be added the device
4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance,
easy to operate
The main feature:
The main feature:
1.Uses standardized assemblies from the VH milling machine universal use as
milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive

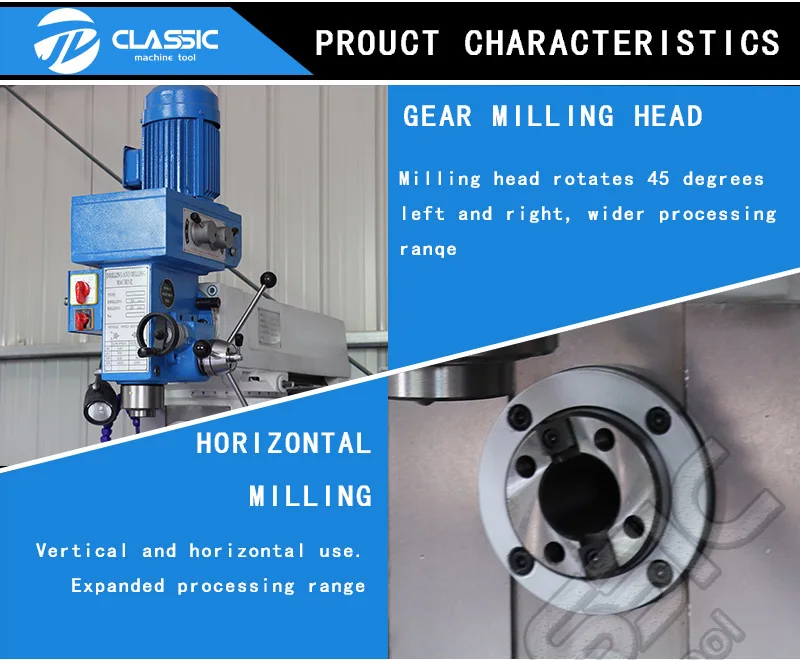

4.Head swivels into the horizontal level on both sided via crank and toothed gear,
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear,
easy activation of manual micro-feed for the spindle quill.
Product main technical parameters:
Model | ZX7550CW |
Max.drilling dia (mm) | 50 |
Max.horizontal milling dia (mm) | 100 |
Max.vertical milling dia (mm) | 25 |
Max.boring dia (mm) | 120 |
Max.tapping dia | M16 |
Distance.spindle to table surface (mm) | 90-490 |
Spindle speeds range (r.p.m) | (Vertical)115-1750 (Horizontal)60-1350 |
Spindle travel | 120 |

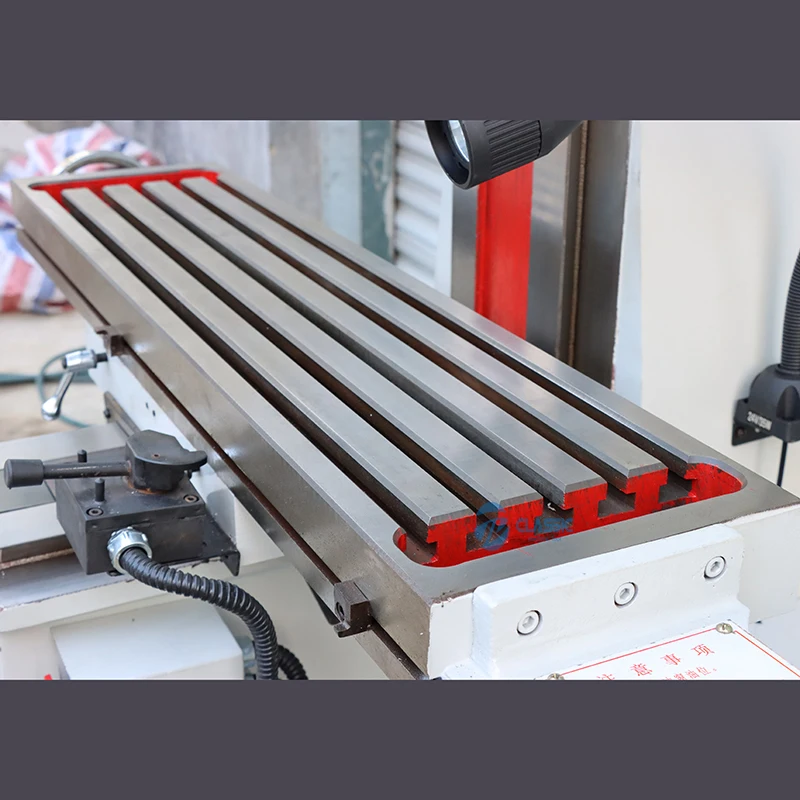

Table size (mm) | 800×240 |
Table travel (mm) | 400×230 |

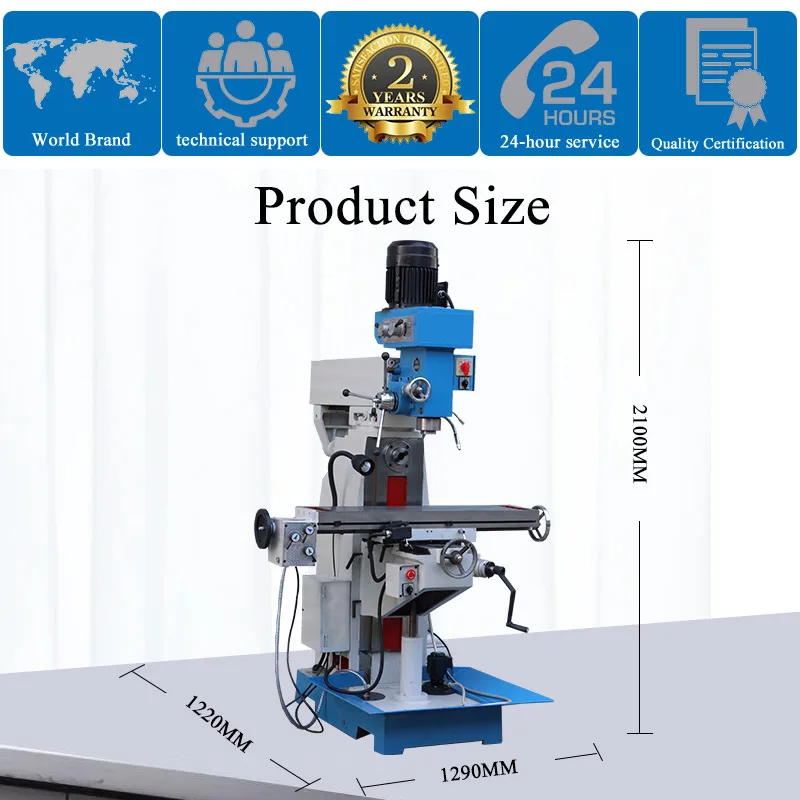

Overall dimensions (mm) | 1280×1100×2080 |
Motor (Kw) | ( Vertical)0.85/1.5 (horizontal)2.2 |
N.W/G.W (Kg) | 850/1000 |
Details Images
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will
choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
