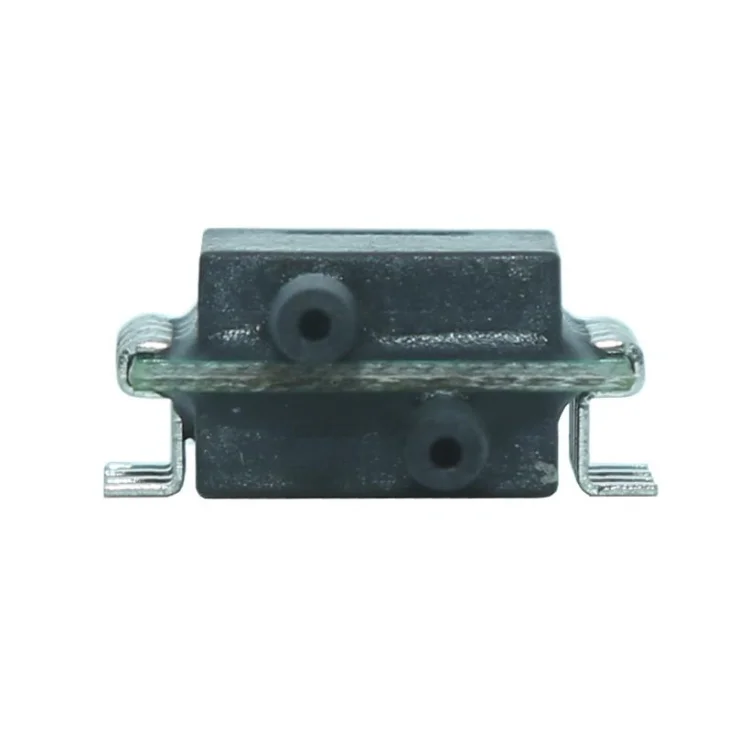

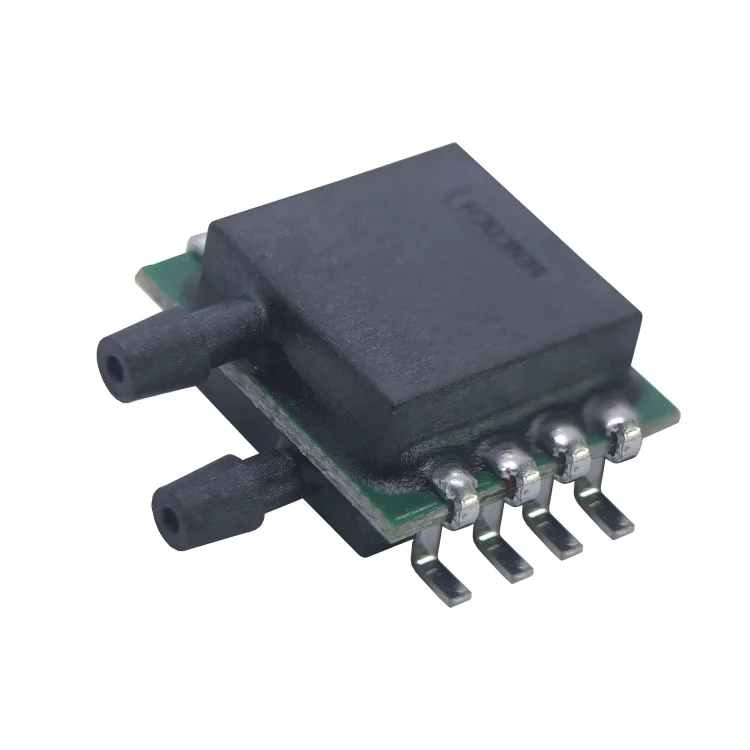

MEMS Technology pressure sensor for medical healthy equipment
- Category: Pressure Sensors >>>
- Supplier: WuHu CFSensor Co. Ltd.
Share on (1600623219280):
Product Overview
Description
Features
■ Range: 0～10~50, 100, 200kPaG
■ MEMS technology, Solid-state reliability
■ Barb inlet pipe
■ Calibrated mV output
■ Temperature compensated
■ Working temp.: -30℃～+125℃(-22℉～+257℉)
■ Gage pressure type(Positive&Negative Pressure)
■ Easy to use and embed in OEM equipment
■ MEMS technology, Solid-state reliability
■ Barb inlet pipe
■ Calibrated mV output
■ Temperature compensated
■ Working temp.: -30℃～+125℃(-22℉～+257℉)
■ Gage pressure type(Positive&Negative Pressure)
■ Easy to use and embed in OEM equipment
Applications
For medical and healthy equipment, e.g. Patient Monitoring, Infusion and Syringe Pumps, Anesthesia
machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping&
Cosmetology, Hospital beds, Massage device etc.
machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping&
Cosmetology, Hospital beds, Massage device etc.
For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee
machine, Dust collector or Cleaner, Robotic ,Sport equipment etc.
machine, Dust collector or Cleaner, Robotic ,Sport equipment etc.
For more fields, e.g. Digital display meter, Air pump, Process control, Pressure switching, HVAC and
pneumatic device, Air flow monitor, Automation, Automotive electronic,Intelligent fire control systemetc.
Electronic Performance
■ Power Supply: ≤16Vdc or 6.0mAdc
■ Input Impedance : 4kΩ～6kΩ
■ Output Impedance : 4kΩ～6kΩ
■ Insulation Resistor: 100MΩ,100VDC
■ Over Pressure: 1.5X Rated Pressure
■ Input Impedance : 4kΩ～6kΩ
■ Output Impedance : 4kΩ～6kΩ
■ Insulation Resistor: 100MΩ,100VDC
■ Over Pressure: 1.5X Rated Pressure
Construction
■ Sensing Die: Silicon
■ Die Mounting Glue: Silicone Gel
■ Leading wire: Gold Wire
■ Package Housing: PPS(Phenylene sulfide)
■ Pin: Silver Plated Copper
■ Net Weight: Approx.5g
■ Die Mounting Glue: Silicone Gel
■ Leading wire: Gold Wire
■ Package Housing: PPS(Phenylene sulfide)
■ Pin: Silver Plated Copper
■ Net Weight: Approx.5g
Specifications
Specifications | Symbol | Min | Typ. | Max | Unit | ||
Pressure Range | Pop | 10, 50, 100, 200 | kPa | ||||
1.45、7.25 | PSI | ||||||
Working Voltage | Vs | _ | 10 | 16 | Vdc | ||
Working Current | Io | _ | 6 | _ | mAdc | ||
Storage Temperature | Tstg | -30 | 25 | +125 | ℃ | ||
Working Temperature | Topt | -20 | _ | +100 | ℃ | ||
Bridge Resistance | R L | 4.5 | 5 | 5.5 | kΩ | ||
Offset/Zero Output | Voff | -1 | 0 | +1 | mV | ||
Linearity | -0.5 | _ | +0.5 | %VFSS | |||
Hysteresis | ±0.15 | %VFSS | |||||
TCO (Temp. Coefficient of Offset) | TC VOFF | -1.0 | _ | +1.0 | mV | ||
TCS (Temp. Coefficient of Span) | TC VFSS | -2.0 | _ | +2.0 | %VFSS | ||
Response Time | TR | _ | 2.5 | _ | ms | ||
Long-term Stability (1000h) | _ | ±0.5 | _ | %FS | |||
Pin Connection&Definition
Dimension(mm)

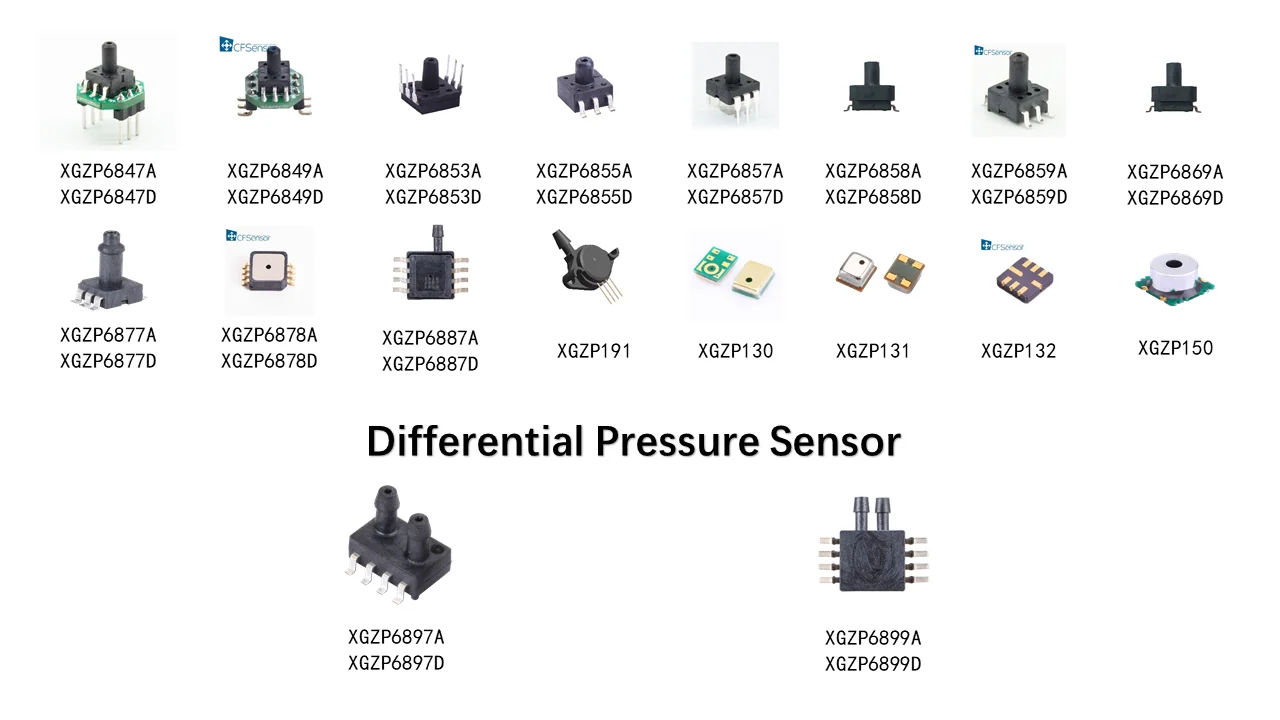

Main Products
