PL320 Ultrasonic silo level sensor (60668782320)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

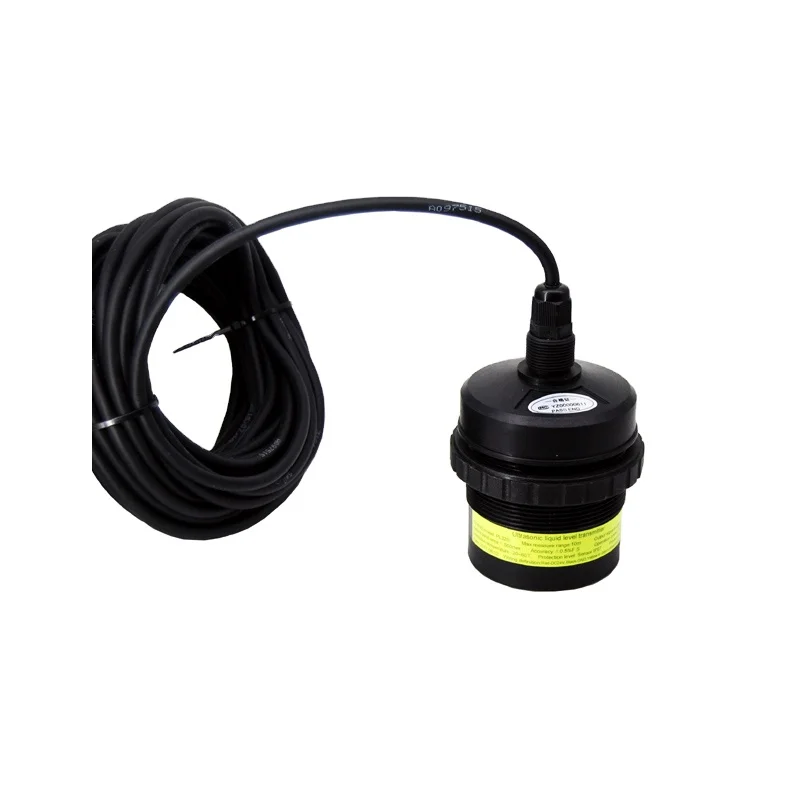

PL320 Ultrasonic silo level sensor








Product Description




Feature of PL320 Ultrasonic level sensor


1.Non-contact measurement


2.Convenient installation


3.High stability and long-term reliability


4.Waterproof, dustproof, anti-corrosion


5.Intrinsic safety, explosive-proof





Description of PL320 Ultrasonic silo level sensor


PL320 Ultrasonic water tank level sensor 0-10v ultrasonic water liquid level sensor series of ultrasonic level sensor is non contact ultrasonic level sensor, could be connected to terminal equipment such as GPS/ GPRS transmitter via RS485 and RS232 interfaces, ultrasonic level sensor can realize remote monitoring.





Ultrasonic Level Sensor is precision ultrasonic sensors, designed for high precision, small scale, small installation space, equipment, supporting applications such as industrial designed. PL320 Micro ultrasonic water liquid level sensor series of ultrasonic level sensor with high stability, long-term reliability, waterproof, dustproof, anti-corrosion, intrinsic safety and explosive-proof features.EE

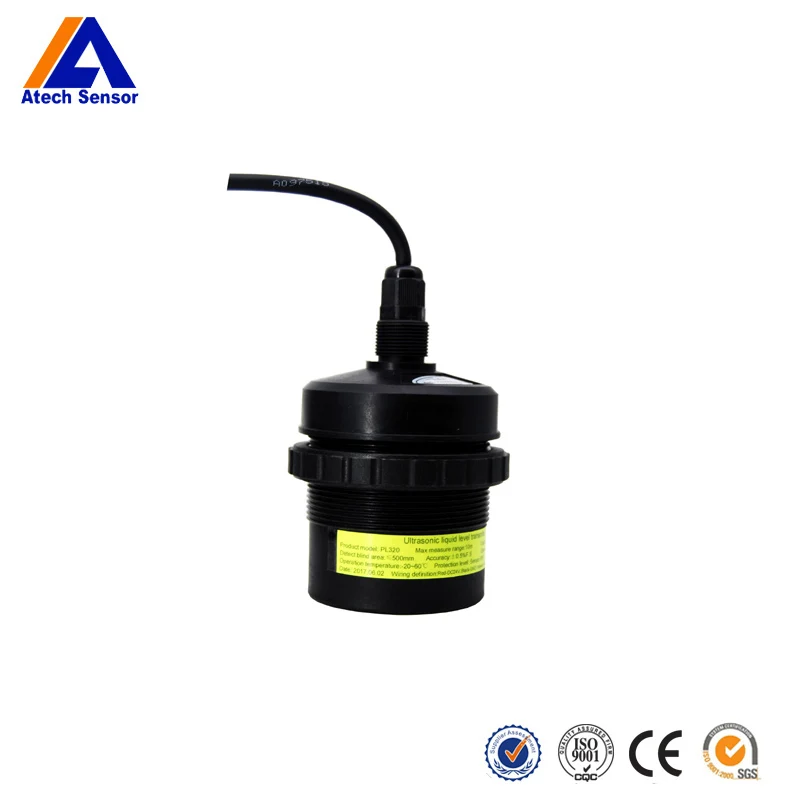

Product image of silo level sensor


ultrasonic level sensor.jpg





Specification of PL320 silo level sensor





































































Ultrasonic sensor



Low power-sensor



Middle power-sensor



Large power-sensor



The Max. range



≤5m



≤7m



≤10m



≤10m



≤12m



≤15m



Blind area



Standard: 300mm



350mm



500mm



500mm



600mm



800mm



OEM:200mm



Power supply



Standard: DC24V



DC24V



DC24V



DC24V



DC24V



DC24V



OEM:DC12V, AC220V



/



OEM:DC12V, AC220V



/



Beam angle



15°



12°





Operating frequency



38K±10Khz



55K±10Khz



40K±5Khz



Accuracy


±0.5%F S, ±0.25%F S
Output signal



Standard: 4-20mA (3 wires)


OEM: 4-20mA(4 wires), 0-20mA, 0-5v, 1-5v


         0-10v, 1-10v (both signal can not be customized DC12v)


         RS485(MCU protocol as default, Address=01, bps=9600)


         4-20mA+RS485; 1-5V+RS485, 1~2NPN


         1-10V, 0-10V, 4-20mA(two wire) - Power supply 24VDC can not be OEM







Dimension of PL320 Ultrasonic sensor


PL320 dimension.jpg





Applications of PL320 ultrasonic level sensor


1.Depth well level measurement


2.Industrial tanks


3.Detection of tanker oil level


4.Water treatment


5.Hydraulic monitoring


6.High pool level


 .jpg





Company Information


  pressure sensor factory 1.jpg


pressure sensor test.jpg





Certificates of our pressure sensor


 .jpg














Packaging & Shipping


 .jpg





.jpg

















FAQ


 1.Q: How long is the delivery?


   -- Mostly within 10days


 2.Q:Can I get a sample?


   --  Sure, contact our sales please


 3.Q:What is your MOQ?


   --  1pcs


 4.Q: How about warranty time?


   -- 12-18month


 5.Q: How can I visit your factory?


  -- Fly to Xian Yang air port, it’s our pleasure to pick you up.


 6.Q:How do you control your quality ?


    -- We have EPR system .we control from parts, process, testing, packing ,retesting.


        Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.





Ordering guide of pressure sensor


In order to recommend the suitable sensor, please kindly advise us the following information


1..What is your testing medium ?  oil, water, gas, waster water, or others.


2.Working temperature of the sensor ?  -40°C~100°C or others


3.Pressure range ?  -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others


4.Output signal?  4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other


5.Electronic connection ?   DIN43650 ,Packard, Aerial plug, direct cable or others.


6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
