PS19D OEM differential pressure sensor chips

Name: PS19D OEM differential pressure sensor chips
SKU: 60609550039
Availability: InStock

Price:

Quantity:

PS19D - OEM differential pressure sensor chips

Product Description

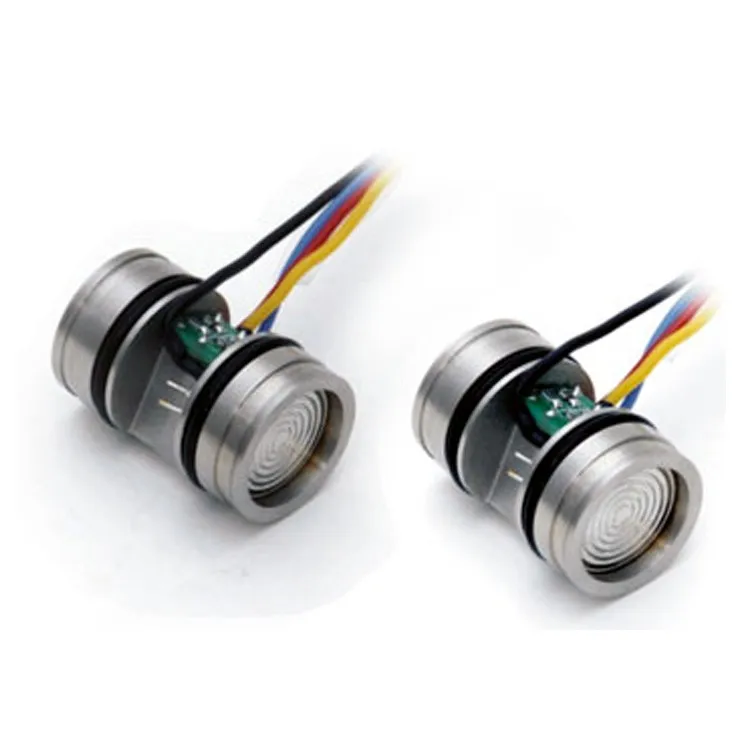

Differental pressure sensor PS19D.jpg

Feature of PS19D - OEM differential pressure sensor chips

1.MEMS technology

2.Imported Piezoresistive silicon chip employed

3.Sensor diameter:19mm

4.316L stainless steel

5.CE standerd

Specification of differential pressure sensor

Pressure medium	gas liquid compatible to stainless steel
Pressure ranges	35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa
Pressure type	Differential
Overload pressure	Range	Positive Over pressure		Negative Over pressure
	35kPa	70kPa		35kPa
	70kPa	150kPa		70kPa
	100kPa	200kPa		100kPa
	250kPa	500kPa		250kPa
	400kPa	800kPa		400kPa
	600kPa	1200kPa		600kPa
	1MPa	2MPa		1MPa
	1.6MPa	3.2MPa		1MPa
	2.5MPa	5MPa		1MPa
Output signal	Zero Output 2mV 100mV (typical)
Accuracy	0.25%FS (standard)
Zero offset	≤±3mV
Long term stability	<0.3%FS/year
Excitation	1.5mA (typical) \|5VDC \| 10VDC differential pressure sensor chips
Compensated Temp.	0°c ~60°c
Operating Temp.	-40~+125°c
Storage Temp.	-40~+125°c
Zero Temp. Coefficient	0.02%F.S./ °c (>= 100kpa) \| 0.03%F.S. /°c (<100kpa)
Span Temp. Coefficient	0.02%F.S./ °c (>= 100kpa) \| 0.03%F.S. /°c (<100kpa)
Bridge Resistance	Min.		Max.		Unit
	2600		5500		ohm
Vibration	20g (20— 5000HZ)
Response time	≤1ms
Electrical connection	4-wire(typical ) 5-wire
Material of membrane	316L
Material of housing	316L
O-ring	NBR, Viton
Filled oil	silicon oil (Typical ), or olive oil for sanitary application
Wire	39×φ0.015, Silicon shielded, 200℃ bearing
Net weight	36g

Dimension of differential pressure sensor chips

Applications of differential pressure sensor

1. Industrial process control
2. Differential pressure measure

3. Pressure calibrator
