pressure sensor XGZP6857 (62458862833)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

Feature

  • Ranges: -100kPa~5kPa…5kPa~200(-15PSI~0.7PSI…30PSI)
  • Optional 5V or 3.3V power supply

  • Gage, Vacuum Type
  • For Non-corrosive gas or air
  • Amplified, Calibrated analog output (i2c is available)
  • Temp. Compensated:0~+60(32~+140)
  • Low Cost for high volume application

Application

  • For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.

  • For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.

  • For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic device,automotive application etc.

Performance Parameter

 Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at

a  temperature of 25±1℃ and humidity ranging from 25%~85%.

ItemDataUnit
Power Supply5(or 3.3 by custom)V
Max. Excitation current3mA
Output Signal0.5-4.5(or by custom)V
Accuracy±1.5%Span
TCO(Temp. Coefficient of Offset)±0.03%FS/℃
TCS(Temp. Coefficient of Span)±0.03%FS/℃
Long Term Stability(1year)±2%Span

Over Pressure

2X
Compensation Temp.0 ~ 60/32 ~ 140℃/℉
Ambient Temp.-10 ~ 90/-4 ~ 185℃/℉
Storage Temp.-40 ~ 125/-40 ~ 257℃/℉



Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI≈750mmHg)



Pressure Range(kPa)Model
0 ~ 2.5XGZP6857A025HPG
0 ~ 5XGZP6857A005KPG
0 ~ 10XGZP6857A010KPG
0 ~ 20XGZP6857A020KPG
0 ~ 100XGZP6857A100KPG
0 ~ 200XGZP6857A200KPG
-100 ~ 0XGZP6857A100KPGN
-30~ 0XGZP6857A030KPGN
-20 ~ 0XGZP6857A020KPGN
-100 ~ 0XGZP6857A100KPGN
-20~ 0XGZP6857A020KPGN
-5~ 5XGZP6857A005KPGPN
-40~ 40XGZP6857A040KPGPN
-100~ 100XGZP6857A100KPGPN
-100~ 200XGZP6857A200KPGPN

Available for more custom pressure range such like -2.5~2.5kPa, 0~60kPa etc,.

     Please contact factory for tailor-made parameter























































Dimension (Unit:mm/Inch)

 22.jpg    23.jpg





 Electric Connection



1

2

3

4

5

6

GND

N/C

N/C

OUT

VDD

N/C









NOTE:

          1,N/C Pins must be left floating

          2,Soldering of lead Pins:250C for 5 sec max.

          3,Please add 0.1uf capacitor between VDD and GND

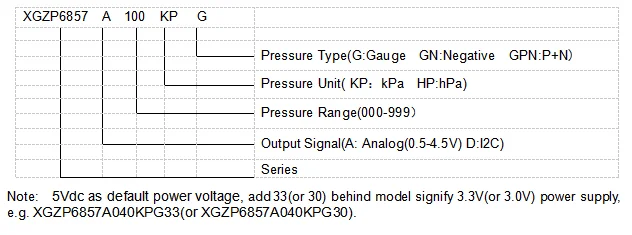

Order Guide



Notes

1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.





Warranty
CFSensor warrants its products against defects in material and workmanship for 12 months from the date of shipment. Products not subjected to misuse will be repaired or reploced. CFSensor  reserves the right to make changes without further notice to any products herein. CFSensor  makes no warranty, representation or guarantee regarding the suitability of its products for any particular application. CFSensor  does not assume any liability arising out of the application or use of any product or circuit and specifically disclaims, and all liability, without limitation consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other warranties, whether written, oral, implied or statutory. No implied statutory warranty or merchant ability or fitness for particular purpose shall apply.

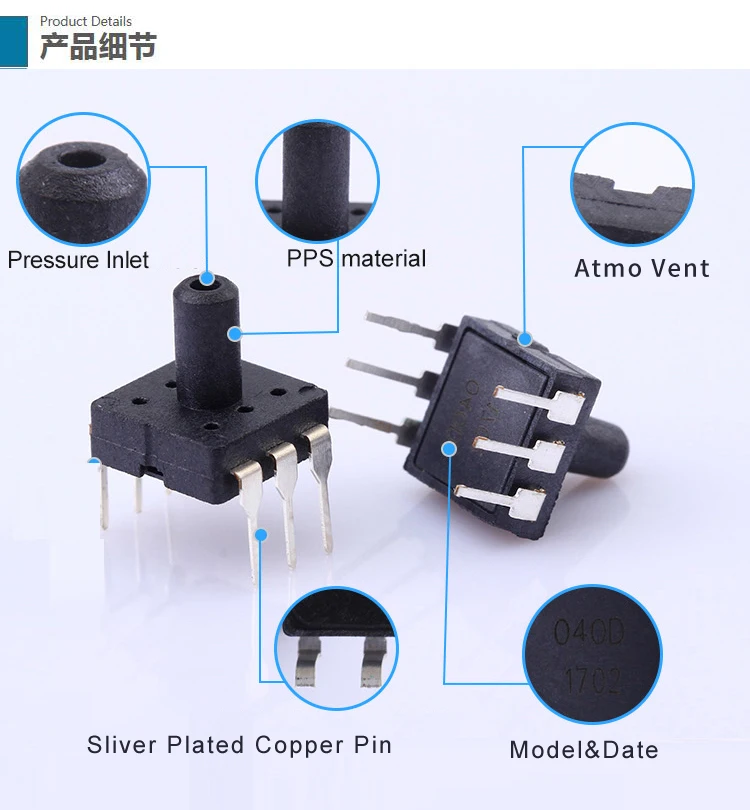

pressure sensor details.jpg
