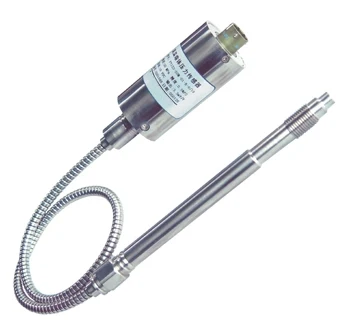

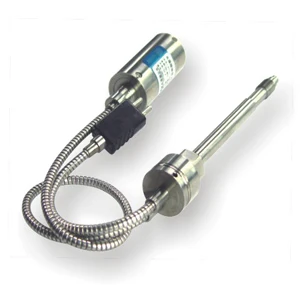

High Temperature Melt Pressure Sensor DPT124

High Accuracy DPT124  High Temperature Melt Pressure Transmitter

Model No.:

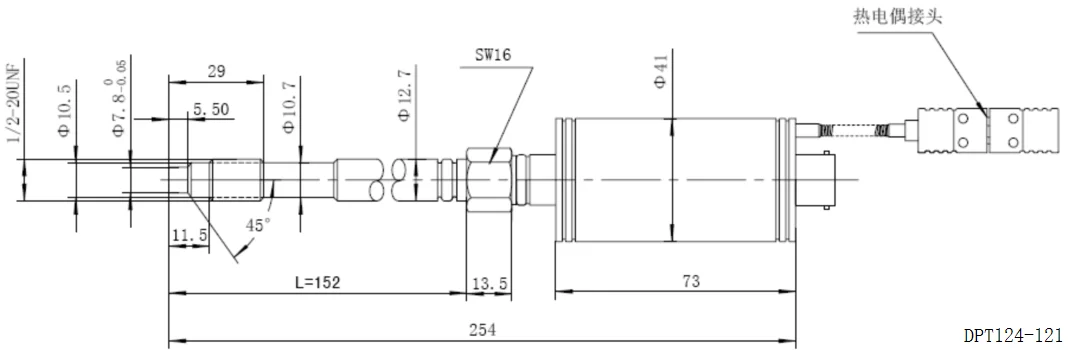

DPT124-121; DPT124-230; DPT124-125; DPT124-233

Pressure Type:

Gauge Pressure

Pressure Range:

0-10 Bar……1500 Bar / 0-150Psi……20000Psi G Optional.

Power Supply:

24V DC

Electronic Wire:

5Cores or 6 Cores/Pins/Wires

Output:

4-20 mA; 0-10V; 0-5V optional.

Accuracy:

(Linearity; Hysteresis;

Repeatability)

≤ ±0.5%F.S;

≤ ±0.25%F.S;

optional

Working Temp:

0℃~400℃

Medium compatible:

Various media compatible with the 316L stainless steel

Electronic connection:

Fixed cable Explore Proof and water proof IP67;

5 Pin Plug; 6 Pin Plug IP65;

Terminal Box (Hirschman) IP65.

Process connect port:

1/2’’-20UNF Male; M14*1.5; M20*1.5… (by customized)

Thermocouple type

J,K,E, PT100 Optional

Certificate approve:

CE Certificate.

Explore Proof:

Exd II CT5

Remarks:

Special applications request by customized
