China 5500 g/m2 sodium Bentonite Waterproofing geosynthetic clay liner GCL for Artificial lake pond liner
- Category: >>>
- Supplier: Taian Hongyuan Geosynthetics Co. Ltd.Taian Ltd.
Share on (1600711247268):
Product Overview
Description
Products Description

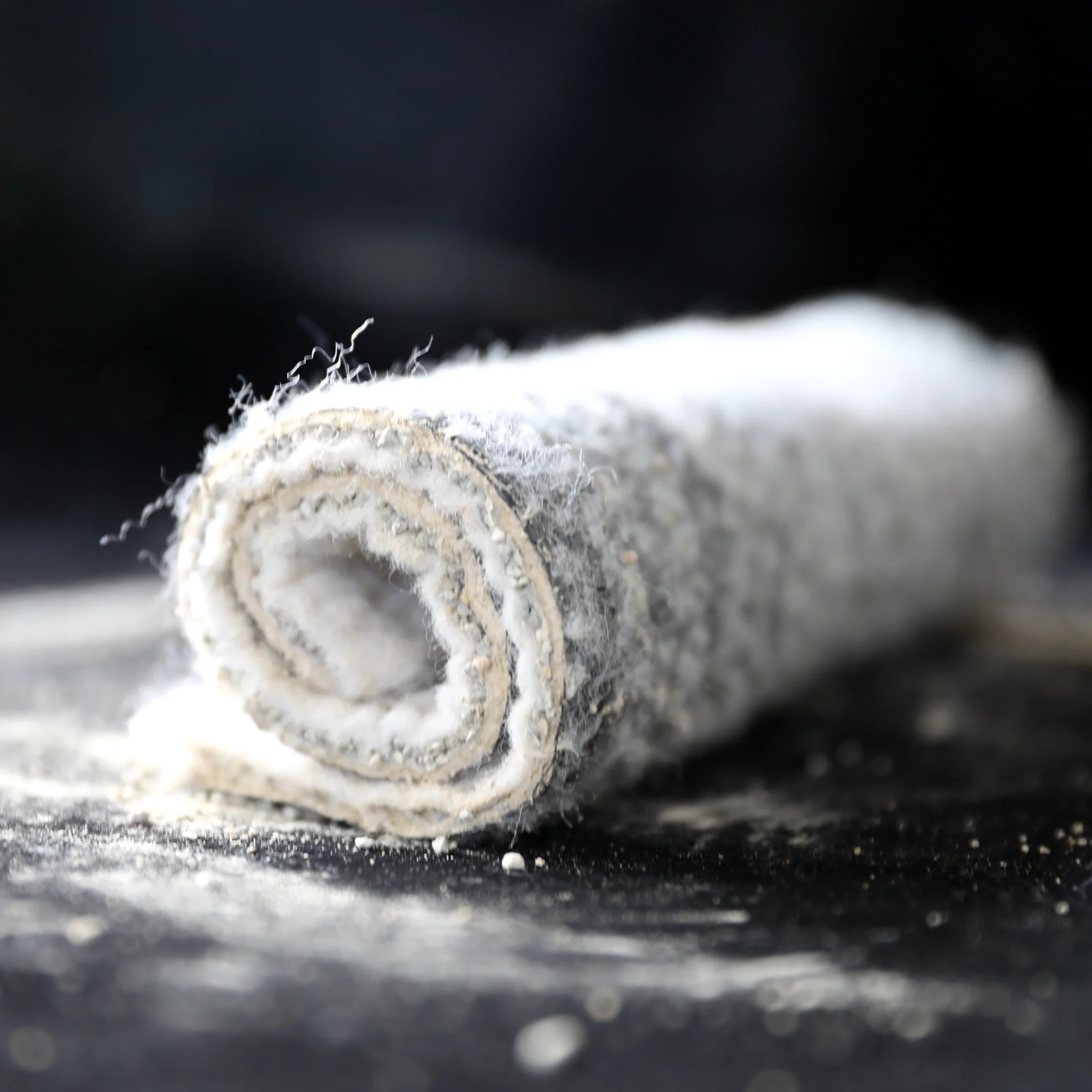

GCL

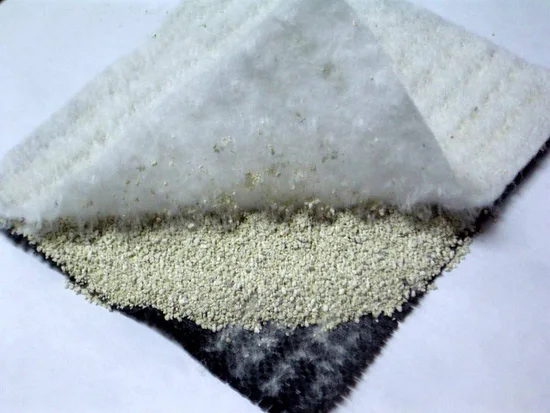

Geosynthetic clay liner (GCL) is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric. It made by the method of acupuncture or suture composite impervious material. Use acupuncture into GCL can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water.
Product characters
1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
Projects/ Technical data | GCL-NP Technical Indicators |
Weight per unit area(g/m2) | more than 4000gsm and no less than specified value |
Bentonie swell index(ml/2g) | ≥24 |
Ethylene blue absorption(g/100g) | ≥30 |
Tensile strength (N/100mm) | ≥600 |
Racking strength(N/100mm) | ≥40 |
Elongation at max load(%) | ≥10 |
Permeability(m/s) | ≤5.0x110^(-11) |
Anti-static water pressure | 0.4Mpa,1h,not seepage |
Filtration loss (ml) | ≤18 |
Bentonite durability (ml/2g) | ≥20 |

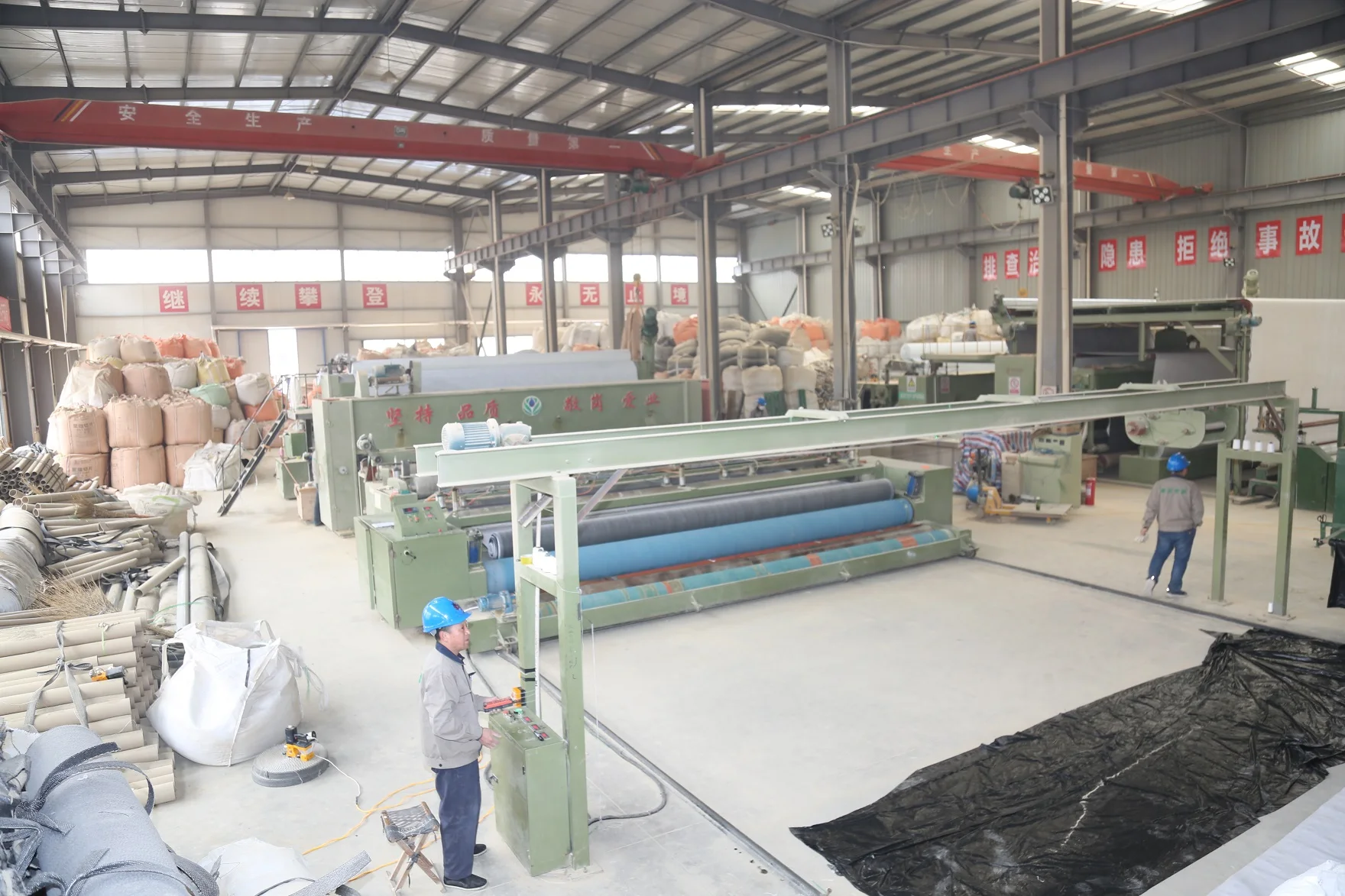

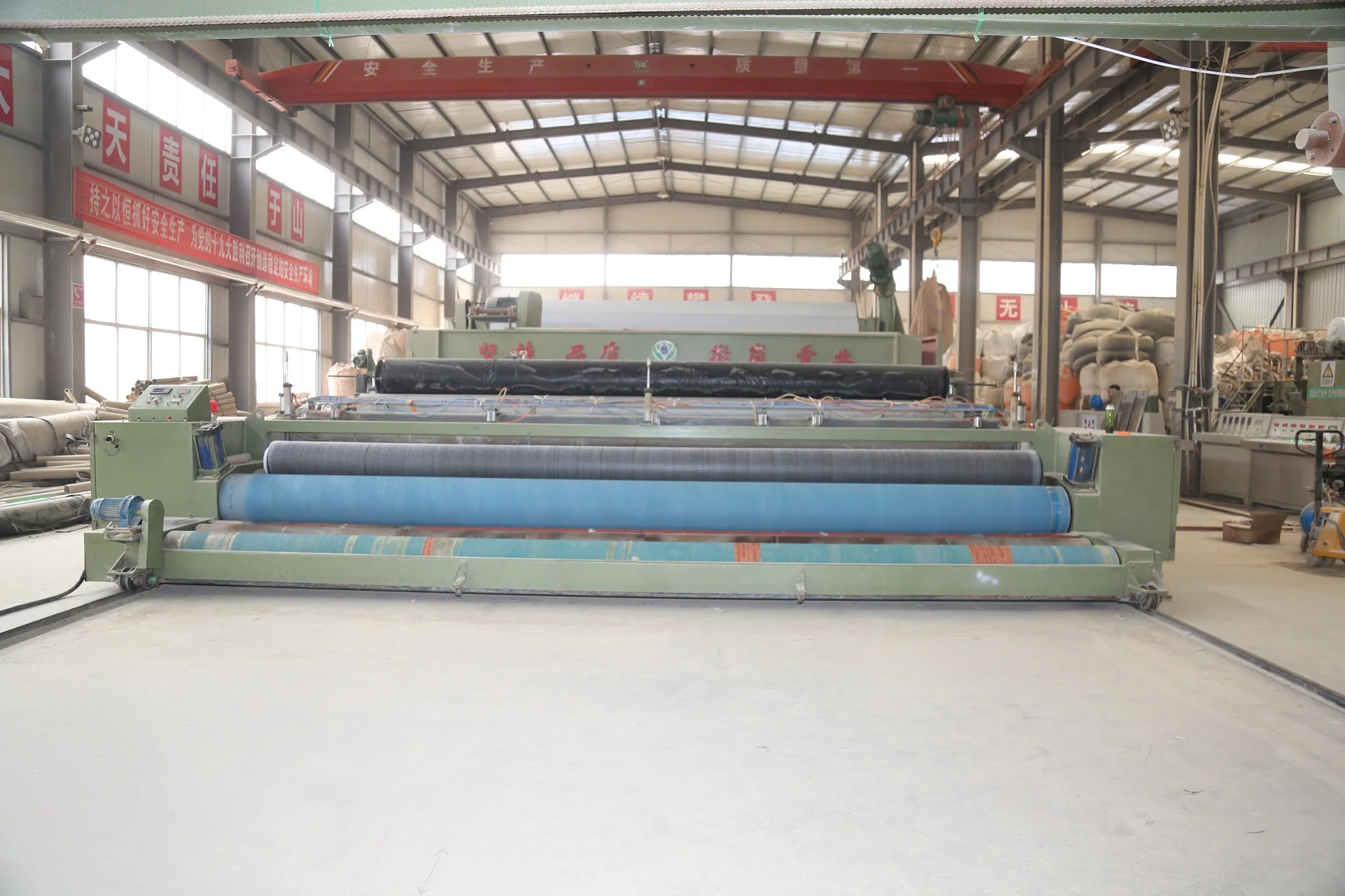

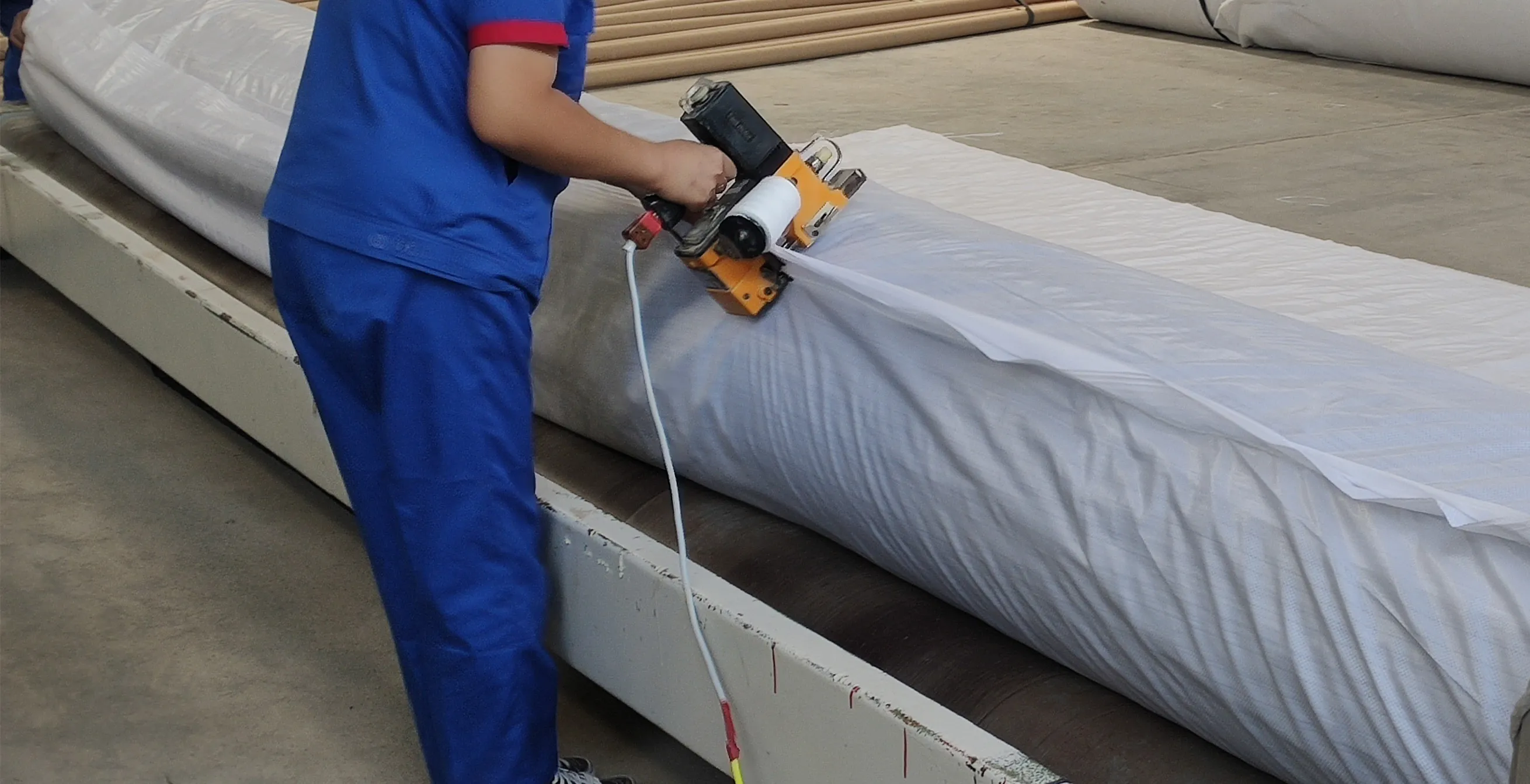

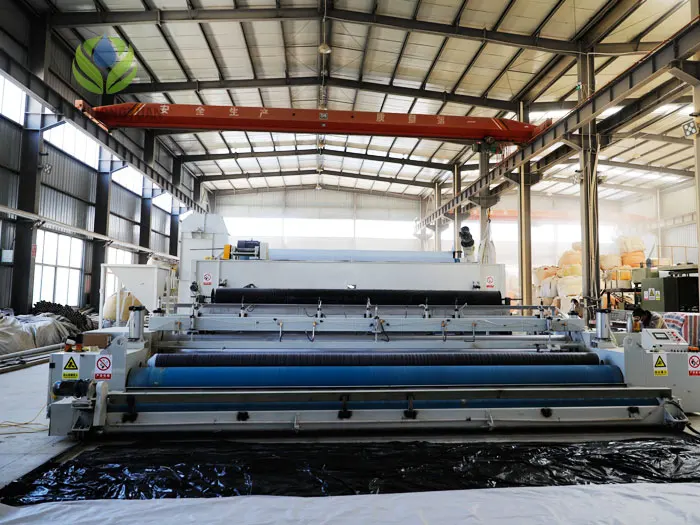

ADVANCED PRODUCTION LINES
There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.

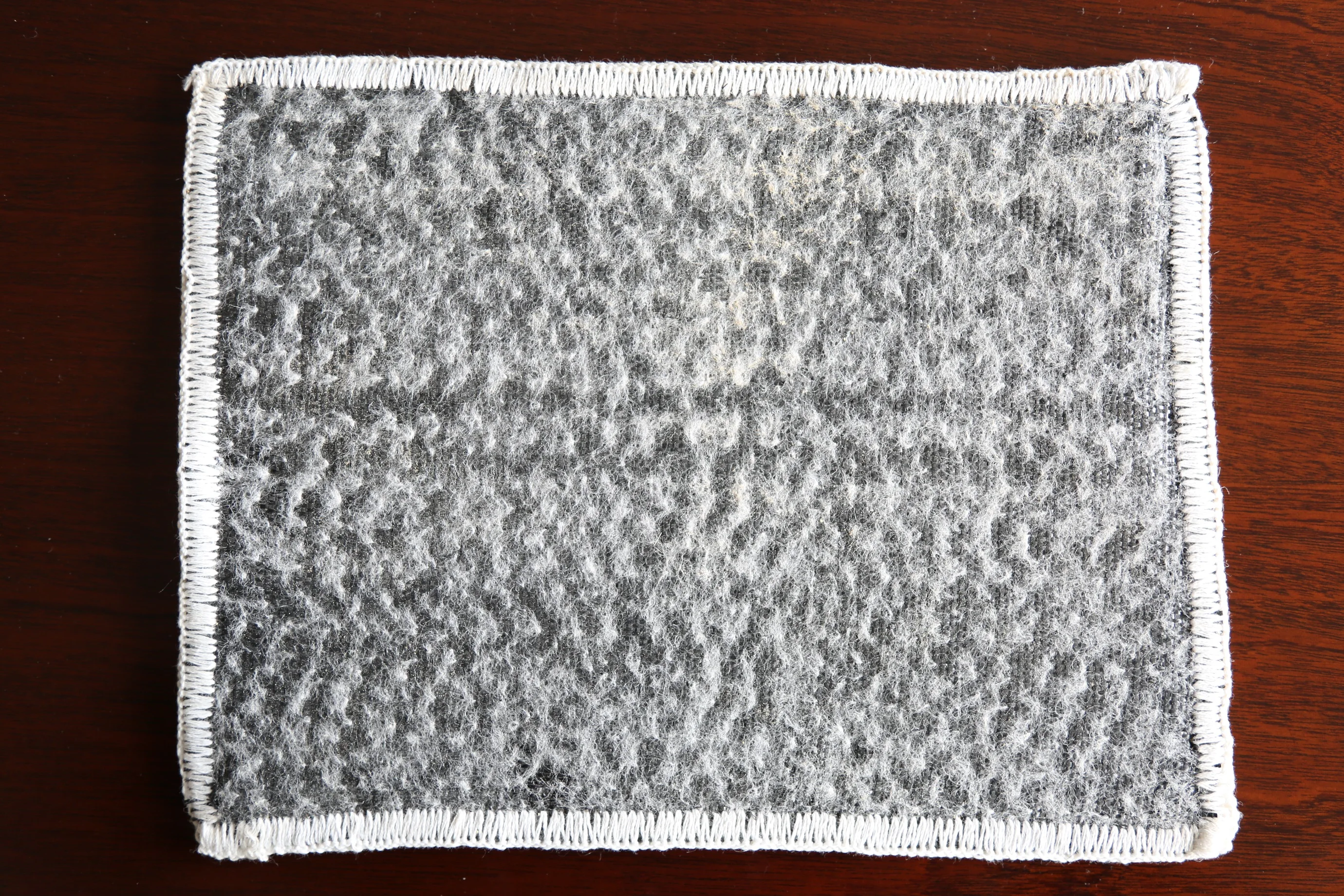

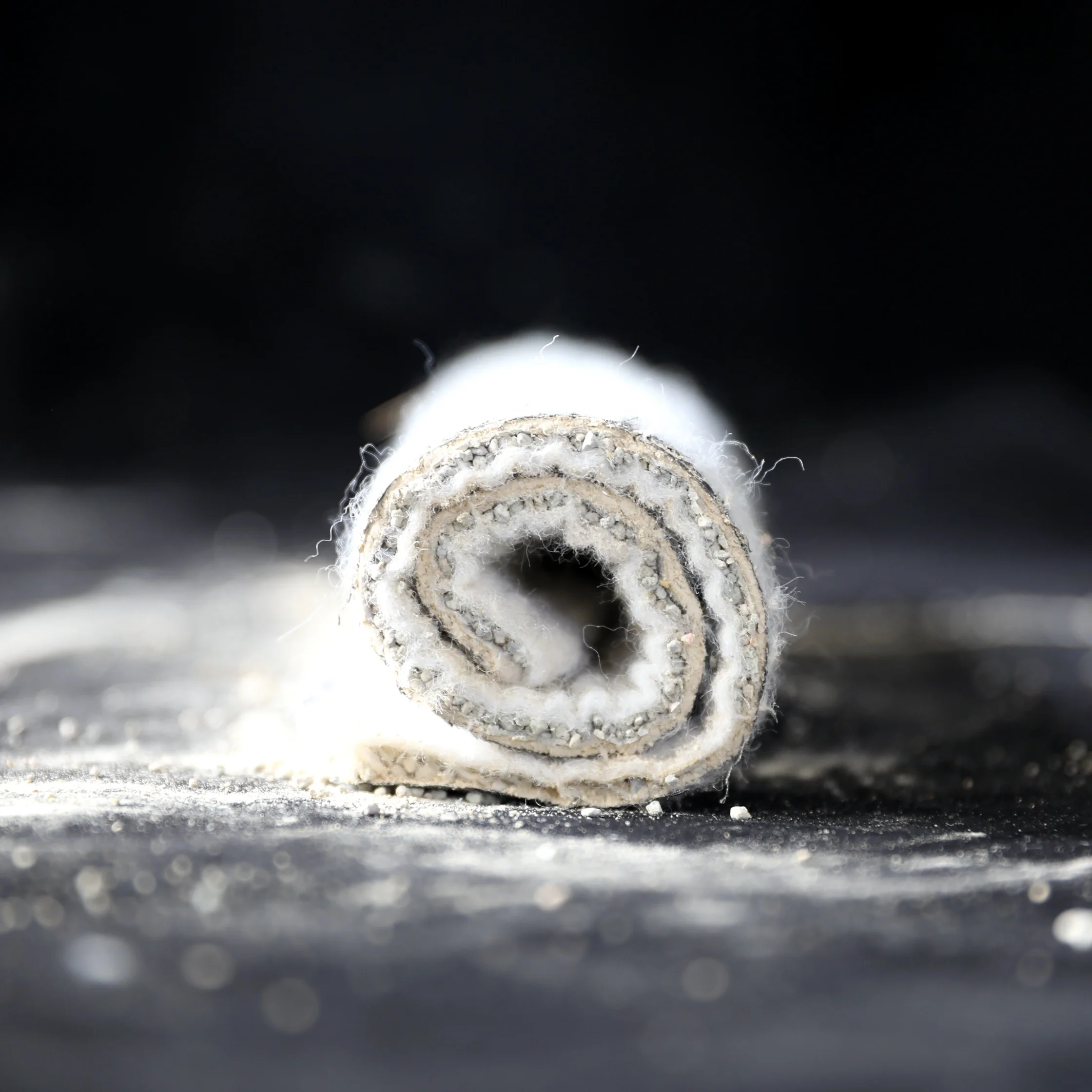

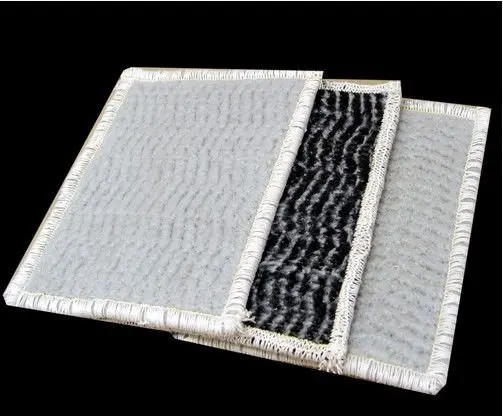

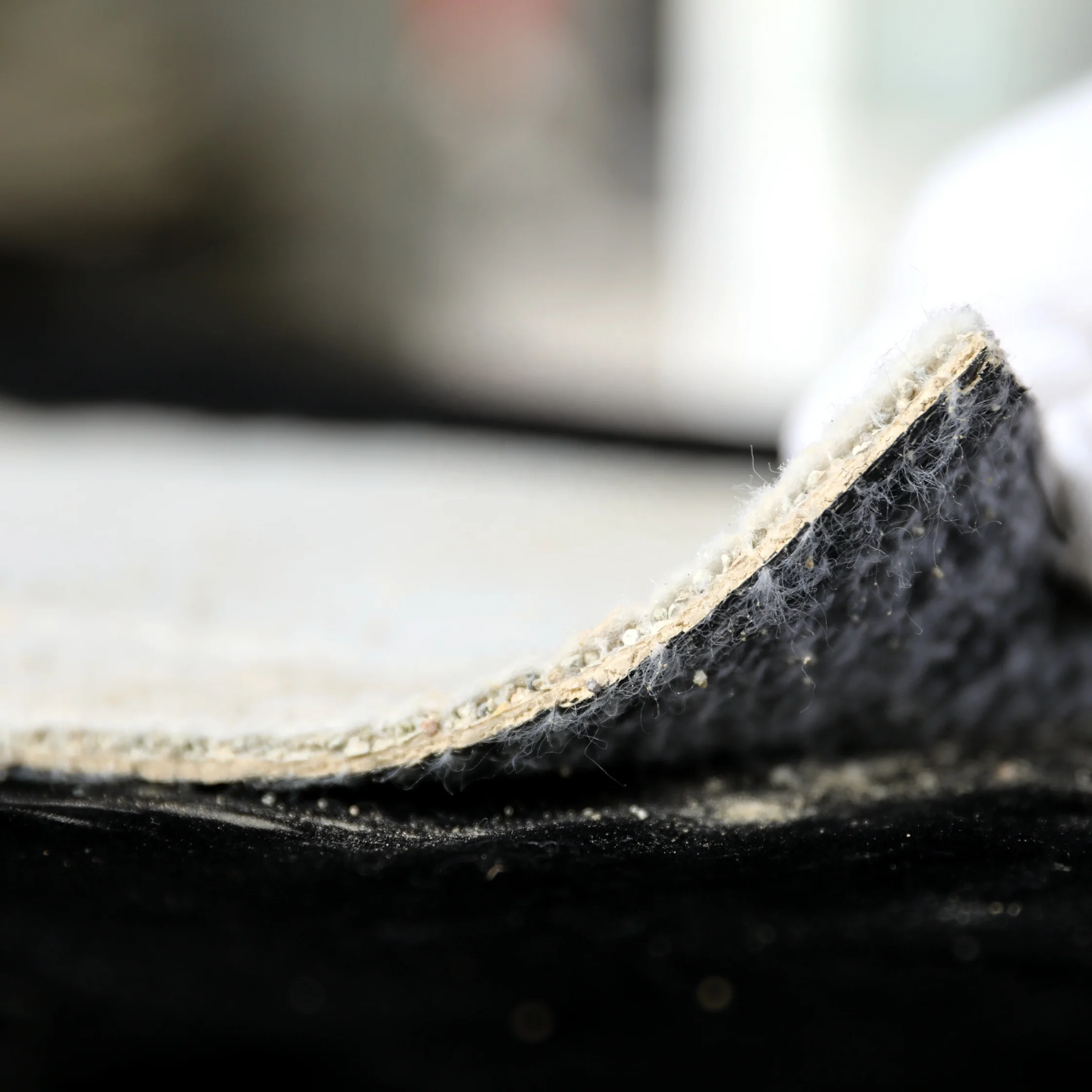

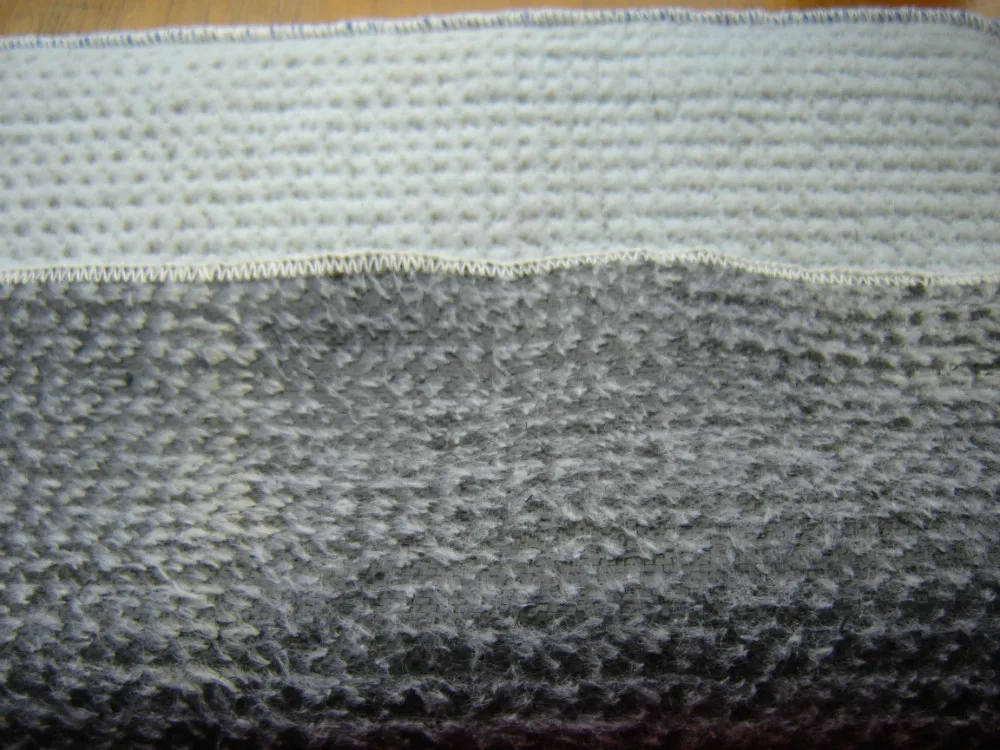

Product Details Show

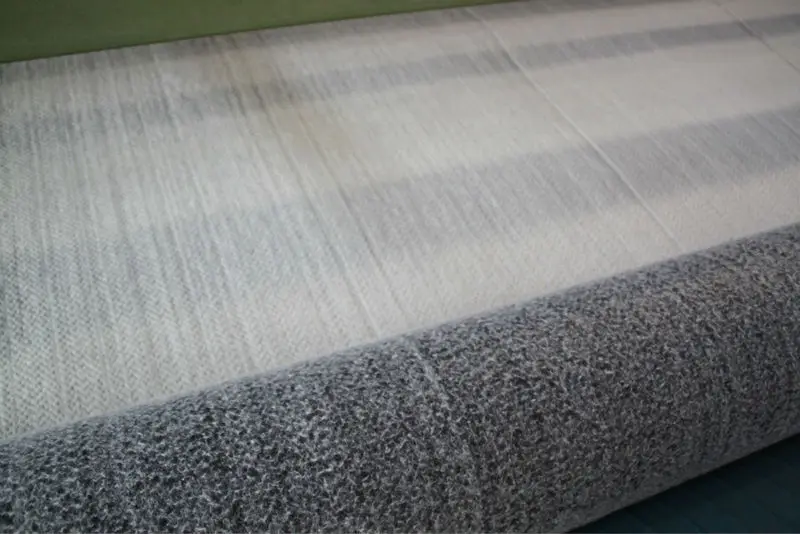

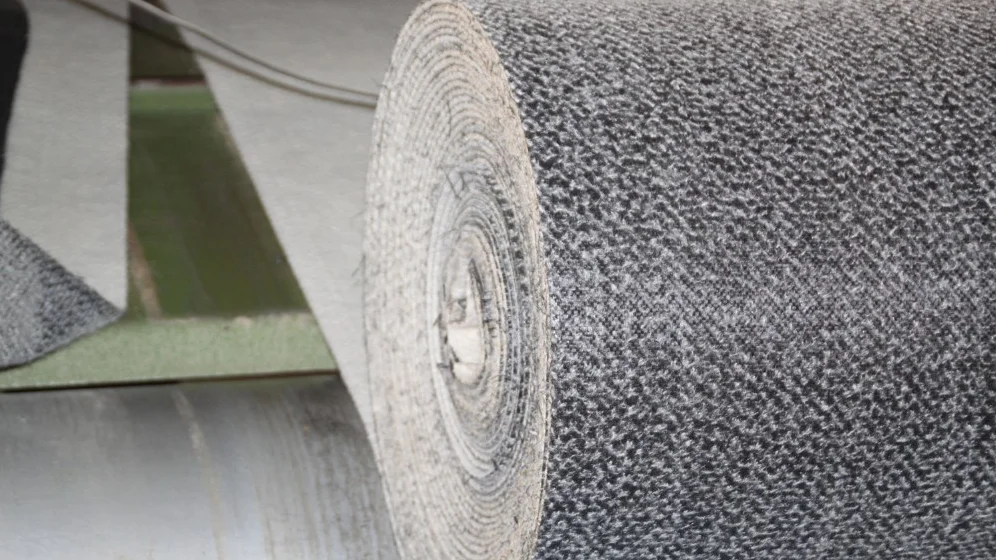

Products with inner core

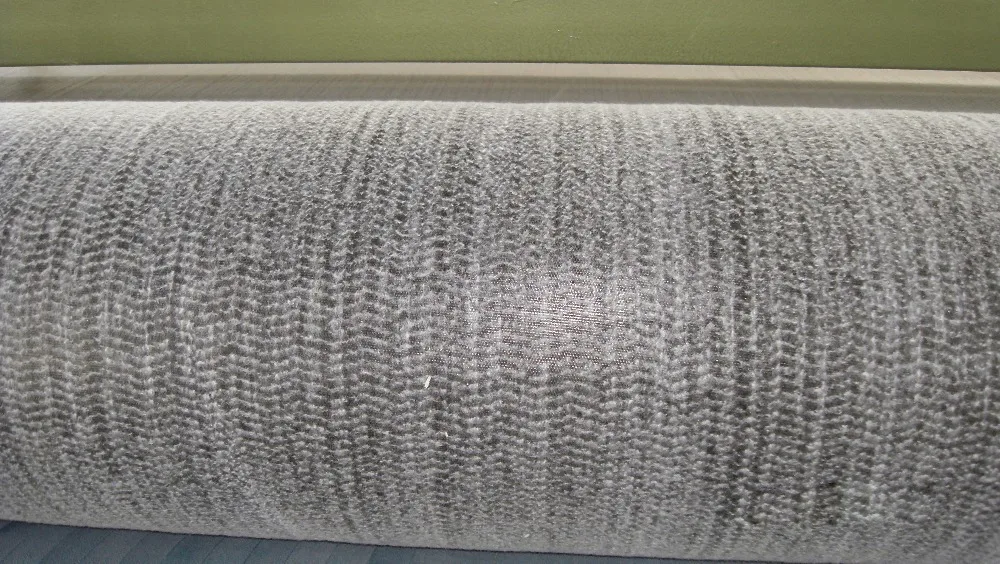

Products without inner core
Application Scenarios
Applications:
1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering.
4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.

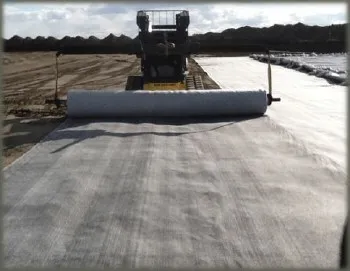

U.S. landfill
The construction of a large-scale landfill on Long Island in the United States uses bentonite waterproof blankets with a total area of 37,000 square meters. So far, there has been no quality problem.
Australian basement waterproofing
In the construction of a large basement in an Australian community, bentonite waterproof blankets are used for waterproofing measures, a total of 11,000 square meters, and there have been no quality problems in the construction so far.

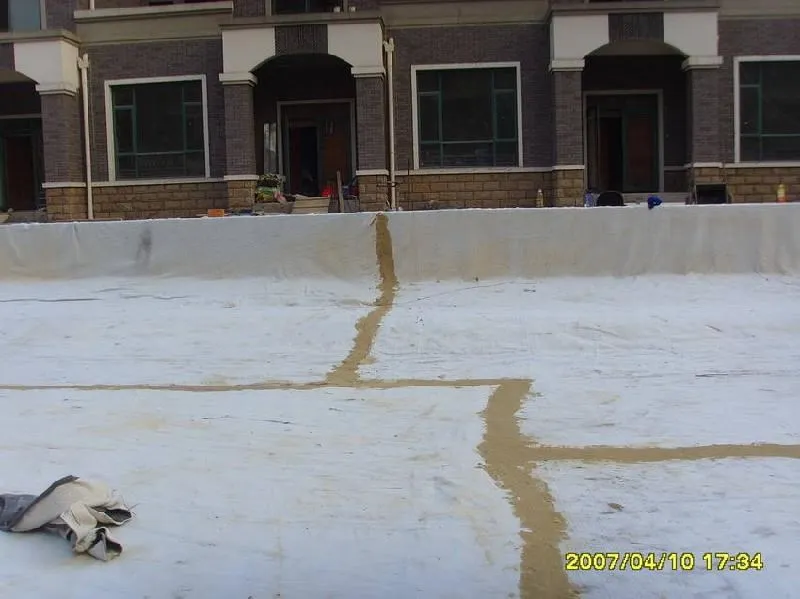

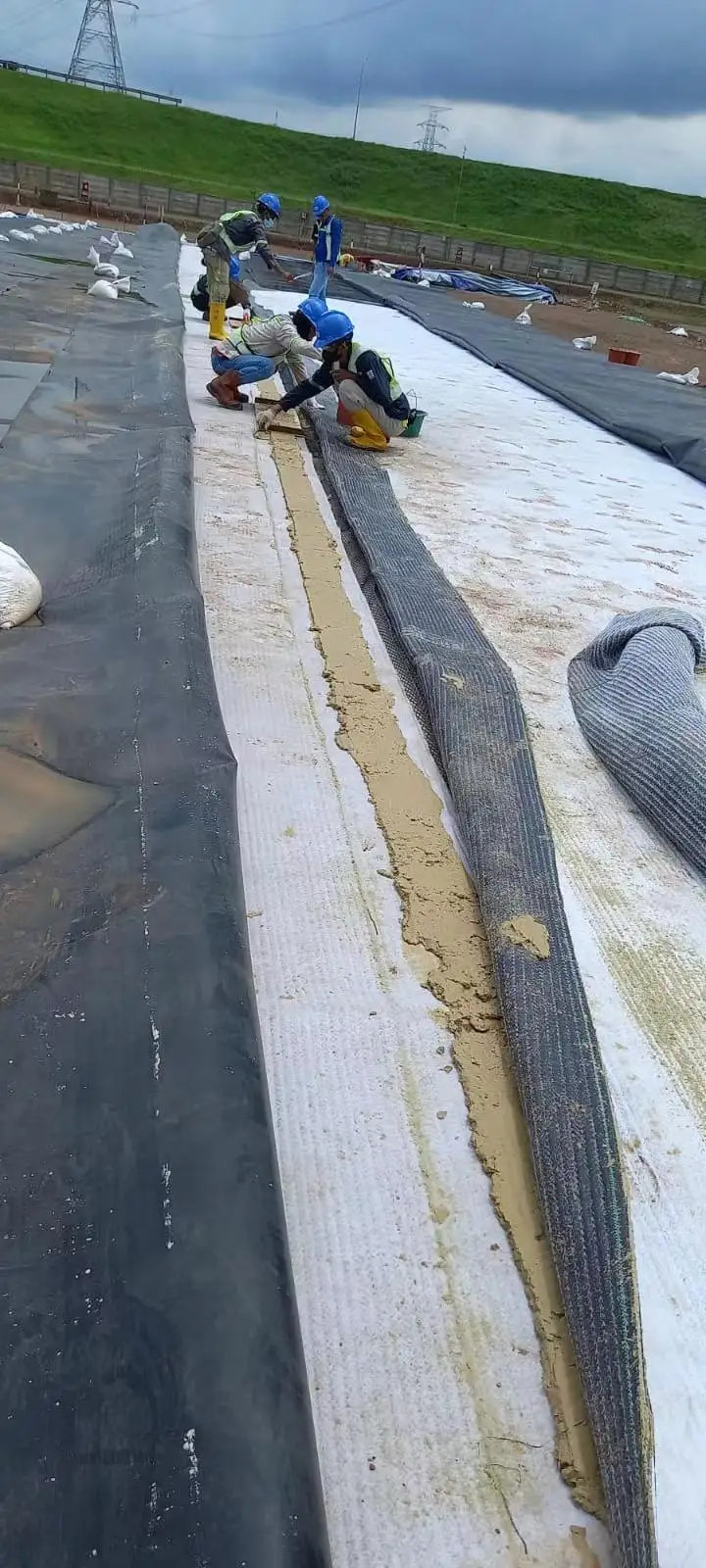

Basement construction

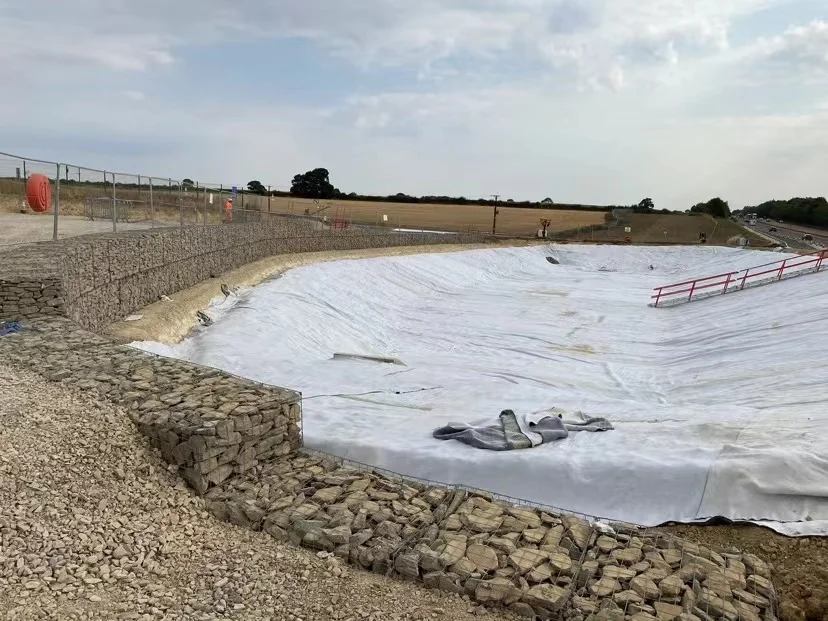

Artificial lake construction
Construction of waste landfill in Indonesia
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast
Asia(10.00%),Mid East(10.00%).
Asia(10.00%),Mid East(10.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Can provide third-party quality inspection reports；
3. How about the delivery time?
General within 3-7 days after received the deposit.
4. why should you buy from us not from other suppliers?
Hongyuan International Co.,Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane, geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.
5. Can you produce the product according to customers' requirements?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
6.Why geosynthetic clay liner can be waterproofing?
Bentonite has good adhesion, swelling, colloidal dispersion, thixotropy and cation exchange properties. When bentonite is hydrated, water molecules are adsorbed along the surface of the Si-Al-Si structural unit, which increases the distance between adjacent structural units. After hydration, the surface cations of bentonite are in a hydrated state, and after absorbing H2O, it becomes saturated and becomes a gel, and its durability can reach 200 years. In the confined space, the continuous water absorption and expansion make the waterproof blanket layer itself dense and its volume increases, so that it has a waterproof function by forming a negative pressure inside. Its permeability can be reduced to 10~9cm/s, and it is almost watertight.
