Product Overview

Description

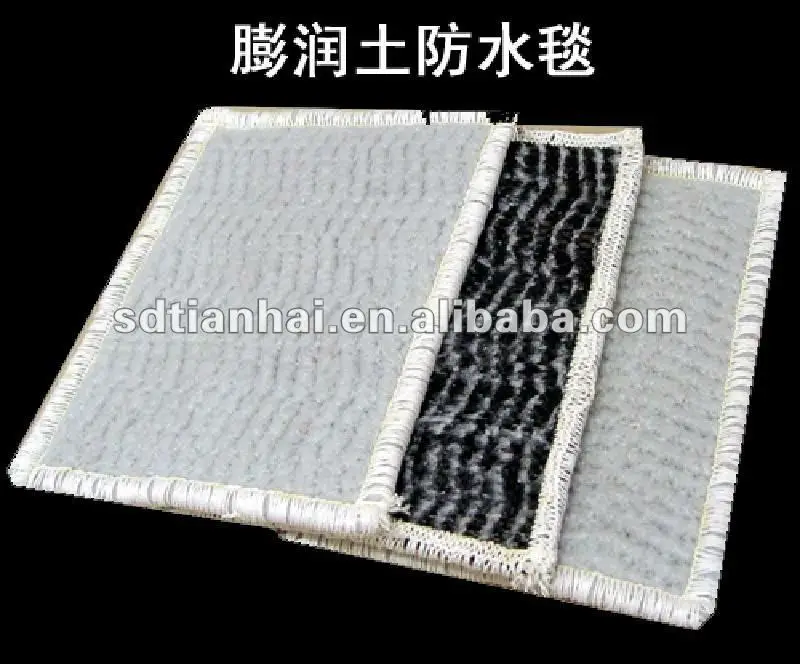

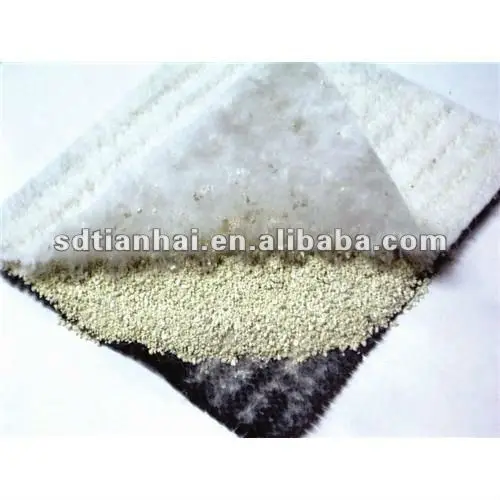

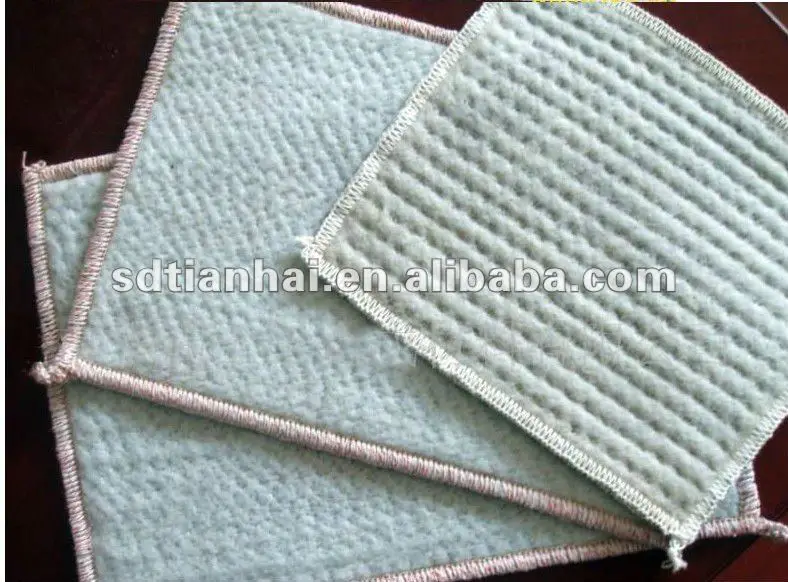

Geosynthetic clay liner( GCL)is made from 100% natural sodium bentonite, woven geotextile, nonwoven geotextile. Geosynthetic clay liners (GCLs) are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).when hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay.

Geosynthetic clay liners (GCL) are an established sealing product in the geoenvironmental industry. They are used in landfill caps and base liner applications under roads, railways, secondary containment for above ground tank farms, as well as within various other containment structures such as dams, canals, ponds, rivers and lakes. They are also used for waterproofing of buildings and other similar structures.

Property
1. Swell when meet water
2. Long time waterproofing and friendly to environment
3. Separation, reinforcement, protection, filtration and easy for construction
 Application

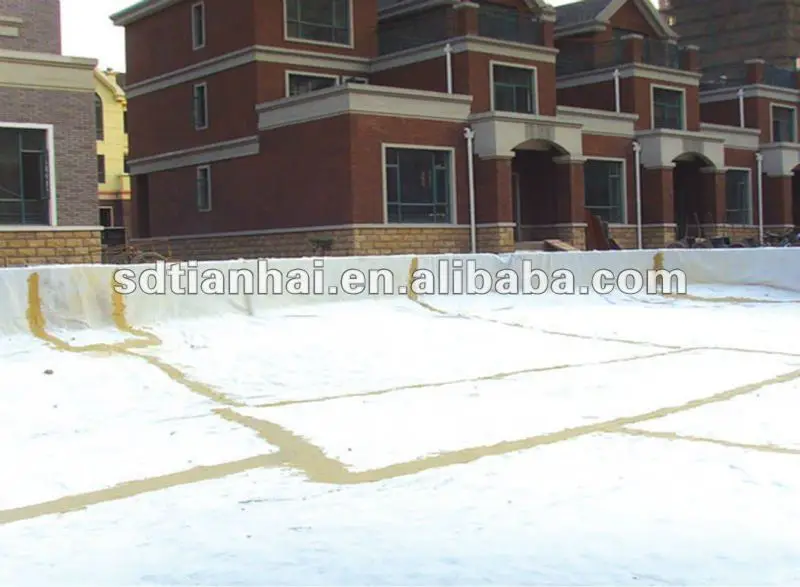

1. Municipal project, subway, underground and roof waterproofing
2. landfill, waste water treatment, industrial waste
3. Waterproofing and reinforcement in water conservancy, river, lake and dam
4. Artificial lake, golf course and fish pond

5. Petrifaction and mineral waterproofing

 various other containment structures:

Specification

Unit weight: 4500g/m2, 4800g/m2, 5000g/m2, 5500g/m2, 6000g/m2 or at customer’s request

Width: 5m-6m or at customer’s request

Length: 20m, 30m, 35m, or at customer’s request
Technical data

Landfill Bentonite Pond GCLS Specification:



JG/T 193-2006

Packaging & Delivery

Packaging Details

Landfill waste bentonite clay waterproof blanket GCL
PE film outside or as requests
1, 4000g/m2:width 5.8m*Length35 m per roll, about 3857m2/20'gp
2,4500g/m2:width 5.8m*Length35m per roll, about 3654m2/20'gp
3,4800g/m2:width 5.8m*Length35 m per roll, about 3248 m2/20'gp
4, 5000g/m2:width 5.8m*Length35 m per roll, about 3248 m2/20'gp
5,5250g/m2:width 5.8m*Length35 m per roll, about 3045 m2/20'gp
