Bentonite geosynthetic clay liner gcl for waterproof projects

Product Overview

Description

Bentonite geosynthetic clay liner gcl for waterproof projects

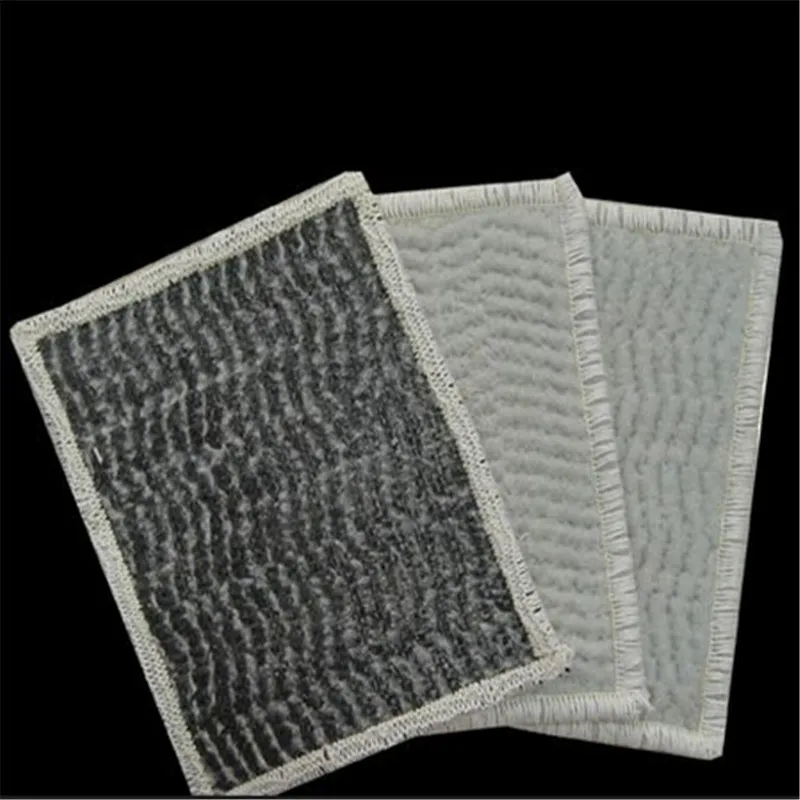

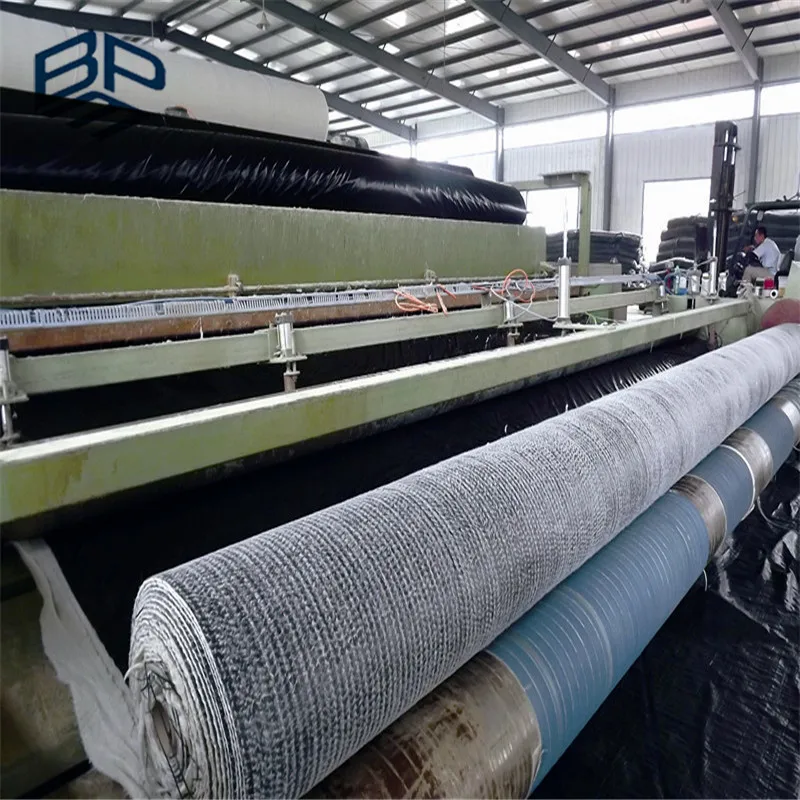

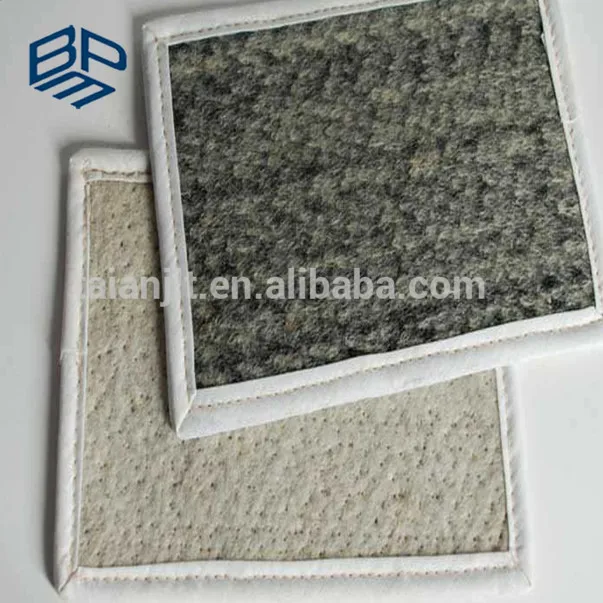

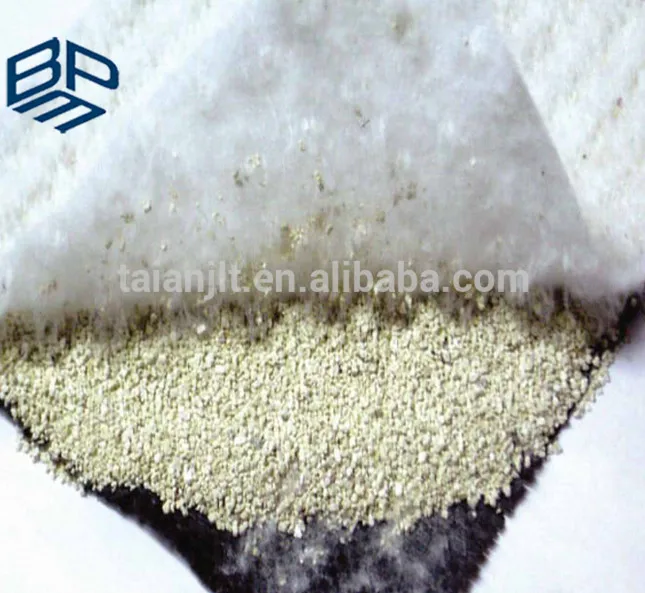

GCL Liner, also called Geosynthetic Clay Liner (GCL), is a new type of  composite geosynthetic material widely used in a variety of environmental containment applications as an alternative to traditional compacted clay liners to satisfy your exact project requirements.  GCL Liner is made with the sodium bentonite particles are filled between a woven geotextile and a non-woven geotextile, so it is also called bentonite clay liner. Within the geosynthetic clay liner, the upper non-woven fabric fibers are passed through the bentonite particles, and the special process and equipment are connected to the underlying woven fabric by a special method. GCL liner which is made by this method do not flow in one direction, and thus can form a uniform waterproof layer in the entire range. The function of waterproof and impervious GCL liner can be widely applied to many engineering construction conditions.

GCL liner is suitable for seepage prevention and waterproof treatment of structures with water storage characteristics such as artificial lakes, reservoirs, large swimming pools, fish farms, channels, garbage disposal yards, etc.  Our bentonite clay liner is also applicable to high pressures in buildings,









Technical Specification:



Property	Unit	Values
SPECIFICATION		GCL4800
Geotextile layers
Geotextile of cover layer (non-woven geotextile)	g/m2	200
Geotextile of carrier layer (woven geotextile,PP)	g/m2	110
HDPE layer
HDPE geomembrane	mm	0.2
Bentonite layer
Type	-	Sodium bentonite
Mass per unit area	g/m2	≥4500
Swell index	ml/2g	≥24
Fluid Loss	ml	≤18
Geosynthetic Clay Liner
Mass per unit area	g/m2	≥4800
Tensile strength	N/100mm	≥700
Elongation at break	%	≥10
Peel strength (nowoven geotextile-woven geotextile)	N/100mm	≥40
Peel strength (nowoven geotextile-PE film)	N/100mm	≥30
Permeability	m/s	≤5.0×10-11



Forms/Sizes Available:

Unit weight: 4500g/m2, 4800g/m2, 5000g/m2, 5500g/m2, 6000g/m2 or customerized

Width: 3m-6m or customerized

Length: 10m, 20m, 30m, 40m, or customerized

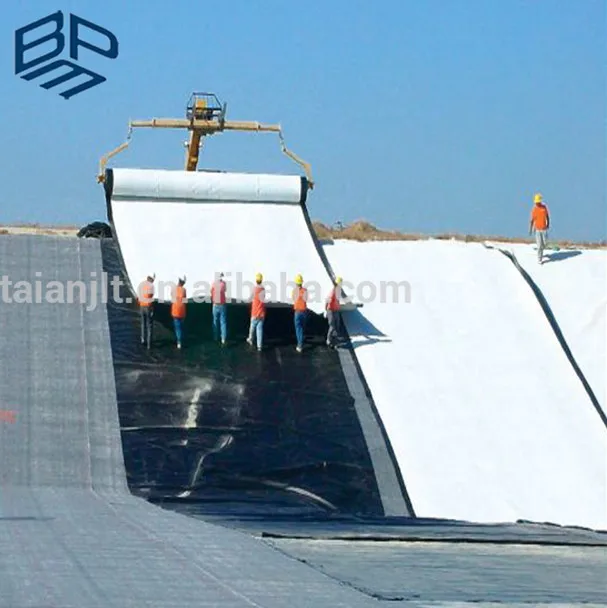

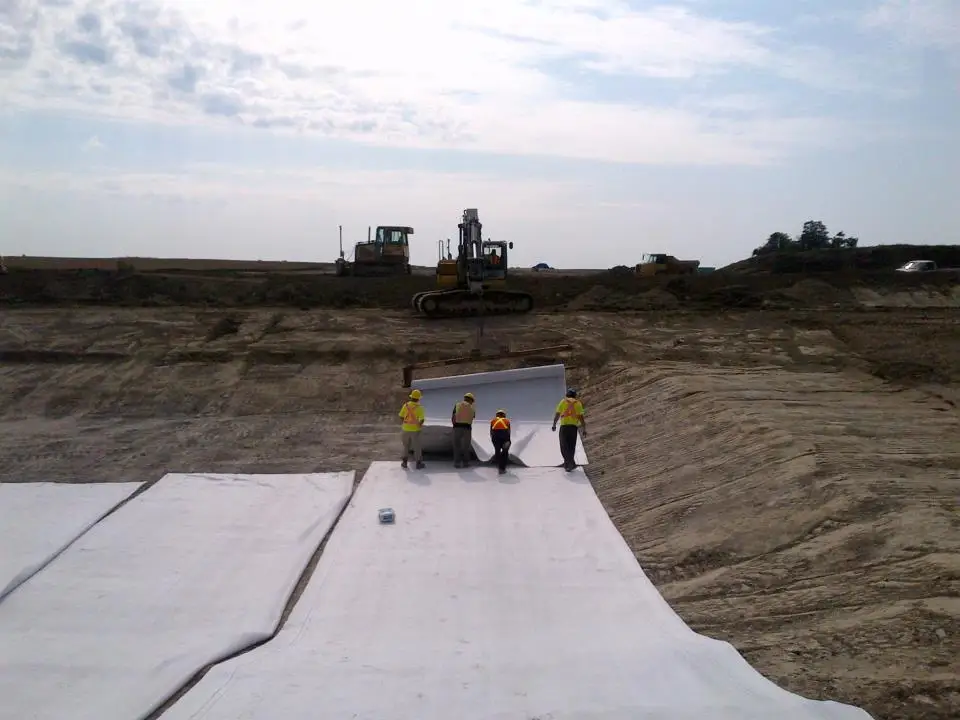

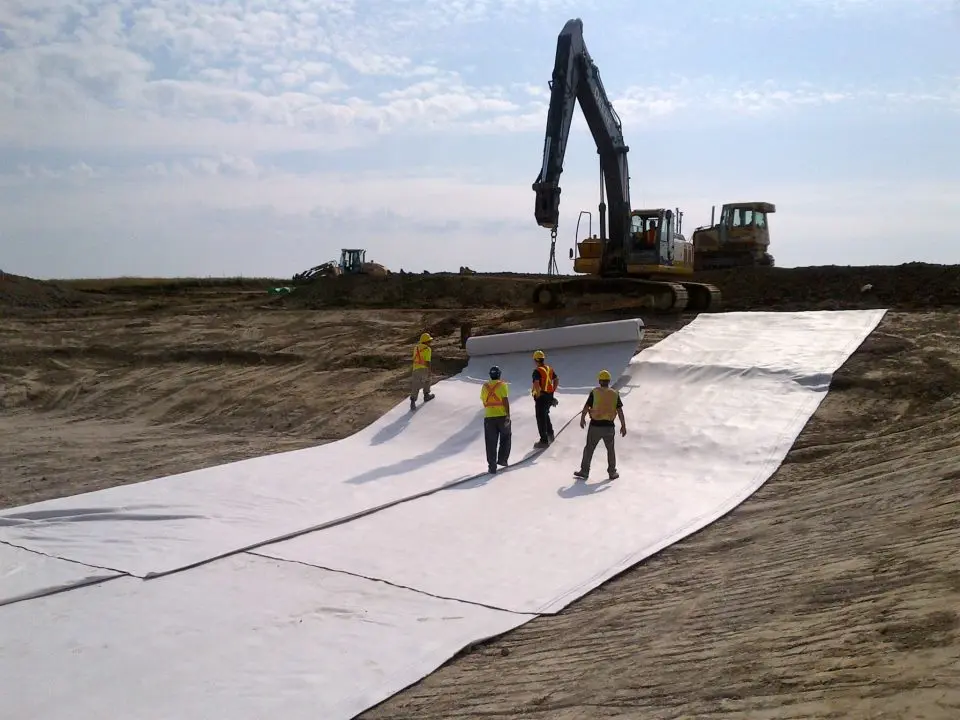

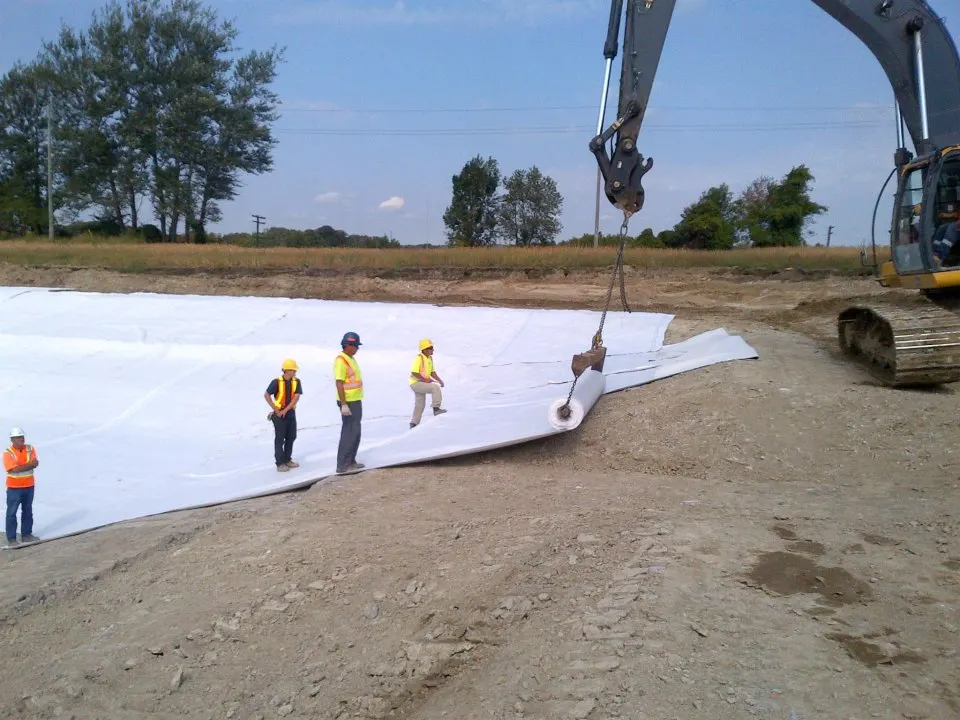

Bentonite Geosynthetic Clay Liner GCL Applications:

1    Water storage, miniature reservoir, dam, irrigation channel, pond, etc.

2    Construction floor, roof garden, basement, etc.

3    Light industry, oil and metallurgy, etc.

4    Landfill

5    Artificial lake, landscape pool, etc.

6    Subway, railway, expressway, tunnel, airport, road, bridge, etc
