Waterproof blanket bentonite composite waterproof Geosynthetics Clay Liner (GCL)
- Category: >>>
- Supplier: Shandong Vegas Engineering Materials Co. Ltd.
Share on (1600826839403):
Product Overview
Description
Product Description

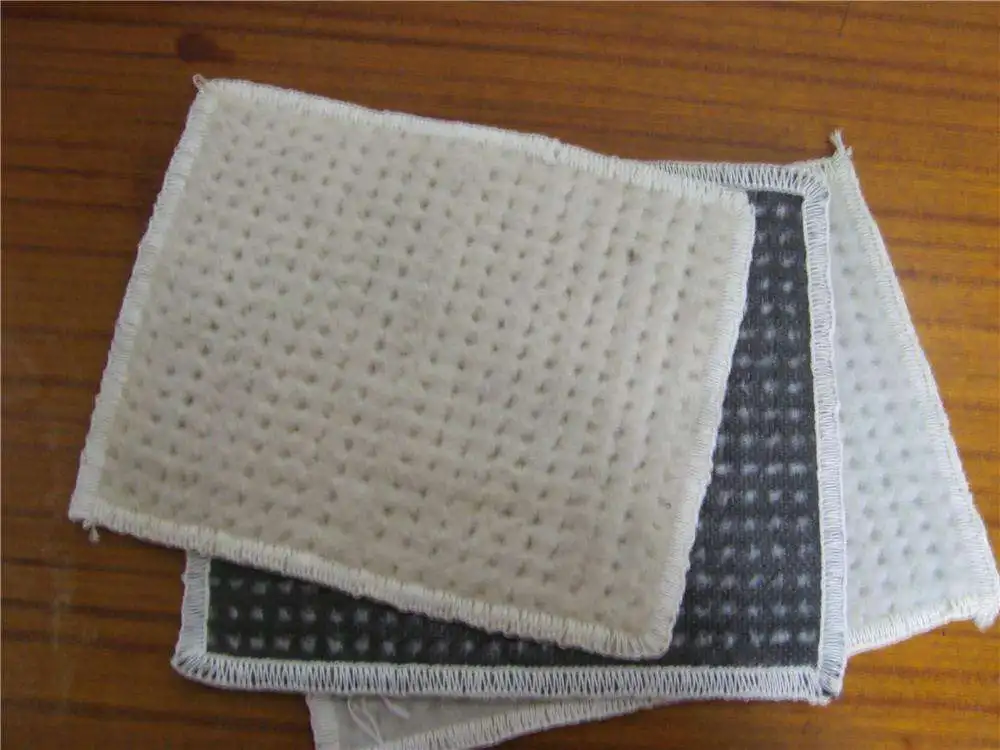

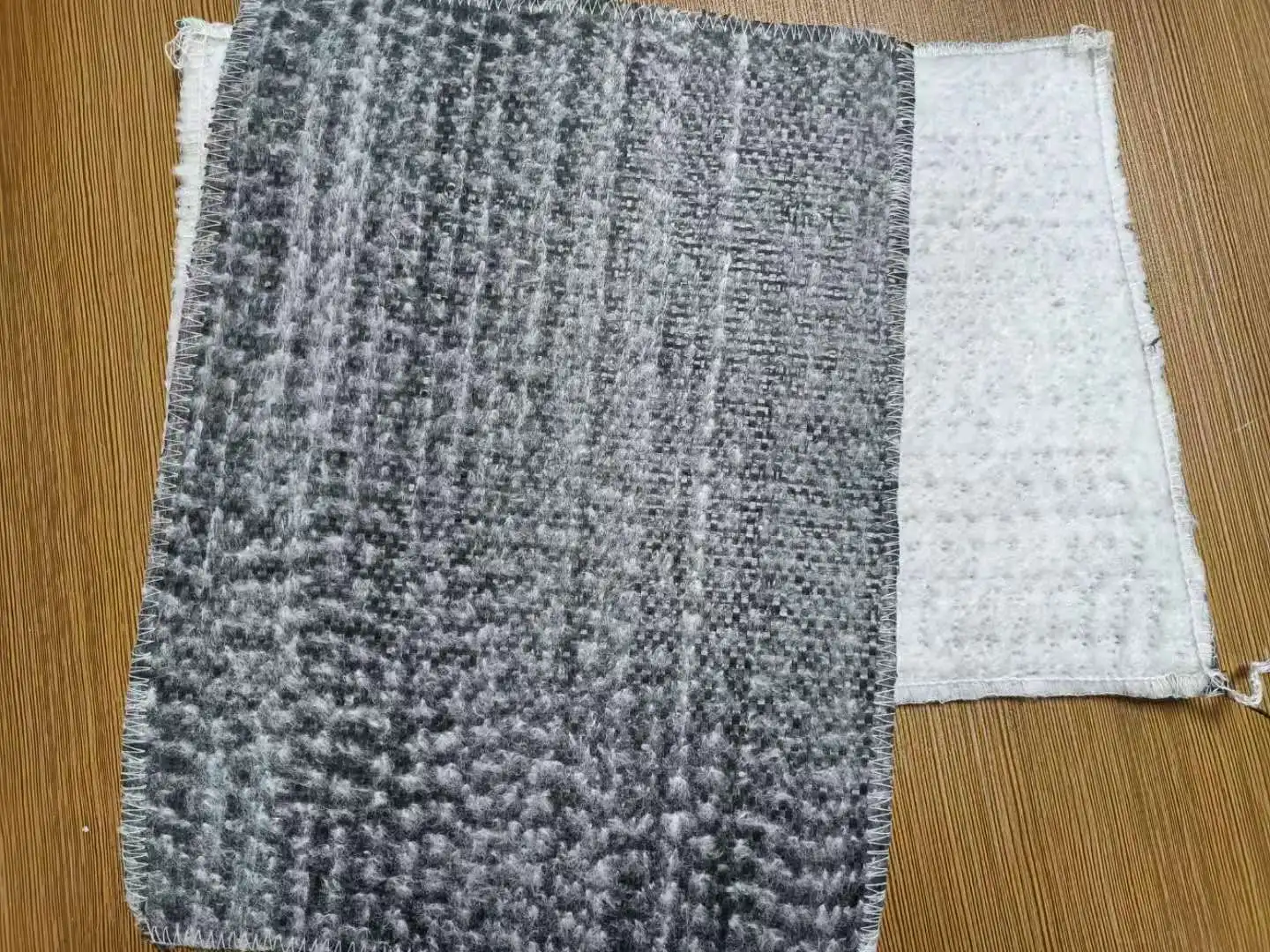

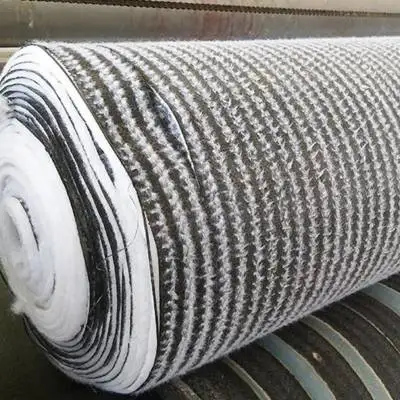

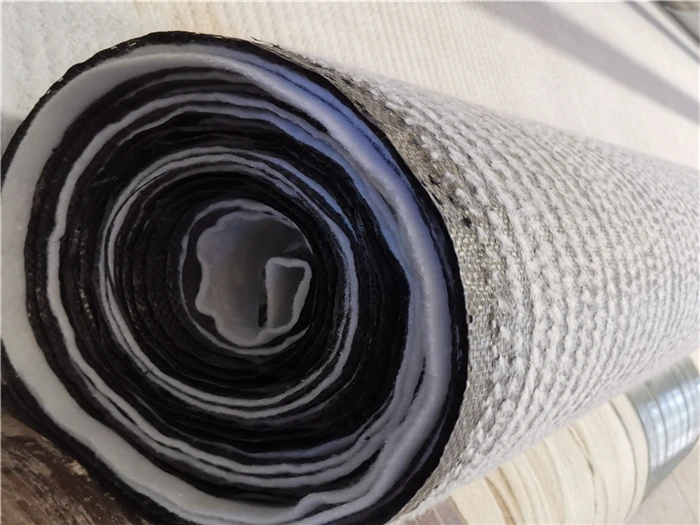

Bentonite Geosynthetics Clay Liner

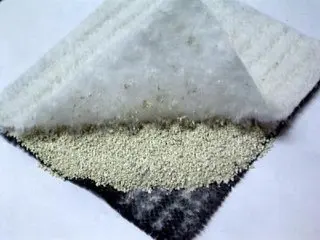

.GCL is a new geosynthetics which is graded by a natural sodium bentonite particles and corresponding acctive mixed together. By special technology and equipment, the bentonite particles between two layers of geotextile fixed, made of waterproof blanket, with all the characteristics of both the geotextile material, but also has excellent water (infiltration) performance.
Specification
Item | Technical Parameters | ||||||
GCL-NP | GCL-OF | GCL-AH | |||||
GCL,Mass/Unit area (g/m²) | ≥4000 | ≥4000 | ≥4000 | ||||
Swell Index (ml/2g) | ≥24 | ≥24 | ≥24 | ||||
Absorb Blue Quantity(g/100g) | ≥30 | ≥30 | ≥30 | ||||
Tensile Strength (KN/m) | ≥600 | ≥700 | ≥600 | ||||
Elongation at Max load % | ≥10 | ≥10 | ≥8 | ||||
Peel Strength (N/100mm) | Non-woven geotextile And woven geotextile | ≥40 | ≥40 | - | |||
PE geotextile and Non-woven geotextile | - | ≥30 | - | ||||
Pesitance Hydaulic Pressure (m/s) | ≤5.0×10-11) | ≤5.0×10-12) | ≤1.0×10-12) | ||||
Resistance Hydraulic Pressure | 0.4 MPa,1h,no leakage | 0.6 MPa,1h,no leakage | 0.6 MPa,1h,no leakage | ||||
Fluid Loss (ml) | ≤18 | ≤18 | ≤18 | ||||
Durability of Bentonite (ml/2g) | ≥20 | ≥20 | ≥20 | ||||
FEATURES
1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency

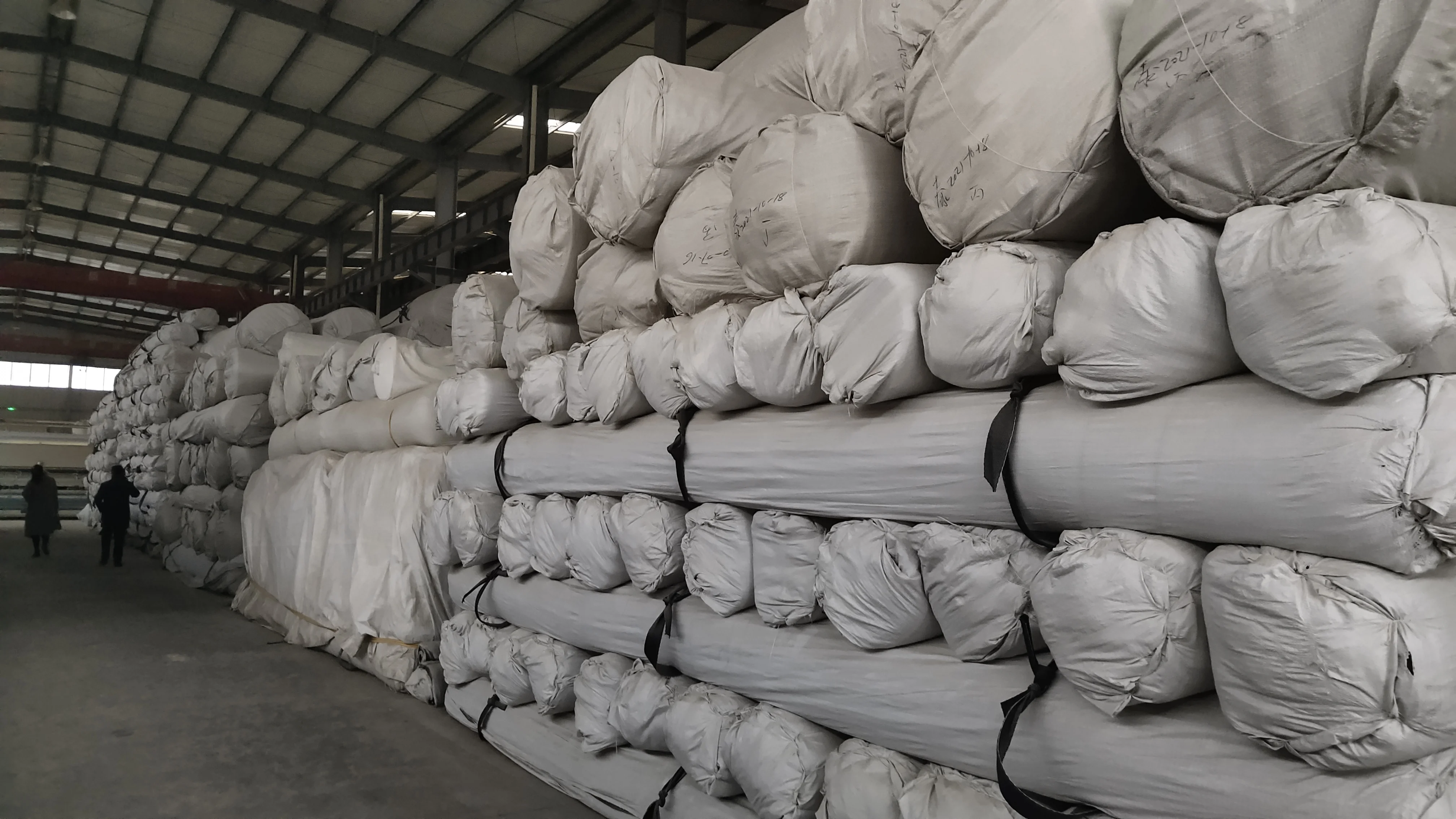

Packing & Delivery
woven bages
Company Profile
VEGAS, as a professional and leading HDPE geomembrane and HDPE Pipe manufacturer with more than 30 years experience, has specialized in the production and marketing of HDPE geomembranes, LDPE&LLDPE geomembranes,HDPE pipe and fittings.
VEGAS owns 20 production lines for HDPE pipe &fittings, 3 HDPE Geomembrane production lines now, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at VEGAS, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States. The management system is certified by ISO9001 and VEGAS's products have passed the CE certification authorized by BTTG.
VEGAS products have been distributed to more than 120 countries around the world. VEGAS is constantly developing and offering creative and excellent performance geosynthetic products, professional technical services, and engineering consulting for reinforcement applications. We always warmly invite new business partners to be members of our worldwide distribution network.
VEGAS owns 20 production lines for HDPE pipe &fittings, 3 HDPE Geomembrane production lines now, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at VEGAS, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States. The management system is certified by ISO9001 and VEGAS's products have passed the CE certification authorized by BTTG.
VEGAS products have been distributed to more than 120 countries around the world. VEGAS is constantly developing and offering creative and excellent performance geosynthetic products, professional technical services, and engineering consulting for reinforcement applications. We always warmly invite new business partners to be members of our worldwide distribution network.

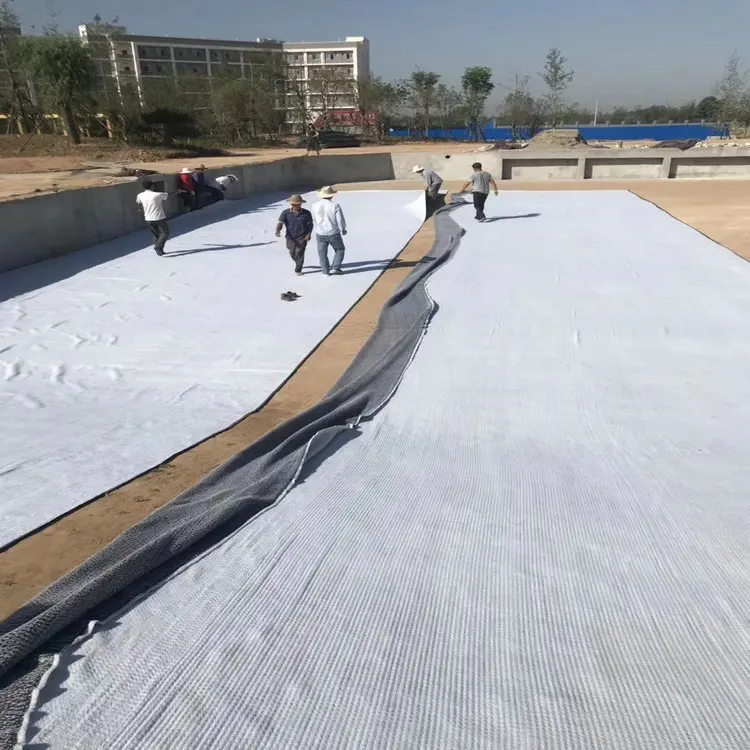

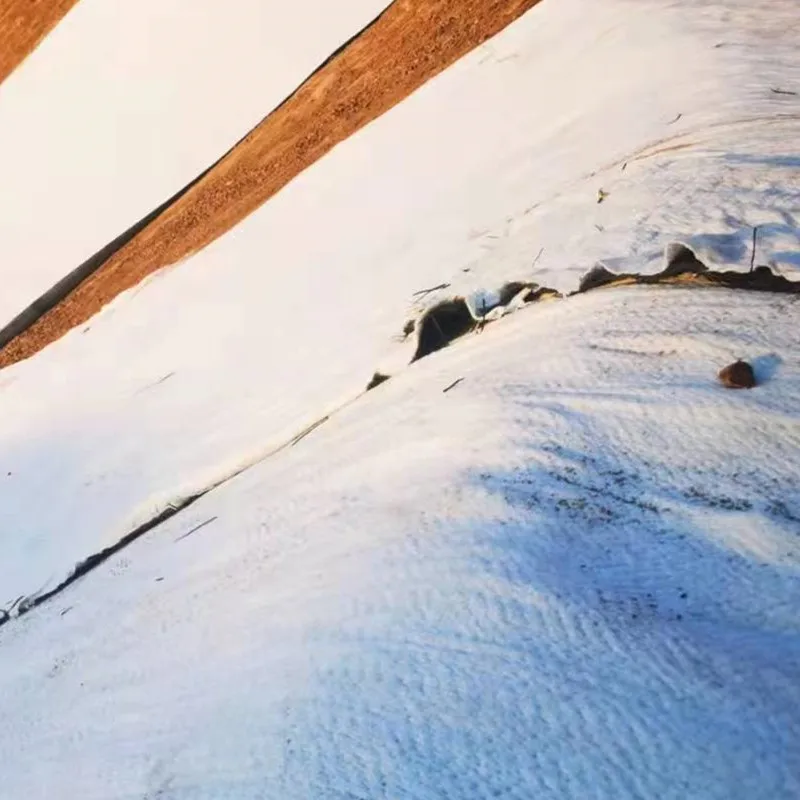

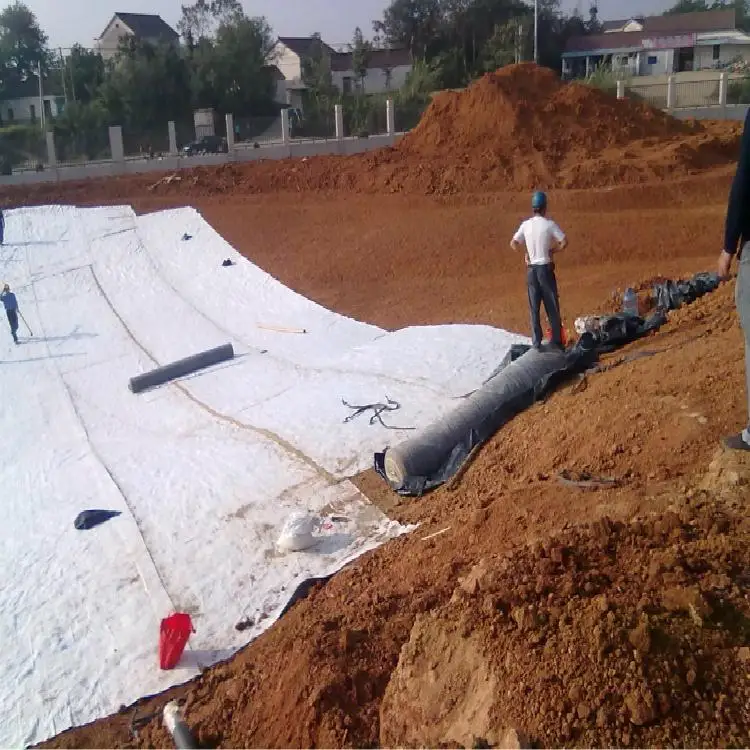

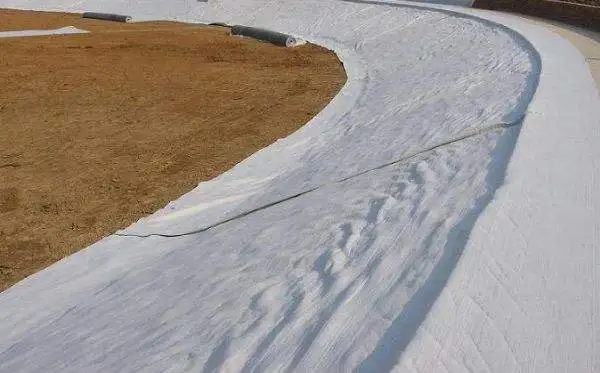

Application
Hydraulic Structure, Basement Lining, Drip Irrigation Ponds,Roof Lining, Waste Water Pits, Ponds
Landfills, Mud Pits, Lagoons, Canals, Bund Lining, Tank Lining, Fish Farm Lining,Ponds and Reservoirs, Dams Floating Covers, Vertical Cutoff Walls,
