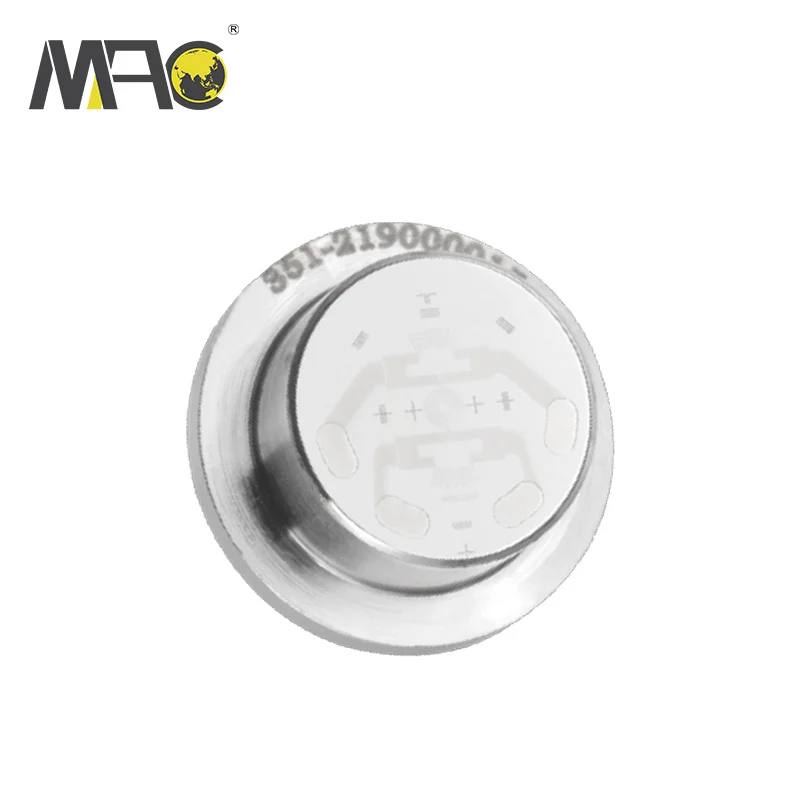

Sputtered Thin Film High Pressure Mechanical Hydraulic Pressure Sensor Price
Product Description
The Sputtered thin film pressure sensors are commonly used in industrial applications, particularly in hydraulic equipment and vehicles, like cranes, steamrollers, forklifts and agricultural machinery. This is because all essential functions of hydraulics require precise tracking of the hydraulic pressures.
The advantage of the sputtered film pressure sensor is that it can withstand high pressure, can work at 25000pa, and has high pressure resistance and burst pressure. Compared with other sensors with the same voltage resistance, it has a lower cost advantage.
1. Wide Pressure Range:
The SFB251 covers a range from 6MPa to 250MPa, while the SFB351 offers a range from 0.5MPa to 250MPa.
- Advantage: Versatile Pressure Monitoring - These sensors enable precise pressure measurements across various systems and applications.
- Benefit: Accurate and Reliable Readings - Ensure accurate pressure monitoring for improved process control and optimization.
2. Compatibility with Gases and Liquids:
Designed for compatibility with stainless steel, both sensors can measure gases and liquids.
- Advantage: Enhanced Application Flexibility - Compatible with a wide range of gases and liquids, these sensors are suitable for diverse industrial processes.
- Benefit: Seamless Integration - Achieve reliable and consistent pressure measurements in your specific application environment.
3. Multiple Pressure Types:
The sensors support gauge pressure and absolute pressure measurements.
- Advantage: Comprehensive Pressure Monitoring - Suitable for monitoring both gauge and absolute pressures, these sensors offer versatility for different pressure measurement requirements.
- Benefit: Precise Pressure Control - Enable accurate pressure control and ensure the safety and efficiency of your processes.
4. Enhanced Accuracy:
The SFB251 provides accuracy levels of ±0.2%F.S, ±0.5%F.S, and ±1%F.S, while the SFB351 offers even higher accuracy levels ranging from ±0.03%F.S to ±1%F.S.
- Advantage: High-Precision Measurements - These sensors deliver highly accurate pressure readings for critical applications.
- Benefit: Improved Quality and Efficiency - Achieve precise process control, reduce waste, and enhance overall product quality.
5. Wide Operating Temperature Range:
Macsensor thin film sensors operate within a temperature range of -40°C to +105°C (or customizable).
- Advantage: Reliable Performance in Harsh Environments - Designed to withstand extreme temperatures, these sensors provide consistent measurements in challenging conditions.
- Benefit: Enhanced Durability and Longevity - Ensure reliable operation and minimize maintenance costs associated with sensor failures.
6. Customizable Solutions:
The sensors can be customized to meet specific application requirements, including pressure range, temperature range, and output options.
- Advantage: Tailored Solutions - Customers can obtain sensors that precisely match their unique application needs.
- Benefit: Optimized Performance - Get pressure sensors that are specifically designed to deliver optimal results in your specific operational environment.
| Models | SFB251 | SFB351 or SFE351 (With pressure mouth+ conditioning circuit) or SFA351 (without step) | ||
| Measuring range(MPa) | 6MPa~250MPa | 0.5MPa~250MPa | ||
| Measuring medium | Gases, liquids compatible with stainless steel | Gases, liquids compatible with stainless steel | ||
| Pressure type | Gauge pressure, absolute pressure | Gauge pressure, absolute pressure | ||
| Accuracy | ±0.2%F.S,±0.5%F.S ,±1%F.S | ±0.03%F.S,±0.05%F.S,±0.1%F.S,±0.2%F.S,±0.5%F.S,±1%F.S | ||
| Working temp. | -40~+105℃ or by customized | -40~+105℃ or by customized | ||
| Long-term stability | ±0.1%F.S/year,±0.2%F.S/year | ±0.2%F.S/year | ||
| Non-linearity | ±0.1%F.S/year, ±0.15%F.S/year | ±0.1%F.S,±0.15%F.S,±0.2%F.S,±0.3%F.S,±0.4%F.S,±0.5%F.S,±0.6%F.S | ||
| Hysteresis | ±0.1%FS | ±0.1%FS | ||
| Repeatability | 0.1%FS | 0.1%FS | ||
| Sensitivity | 1.5±0.20mV/V,1.7±0.20mV/V | 1.3±0.10mV/V,1.4±0.25mV/V,1.5±0.10mV/V,1.7±0.20mV/V | ||
| Burst pressure | 1000%~2000%F.S (the max is ≤400MPa) | 1000%~4000%F.S (the max is ≤400MPa) | ||
| Allowable overload | 150%~200%F.S or by customized | 150%~200%F.S or by customized | ||
| Zero point temp. drift | ±0.01%F.S/℃ | ±0.01%F.S/℃ | ||
| Full range temp. drift | ±0.03%F.S/℃ | ±0.03%F.S/℃ | ||
| Response time | ≤0.1ms | ≤0.1ms | ||
| High reliability | Resistant to 10 million shocks, can be continuously pressurized | Resistant to 10 million shocks, can be continuously pressurized | ||
| Insulation resistance | ≥1000MΩ/500VAC | ≥1000MΩ/500VAC | ||
| Material | 17-4PH | 17-4PH | ||
| Dimensions | Top Part Diameter | Φ5mm | Top Part Diameter | Φ7mm |
| Outer Ring Diameter | Φ7.5mm | Outer Ring Diameter | Φ9.5mm | |
| Base Diameter | Φ5mm | Base Diameter | Φ7mm | |
| Height | 5mm | Height | 5mm | |
| Weight | 1g | 1g | ||
SFB251 Applications:
|
SFB351 Applications:
|
