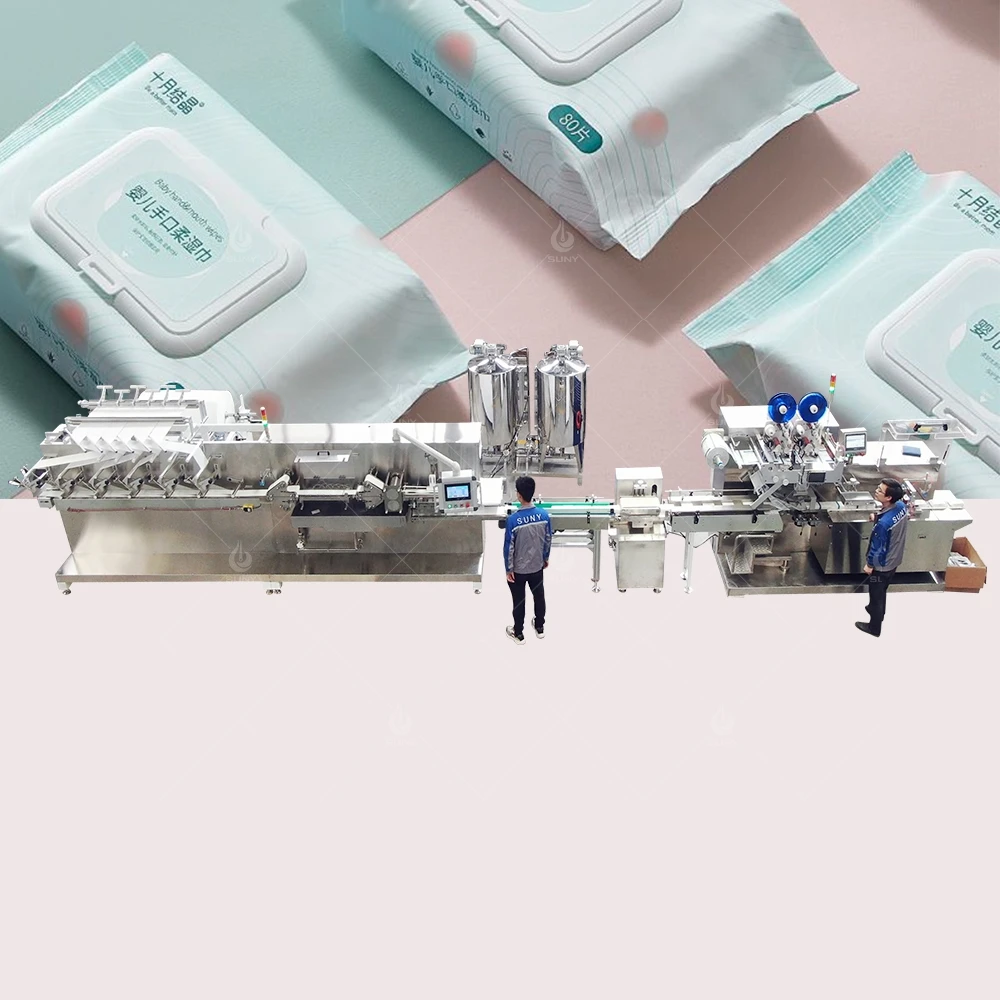

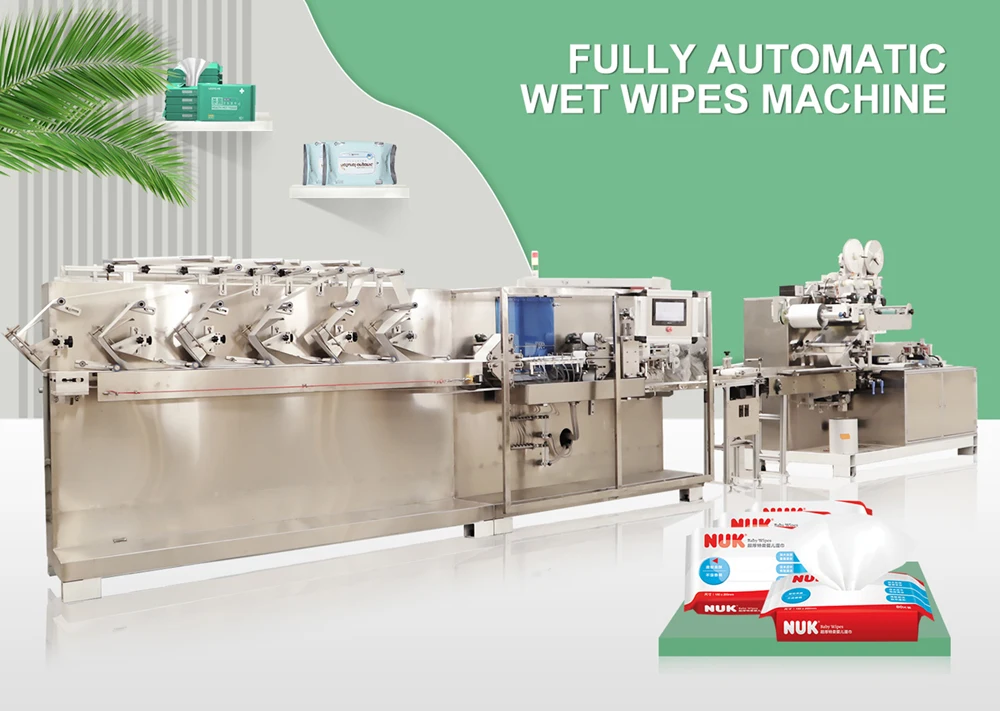

Factory Supply Wet Tissue Wipes Automatic Making and Packaging Machine Baby Wipes Flow Wrapping Production Line Price
- Category: Wet Wipe Making Machines >>>
- Supplier: Zhengzhou,Suny,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
PARAMETER
Product Name | 6 Lines Full Atomatic Wet Wipes Machine |
Power | AC 380V 50HZ/60HZ 18kw |
Capacity | Folding Machine: 2520Pcs/Min 420Cuts/Min |
Packing Machine: 65Bags/Min | |
Lid Machine: 70Bags/Min | |
Weight | 5000 KG |
Size | 9500*2665*2230(mm) |
Support Languages | Chinese, English, French |
Raw Material | Spunlace Nonwoven Fabric, Hot-rolled Non-woven Fabric Dust-free Fabric |
Air supply requirements | 0.6Mpa-0.8Mpa Gas consumption:0.15m³/min |
RAW MATERIALS

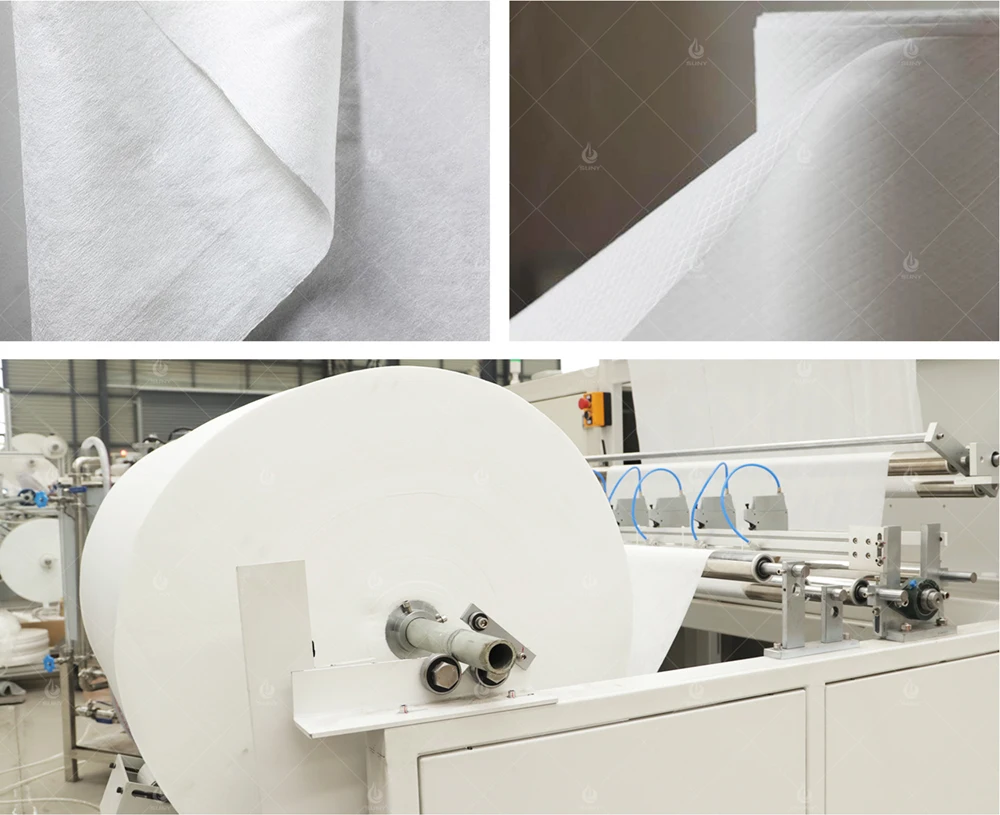

Applicable materials: spunlaced non-woven fabrics,hot-rolled non-woven fabricsand dust-free fabrics.The maximum fabric roll diameter is 1100mm, the maximumcloth roll width is 1200 mm, and the inner diameter of paper core is 76.2mm.

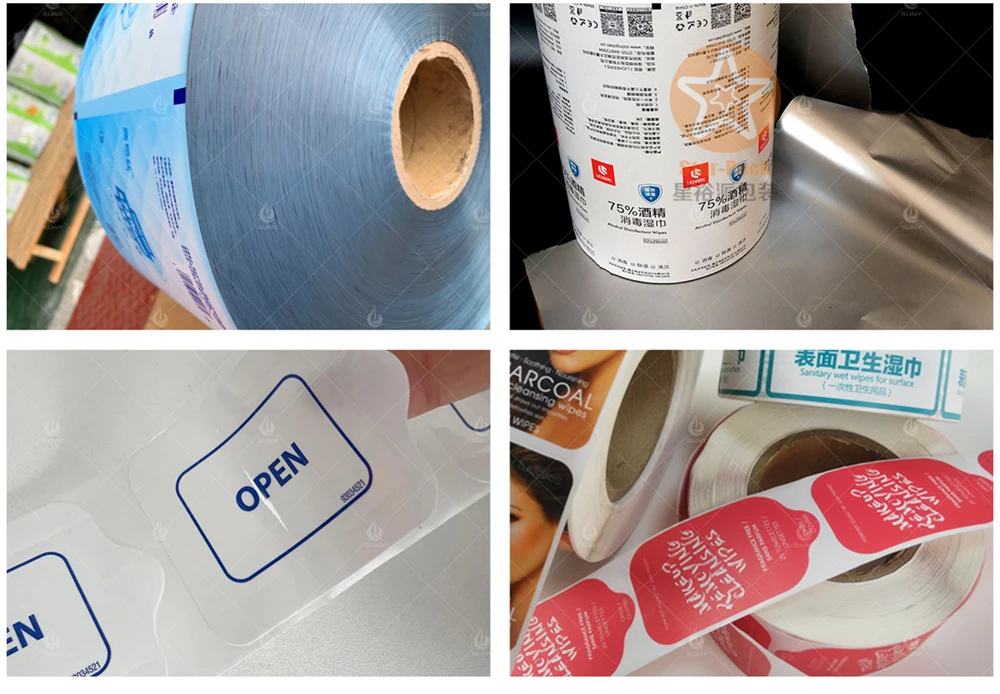

Applicable packaging materials: aluminized film, aluminum foil film PE/PP PO/PPEThickness of package material: 0.07mm-0.09mm
Axis number setting: single axis operation
Axis diameter of envelope: 70-75mm in diameter
Axis diameter of envelope: 70-75mm in diameter
Coil film specification: diameter 350mm width 350mm
Packing size: length (150-230)x width (100-120)x height (20-80)
Packing size: length (150-230)x width (100-120)x height (20-80)
WORKING FLOW

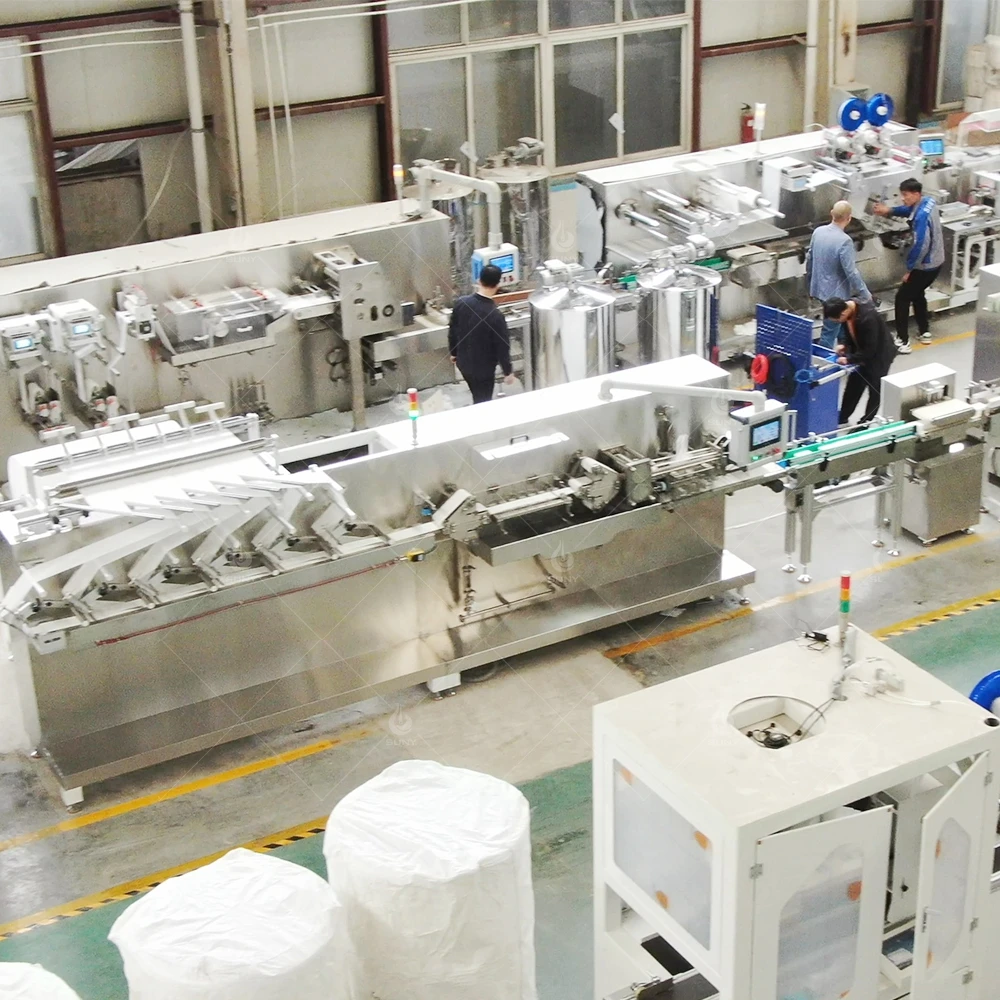

The equipment consists of wet wipes cutting, folding, adding liquid,stacking,bagging and sealing machine. Under the condition that the production speed andwet wipes type are exactly the same as the full-automatic wet wipes machine, theinvestment cost is greatly reduced.The equipment price is cheaper.
CERTIFICATION
