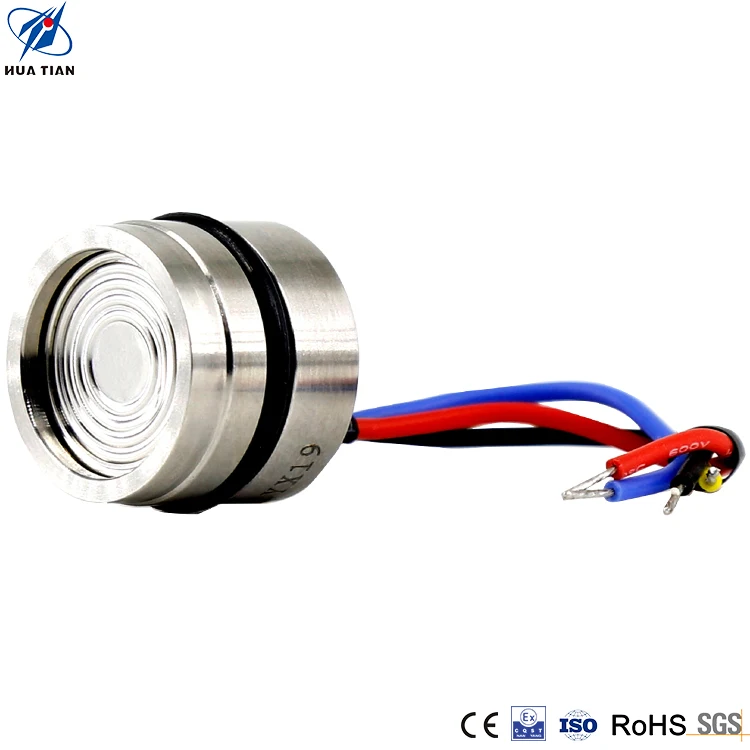

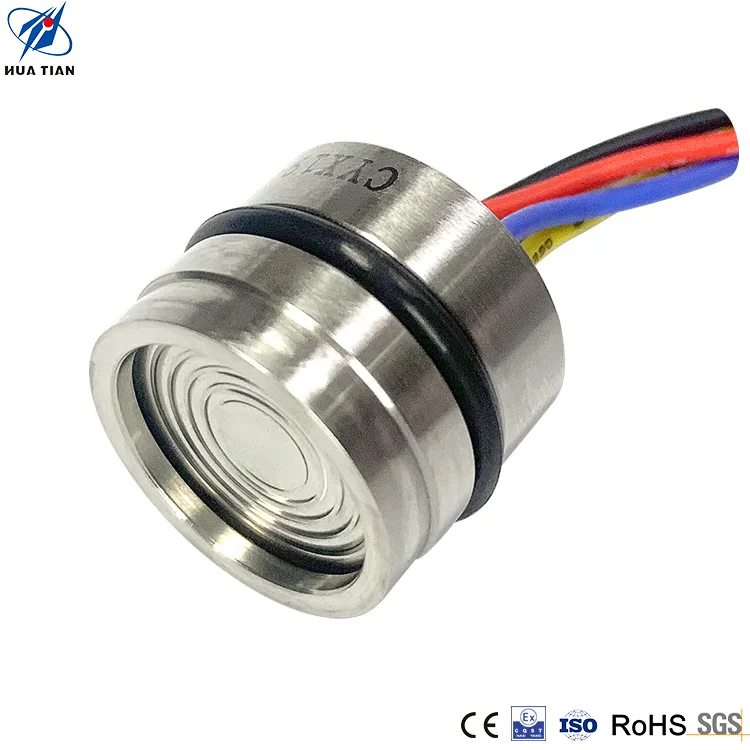

Huatian CYX19 I2C Low Power Consumption High Performance Mini Digital I2C Bus Mode Pressure Sensor 2 Times Full Pressure Scale
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1601201724925):
Product Overview
Description
China Huatian CYX19-I2C OEM ODM wide supply voltage 3.3V/5V I2c output digital stainless steel pressure sensor
Recommend Products
Product Parameters
The piezoresistive pressure sensor
FEATURES:
Imported high precision, high stability force sensitive chips
Adopted advanced technology
Military industry production conditions and equipment manufacturing delicately
Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment
Range | -100kPa~100MPa | |||
Parameters | Typical Value | Maximum Value | Unit | |
Zero Output | ±1 | ±2 | mV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.1 | %FS | |
Repeatability | 0.05 | 0.1 | %FS | |
Input/ Output Impedance | 2.6 | 3.8 | kΩ | |
Zero Temperature Drift* | ±0.15 | ±0.8 | %FS,@25℃ | |
Sensitivity Temperature Drift* | ±0.2 | ±0.7 | %FS,@25℃ | |
Long-term Stability | 0.1 | %FS/year | ||
Excitation Current | 1.5(Max input voltage is 10VDC) | mA | ||
Insulation Resistance | 500(500VDC) | MΩ | ||
Compensation Temperature | 0~50; -10~80 | ℃ | ||
Operating Temperature | -40~+85 | ℃ | ||
Storage Temperature | -40~+125 | ℃ | ||
Response Time | ≤1 | ms | ||
Shell & Diaphragm Material | 316L Stainless Steel | |||
Measuring Medium | The fluid which is compatible with 316L, viton, nitrile rubber | |||
Vibration(20~500Hz) | 20 | G | ||
Useful Time(25℃) | >1*108Pressure Circulation(80%FS) | times | ||
Packing Medium | Silicon Oil / Fluorine Oil | |||
Weight | 36 | g | ||
O Ring | Φ16*1.8mm(nitrile rubber or viton) | |||

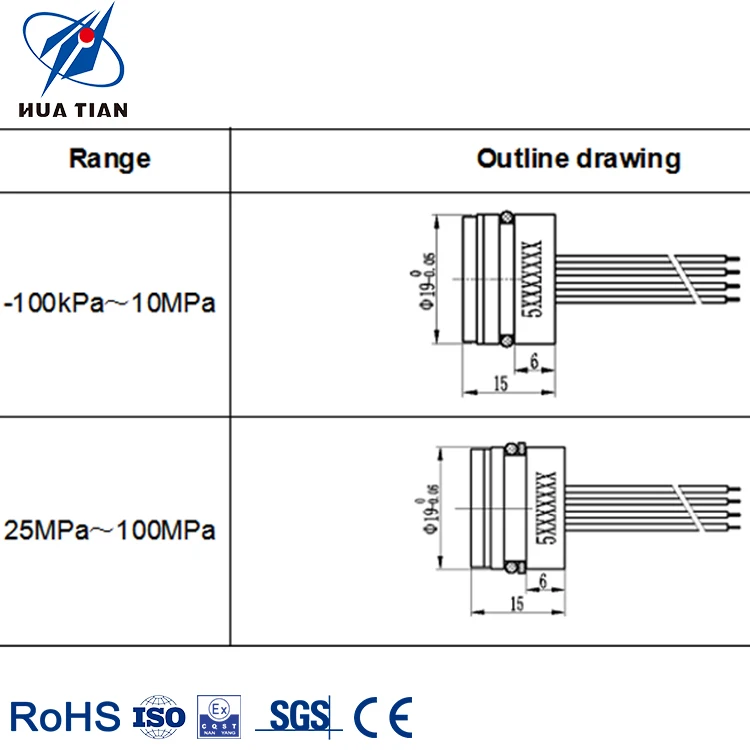

Standard Range
Range | Overload Pressure | Full Scale Output(mV) | Typical Value(mV) | Pressure Form |
0~10 kPa | 300% | 35~60 | 45 | G/D |
0~20 kPa | 300% | 70~110 | 90 | G/D |
0~35 kPa | 300% | 55~80 | 70 | G/A/D |
0~70 kPa | 300% | 55~80 | 60 | G/A/D |
0~100 kPa | 300% | 60~85 | 75 | G/A/D |
0~200 kPa | 300% | 65~85 | 75 | G/A/D |
0~400 kPa | 300% | 60~80 | 70 | G/A/D |
0~600 kPa | 200% | 90~120 | 100 | G/A/D |
0~1.6 MPa | 200% | 80~120 | 100 | G/A/D |
0~1.0 MPa | 200% | 125~185 | 150 | G/A/D |
0~2.0 MPa | 200% | 50~70 | 60 | G/A/D |
0~3.5 MPa | 200% | 100~120 | 110 | G/A/D |
0~7.0 MPa | 200% | 120~150 | 135 | A |
0~10 MPa | 200% | 180~230 | 200 | A |
0~25 MPa | 150% | 140~170 | 150 | A |
0~40 MPa | 150% | 230~280 | 250 | A |
0~60 MPa | 150% | 100~160 | 130 | S |
0~100 MPa | 150% | 100~150 | 120 | S |

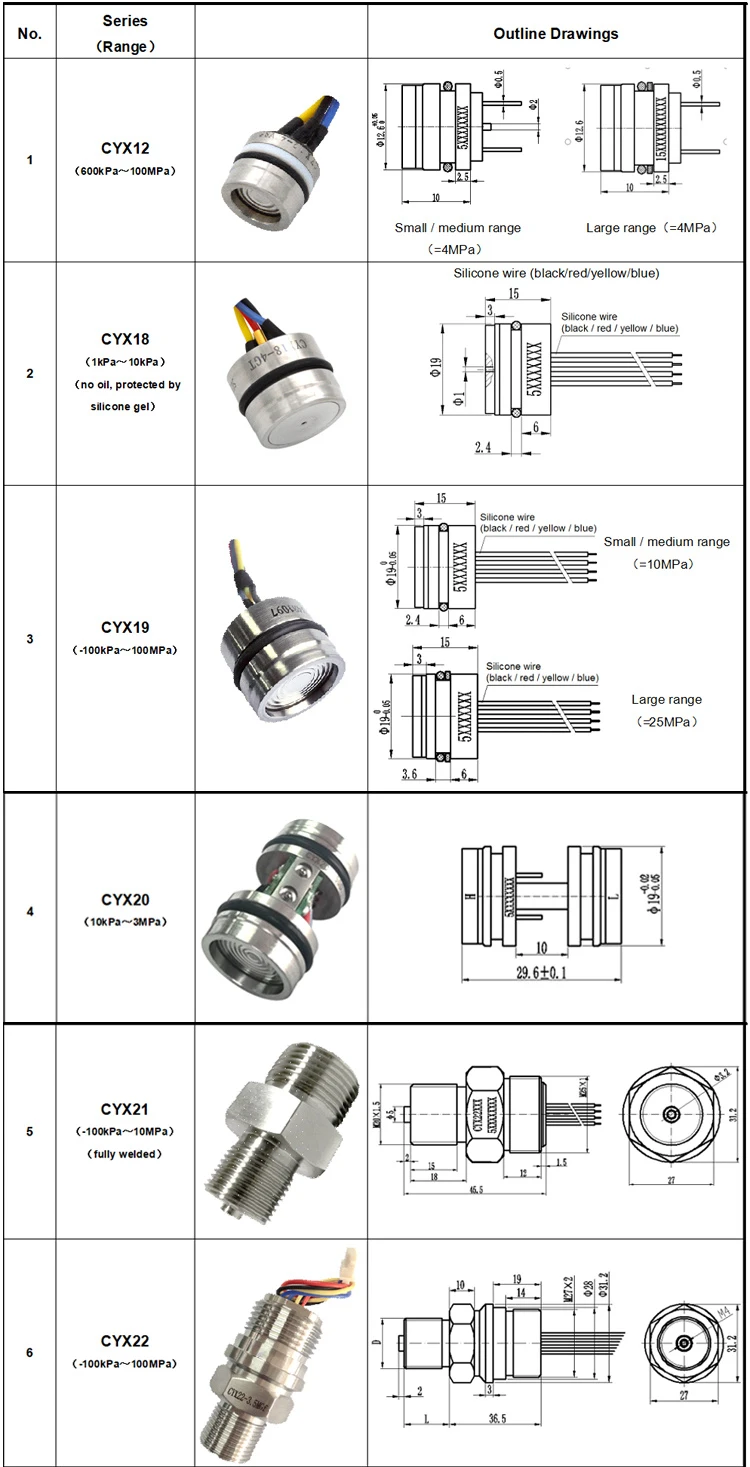

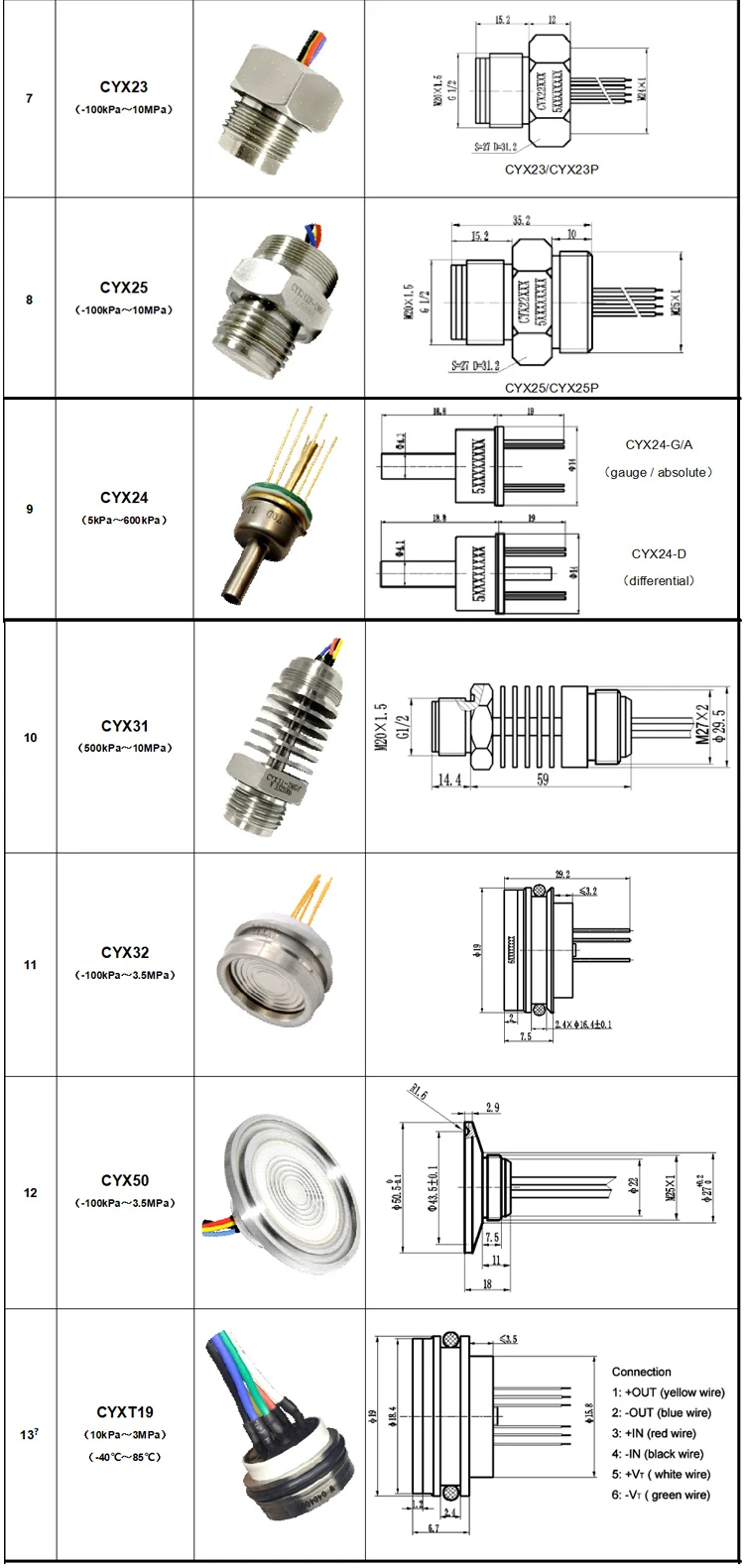

Order Guide
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● refrigeration equipment and air conditioning system
● fire Internet of things

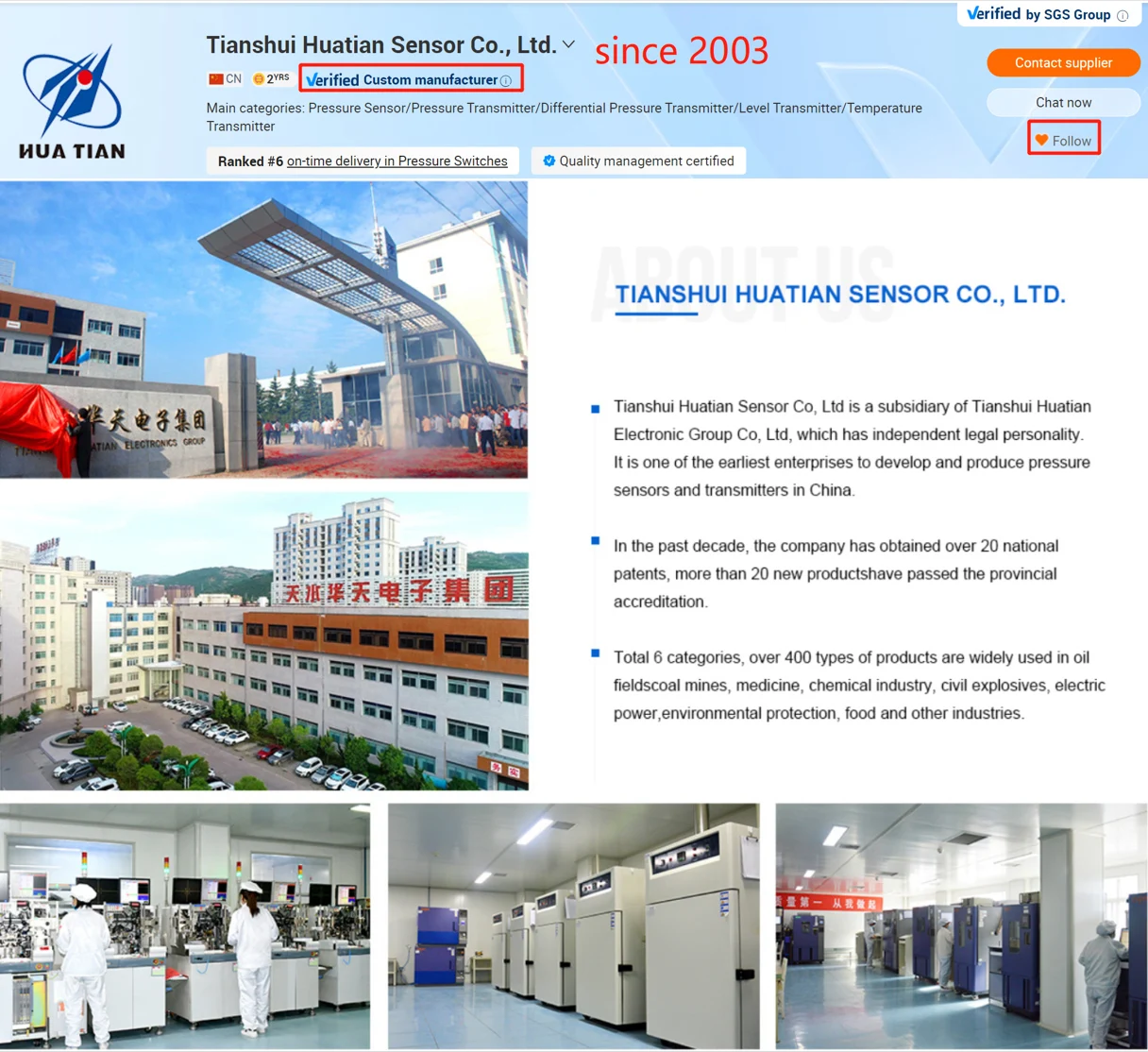

Company Profile
Tianshui Huatian Sensor Co., Ltd.,
High-tech R&D, production, sales and construction of industrial intelligent centralized control
It is one of the earliest enterprises engaged in the R&D and production of pressure sensors and transmitters in China.
* Over 20 national patents, including 5 invention patents
* Over 20 new products have passed the provincial evaluation records

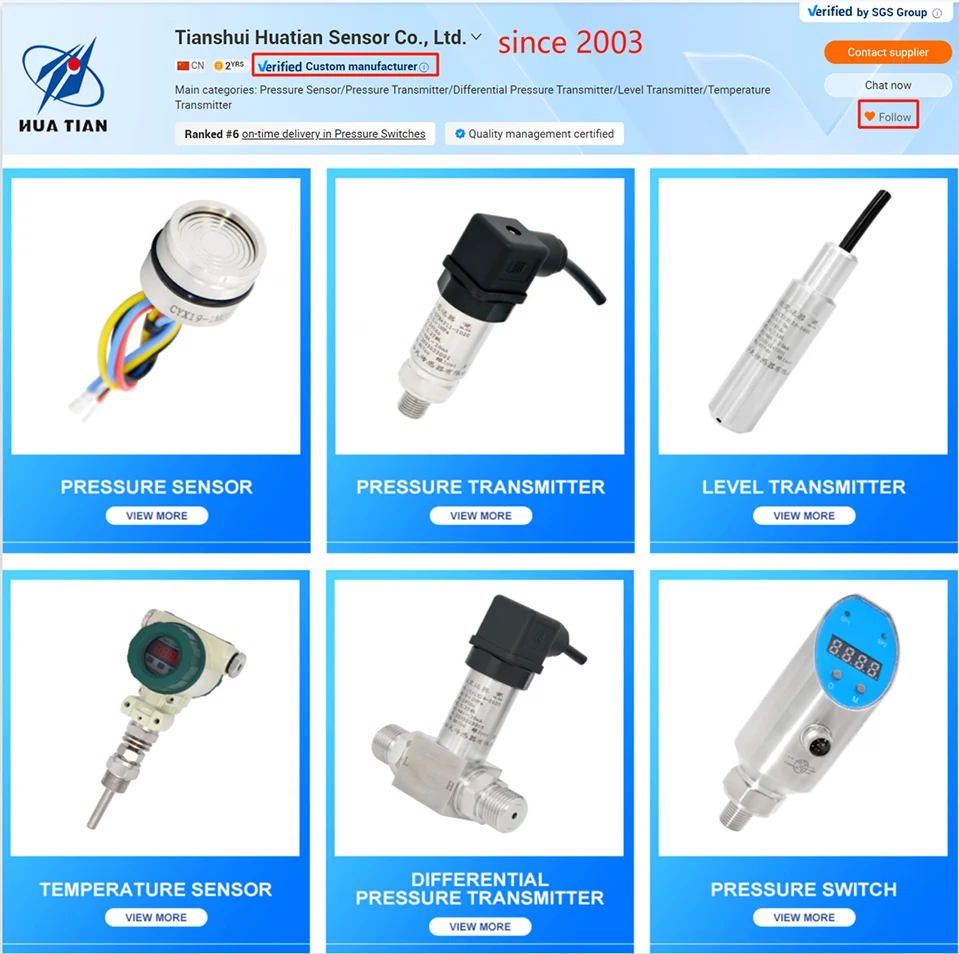

Product categories:
1、MEMS pressure sensor
2、Wireless pressure transmitter
3、Digital intelligent pressure transmitter
4、Special pressure transmitter
Usage: Coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry etc.
Product Packaging
FAQ
Q: What kind of products do you offer?
A: Pressure sensor, level sensor, temperature sensor and digital controllers. Main market is in European countries, American, Middle East and Asia. Certificates are international ones.
Q: How long will you give me the reply?
A: Within 1 hours as soon as we can.
Q: Could I visit your factory?
A: Sincerely welcome your visit.
Q: Do you provide samples?
A: Sure, we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements?
A: We have a complete quality control system that strictly conform to ISO9001:2015, all of our products will be fully pre-inspection by QC dept. before shipping to you.
Q: What are your terms of payment?
A: We could accept T/T, PayPal, WU, Credit card, Trade Assurance online payment.
Q: What is the warranty for your products?
A: 1 year. Lifetime maintenance.
Q: Could you provide me the shortest lead time?
A: Depends on the products you request, we will try our best to satisfy you.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
